ADC-Architecture-Slide11

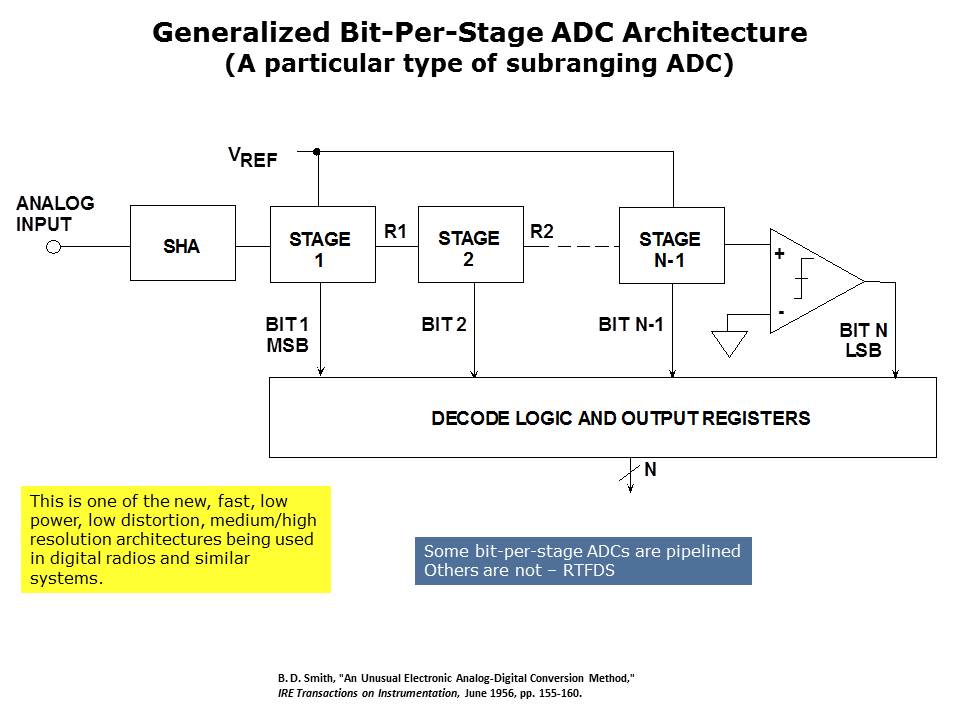

In an article written in 1956, B.D. Smith described two generalized bit-per-stage architectures, one using binary coding, and the other using a folding architecture yielding a Gray code output.
