Chemi-Con

KXL Series Aluminum Electrolytic Capacitors

Chemi-Con's ultra-miniature KXL series of aluminum electrolytic capacitors for LED lighting circuits and other long life, high voltage power applications

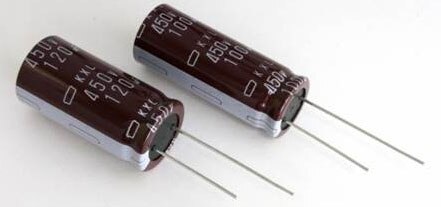

Image of Chemi-Con's KXL Series Aluminum Electrolytic Capacitors Chemi-Con's KXL series radial lead type aluminum electrolytic capacitors are downsized from the barrier-breaking KXJ series of input filters used in many high-reliability applications such as LED (lighting), chargers, buck-boost converters, and miniature switching power supplies.

The KXL series is miniaturized by using higher gain aluminum foils and optimizing the internal structure. This 10 mm to 18 mm diameter long life, high voltage capacitor (up to 450 VDC) is perfect for areas where the KXJ series may be physically too large

Features
  • Endurance: 10,000 h to 12,000 h life @ 105°C
  • Voltage: 400 V to 450 V
  • Capacitance: 15 µF to 150 µF
  • Size: φ10 mm to 18 mm x 20 mm to 50 mm (L)
Applications
  • Ballast lighting/LED lighting
  • Chargers
  • Miniature buck-boost converters
  • Miniature SMPS
Published: 2018-07-12
