ADC-Applications-Slide15

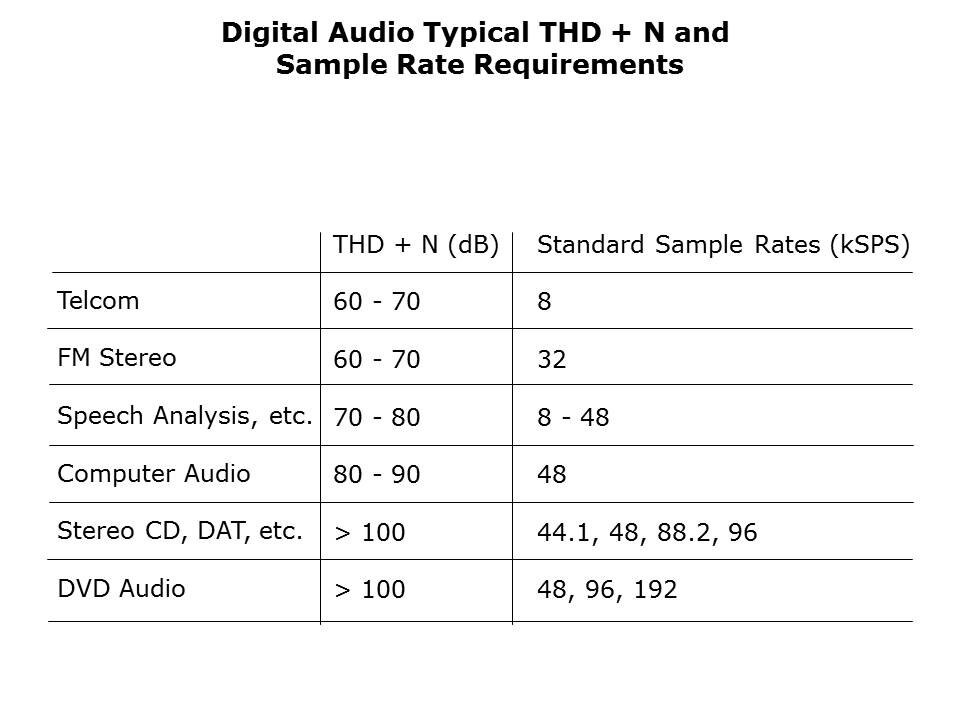

This shows how the typical THD +N and sample rate requirements for various digital audio applications. Note that telcom is the least demanding, while professional stereo CD, DAT, and DVD audio are the most stringent. All of these requirements can be met with modern sigma-delta CMOS ADCs and DACs.

PTM Published on: 2007-10-05
