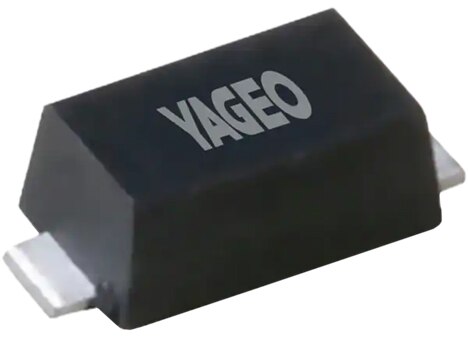

General Purpose SOD-123 SMD Zener Diodes – BZT52C Series
YAGEO’s general purpose Zener diodes are built for voltage regulation applications
Zener diodes are designed to allow reverse current at a set voltage point (Zener voltage). YAGEO's Zener diodes are built for voltage regulation applications, offering 500 mW total power dissipation and 50 µA maximum reverse leakage current and operating in the voltage range of 10 V to 75 V with a maximum junction temperature of +150°C.
Resources
Features
- Fast switching speed
- Total power dissipation max. 500 mW
- Halogen- and antimony-free
- RoHS compliant
- Low noise operation
Applications
- Voltage references
- Shunt regulators
- Waveform clippers
- Circuit protection applications
- Voltage shifters
General Purpose Zener Diodes
| Image | Manufacturer Part Number | Description | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
 |  | BZT52C51W | DIODE ZENER 51V 500MW SOD123 | 51 V | ±5.88% | 500 mW | 3000 - Immediate | $0.18 | View Details |
| | BZT52C10W | DIODE ZENER 10V 500MW SOD123 | 10 V | ±6% | 500 mW | 3000 - Immediate | $0.20 | View Details |
| | BZT52C22W | DIODE ZENER 22V 500MW SOD123 | 22 V | ±5.68% | 500 mW | 3000 - Immediate | $0.20 | View Details |
| | BZT52C47W | DIODE ZENER 47V 500MW SOD123 | 47 V | ±6.38% | 500 mW | 3000 - Immediate | $0.20 | View Details |
| | BZT52C12W | DIODE ZENER 12V 500MW SOD123 | 12 V | ±5.42% | 500 mW | 2890 - Immediate | $0.20 | View Details |
| | BZT52C15W | DIODE ZENER 15V 500MW SOD123 | 15 V | ±6% | 500 mW | 2955 - Immediate | $0.20 | View Details |
| | BZT52C30W | DIODE ZENER 30V 500MW SOD123 | 30 V | ±6.67% | 500 mW | 3000 - Immediate | $0.18 | View Details |
| | BZT52C13W | DIODE ZENER 13V 500MW SOD123 | 13 V | ±6.54% | 500 mW | 2995 - Immediate | $0.18 | View Details |
| | BZT52C43W | DIODE ZENER 43V 500MW SOD123 | 43 V | ±6.98% | 500 mW | 3000 - Immediate | $0.20 | View Details |
| | BZT52C39W | DIODE ZENER 39V 500MW SOD123 | 39 V | ±5.13% | 500 mW | 2985 - Immediate | $0.20 | View Details |
| | BZT52C11W | DIODE ZENER 11V 500MW SOD123 | 11 V | ±5.45% | 500 mW | 2990 - Immediate | $0.20 | View Details |
| | BZT52C27W | DIODE ZENER 27V 500MW SOD123 | 27 V | ±7.04% | 500 mW | 2995 - Immediate | $0.20 | View Details |
| | BZT52C24W | DIODE ZENER 24V 500MW SOD123 | 24 V | ±5.83% | 500 mW | 2995 - Immediate | $0.20 | View Details |
| | BZT52C18W | DIODE ZENER 18V 500MW SOD123 | 18 V | ±6.39% | 500 mW | 3000 - Immediate | $0.18 | View Details |
| | BZT52C33W | DIODE ZENER 33V 500MW SOD123 | 33 V | ±6.06% | 500 mW | 2995 - Immediate | $0.20 | View Details |
| | BZT52C20W | DIODE ZENER 20V 500MW SOD123 | 20 V | ±6% | 500 mW | 3000 - Immediate | $0.20 | View Details |
| | BZT52C36W | DIODE ZENER 36V 500MW SOD123 | 36 V | ±5.56% | 500 mW | 3000 - Immediate | $0.20 | View Details |
| | BZT52C16W | DIODE ZENER 16V 500MW SOD123 | 16 V | ±5.63% | 500 mW | 3000 - Immediate | $0.18 | View Details |
| | BZT52C56W | DIODE ZENER 56V 500MW SOD123 | 56 V | ±7.14% | 500 mW | 3000 - Immediate | $0.25 | View Details |
| | BZT52C62W | DIODE ZENER 62V 500MW SOD123 | 62 V | ±6.45% | 500 mW | 2845 - Immediate | $0.20 | View Details |
Published: 2023-10-19
