ACEPACK­™ 1/ACEPACK™ 2 Power Modules

STMicroelectronics offers the ACEPACK 1 and ACEPACK 2 six-pack/CIB topology, 650/1200 V, 15 A to 75 A, trench gate field-stop IGBT M series, soft diode and NTC

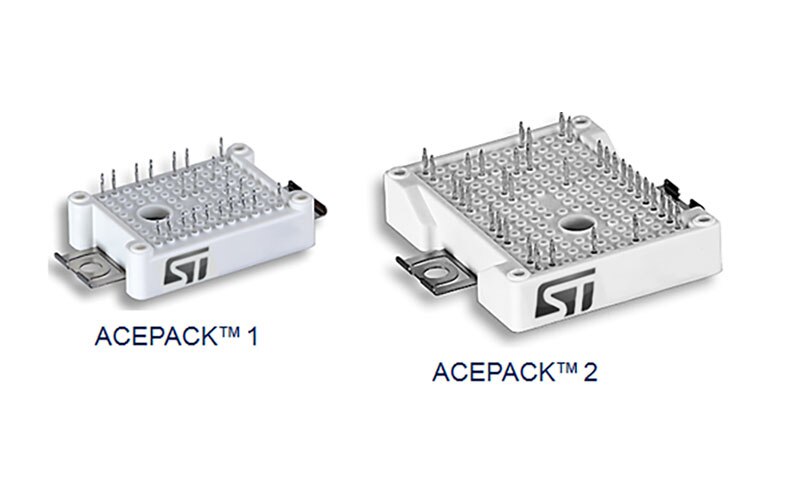

Image of STMicroelectronics' ACEPACK­™ M Series Soft Diode and NTCSTMicroelectronics' offers the ACEPACK 1 and ACEPACK 2 power modules with six-pack and converter + inverter + brake (CIB) topologies in industrial power applications. This includes industrial motor drives, solar panels, welding tools, and power management solutions.

With an embedded NTC thermistor, these highly reliable power modules offer the best compromise between conduction and switching loss, maximizing the efficiency of any converter system up to 20 kHz in hard-switching circuitry for an application range from 3 kW to 30 kW.

STMicroelectronics' power semiconductor devices offer press-fit and additional solder options for flexible and stable mounting.

Thanks to their high configuration flexibility, these robust power modules can implement other topologies on different IGBT, MOSFET, and SiC power switching applications, ensuring both a compact design and cost-effective system.

Features
  • Compact module concept
  • Configuration flexibility
  • Press FIT and solder pin options
  • High power density
  • Reliable and easy mounting system
  • Integrated temperature sensor available
  • Low stray inductance module design
  • PCB layout design
  • High reliability and quality
  • RoHS compliant modules
Applications
  • E-chargers
  • Welding
  • Solar
  • Industrial
  • Automation
  • Fans
  • Motor drivers
  • UPS

ACEPACK­™ 1/ACEPACK™ 2 Power Modules

ImageManufacturer Part NumberDescriptionVoltage - Collector Emitter Breakdown (Max)Current - Collector (Ic) (Max)Power - MaxAvailable QuantityPriceView Details
IGBT MODULE 1200V 15A ACEPACK 1A1C15S12M3IGBT MODULE 1200V 15A ACEPACK 11200 V15 A142.8 W0 - Immediate$313.60View Details
IGBT MODULE 1200V 15A ACEPACK 1A1C15S12M3-FIGBT MODULE 1200V 15A ACEPACK 11200 V15 A142.8 W0 - Immediate$319.17View Details
IGBT MODULE 1200V 25A ACEPACK 1A1P25S12M3IGBT MODULE 1200V 25A ACEPACK 11200 V25 A197 W0 - Immediate$206.18View Details
IGBT MODULE 1200V 25A ACEPACK 1A1P25S12M3-FIGBT MODULE 1200V 25A ACEPACK 11200 V25 A197 W0 - Immediate$301.38View Details
IGBT MODULE 1200V 35A ACEPACK 1A1P35S12M3IGBT MODULE 1200V 35A ACEPACK 11200 V35 A250 W0 - Immediate$237.16View Details
IGBT MODULE 1200V 35A ACEPACK 1A1P35S12M3-FIGBT MODULE 1200V 35A ACEPACK 11200 V35 A250 W0 - Immediate$243.94View Details
IGBT MODULE 1200V 25A ACEPACK 2A2C25S12M3IGBT MODULE 1200V 25A ACEPACK 21200 V25 A197 W0 - Immediate$407.55View Details
IGBT MODULE 1200V 25A ACEPACK 2A2C25S12M3-FIGBT MODULE 1200V 25A ACEPACK 21200 V25 A197 W0 - Immediate$313.63View Details
IGBT MODULE 1200V 35A ACEPACK 2A2C35S12M3IGBT MODULE 1200V 35A ACEPACK 21200 V35 A250 W0 - Immediate$338.80View Details
IGBT MODULE 1200V 35A ACEPACK 2A2C35S12M3-FIGBT MODULE 1200V 35A ACEPACK 21200 V35 A250 W0 - Immediate$343.64View Details
IGBT MODULE 1200V 75A ACEPACK 2A2P75S12M3IGBT MODULE 1200V 75A ACEPACK 21200 V75 A454.5 W0 - Immediate$396.88View Details
IGBT MODULE 1200V 75A ACEPACK 2A2P75S12M3-FIGBT MODULE 1200V 75A ACEPACK 21200 V75 A454.5 W0 - Immediate$403.66View Details
IGBT MOD 650V 50A 208W ACEPACK 1A1P50S65M2IGBT MOD 650V 50A 208W ACEPACK 1650 V50 A208 W0 - Immediate$301.38View Details
IGBT MOD 650V 50A 208W ACEPACK 2A2C50S65M2IGBT MOD 650V 50A 208W ACEPACK 2650 V50 A208 W0 - Immediate$421.25View Details
