Subminiature SMT Fuses Protect LED Lighting - 476 Series

Littelfuse's 476 series subminiature SMT fuses are designed for compact devices

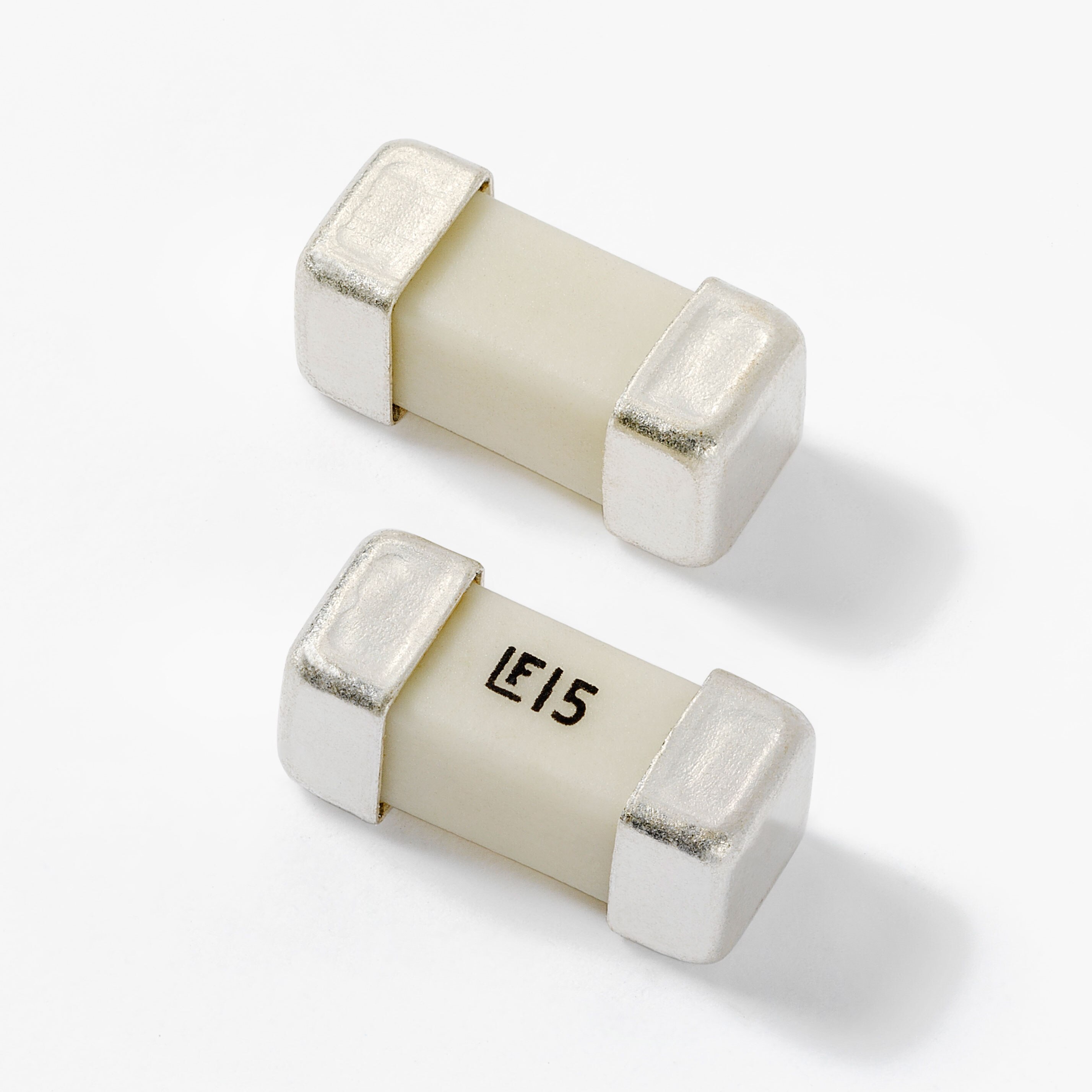

Image of Littelfuse's 476 Series Subminiature SMT FusesLittelfuse's 476 series are a family of 250 V rated fuses with a very small 2410 footprint. It is currently the smallest SMD fuse with this high voltage rating and is designed to mainly serve as primary side circuit protection for compact devices with high voltage requirements.

Features
  • Small 2410 footprint
  • 250 V rating (1 A to 5 A)
  • High interrupting ratings fast-acting
  • Designed in accordance with IEC 60127-4 universal modular fuse requirement
  • RoHS compliant and halogen-free
  • Wide operating temperature range of -55°C to +125°C
  • IEC 61000-4-5 2nd ed. Surge Immunity Test compliant (1.2 µs x 50 µs/8 µs x 20 µs combination wave 500 V/250 A for < 25 W lamp category) 3 A and above ampere rating only

0476 Series Silver Plated Brass

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
FUSE BRD MT 1A 250VAC 125VDC SMD0476001.MRFUSE BRD MT 1A 250VAC 125VDC SMD230 - Immediate$12.74View Details
FUSE BRD MT 2A 250VAC 125VDC SMD0476002.MRFUSE BRD MT 2A 250VAC 125VDC SMD3763 - Immediate$12.74View Details
FUSE BRD MT 3A 250VAC 125VDC SMD0476003.MRFUSE BRD MT 3A 250VAC 125VDC SMD374 - Immediate
1000 - Factory Stock		$12.74View Details
FUSE BRD MT 4A 250VAC 125VDC SMD0476004.MRFUSE BRD MT 4A 250VAC 125VDC SMD2890 - Immediate$12.74View Details
FUSE BRD MT 5A 250VAC 125VDC SMD0476005.MRFUSE BRD MT 5A 250VAC 125VDC SMD2860 - Immediate$12.74View Details
FUSE BRD MNT 7A 125VAC/VDC 2SMD0476007.MRFUSE BRD MNT 7A 125VAC/VDC 2SMD2348 - Immediate$12.74View Details
FUSE BRD MNT 8A 125VAC/VDC 2SMD0476008.MRFUSE BRD MNT 8A 125VAC/VDC 2SMD884 - Immediate$12.74View Details
FUSE BRD MT 1.6A 250VAC 125VDC047601.6MRFUSE BRD MT 1.6A 250VAC 125VDC875 - Immediate$12.74View Details
FUSE BRD MNT 10A 125VAC/VDC 2SMD0476010.MRFUSE BRD MNT 10A 125VAC/VDC 2SMD248 - Immediate$12.74View Details
FUSE BRD MNT 12A 125VAC/VDC 2SMD0476012.MRFUSE BRD MNT 12A 125VAC/VDC 2SMD623 - Immediate$21.12View Details
FUSE BRD MNT 15A 125VAC/VDC 2SMD0476015.MRFUSE BRD MNT 15A 125VAC/VDC 2SMD498 - Immediate$21.12View Details
FUSE BRD MNT 250VAC/125VDC 2SMD047602.5MRFUSE BRD MNT 250VAC/125VDC 2SMD2731 - Immediate$12.74View Details
FUSE BRD MT 3.5A 250VAC 125VDC047603.5MRFUSE BRD MT 3.5A 250VAC 125VDC171 - Immediate$12.74View Details
FUSE BRD MNT 1.25A 250VAC 125VDC04761.25MRFUSE BRD MNT 1.25A 250VAC 125VDC90 - Immediate$12.74View Details

0476 Series Silver Plated Brass/Sn Dipped

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
FUSE BRD MT 1A 250VAC 125VDC SMD0476001.MRSNFUSE BRD MT 1A 250VAC 125VDC SMD2081 - Immediate$12.74View Details
FUSE BRD MT 2A 250VAC 125VDC SMD0476002.MRSNFUSE BRD MT 2A 250VAC 125VDC SMD991 - Immediate$12.74View Details
FUSE BRD MT 4A 250VAC 125VDC SMD0476004.MRSNFUSE BRD MT 4A 250VAC 125VDC SMD1741 - Immediate$12.74View Details
FUSE BRD MNT 15A 125VAC/VDC 2SMD0476015.MRSNFUSE BRD MNT 15A 125VAC/VDC 2SMD5326 - Immediate$21.12View Details
FUSE BRD MNT 6.3A 125VAC/VDC SMD047606.3MRSNFUSE BRD MNT 6.3A 125VAC/VDC SMD820 - Immediate$12.74View Details
Published: 2018-03-27
