CLL-Slide8

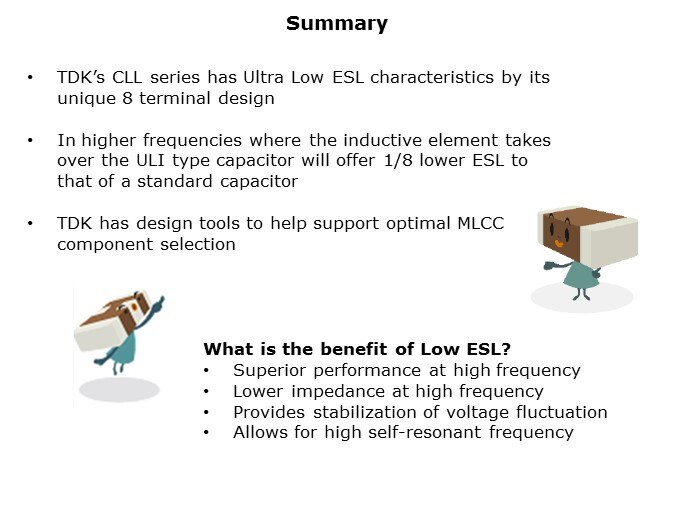

In summary, TDK’s CLL Series features ultra low inductance and a unique eight terminal design. These terminals are connected in an alternating current flow configuration which results in the cancellation of the magnetic field, ultra low inductance, and reduced parasitic losses. Since the clock frequency of the CPU is constantly increasingly, this CLL series becomes a great solution based product for higher frequency applications requiring decoupling capacitors.
