CLL-Slide3

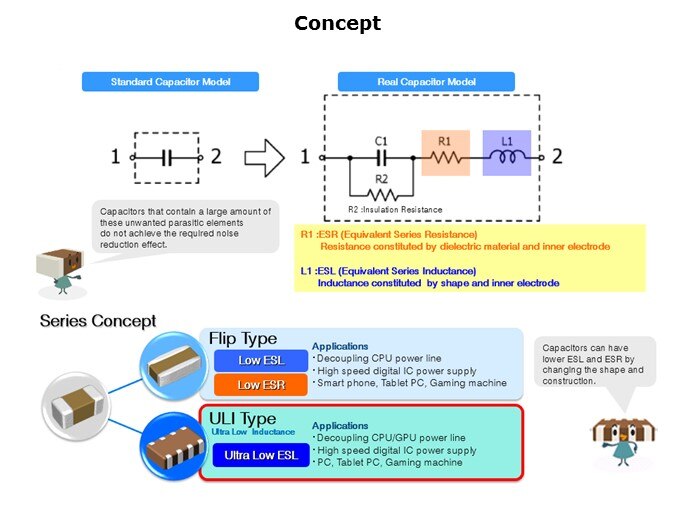

All capacitors include unwanted parasitic elements called ESL and ESR that cause power reduction and noise generation. TDK’s Reverse Geometry or Flip Type capacitors are designed to operate with minimal effects from these parasitic elements. The Flip Type or “Reverse Geometry” has low ESL and ESR that are improved by reversing the terminal electrode length and width. The “ULI Type” has ultra low ESL that is created by alternating the flow of current so the magnetic fields cancel out.

PTM Published on: 2013-10-03
