Multilayer High-Performance Piezoelectric Actuators – AHB Series
KEMET’s multilayer piezoelectric actuators are ceramic elements used to convert electrical energy into mechanical energy
The AHB series multilayer piezoelectric actuators from KEMET, a YAGEO Company, are produced based on a unique element structure design and piezoelectric ceramic materials with high electrostrictive factors. Compared to conventional piezoelectric actuators, they are smaller in size but can generate higher displacements and forces at low voltages. The AHB metal sealed +85°C high-performance series actuators are less impacted by ambient humidity due to insulation from the atmosphere. As a result, long operational life and high performance have been attained, which are ideal for use in various high-reliability applications such as semiconductor device production equipment and optical communication equipment.
Resources

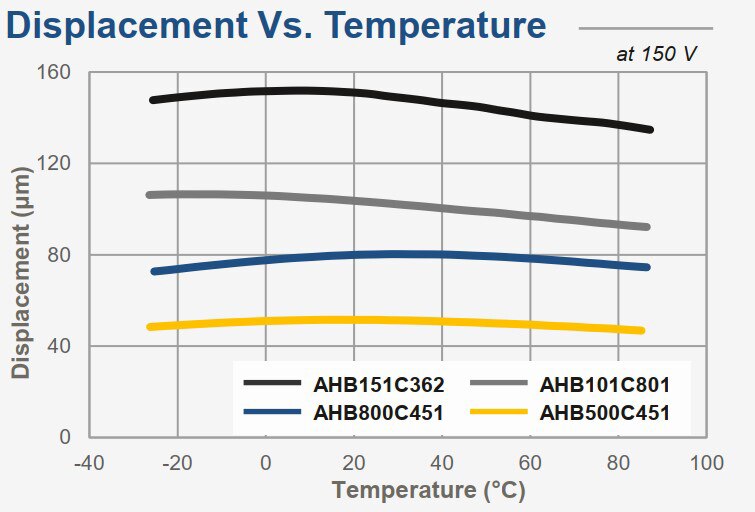

- AHB Actuator Displacement vs Temperature
- AHB Actuator Displacement vs Voltage
- AHB Metal Sealed Actuators Lineup G Force
Benefits
- Built-in pre-load mechanism and mounting attachments allow for easier installation into equipment
- Accurate nanometer positioning
- Operating temperature range of -25°C to +85°C
- Minimum mechanical abrasion
- High reliability: Realization of MTTF = 36,000 hours at +85°C and 100 V
- Large displacement type
- Large generated force of 800 N
- Long operational life
Applications
- Typical applications include fine adjustment of various X-Y table steppers
- Mirror/prism positioning
- Linear motors
- Fluid flow control valve drives, vibration sources, and manipulators
Multilayer High-Performance Piezoelectric Actuators – AHB Series
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | AHB800C451WD1-A0LF | SOLENOID PIEZO METAL 80UM 450N | 2 - Immediate | $8,150.08 | View Details |
|  | AHB500C451WD1-A0LF | ACTUATOR PEIZO METAL CASE 150V | 0 - Immediate | $5,868.00 | View Details |
|  | AHB550C801WD1-A0LF | AHB, METAL SEALD, 55UM,800N, WIT | 2 - Immediate | $6,700.61 | View Details |
|  | AHB700C801WD1-A0LF | AHB, METAL SEALD, 70UM, 800N, WI | 3 - Immediate | $6,915.07 | View Details |
| | AHB550C172WD1-A0LF | AHB, METAL SEALD, 52UM, 1700N, W | 2 - Immediate | $7,811.01 | View Details |
|  | AHB800C801WD1-A0LF | AHB, METAL SEALD, 80UM, 800N, WI | 2 - Immediate | $8,620.10 | View Details |
|  | AHB800C801ND0LF | AHB, METAL SEALD, 80UM, 800N, FE | 2 - Immediate | $9,246.53 | View Details |
|  | AHB800C801FD0LF | AHB, METAL SEALD, 80UM, 800N, FL | 2 - Immediate | $9,246.53 | View Details |
|  | AHB700C801ND0LF | AHB, METAL SEALD, 70UM, 800N, FE | 1 - Immediate | $8,882.82 | View Details |
|  | AHB550C801FD0LF | AHB, METAL SEALD, 55UM, 800N, FL | 4 - Immediate | $7,457.28 | View Details |
|  | AHB101C801FD0LF | AHB, METAL SEALD, 103UM, 800N, F | 0 - Immediate | $12,763.97 | View Details |
| | AHB550C302WD1-A0LF | AHB, METAL SEALD, 52UM, 3000N, W | 0 - Immediate | $12,835.26 | View Details |
|  | AHB101C362WD1-A0LF | AHB, METAL SEALD, 95UM, 3600N, W | 1 - Immediate | $21,306.30 | View Details |
| | AHB151C362WD1-A0LF | AHB, METAL SEALD, 140UM, 3600N, | 4 - Immediate | $30,172.80 | View Details |
|  | AHB550C801ND0LF | AHB, METAL SEALD, 55UM, 800N, FE | 0 - Immediate | $6,350.11 | View Details |
|  | AHB700C801FD0LF | AHB, METAL SEALD, 70UM, 800N, FL | 0 - Immediate | $7,652.35 | View Details |
|  | AHB101C801WD1-A0LF | AHB, METAL SEALD, 103UM, 800N, W | 0 - Immediate | $10,422.37 | View Details |
|  | AHB101C801ND0LF | AHB, METAL SEALD, 103UM, 800N, F | 0 - Immediate | $11,096.90 | View Details |
| | AHB700C302WD1-A0LF | AHB, METAL SEALD, 68UM, 3000N, W | 0 - Immediate | $13,398.27 | View Details |
| | AHB101C302WD1-A0LF | AHB, METAL SEALD, 95UM, 3000N, W | 0 - Immediate | $17,419.04 | View Details |
