SOIC8 Boost Demonstration Evaluation Board - NCP3066SCBSTGEVB

This video demonstrates some of the features and capabilities of the NCP3066SCBSTGEVB evaluation board. The NCP3066SCBSTGEVB evaluation board from onsemi is a monolithic switching regulator designed to deliver constant current for powering high brightness LEDs. The device has a very low feedback voltage of 235 mV (nominal) which is used to regulate the average current of the LED string. Understand how to set-up and measure results for this board to optimize efficiency.

11/2/2015 7:34:51 PM

SOIC8 Boost Demonstration Evaluation Board - NCP3066SCBSTGEVB

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
EVAL BOARD FOR NCP3066NCP3066DFSEPGEVBEVAL BOARD FOR NCP30660 - ImmediateSee Page for PricingView Details
IC LED DRVR RGLTR PWM 1.5A 8SOICNCP3066DR2GIC LED DRVR RGLTR PWM 1.5A 8SOIC4118 - Immediate
7500 - Factory Stock		$17.02View Details
IC LED DRVR RGLTR PWM 1.5A 8DFNNCP3066MNTXGIC LED DRVR RGLTR PWM 1.5A 8DFN4000 - Immediate$5.13View Details
EVAL BOARD FOR NCP3066NCP3066S3BCKGEVBEVAL BOARD FOR NCP30660 - ImmediateSee Page for PricingView Details
EVAL BOARD FOR NCP3066NCP3066SCBSTGEVBEVAL BOARD FOR NCP30661 - Immediate$644.29View Details

Related Videos

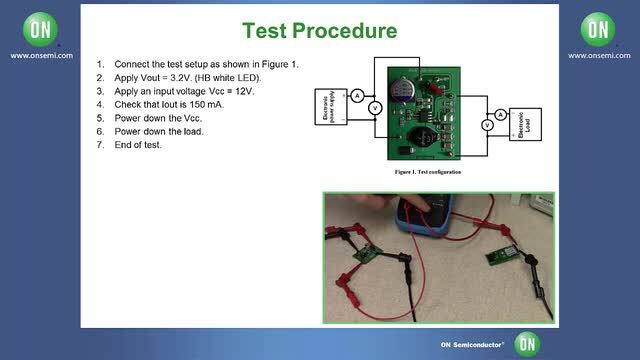

SOIC8 Buck Demonstration Evaluation Board - NCP3066SCBCKGEVB
