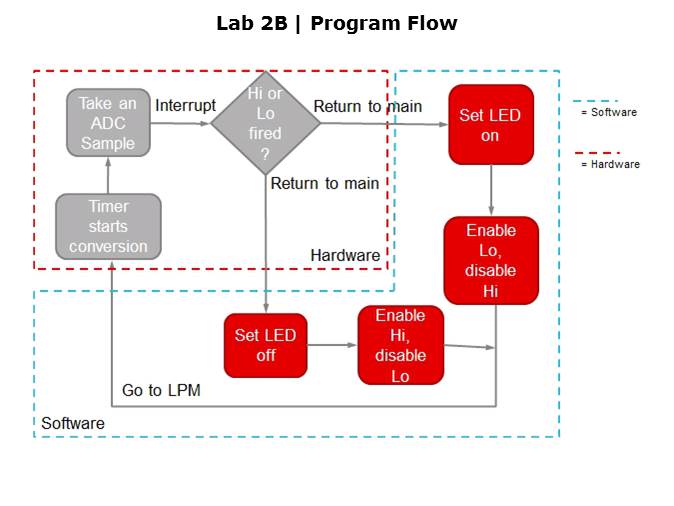

The flow chart shown here outlines the sequence of events and the decision logic. The flow starts with the timer triggering the start of conversion followed by which the ADC takes a sample on channel A2. The converted result is then compared against the window com thresholds. Depending on the result, the CPU is turned on to turn an LED on or off. The device then returns to LPM to wait for the next timer triggered conversion.
PTM Published on: 2014-06-24
