MSP430FR5969 LaunchPad Part 7 Slide 2

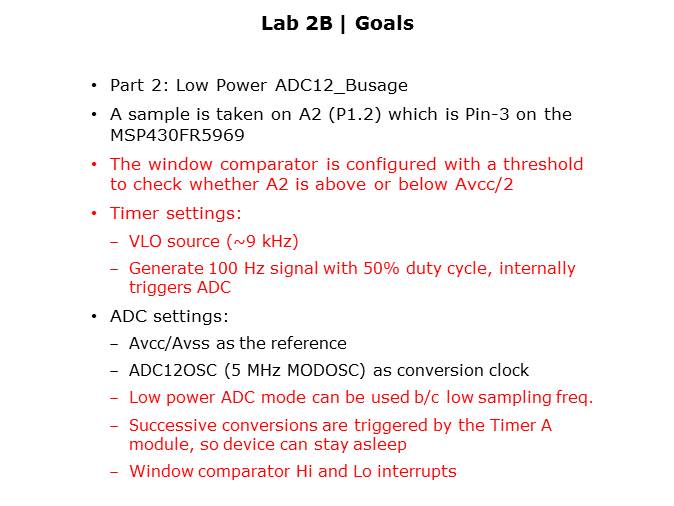

In the second lab, the engineer will change some of the settings previously used. The main goal here is to make the sample conversion cycle fully automatic. Also, the decision control is removed from software and done in hardware using the window comparator. This being about more power savings.
