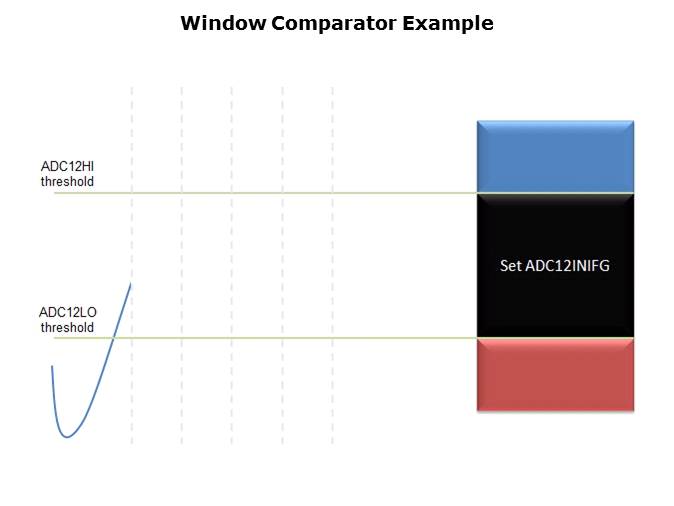

The following series of slides present an example of when the window comparator interrupt flags are fired. Considering the input signal shown on this slide, the ADC Window comparator flags are set in conjunction with the signal passing the threshold levels. Starting on this slide, the ADC reads a sample that is between the two thresholds, and sets the ADC12INIFG flag.
