PCI-Slide8

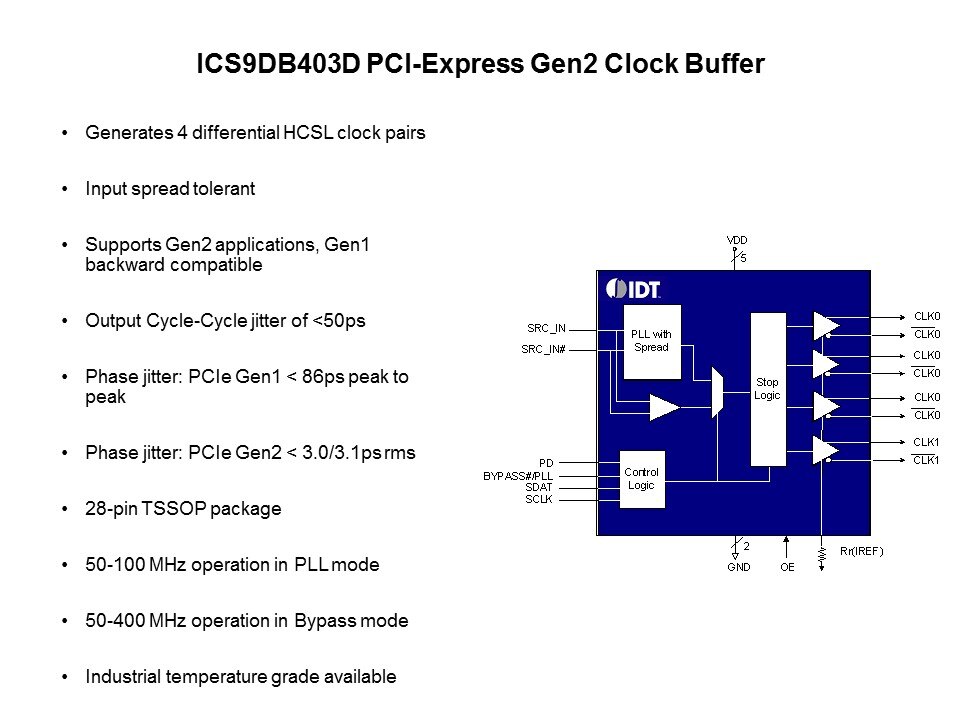

The ICS9DB403D is a 4-output PCIe Gen1 and Gen2 compliant clock buffer, offering a wide array of output frequencies by utilizing the internal PLL, or the PLL Bypass mode. This device input is spread tolerant, meaning that the PCI-Express input clock can already have spread spectrum applied to it before it is buffered out. This device is available in commercial and industrial temperature variations and is packaged in a 28-TSSOP. For similar devices with more outputs, please consult https://www.renesas.com/us/en.

PTM Published on: 2011-09-02
