FFC3B11-10-T
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

FFC3B11-10-T

DigiKey Part Number
2073-FFC3B11-10-TTR-ND - Tape & Reel (TR)
2073-FFC3B11-10-TCT-ND - Cut Tape (CT)
2073-FFC3B11-10-TDKR-ND - Digi-Reel®
Manufacturer
GCT
Manufacturer Product Number
FFC3B11-10-T
Description
CONN FFC FPC TOP 10POS 1MM R/A
Manufacturer Standard Lead Time
6 Weeks
Customer Reference
Detailed Description
10 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Datasheet
 Datasheet
EDA/CAD Models
FFC3B11-10-T Models
Product Attributes
Type
Description
Select All
Category
Manufacturer
GCT
Series
FFC3B11
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Part Status
Active
Flat Flex Type
FFC, FPC
Mounting Type
Surface Mount, Right Angle
Connector/Contact Type
Contacts, Top
Number of Positions
10
Pitch
0.039" (1.00mm)
Termination
Solder
FFC, FCB Thickness
0.30mm
Height Above Board
0.098" (2.50mm)
Locking Feature
Slide Lock
Cable End Type
Tapered
Contact Material
Phosphor Bronze
Contact Finish
Tin
Housing Material
Thermoplastic
Actuator Material
Thermoplastic
Features
Solder Retention
Voltage Rating
50V
Operating Temperature
-25°C ~ 85°C
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
0.4A
Contact Finish Thickness
-
Housing Color
Natural
Actuator Color
Black
Mating Cycles
20
Base Product Number
FFC3B11
Product Questions and Answers

See what engineers are asking, ask your own questions, or help out a member of the DigiKey engineering community

In-Stock: 1.898
Check for Additional Incoming Stock
Quantity
All prices are in DKK
Cut Tape (CT) & Digi-Reel®
QuantityUnit PriceExt Price
1kr.2.37000kr.2.37
10kr.2.03500kr.20.35
25kr.1.90720kr.47.68
50kr.1.81640kr.90.82
100kr.1.72990kr.172.99
250kr.1.62152kr.405.38
500kr.1.54394kr.771.97
1.000kr.1.47008kr.1,470.08
* All Digi-Reel orders will add a kr.47.00 reeling fee.
Tape & Reel (TR)
QuantityUnit PriceExt Price
2.000kr.1.39987kr.2,799.74
4.000kr.1.33304kr.5,332.16
6.000kr.1.29545kr.7,772.70
10.000kr.1.24959kr.12,495.90
14.000kr.1.22029kr.17,084.06
20.000kr.1.18998kr.23,799.60
50.000kr.1.11554kr.55,777.00
Manufacturers Standard Package
Unit Price without VAT:kr.2.37000
Unit Price with VAT:kr.2.96250
Associated ProductSee All
15 Items
10-10-D-0050-C-4-08-4-T

10-10-D-0050-C-4-08-4-T

1MM PITCH FFC, 10 CONTACTS, D TY

GCT

kr.4.86000
10-10-D-0076-C-4-08-4-T

10-10-D-0076-C-4-08-4-T

1MM PITCH FFC, 10 CONTACTS, D TY

GCT

kr.4.99000
10-10-A-0030-C-4-08-4-T

10-10-A-0030-C-4-08-4-T

1MM PITCH FFC, 10 CONTACTS, A TY

GCT

kr.4.48000
10-10-A-0076-C-4-08-4-T

10-10-A-0076-C-4-08-4-T

1MM PITCH FFC, 10 CONTACTS, A TY

GCT

kr.4.67000
10-10-A-0101-C-4-08-4-T

10-10-A-0101-C-4-08-4-T

1MM PITCH FFC, 10 CONTACTS, A TY

GCT

kr.4.80000
10-10-A-0050-C-4-08-4-T

10-10-A-0050-C-4-08-4-T

1MM PITCH FFC, 10 CONTACTS, A TY

GCT

kr.4.61000
10-10-A-0152-C-4-08-4-T

10-10-A-0152-C-4-08-4-T

1MM PITCH FFC, 10 CONTACTS, A TY

GCT

kr.5.06000
10-10-A-0127-C-4-08-4-T

10-10-A-0127-C-4-08-4-T

1MM PITCH FFC, 10 CONTACTS, A TY

GCT

kr.4.93000
10-10-D-0152-C-4-08-4-T

10-10-D-0152-C-4-08-4-T

1MM PITCH FFC, 10 CONTACTS, D TY

GCT

kr.5.31000
10-10-A-0254-C-4-08-4-T

10-10-A-0254-C-4-08-4-T

1MM PITCH FFC, 10 CONTACTS, A TY

GCT

kr.5.44000
10-10-A-0304-C-4-08-4-T

10-10-A-0304-C-4-08-4-T

1MM PITCH FFC, 10 CONTACTS, A TY

GCT

kr.5.70000
10-10-A-0203-C-4-08-4-T

10-10-A-0203-C-4-08-4-T

1MM PITCH FFC, 10 CONTACTS, A TY

GCT

kr.5.25000
10-10-D-0030-C-4-08-4-T

10-10-D-0030-C-4-08-4-T

1MM PITCH FFC, 10 CONTACTS, D TY

GCT

kr.4.74000
10-10-A-0228-C-4-08-4-T

10-10-A-0228-C-4-08-4-T

1MM PITCH FFC, 10 CONTACTS, A TY

GCT

kr.5.31000
You May Also Be Interested InSee All
10 Items
F32Q-1A7H1-11040

F32Q-1A7H1-11040

CONN FFC FPC TOP 40POS 0.5MM R/A

Amphenol ICC (FCI)

kr.11.78000
F32Q-1A7H1-11006

F32Q-1A7H1-11006

CONN FFC FPC TOP 6POS 0.5MM R/A

Amphenol ICC (FCI)

kr.5.50000

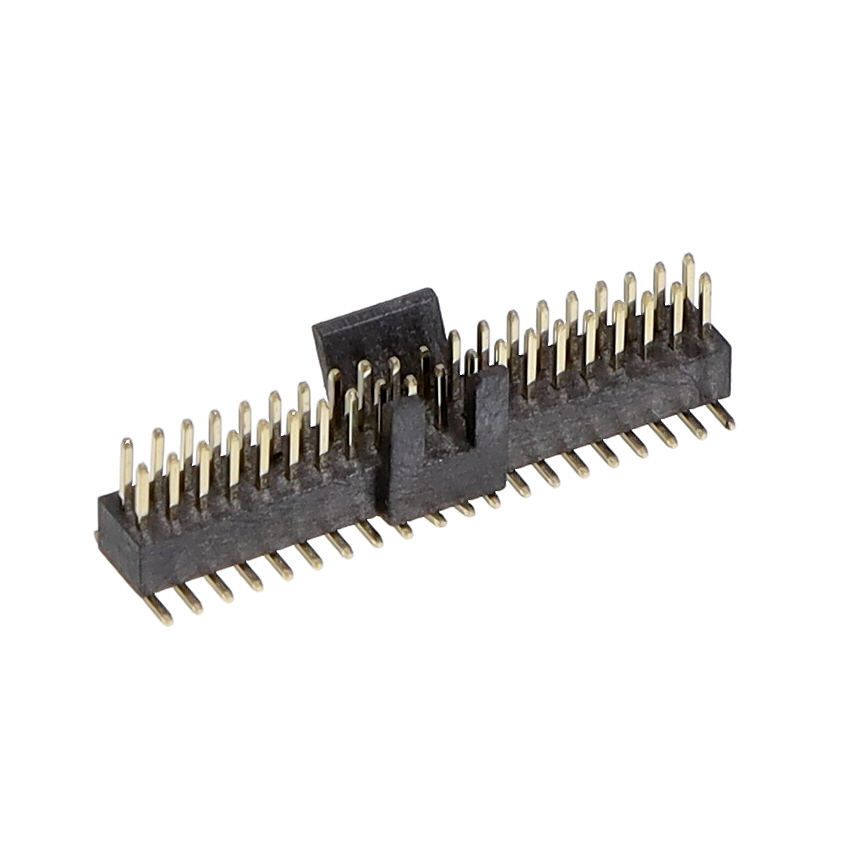

BD125-40-A-0305-0580-L-B
