            600 V and 800 V Planar Low Vf Bridge Rectifiers
                    MCC's planar low Vf bridge rectifier benefits include low Vf, low IR, and high IFSM


MCC offers two types of technologies in bridge rectifier designs: Mesa technology and planar technology. Planar technology bridge rectifiers have gone through multiple phases of lithographic design, improving overall performance, such as lowering the forward voltage drop and leakage current. Meanwhile, it increases the peak forward current and system reliability. Planar technology low V_F bridge rectifiers always have an L in the middle of the ordering code; for example, GBU15L06-BP. For a cost-efficient solution, customers may select the Mesa technology version with an L suffix; for example, GBJ2508L-BP.

Features

Low forward voltage drop
High current capability
High reliability

Multiple times of lithographic design improve overall performance

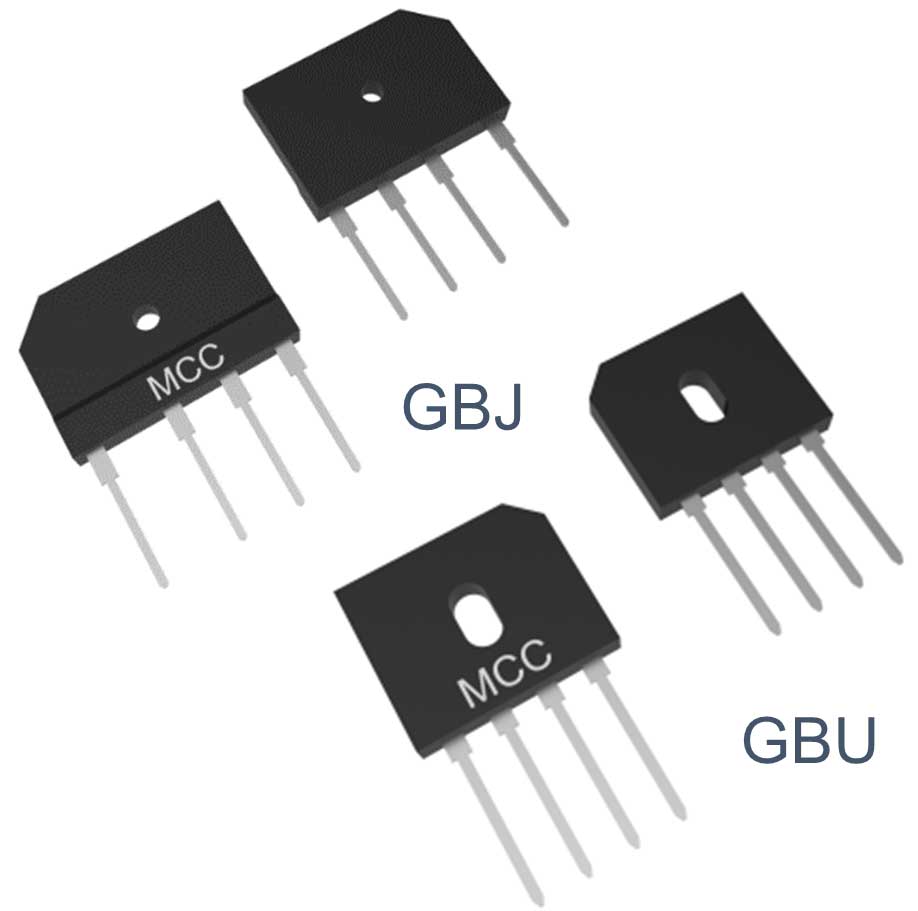

Available in GBU, GBJ package

Applications

Power supply

GBU Bridge Rectifiers

Manufacturer Part Number	Description	Technology	Voltage - Peak Reverse (Max)	Current - Average Rectified (Io)	Available Quantity	Price	View Details
GBU10KL-BP	BRIDGE RECT 1PHASE 800V 10A GBU	Standard	800 V	10 A	3251 - Immediate	$12.16	View Details
GBU15L06-BP	BRIDGE RECT 1PHASE 600V 15A GBU	Standard	600 V	15 A	3758 - Immediate	$22.14	View Details
GBU25L06-BP	BRIDGE RECT 1PHASE 600V 25A GBU	Standard	600 V	25 A	1947 - Immediate	$42.94	View Details

GBJ Bridge Rectifiers

Manufacturer Part Number	Description	Technology	Voltage - Peak Reverse (Max)	Current - Average Rectified (Io)	Available Quantity	Price	View Details
GBJ1508L-BP	BRIDGE RECT 1PHASE 800V 15A GBJ	Standard	800 V	15 A	1131 - Immediate	$14.14	View Details
GBJ1506L-BP	BRIDGE RECT 1PHASE 600V 15A GBJ	Standard	600 V	15 A	10 - Immediate	$14.14	View Details
GBJ2508L-BP	BRIDGE RECT 1PHASE 800V 25A GBJ	Standard	800 V	25 A	1102 - Immediate	$19.65	View Details
