LTC7803/05/19 Synchronous Step-Down Controllers

Analog Devices' LTC7803, LTC7805, and LTC7819 40 V, low IQ synchronous step-down controllers drive an N-channel power MOSFET stage

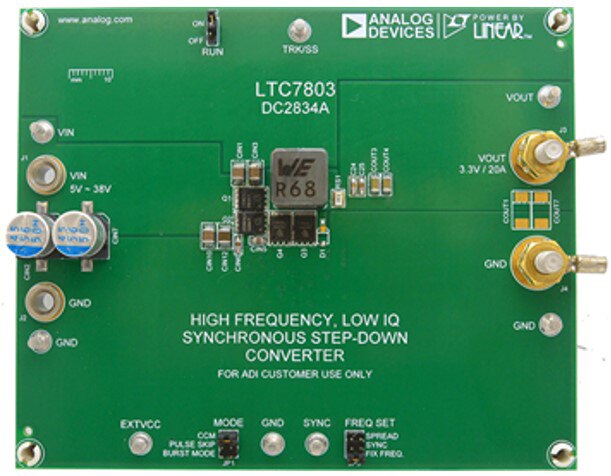

Image of Analog Devices' LTC7803/05/19 Synchronous Step-Down ControllersADI's single output LTC7803, dual output LTC7805, and triple output LTC7819 controllers showcase the latest technology in switching regulator step-down DC/DC controllers. All products feature up to 3 MHz operating switching frequency and very low IQ, PassThru™/100% duty cycle capability, and spread spectrum frequency modulation.

  • LTC7803: 40 V Low IQ, 3 MHz synchronous step-down controller with spread spectrum
  • LTC7805: 40 V Low IQ, dual output, 2-phase 100% duty cycle synchronous step-down controller
  • LTC7819: 40 V Low IQ, triple output, 3-phase synchronous step-down controller

Features

  • PassThru/100% duty cycle capability allows output voltages to stay in regulation longer when powered from a discharging battery
  • Very low IQ increases battery runtime during standby mode
  • High-power onboard gate drives drive external MOSFETs with low switching loss for increased efficiency
Applications
  • Automotive: autoconnect and sensing
  • Industrial automation: connected motion and robotics
  • Instrumentation and measurement: ATE
  • Aerospace and defense: radar
