B3W-9 Series Tactile Switches

The Omron B3W-9 series of SPST-NO (momentary) configuration LED illuminated tactile switches are available in red, yellow, blue and green LEDs. The keycaps utilize a proprietary diffusion panel to deliver uniform brightness across the entire surface. The B3W-9 is available in one, two or three color light models. The “tri-color” is accomplished when the red and green LEDs are simultaneously illuminated beneath the white keycap producing the third color, orange.

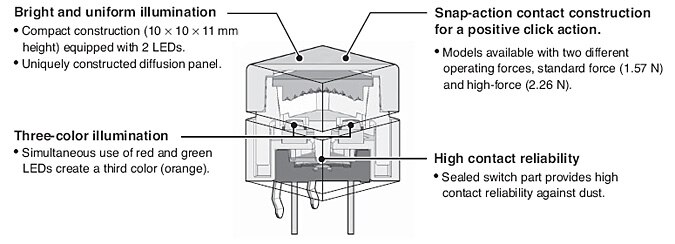

The switch utilizes Omron’s proven B3W switching mechanism creating a space saving 10 mm x 10 mm or 12 mm x 12 mm key cap area with a low profile of 11 mm height. They have the same footprint as the B3W with the exception of the added LED connections on the PCB.

The B3W-9000 has an operating force of 160 gf typical with a minimum service life of 1,000,000 operations. The contacts have a restive load rating of 5 through 24 VDC at 1 to 50mA while operating in a temperature range of –25°C to +70°C in 35% to 85% humidity without icing or condensation.

This series of switches is fully RoHS compliant and features a dust tight switching mechanism. These switches are ideal for use in applications requiring visual feedback confirming operation including test and measurement, office automation, amusement, industrial controls, and medical devices.

LED Specifications
