            MPM3620A Synchronous Step-Down Converter
                    MPS introduces its 2 A, 24 V, wide input range, synchronous step-down converter with integrated inductor

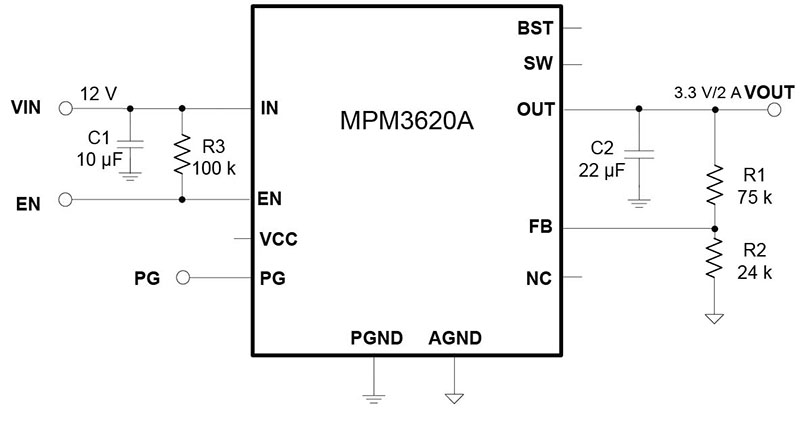

Monolithic Power Systems' MPM3620A is a synchronous, rectified, step-down module converter with an integrated inductor, two capacitors, and power MOSFETs. It offers a compact solution that requires only five external components to achieve a 2 A continuous output current with excellent load and line regulation over a wide input supply range. It also provides fast load transient response.

Full protection features include over-current protection (OCP) and thermal shutdown (TSD).

The MPM3620A eliminates design and manufacturing risks while dramatically improving time-to-market.

The MPM3620A is available in a space-saving QFN-20 3 mm x 5 mm x 1.6 mm package.

Features
4.5 V to 24 V operating input range 2 A continuous load current 90 mΩ/40 mΩ low R_DS(ON) internal power MOSFETs Integrated inductor Integrated V_CC and bootstrap capacitors Power-save mode at light load		Power-good indicator Over-current protection and hiccup Thermal shutdown Output adjustable from 0.8 V Available in QFN-20 3 mm x 5 mm x 1.6 mm package Total solution size 6.7 mm x 7.3 mm
Applications
Industrial controls Medical and imaging equipment Telecom and networking applications		LDO replacement Space and resource-limited applications
