            mEZDPD3603A Programmable DC/DC Power Supply
                    Monolithic Power Solutions' programmable DC/DC power supply has a multiple-time programmable memory and a simple programmable GUI

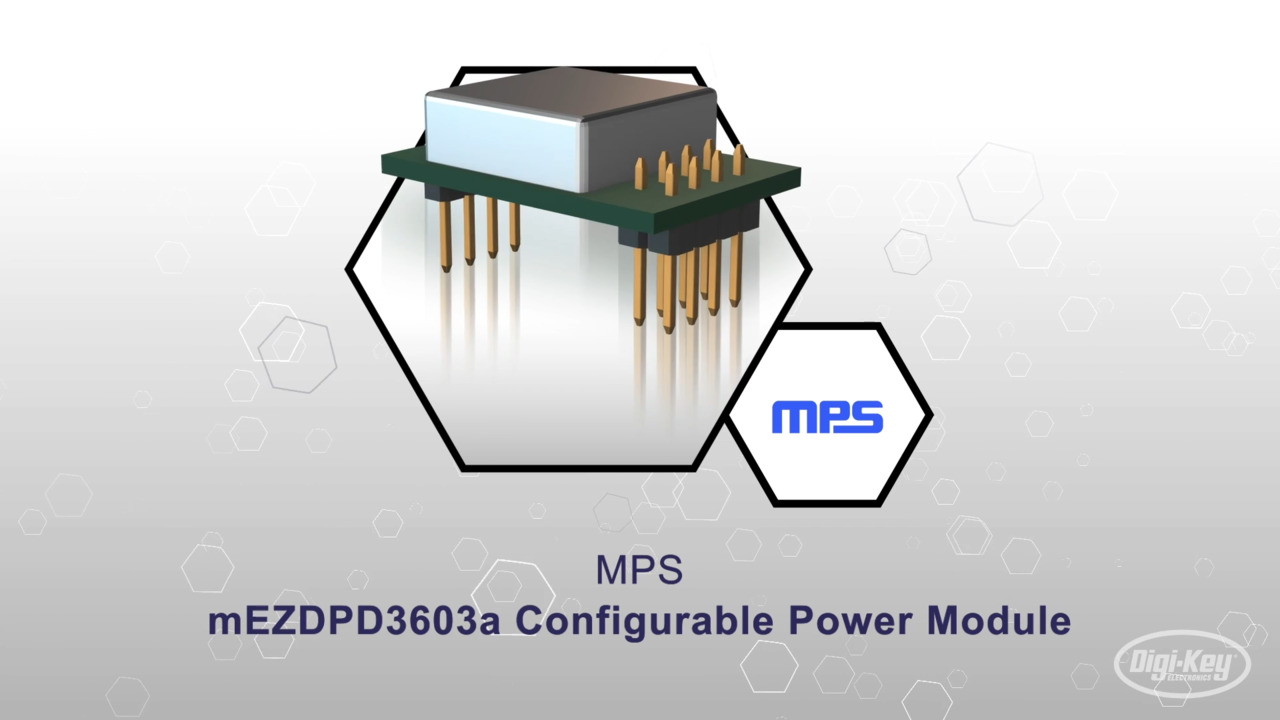

Image of MPS Monolithic Power Solutions mEZDPD3603A Programmable DC/DC Power Supply Monolithic Power Solutions' mEZDPD3603A is a programmable DC/DC power supply up to 3 A and 0.6 V to 12 V output voltage. This part has a multiple-time programmable memory and a simple programmable GUI.

The GUI includes a modeling software for verification of the part performance. During bench evaluations, different configurations can be obtained easily through the I²C interface. This allows users to optimize each output for their requirements. All non-programmed parts (mEZDPD3603A-XXXX) parts require only current and output voltage values to begin the evaluation. The other parameters, as defined in the GUI, have default settings that could be modified by the user, if needed.

Features

4.5 V to 36 V operating input
0.6 V to 12 V output voltage
Up to 3 A continuous current
High efficiency up to 97%
Meet EN55022 Class B emissions
Operation temperature: -40°C to +85°C
Standard DIP package (16 mm x 23 mm x 6.5 mm)

Programmable parameters
Output voltage
Output current limit
Switching frequency
Multiple selection modes
Compensation
Design files available
