            SAS/PCIe® 4.0 (U.2 and U.3) Connectors
                    Amphenol’s SAS/PCIe 4.0 (U.2 and U.3) connectors are made to withstand diverse conditions

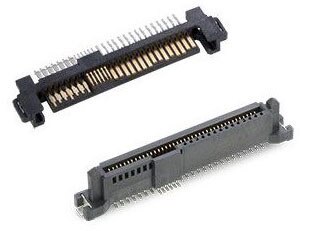

Amphenol's Serial Attached SCSI (SAS)/Peripheral Component Express (PCIe) 4.0 (U.2 and U.3) connectors come with 16 GT/s (PCIe lanes) or 24 Gb/s (SAS lanes) speeds to meet the demands of next-generation servers. The 68-position SAS/PCIe receptacle and header enables the implementation of a high-speed SAS hard disk drive (HDD) interface as well as Peripheral Component Express (PCIe)-based devices. The molded guidepost allows device plug and receptacle to self-align during the mating process. With halogen-free high-temperature thermoplastic, these connectors are made to withstand diverse conditions. They also offer a durability of 500 mating cycles.

Resources

Datasheet

Features and Benefits

Receptacles are intermateable with unshielded dual-port SFF8680 (SAS 3.0 or SAS 4.0) connectors
SAS/PCIe connectors enable SFF8630, SFF8680, and SFF8432 interfaces
Backward compatible with 12 Gb/s, 6 Gb/s SAS, SATA, and 3 Gb/s SFF8482 connectors
Supports up to 4-port 16 Gb/s PCIe based devices
Supports both SAS and SATA drives
Staggered contact lengths
Stamped clips act as connector retainers for robust PCB attachment
Molded guideposts help mating halves to self-align by providing angled lead-ins
Offers flexibility in component selection

Implementation of high-speed SSDs (Solid State Drives) and HDDs allows compatibility between unshielded dual and multiport interfaces
Same interface can be used for cost-effective storage HDDs as well as higher performance server SSDs
Improves performance and faster file transfers
Addresses the needs of both mission-critical and bulk storage applications
Provides sequential contact mating for hot plugging
Provides additional mechanical strength after soldering
Compensates for connector misalignment
