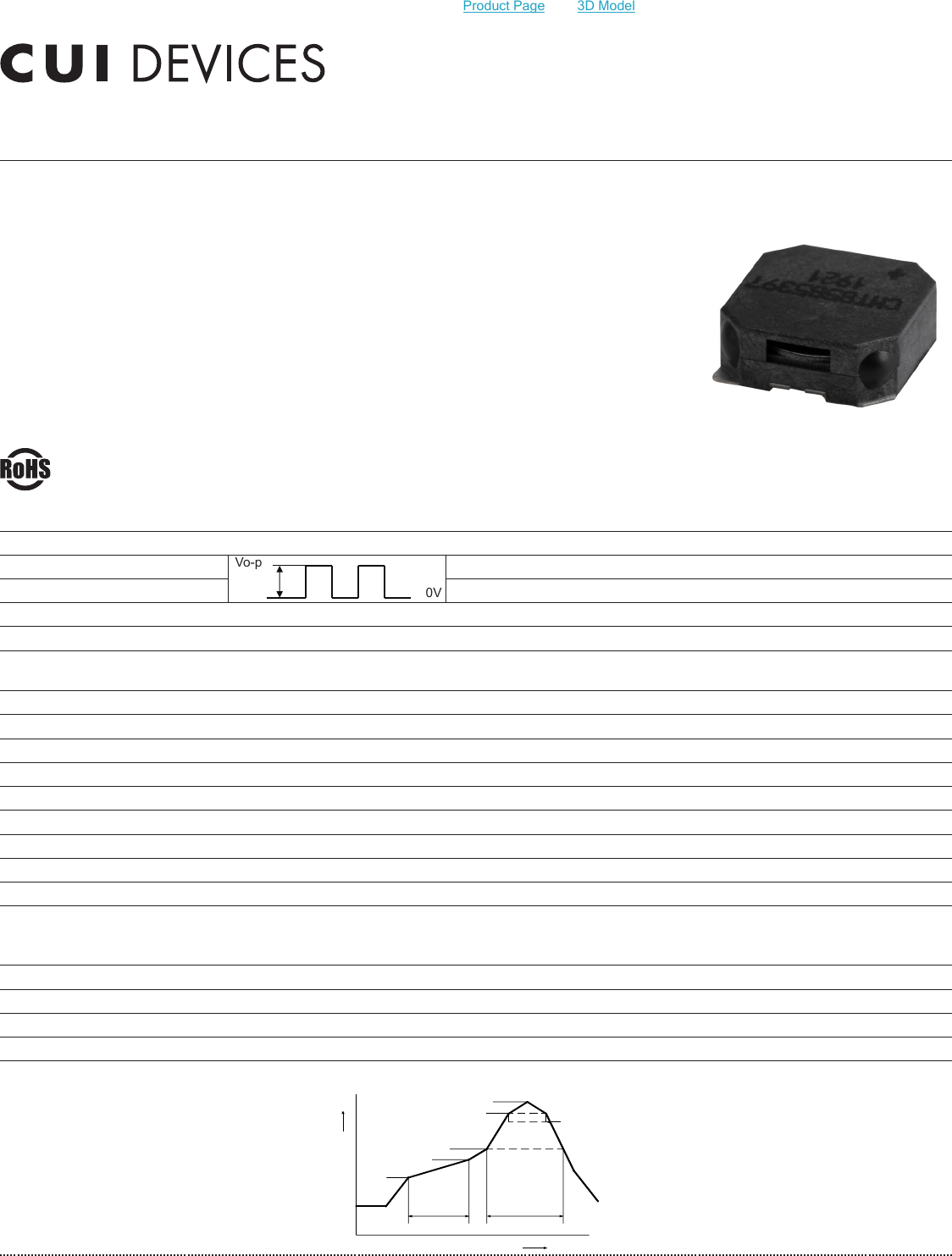

CMT-85853-97-SMT-TR Datasheet

CUI DEVICES
date 07/07/2021
page 1 of 5
MODEL: CMT-85853-97-SMT-TR │ DESCRIPTION: MAGNETIC BUZZER TRANSDUCER
cuidevices.com
FEATURES
• 3.6 Vo-p rated voltage
• 97 dBA
Vo-p
0V
SPECIFICATIONS
parameter conditions/description min typ max units
rated voltage 3.6 Vo-p
operating voltage 3.0 5.0 Vo-p
current consumption at rated voltage, 2,730 Hz, ½ duty square wave 80 mA
rated frequency 2,730 Hz
sound pressure level at 5 cm, rated voltage, 2,730 Hz, ½ duty square
wave 90 97 dBA
coil resistance 17 20 23 Ω
dimensions 8.5 x 8.5 x 3.0 mm
weight 0.5 g
material LCP
terminal surface mount (tin plating)
operating temperature -40 85 °C
storage temperature -45 85 °C
washable no
RoHS yes
Notes: 1.Allspecificationsmeasuredat5~35°C,humidityat45~85%,under86~106kPapressure,unlessotherwisenoted.
SOLDERABILITY
parameter conditions/description min typ max units
reel storage atrelativehumidity<40% 25 °C
reflowsoldering2seerecommendedreflowsolderingprofile 260 °C
drying conditions3bakeat40°Cfor24hours
Note: 2.Itisrecommendedtoreflowsolderwithin48hoursfromopeningvacuumpackagingatatemperature<30°C&relativehumidity<60%.
3.Whenoutofpackagingformorethan48hours.
Peak Temp 260°C
255°C
217°C
200°C
150°C
60~180 sec60~150 sec
20~40 sec
Temperature (°C)
Time (sec)
Additional Resources: Product Page | 3D Model
Product Page 3D Model —POLARITY 8,5 3.0 O,15i0.05 gfif SOUND PORT +POLARITY *POLARITY +P0LARITY \ f
CUI Devices │ MODEL: CMT-85853-97-SMT-TR │ DESCRIPTION: MAGNETIC BUZZER TRANSDUCER date 07/07/2021 │ page 2 of 5
cuidevices.com
MECHANICAL DRAWING
units: mm
tolerance: ±0.5 mm
:((.<($5



CMT8585397
Recommended PCB Layout
Top View
Additional Resources: Product Page | 3D Model
Product Page 3D Model A: Frequency Response. Magn dB re 20.00uPA 20 200 Hz 2K 20K +VDG +3 6V 1800 0 TR: 280 741AS
CUI Devices │ MODEL: CMT-85853-97-SMT-TR │ DESCRIPTION: MAGNETIC BUZZER TRANSDUCER date 07/07/2021 │ page 3 of 5
cuidevices.com
APPLICATION CIRCUIT
FREQUENCY RESPONSE CURVE






  . .
G%
+]
Additional Resources: Product Page | 3D Model
3D Model a Product Fa XXXXXXXXXX XXXXXXXXXX XXXX Pcs CUI DEVICES
CUI Devices │ MODEL: CMT-85853-97-SMT-TR │ DESCRIPTION: MAGNETIC BUZZER TRANSDUCER date 07/07/2021 │ page 4 of 5
cuidevices.com
PACKAGING
units: mm
Inner Carton Size: 340 x 340 x 40 mm
Carton Size: 350 x 355 x 175 mm
Inner Carton QTY: 1,000 pcs per reel
Carton QTY: 5,000 pcs per carton
5HHO3&6
A
&DUWRQ%R[
,QQHU%R[
/D\HU5HHO
,QQHU%R[
/RW1R
4XDQWLW\
'DWH
;;;;;;;;;;
;;;;3FV
3DUW1R
;;;;;;;;;;
''00<<
;;;;;;;;;;
0$'(,1&+,1$
Additional Resources: Product Page | 3D Model
CUI DEVICES
CUI Devices │ MODEL: CMT-85853-97-SMT-TR │ DESCRIPTION: MAGNETIC BUZZER TRANSDUCER date 07/07/2021 │ page 5 of 5
cuidevices.com
CUI Devices offers a one (1) year limited warranty. Complete warranty information is listed on our website.
