1/8March 2002
■HIGH SPEED: tPD = 5.5ns (TYP.) at VCC = 5V
■LOW POWER DISSIPATION:
ICC = 2 µA (MAX.) at TA=25°C
■TYPICAL HYSTERESIS: Vh = 1V
at VCC = 4.5V
■POWER DOWN PROTECTION ON INPUTS
■SYMMETRICAL OUTPUT IMPEDANCE:
|IOH| = IOL = 8 mA (MIN)
■BALANCED PROPAGATION DELAYS:
tPLH ≅ tPHL
■OPERATING VOLTAGE RANGE:
VCC(OPR) = 2V to 5.5V
■PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 14
■IMPROVED LATCH-UP IMMUNITY
■LOW NOISE: VOLP = 0.8V (MAX.)
DESCRIPTION
The 74VHC14 is an advanced high-speed CMOS
HEX SCHMITT INVERTER fabricated with
sub-micron silicon gate and double-layer metal
wiring C2MOS technology.
The internal circuit is composed of 3 stages
including buffer output, which enables high noise
immunity and stable output.
Power down protection is provided on all inputs
and 0 to 7V can be accepted on inputs with no
regard to the supply voltage. This device can be
used to interface 5V to 3V.
Pin configuration and function are the same as
those of the 74VHC04 but the 74VHC14 has
hysteresis.
This together with its schmitt trigger function
allows it to be used on line receivers with slow
rise/fall input signals.
All inputs and outputs are equipped with
protection circuits against static discharge, giving
them 2KV ESD immunity and transient excess
voltage.
74VHC14
HEX SCHMITT INVERTER

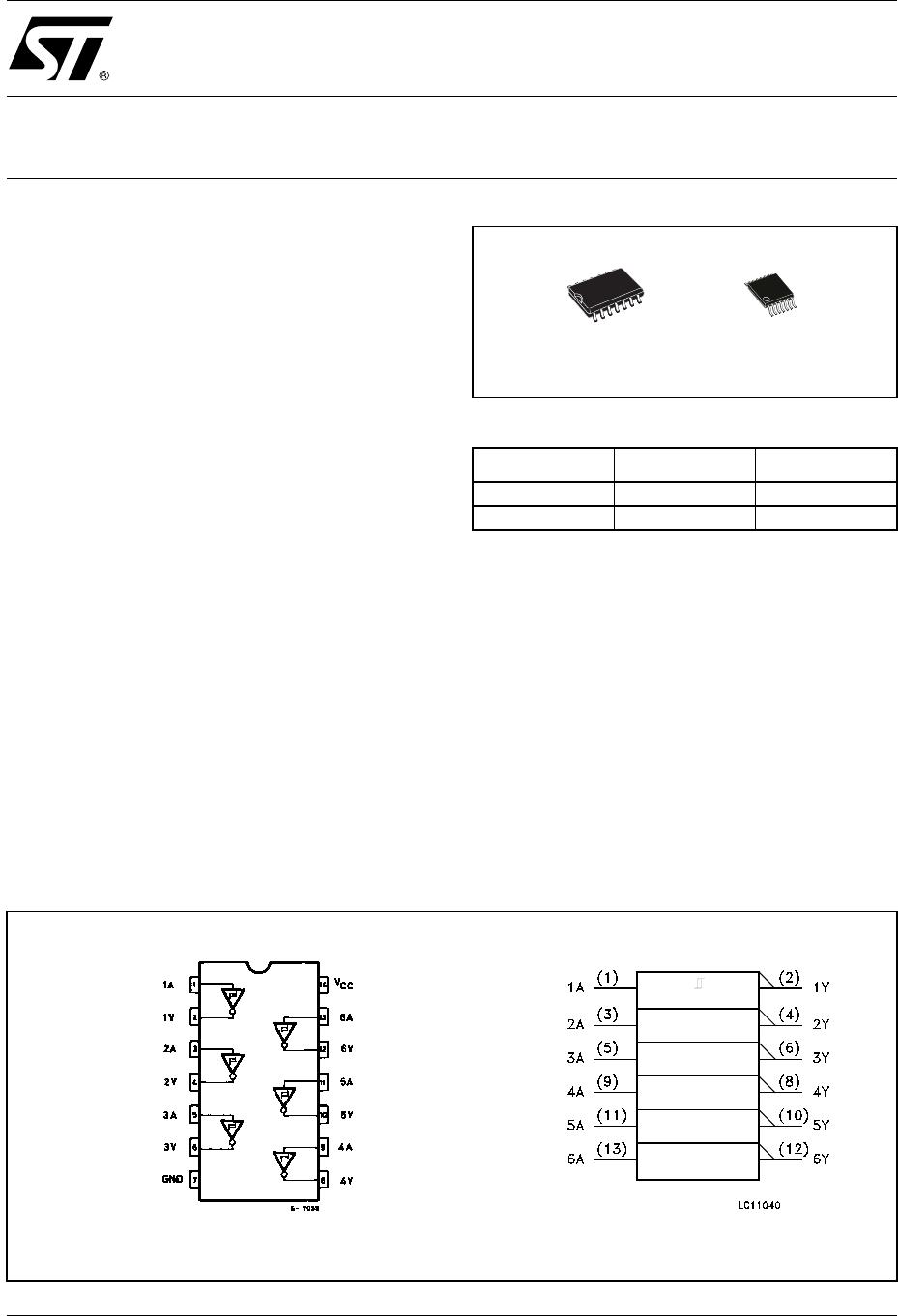

PIN CONNECTION AND IEC LOGIC SYMBOLS
ORDER CODES
PACKAGE TUBE T & R
SOP 74VHC14M 74VHC14MTR
TSSOP 74VHC14TTR
TSSOPSOP
INPUT ESD PROTEC. LGND 5m mu
74VHC14
2/8

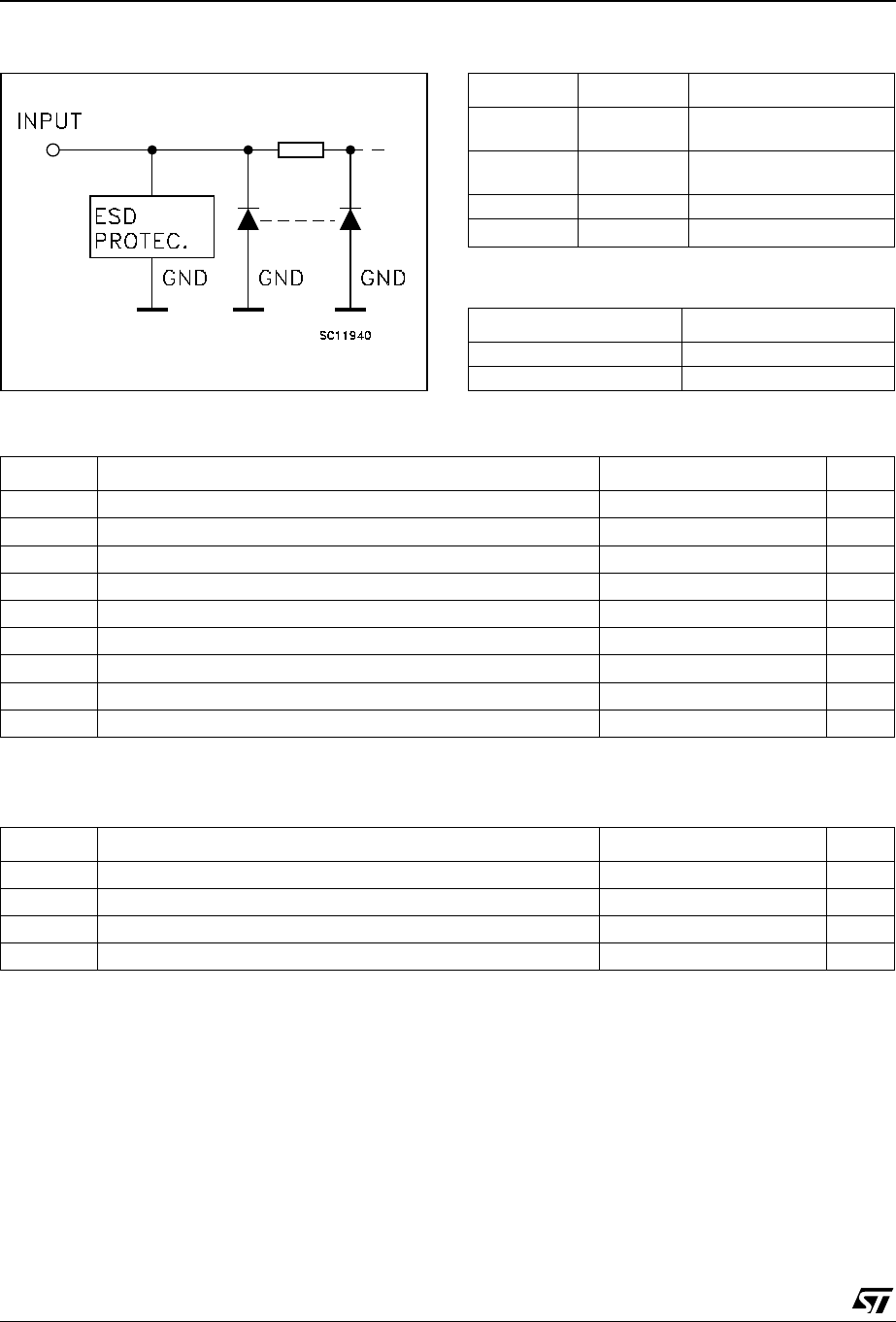

INPUT EQUIVALENT CIRCUIT PIN DESCRIPTION
TRUTH TABLE
ABSOLUTE MAXIMUM RATINGS
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is
not implied
RECOMMENDED OPERATING CONDITIONS
PIN No SYMBOL NAME AND FUNCTION
1, 3, 5, 9, 11,
13 1A to 6A Data Inputs
2, 4, 6, 8, 10,
12 1Y to 6Y Data Outputs
7 GND Ground (0V)
14 VCC Positive Supply Voltage
AY
LH
HL
Symbol Parameter Value Unit
VCC Supply Voltage -0.5 to +7.0 V
VIDC Input Voltage -0.5 to +7.0 V
VODC Output Voltage -0.5 to VCC + 0.5 V
IIK DC Input Diode Current - 20 mA
IOK DC Output Diode Current ± 20 mA
IODC Output Current ± 25 mA
ICC or IGND DC VCC or Ground Current ± 50 mA
Tstg Storage Temperature -65 to +150 °C
TLLead Temperature (10 sec) 300 °C
Symbol Parameter Value Unit
VCC Supply Voltage 2 to 5.5 V
VIInput Voltage 0 to 5.5 V
VOOutput Voltage 0 to VCC V
Top Operating Temperature -55 to 125 °C
74VHC14
3/8
DC SPECIFICATIONS
AC ELECTRICAL CHARACTERISTICS (Input tr = tf = 3ns))
(*) Voltage range is 3.3V ± 0.3V
(**) Voltage range is 5.0V ± 0.5V
Symbol Parameter
Test Condition Value
Unit
VCC
(V)
TA = 25°C -40 to 85°C -55 to 125°C
Min. Typ. Max. Min. Max. Min. Max.
Vt+ High Level
Threshold Voltage 3.0 1.2 2.2 1.2 2.2 1.2 2.2
V4.5 1.75 3.15 1.75 3.15 1.75 3.15
5.5 2.15 3.85 2.15 3.85 2.15 3.85
Vt- Low Level
Threshold Voltage 3.0 0.9 1.9 0.9 1.9 0.9 1.9
V4.5 1.35 2.75 1.35 2.75 1.35 2.75
5.5 1.65 3.35 1.65 3.35 1.65 3.35
VhHysteresis Voltage 3.0 0.3 1.2 0.3 1.2 0.3 1.2
V4.5 0.4 1.4 0.4 1.4 0.4 1.4
5.5 0.5 1.6 0.5 1.6 0.5 1.6
VOH High Level Output
Voltage 2.0 IO=-50 µA1.9 2.0 1.9 1.9
V
3.0 IO=-50 µA2.9 3.0 2.9 2.9
4.5 IO=-50 µA4.4 4.5 4.4 4.4
3.0 IO=-4 mA 2.58 2.48 2.4
4.5 IO=-8 mA 3.94 3.8 3.7
VOL Low Level Output
Voltage 2.0 IO=50 µA0.0 0.1 0.1 0.1
V
3.0 IO=50 µA0.0 0.1 0.1 0.1
4.5 IO=50 µA0.0 0.1 0.1 0.1
3.0 IO=4 mA 0.36 0.44 0.55
4.5 IO=8 mA 0.36 0.44 0.55
IIInput Leakage
Current 0 to
5.5 VI = 5.5V or GND ± 0.1 ± 1 ± 1 µA
ICC Quiescent Supply
Current 5.5 VI = VCC or GND 22020
µ
A
Symbol Parameter
Test Condition Value
Unit
VCC
(V) CL
(pF)
TA = 25°C -40 to 85°C -55 to 125°C
Min. Typ. Max. Min. Max. Min. Max.
tPLH
tPHL
Propagation Delay
Time 3.3(*) 15 8.3 12.8 1.0 15.0 1.0 15.0
ns
3.3(*) 50 10.8 16.3 1.0 18.5 1.0 18.5
5.0(**) 15 5.5 8.6 1.0 10.0 1.0 10.0
5.0(**) 50 7.0 10.6 1.0 12.0 1.0 12.0
PULSE GENERATOR _ SC12220
74VHC14
4/8
CAPACITIVE CHARACTERISTICS
1) CPD is defined as the value of the IC’s internal equivalent capacitance which is calculated from the operating current consumption without
load. (Refer to Test Circuit). Average operating current can be obtained by the following equation. ICC(opr) = CPD x VCC x fIN + ICC/6 (per gate)
DYNAMIC SWITCHING CHARACTERISTICS
1) Worst case package.
2) Max number of outputs defined as (n). Data inputs are driven 0V to 5.0V, (n-1) outputs switching and one output at GND.
3) Max number of data inputs (n) switching. (n-1) switching 0V to 5.0V. Inputs under test switching: 5.0V to threshold (VILD), 0V to threshold
(VIHD), f=1MHz.

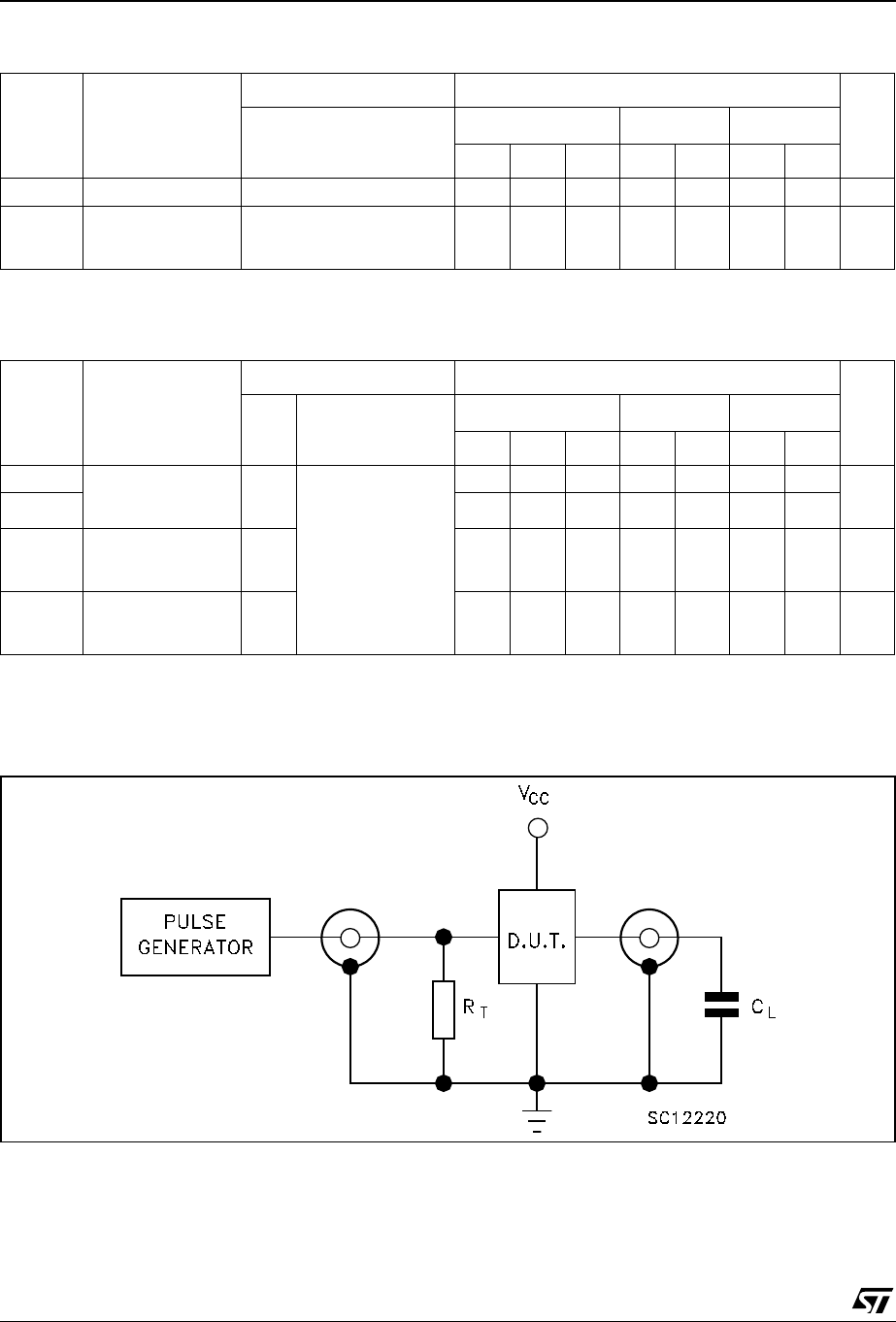

TEST CIRCUIT
CL =15/50pF or equivalent (includes jig and probe capacitance)
RT = ZOUT of pulse generator (typically 50Ω)
Symbol Parameter
Test Condition Value
Unit
TA = 25°C -40 to 85°C -55 to 125°C
Min. Typ. Max. Min. Max. Min. Max.
CIN Input Capacitance 6101010pF
C
PD Power Dissipation
Capacitance
(note 1) 14 pF
Symbol Parameter
Test Condition Value
Unit
VCC
(V)
TA = 25°C -40 to 85°C -55 to 125°C
Min. Typ. Max. Min. Max. Min. Max.
VOLP Dynamic Low
Voltage Quiet
Output (note 1, 2) 5.0
CL = 50 pF
0.3 0.8 V
VOLV -0.8 -0.3
VIHD
Dynamic High
Voltage Input
(note 1, 3) 5.0 3.5 V
VILD
Dynamic Low
Voltage Input
(note 1, 3) 5.0 1.5 V
3n: 0302270
74VHC14
5/8

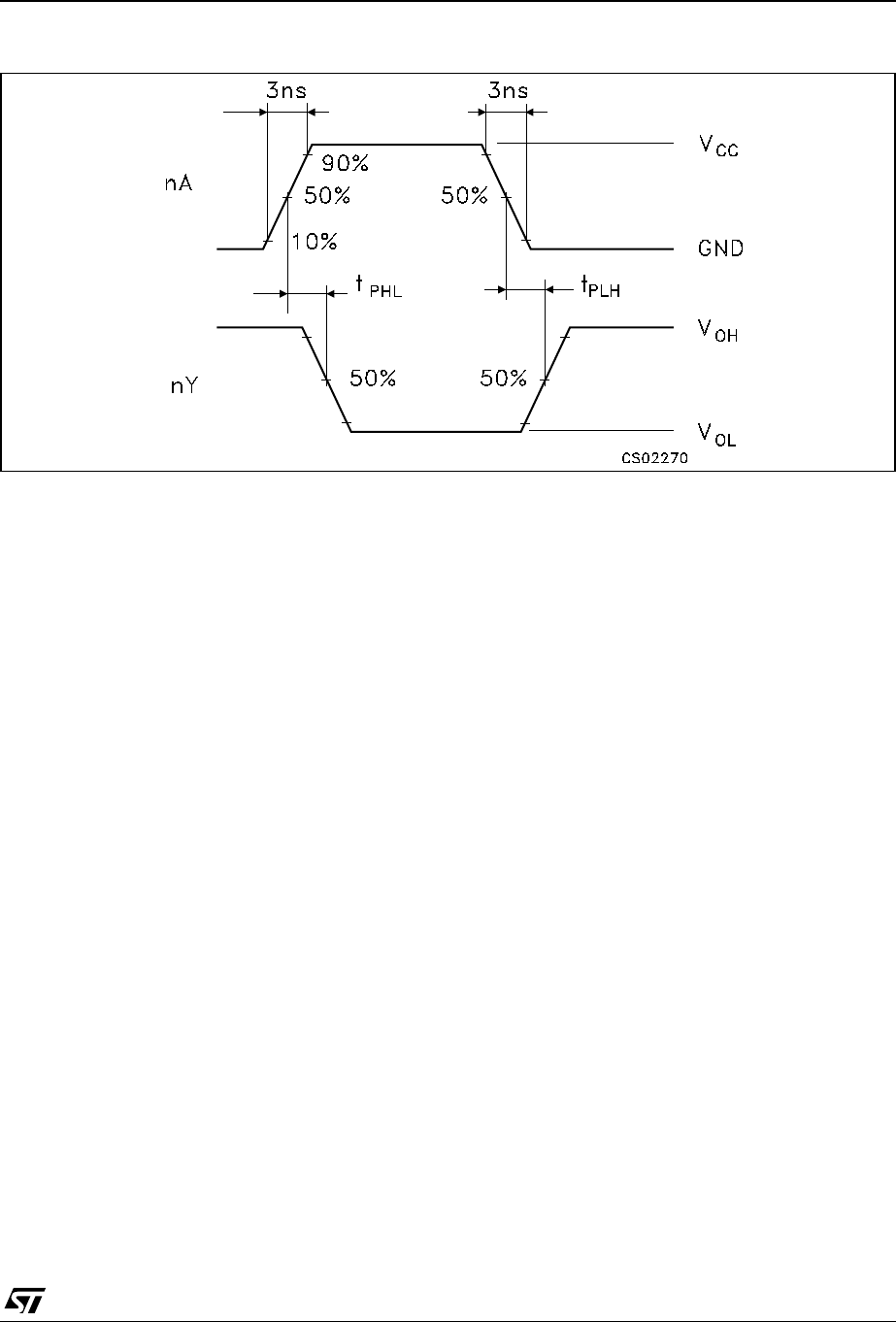

WAVEFORM: PROPAGATION DELAYS (f=1MHz; 50% duty cycle)
:4; a
74VHC14
6/8
DIM. mm. inch
MIN. TYP MAX. MIN. TYP. MAX.
A 1.75 0.068
a1 0.1 0.2 0.003 0.007
a2 1.65 0.064
b 0.35 0.46 0.013 0.018
b1 0.19 0.25 0.007 0.010
C 0.5 0.019
c1 45° (typ.)
D 8.55 8.75 0.336 0.344
E 5.8 6.2 0.228 0.244
e 1.27 0.050
e3 7.62 0.300
F 3.8 4.0 0.149 0.157
G 4.6 5.3 0.181 0.208
L 0.5 1.27 0.019 0.050
M 0.68 0.026
S8° (max.)

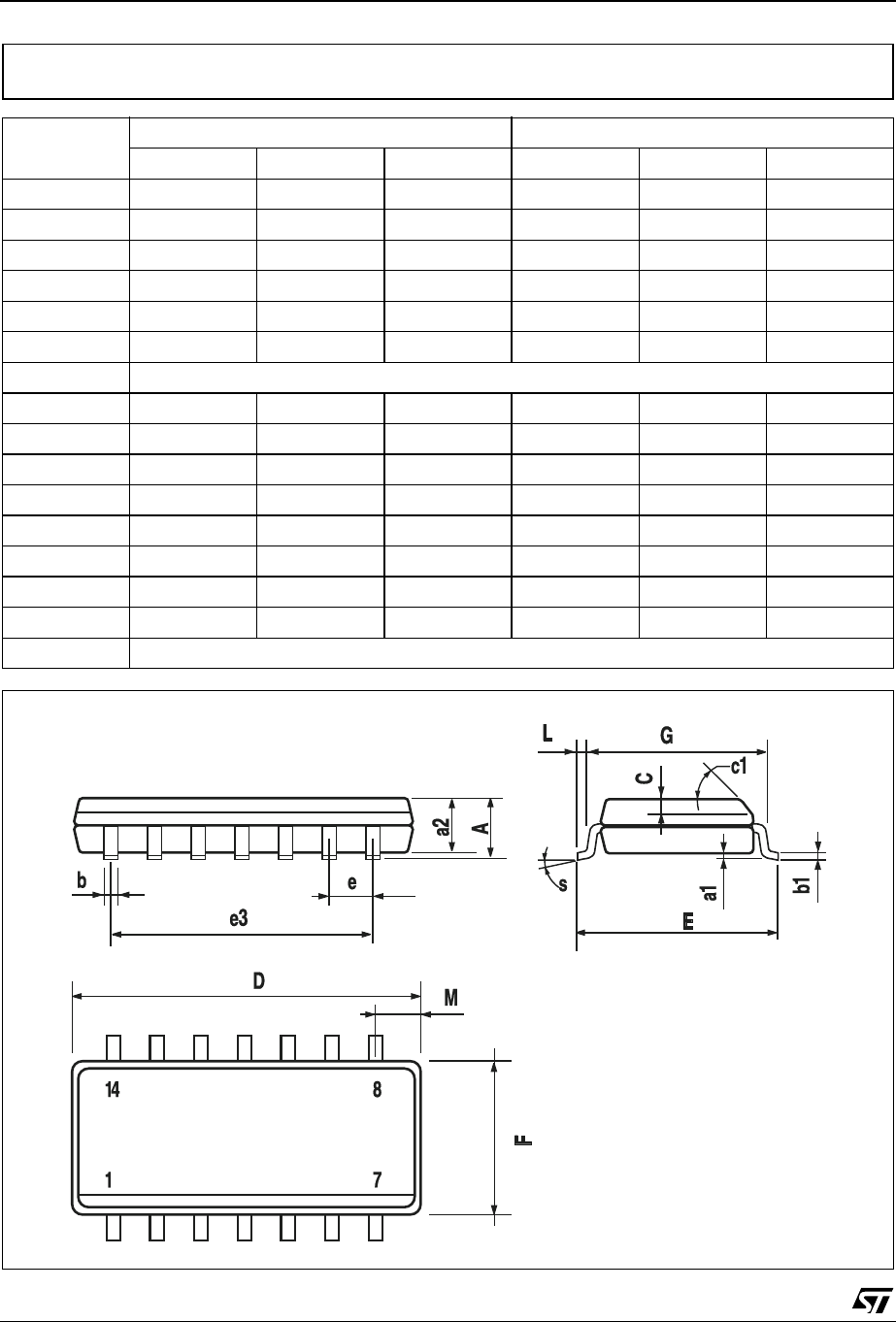

SO-14 MECHANICAL DATA
PO13G
WHHHHHF JUUUUUL
74VHC14
7/8
DIM. mm. inch
MIN. TYP MAX. MIN. TYP. MAX.
A 1.2 0.047
A1 0.05 0.15 0.002 0.004 0.006
A2 0.8 1 1.05 0.031 0.039 0.041
b 0.19 0.30 0.007 0.012
c 0.09 0.20 0.004 0.0089
D 4.9 5 5.1 0.193 0.197 0.201
E 6.2 6.4 6.6 0.244 0.252 0.260
E1 4.3 4.4 4.48 0.169 0.173 0.176
e 0.65 BSC 0.0256 BSC
K0° 8°0° 8°
L 0.45 0.60 0.75 0.018 0.024 0.030

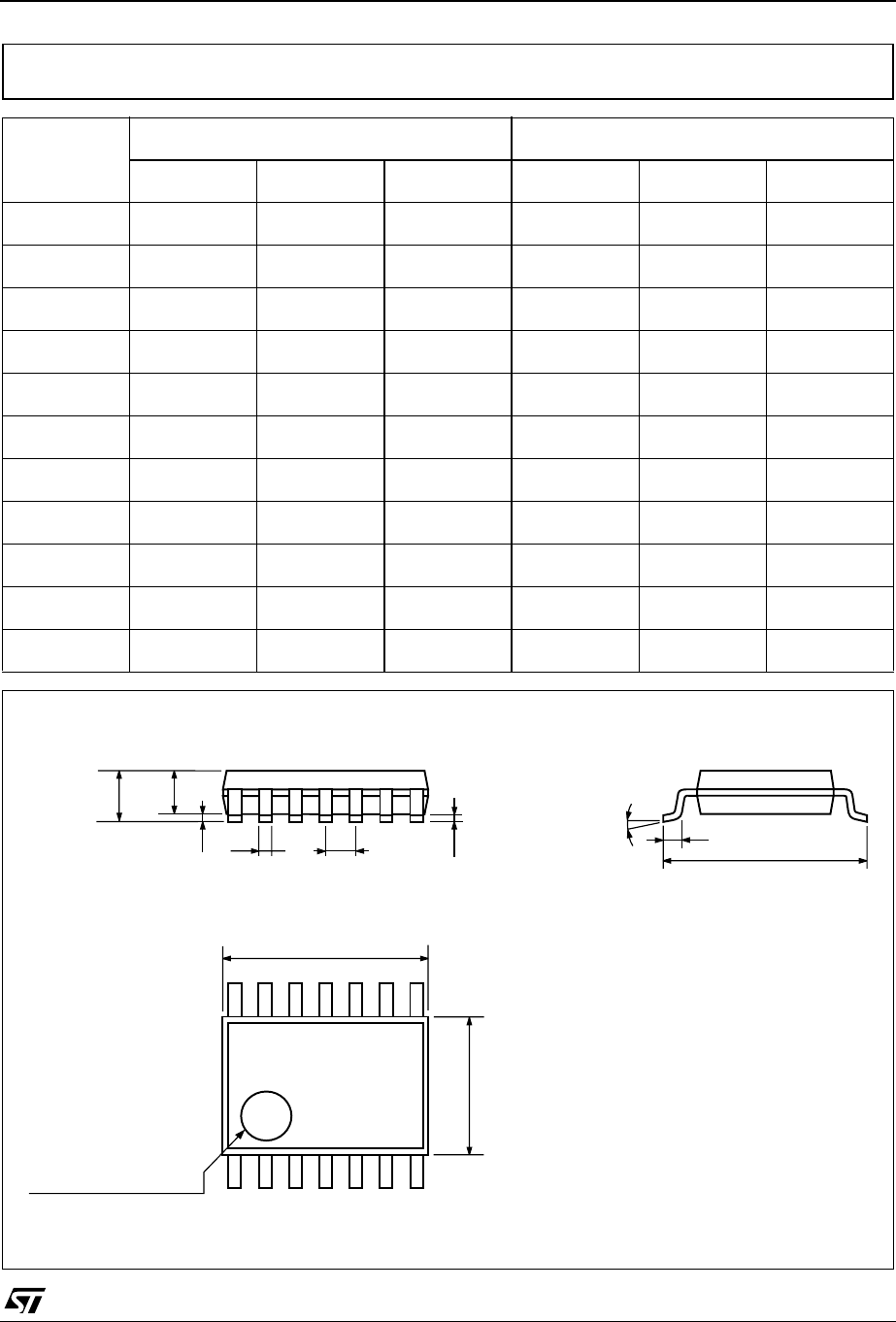

TSSOP14 MECHANICAL DATA
cE
b
A2
A
E1
D
1
PIN 1 IDENTIFICATION
A1 L
K
e
0080337D
E]
74VHC14
8/8
