JP-SPLT-50-50 Datasheet

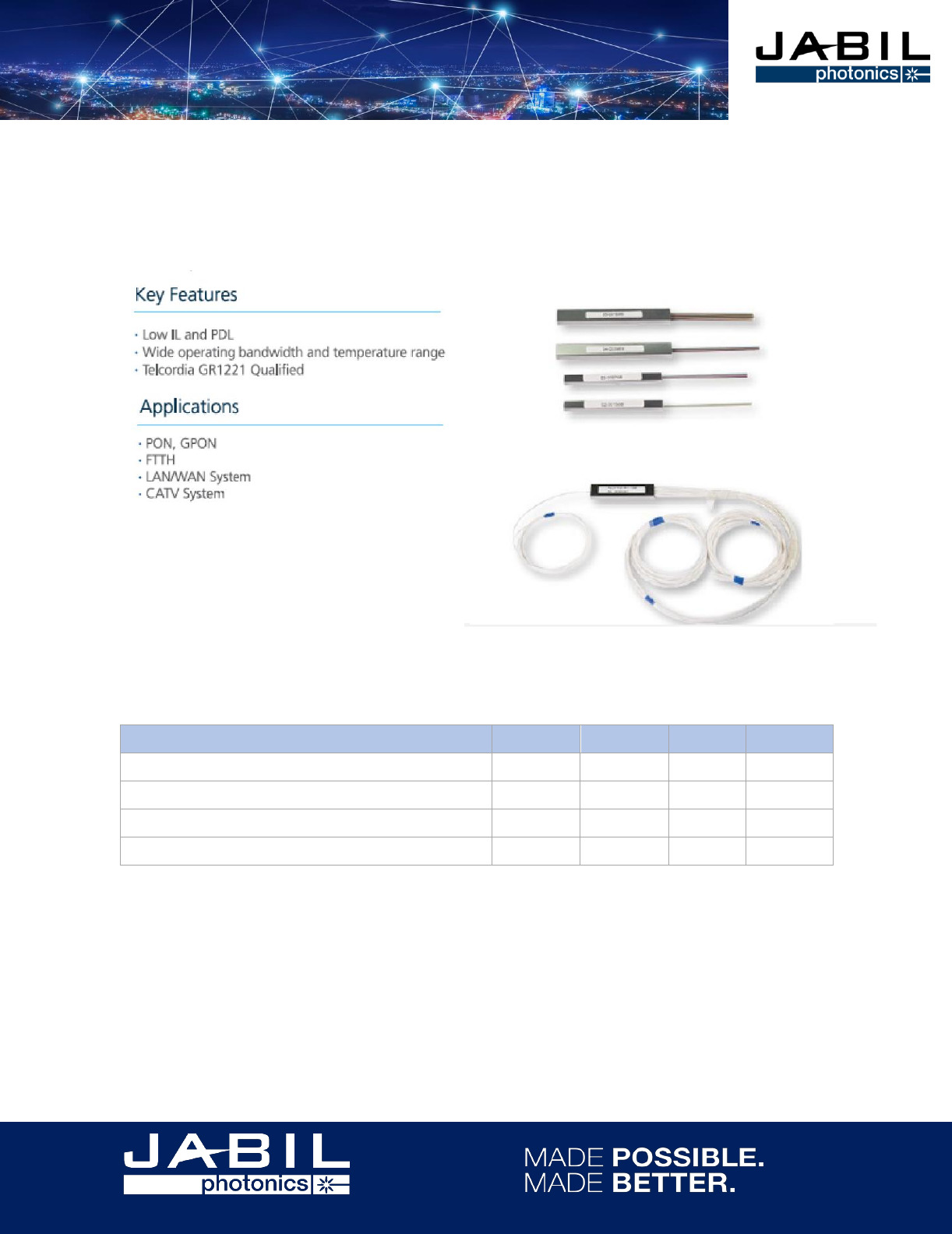

uJA'BIL - o onucs: Key Features - Low IL and PDL _ ‘ was operating banmmdlh and temperature range , "" ‘ Tekordra GR1221 Qualllied Applications - > ;‘—-—‘ .PON. GPON -FTTH - LAN/WAN System - CATV System I22. ' ’ e ‘ A ’1' 1; ~ Q d RE I L MADE POSSIBLE. MADE BETTER.
3 PORTS SPLITTER
Environmental Specifications
Parameter
Min.
Typ.
Max.
Unit
Operation Temperature
-40
+85
℃
Storage Temperature
-40
------
+85
℃
Operation Humidity*
5
------
95
%
Storage Humidity
5
------
95
%
(*) not condensing
:JA'BIL - o onucs: d RE I L MADE POSSIBLE. MADE BETTER.
Optical Specifications
Parameter
Unit
Operating Wavelength
nm
CR
Excess Loss
dB
Polarization Extinction Ratio
dB
Wavelength Dependence Loss
dB
Directivity
dB
Return Loss
dB
Polarization Alignment
Fiber Length
m
Mechanical Dimension
mm
Maximum Optical Power
mW
Insertion Loss:
Coupler Ratio
Insertion loss （dB）
Second port
Main port
50/50
2.8-3.8
2.8-3.8
45/55
3.2-4.3
2.4-3.4
43/57
3.3-4.5
2.2-3.2
40/60
3.6-4.9
2.0-3.0
35/65
4.2-5.5
1.6-2.6
33/67
4.4-5.8
1.5-2.5
30/70
4.8-6.2
1.5-2.3

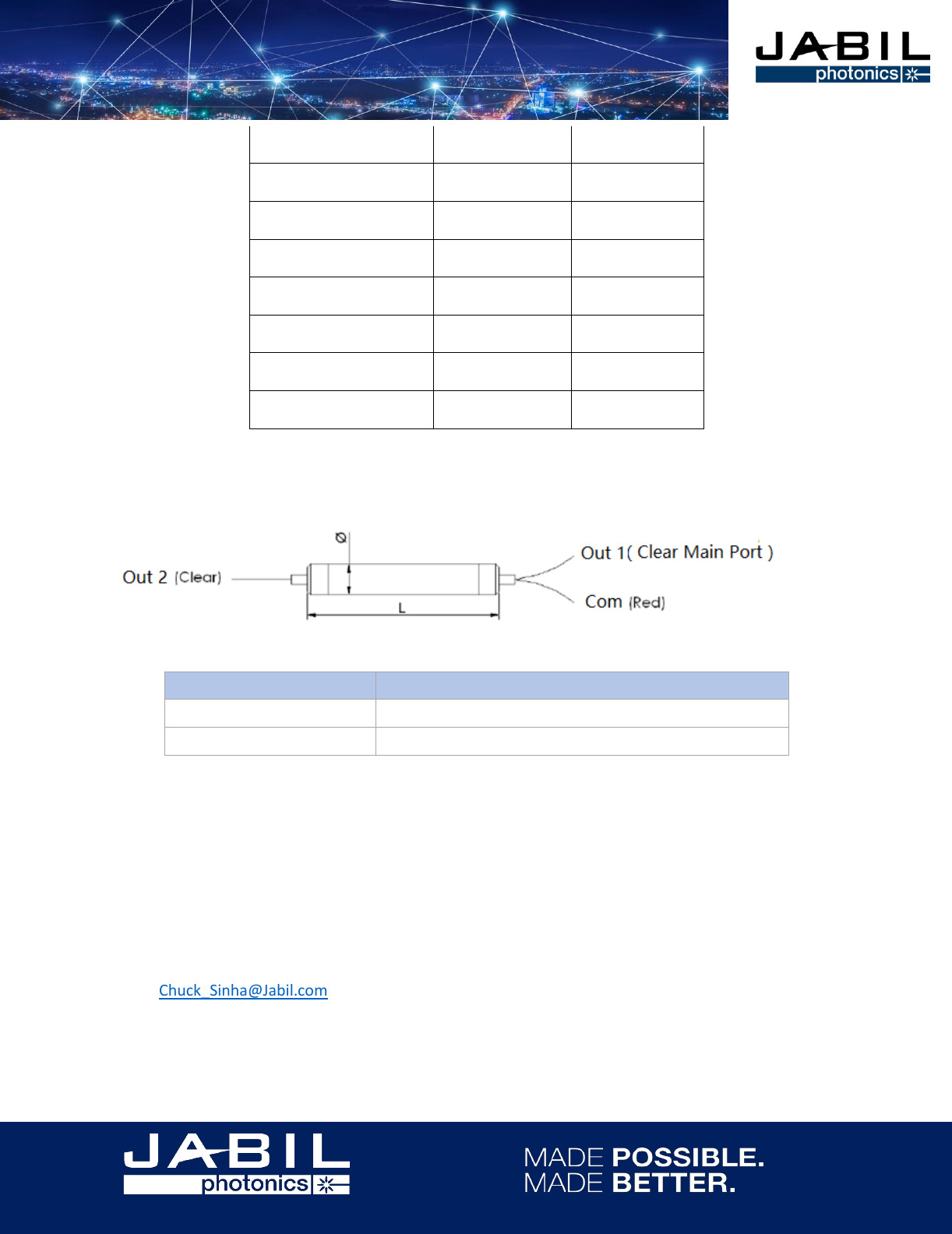

:JA'BIL - o onucs: Out 1(Clear Main Peri ) \ Out 2 (Clear) [ ] t i V I k_':\: ' L ' ‘~ Com (Red) Chuck Sinha @Jabilxom d RE I L MADE POSSIBLE. MADE BETTER.
25/75
5.5-7.1
1.1-2.0
20/80
6.7-8.3
0.9-1.7
15/85
7.4-9.8
≤1.5
10/90
8.0-12.0
≤1.2
5/95
12.0-14.0
≤0.8
3/97
14.0-16.0
≤0.7
2/98
16.0-19.0
≤0.6
1/99
19.0-21.0
≤0.6
Ordering information
Jabil Part Number
Other info
JP-SPLT-50-50
Splitter 50:50
JP-SPLT-98-02
Splitter 98:2
Contact information
For additional information and evaluation samples order, please contact:
Chuck Sinha, Sr. Director of Sales
Jabil Photonics
5960 Inglewood Dr. Suite 100, Pleasanton, CA
Mobile: 408-505-0955
Email: Chuck_Sinha@Jabil.com
