FEATURES
Customary LVDT performance
AISI 400 Series stainless steel case
Imperial or metric core
APPLICATIONS
General industrial
Moderate operating temperature
environments
Cost sensitive applications
E SERIES
Economy Series AC LVDT
SPECIFICATIONS
Economical
Stroke ranges from ± 0.1 to ±2 inch
AC operation, 50Hz to 10kHz
Magnetically shielded case
Available with imperial or metric core
The E Series of LVDTs is highly economical, satisfying numerous
applications in which LVDT performance and reliability are desired, but
where budgets are limited. With a linearity of just ±0.5% of full range
(E 2000, ±1.0%), the E Series is suitable for most applications with
moderate operating temperature environments. Housed in magnetic
stainless steel for protection against electromagnetic and electrostatic
interference, the E Series rugged construction is capable of resisting
the shock and vibration of most industrial applications.
Like in most of our LVDTs, the E Series windings are vacuum
impregnated with a specially formulated, high temperature, flexible
resin, and the coil assembly is potted inside its housing with a two-
component epoxy. This provides excellent protection against hostile
environments such as high humidity, vibration and shock.

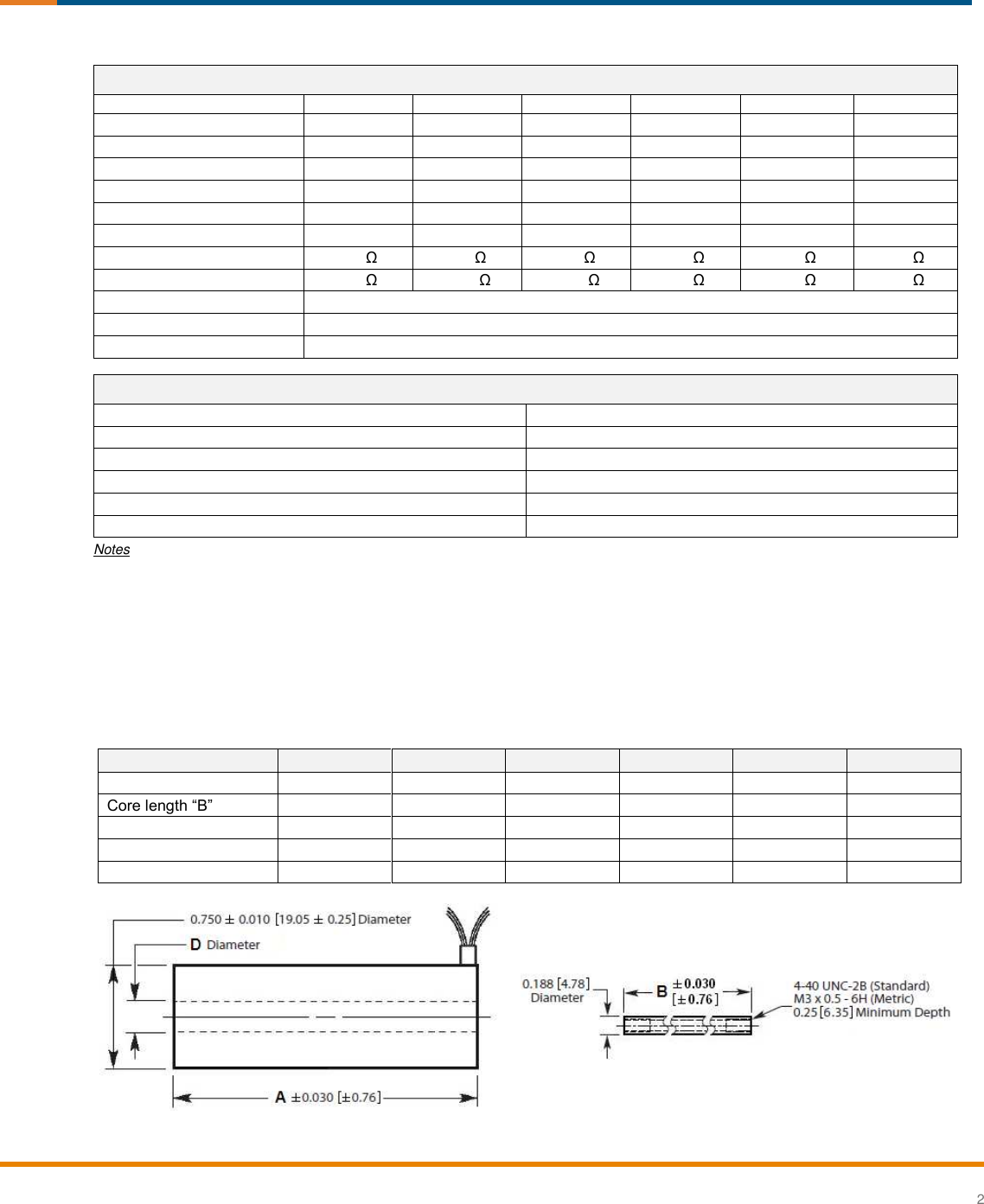

Notes Core lengm “B" 0 75a: omo [19.05 : 025]Dlame!ev D D‘amexev 01%[473] $0.030 440 UNC'ZB (SKandardl Diamezel 1 ‘6 3 [tan] ‘1 M3 x0 5 76H (Malncl [a 25 [s 35]Mlmmum Depth 7 SEE—’3 + 4* A $0030 [to Mal ._.
E SERIES
Economy Series AC LVDT
SENSOR SOLUTIONS ///E Series Rev. 6 07/2017
Page 2
PERFORMANCE SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
Parameter
E 100
E 200
E 500
E 1000
E 2000
Stroke range
±0.1 [±2.54]
±0.2 [±5.08]
±0.5 [±12.7]
±1 [±25.4]
±2 [±50.8]
Sensitivity, V/V/inch
2.40
1.57
0.68
0.76
0.46
Sensitivity, mV/V/mm
94.5
61.8
26.8
29.9
18.1
Output at stroke ends (*)
240mV/V
314mV/V
340mV/V
760mV/V
920mV/V
Non-linearity (maximum)
±0.5% of FR
±0.5% of FR
±0.5% of FR
±0.5% of FR
±1.0% of FR
Phase shift
-3°
-5°
+6°
+4°
0°
Input impedance (PRI)
660Ω
970Ω
408Ω
525Ω
585Ω
Output impedance (SEC)
960Ω
1010Ω
162Ω
690Ω
875Ω
Input voltage & frequency
3 VRMS @ 50Hz to 10kHz, sine wave
Test input frequency
2.5kHz
Null voltage (maximum)
1% of FRO
ENVIRONMENTAL SPECIFICATIONS & MATERIALS
Operating temperature
-65°F to +200°F [-55°C to 95°C]
Shock survival
500 g (11ms half-sine)
Vibration tolerance
20 g up to 2kHz
Housing material
AISI 400 Series stainless steel
Electrical connection
Six lead-wires, 28 AWG, PTFE insulated, 1 foot [0.3m] long
IEC 60529 rating
IP61
Notes:
All values are nominal unless otherwise noted
Electrical specifications are for the test frequency indicated in the table
Dimensions are in inch [mm] unless otherwise noted
(*): Unit for output at stroke ends is millivolt per volt of excitation (input voltage)
FR: Full Range is the stroke range, end to end; FR=2xS for ±S stroke range
FRO (Full Range Output): Algebraic difference in outputs measured at the ends of the range
MECHANICAL SPECIFICATIONS
Parameter
E 100
E 200
E 300
E 500
E 1000
E 2000
Body length “A”
1.75 [44.5]
2.25 [57.2]
2.77 [70.4]
4.56 [115.8]
7.05 [179.1]
10.57 [268.5]
Core length “B”
1.25 [31.8]
1.48 [37.6]
1.62 [41.2]
3.00 [76.2]
3.80 [96.5]
6.20 [157.5]
Bore diameter “D”
0.236 [6.00]
0.236 [6.00]
0.236 [6.00]
0.220 [5.59]
0.220 [5.59]
0.220 [5.59]
Body weight, oz [gram]
1.09 [31]
1.27 [36]
1.59 [45]
1.98 [56]
2.43 [69]
4.48 [127]
Core weight, oz [gram]
0.12 [3.4]
0.13 [3.8]
0.17 [4.8]
0.30 [8.4]
0.39 [11]
0.60 [17]
Dimensions are in inch [mm]
‘ ' 1 BLACK + " YELLOW BLACK mum I. “m" szcounm "up.” | | m: mun...“ VELLDW’RED RED 02560542-000 02560543-000 02560544-000 02560545-000 cusmmemare hm©|emm cusmmevcave hevx@|e,cum cusmmevcare,shzn@\e cum 1L cum sensorsomuuus
E SERIES
Economy Series AC LVDT
SENSOR SOLUTIONS ///E Series Rev. 6 07/2017
Page 3
WIRING INFORMATION
Connect Blue to Green for differential output
ORDERING INFORMATION
Description
Model
Part Number
±0.1 inch LVDT
E 100
02560541-000
±0.2 inch LVDT
E 200
02560542-000
±0.3 inch LVDT
E 300
02560543-000
±0.5 inch LVDT
E 500
02560544-000
±1 inch LVDT
E 1000
02560545-000
±2 inch LVDT
E 2000
02560546-000
Metric core option (M3x0.5-6H threads)
All
XXXXXXXX-006
ACCESSORIES
Core connecting rod, 6 inches long, 4-40 threads
05282946-006
Core connecting rod, 12 inches long, 4-40 threads
05282946-012
Core connecting rod, 24 inches long, 4-40 threads
05282946-024
Core connecting rod, 36 inches long, 4-40 threads
05282946-036
Core connecting rod, 6 inches long, M3x0.5 metric threads
05282977-006
Core connecting rod, 12 inches long, M3x0.5 metric threads
05282977-012
Mounting block
04560950-000
