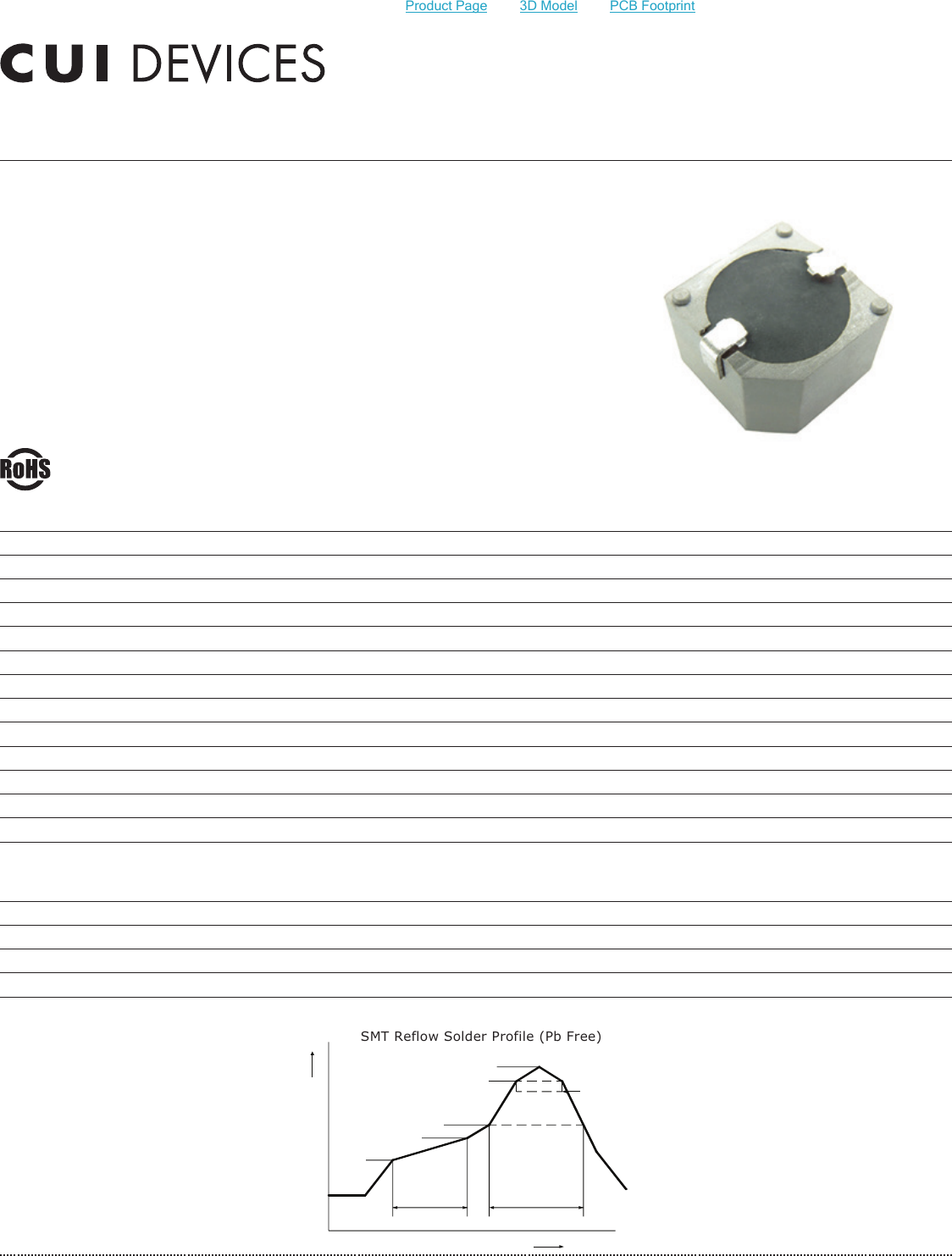

CT-1205C-SMT-TR Datasheet by Same Sky (Formerly CUI Devices)

Product Page 3D Model PCB Faalgnnl CUI DEVICES ) ( 5w Reflaw smaer Profile (Pb Free)
date 01/07/2020
page 1 of 4
MODEL: CT-1205C-SMT-TR │ DESCRIPTION: MAGNETIC BUZZER INDICATOR
cuidevices.com
FEATURES
• high sound pressure level
• washable
• internally driven
SPECIFICATIONS
parameter conditions/description min typ max units
rated voltage 5.0 Vdc
operating voltage 4.0 7.0 Vdc
current consumption 30 mA
rated frequency 2,100 2,400 2,700 Hz
sound pressure level at 10 cm (A-weight free air), rated voltage 90 94 dBA
dimensions 12.8 x 12.8 x 10.0 mm
weight 2.0 g
material PPS (S-206)
terminal SMT type (Sn plating)
operating temperature -30 70 °C
storage temperature -40 85 °C
RoHS yes
Notes: 1.Allspecificationsmeasuredat5~35°C,humidityat45~85%,under86~106kPapressure,unlessotherwisenoted.
SOLDERABILITY
parameter conditions/description min typ max units
reel storage atrelativehumidity<40% 25 °C
reflowsoldering2seerecommendedreflowsolderingprofile 260 °C
drying conditions3bakeat40°Cfor24hours
Note: 2.Itisrecommendedtoreflowsolderwithin48hoursfromopeningvacuumpackagingatatemperature<30°C&relativehumidity<60%.
3.Whenoutofpackagingformorethan48hours.
Peak Temp 260°C
255°C
217°C
200°C
150°C
60~180 sec60~150 sec
20~40 sec
Temperature (°C)
Time (sec)
SMT Reflow Solder Profile (Pb Free)
Additional Resources: Product Page | 3D Model | PCB Footprint
Product Page 3D Model PCB Faalgnnl Q A 12.8 12.8:0.3 10.0103 64:03 7 m 4/ A 3L if 3:03 +V DC
date 01/07/2020 │ page 2 of 4CUI Devices │ MODEL: CT-1205C-SMT-TR │ DESCRIPTION: MAGNETIC BUZZER INDICATOR
cuidevices.com
CT-1205C
Week
01
02
Year
05---2005
06---2006
0112
CHINA
0.5
2-4.0
2-3.0
(+) (-) (+) (-)

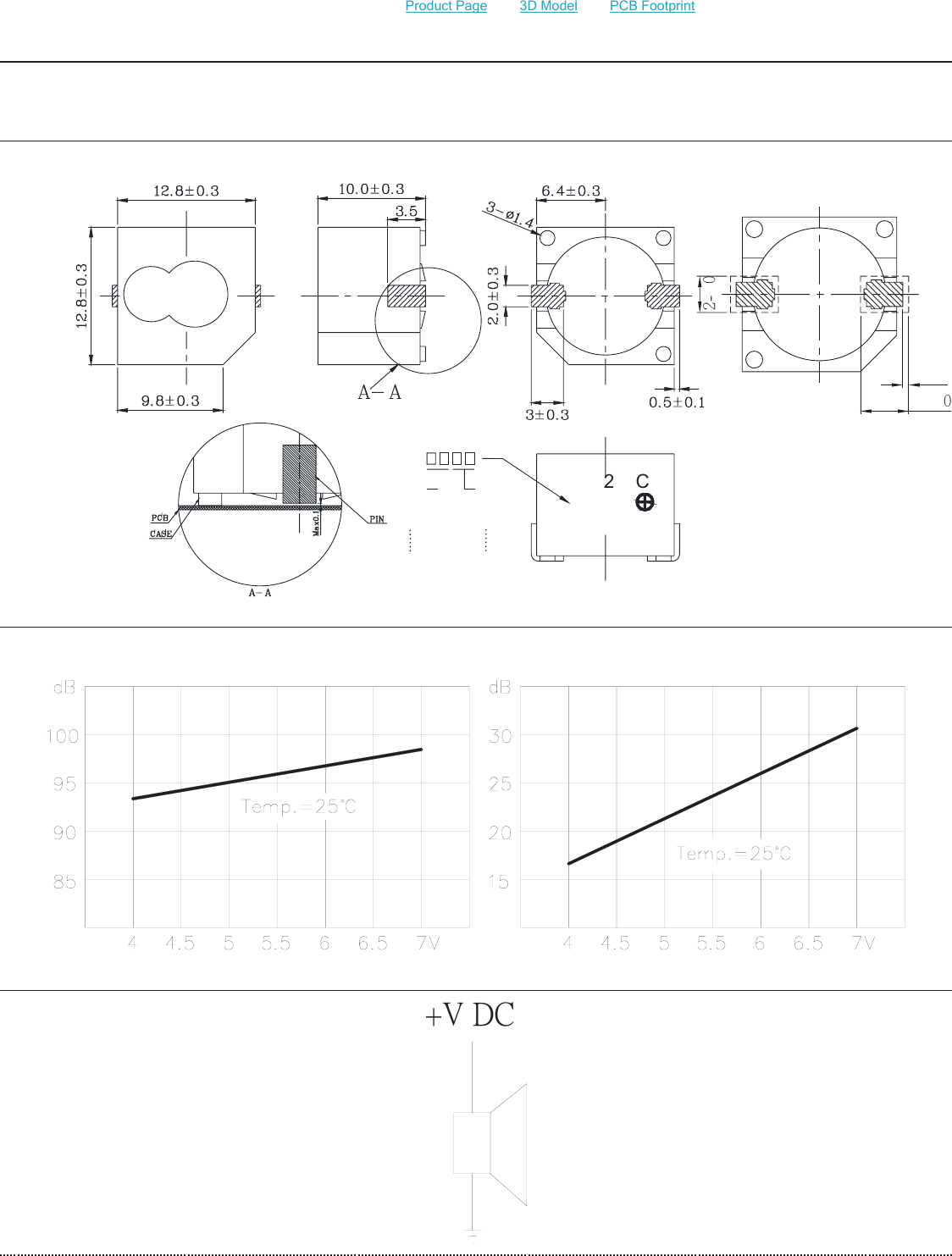

MECHANICAL DRAWING
RECOMMENDED
PCB LAYOUT
(Top View)
units: mm
tolerance: ±0.5 mm
PERFORMANCE CURVES
MEASUREMENT METHOD
ĬŗġŅń
Voltage vs. Sound Pressure Level Voltage vs. Current Consumption
Additional Resources: Product Page | 3D Model | PCB Footprint
Product Page 30 Model PCB Fumgnm (8330. 00 @ 4T8“-3I.mima_1 “m. -¢-4>~}-¢~+$+~4>f¢-¢-#¢ cum-a m, ZFLH I 112nm 14m:
date 01/07/2020 │ page 3 of 4CUI Devices │ MODEL: CT-1205C-SMT-TR │ DESCRIPTION: MAGNETIC BUZZER INDICATOR
cuidevices.com

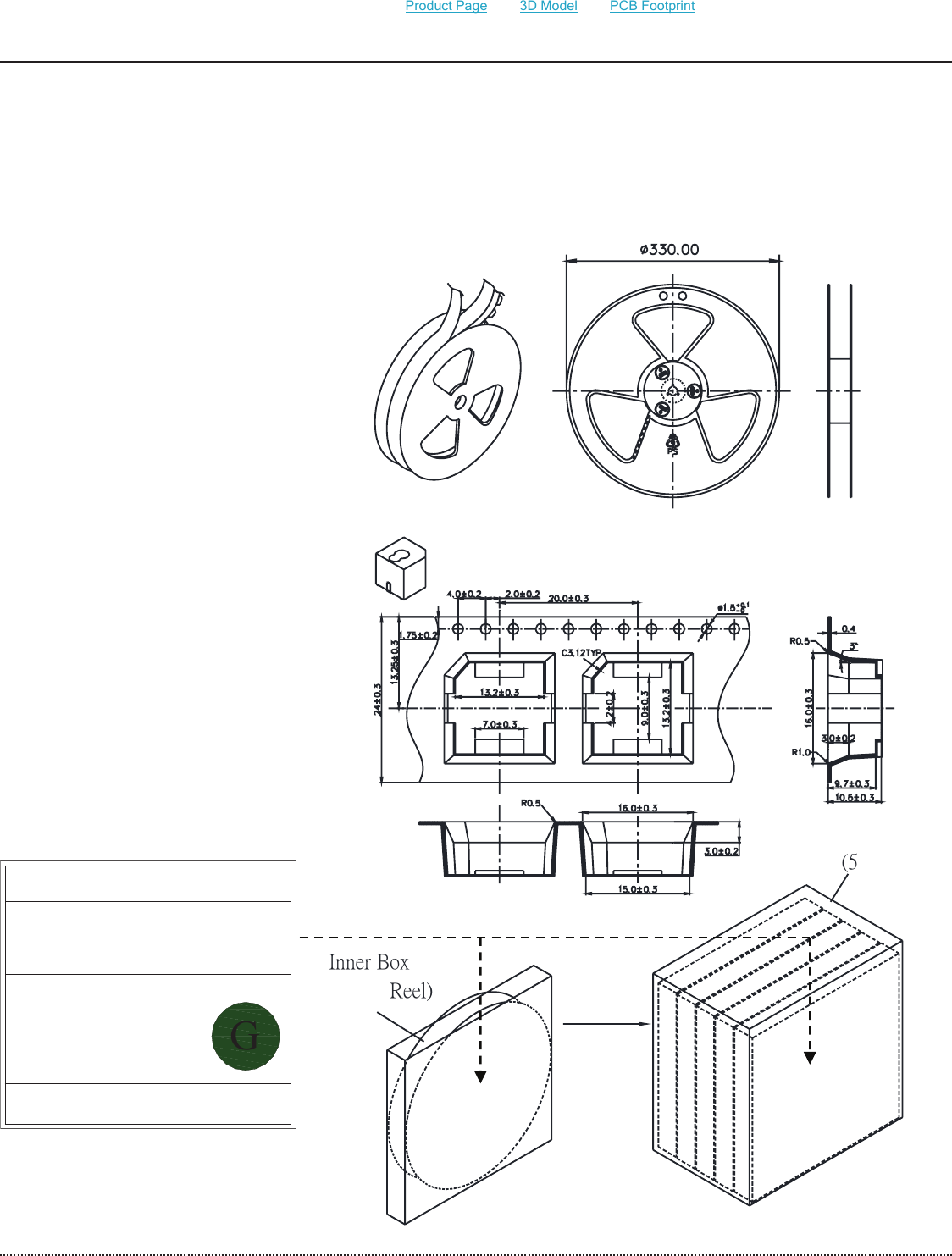

PACKAGING
units: mm
Reel Size: Ø330 mm
Inner Box Size: 340 x 340 x 33 mm
Carton Size: 350 x 175 x 355 mm
Reel QTY: 320 pcs per reel
Carton QTY: 1,600 pcs per carton
ĩIJōŢźŦųġœŦŦŭĪ
ŊůůŦųġŃŰŹ
ĩĶġŊůůŦųġŃŰŹ
Ī
ńŢųŵŰůġŃŰŹ
ł
Lot No.
Model No.
Quantity.Pcs
Date:
G
CUI Inc
XXXXXXXXXX
XXXXXXXXXX
XXXX
DD MM YY
MADE IN CHINA
* The label sticked on inner boxes
and the outer of carton.
Additional Resources: Product Page | 3D Model | PCB Footprint
Product Page 30 Model PCB Foolgnnl CUI DEVICES
date 01/07/2020 │ page 4 of 4CUI Devices │ MODEL: CT-1205C-SMT-TR │ DESCRIPTION: MAGNETIC BUZZER INDICATOR
cuidevices.com
CUI Devices offers a one (1) year limited warranty. Complete warranty information is listed on our website.
CUI Devices reserves the right to make changes to the product at any time without notice. Information provided by CUI Devices is believed to be accurate and reliable. However, no
responsibility is assumed by CUI Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
CUI Devices products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any
component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or
effectiveness.
rev. description date
1.0 initial release 09/21/2006
1.01 new template applied, corrected performance curves 12/18/2012
1.02
updatedpartnumber,addedTRpackageoption
05/03/2013
1.03
addedstorageanddryingconditions,andtapeandreelpackagingdetails
07/31/2019
1.04 brand update 01/07/2020
The revision history provided is for informational purposes only and is believed to be accurate.
REVISION HISTORY
