F52L, F52M Series Datasheet

Am henol A law. Amph‘ig‘g'
Amphenol Information Communications and Commercial Products
www.amphenol-icc.com
VERTICAL NON ZIF FLEX
CONNECTORS

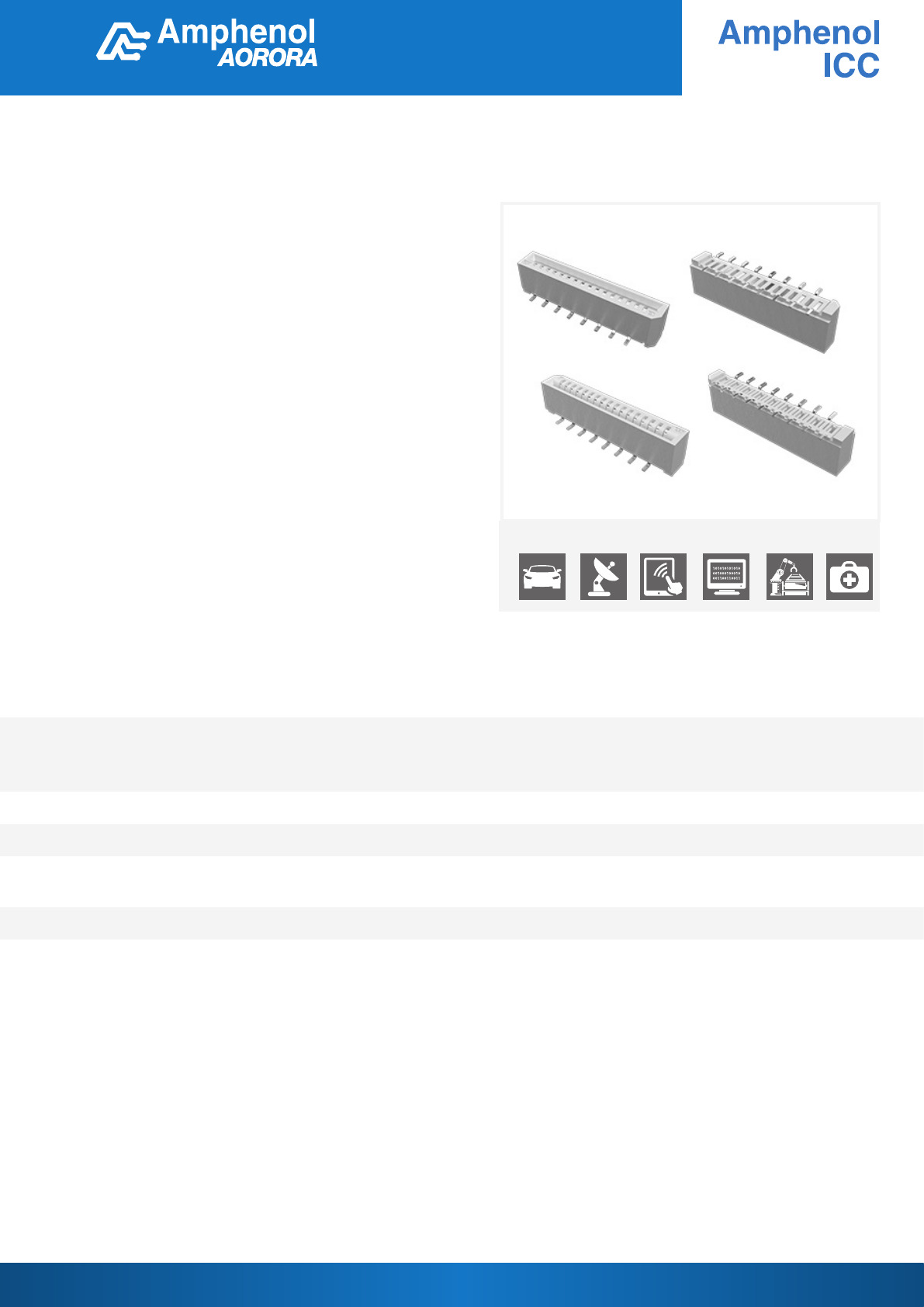

F52L/F52M series are 1.00mm pitch vertical Non-ZIF
flex connectors with surface mount termination and no
locking mechanism. F52L and F52M are vertical A-Type
and B-Type respectively. These connectors feature a
height of 5.04mm and comes in 4 to 30 contacts. This
series features a cable thickness of 0.30mm and provides
enhanced durability of 30 mating cycles. The connectors
come with a robust design and prevent solder and flux
wicking. These are ideal for automotive, data, industrial,
communication, consumer and medical applications.
TARGET MARKETS
1.00mm Pitch FFC/FPC - F52L/F52M Series
Single action low-force FFC/FPC insertion and removal
Ensures high solderability and durability
Wide operating temperature range of -40°C to +105°C
FEATURES BENEFITS
Non-ZIF (Zero Insertion Force) mechanism requires some
force for insertion
No locking mechanism
Single action low-force FFC/FPC insertion and removal
Design against solder and flux wicking Ensures high solderability
High-temperature thermoplastic housing Wide operating temperature range of -40°C to +105°C
4 to 30 positions available Comprehensive range to satisfy different customer
requirements
Lead and halogen-free Meets environmental, health and safety requirements
www.amphenol-icc.com Disclaimer
Please note that the above information is subject to change without notice.
1.00mm Pitch FFC/FPC - F52L/F52M Series
MATERIAL
Housing: LCP, natural color (UL94V-0)
Contact: Phosphor bronze, T=0.20mm
Mylar: T=0.10mm, thermostable, yellow
color
MECHANICAL PERFORMANCE
FFC/FPC Retention Force: 40gf/pin min.
FFC/FPC Insertion Force: 3,000gf max.
Terminal Retention Force: 200gf/terminal
min.
Durability: 30 mating cycles
ELECTRICAL PERFORMANCE
Voltage Rating: 50V AC/DC
Current Rating: 0.5A
Contact Resistance: 30MΩ max.
Insulation Resistance: 500MΩ min.
Dielectric Withstanding Voltage: No short or
breakdown after 500V AC, 2mA, 1min.
PACKAGING
Tape & Reel
APPROVALS AND CERTIFICATIONS
UL file number E41797
RoHS compliant
SPECIFICATION
Aorora Product Specification: IS.EQC.050
ENVIRONMENTAL
Operating Temperature Range: -40°C to +105°C
TARGET MARKETS/APPLICATIONS
Car Multimedia
Car Navigation
Dashboard
PND
Base Station
Power
Switches
Notebook
Tablets
Wearables
Gaming
DSC
LCD & PDP TV
TECHNICAL INFORMATION
Router
Server
ODD
HDD
Sensing element
Monitoring camera
Human Machine Interface
Industrial PC
Robotics
Ultrasonic
Patient Monitor
MRI
CT
Infusion Pump
PART NUMBER SELECTOR
F 5 XX 1 A 7A 1 1 1 0 X X
Number of positions
Product family
F FPC/FFC Connector
Pitch
5 1.00mm
Product type
2L A type
2M B type
Housing material
1LCP
Housing color
A Natural
Plating
7A Phosphor bronze
matte tin
1 Reel
1Lead free
AORORAF52L52M0719EA4
