FGG.2B.304.CLAD52 Datasheet

Catalog
FGG.2B.304.CLAD52
www.lemo.com
TECHNICAL DETAILS
Shell Style/Model
Keying
Housing Material
Weight
Performance
SUMMARY
FG*: Straight plug, cable collet
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290]
brass latch sleeve and mid pieces
29.04 g
Configuration
# Wires
Mechanics
2B.304 : 4 Low Voltage
Series
Insulator
Termination type
L: PEEK (UL 94 / V-0/1.5)
IP rating
Rated Current
Cable Ø
15 Amps
2B
Specifications
Male solder
Contact Type: Solder
Contact Dia.: 1.3 mm (0.051in)
Bucket Dia.: 1 mm (0.039in)
Max. Solid Conductor: 0.5 mm^2 (AWG 20)
Max. Stranded Conductor: 0.5 mm^2 (AWG 20)
R (max): 3.6 mOhm
Vtest (contact-shell): 1850 V (AC), 2600 V (DC)
Vtest (contact-contact): 1850 V (AC), 2600 V (DC)
50
4.30 - 5.20 mm
Download
Request a quote
Eplan
Catalog
See video assembly instructions

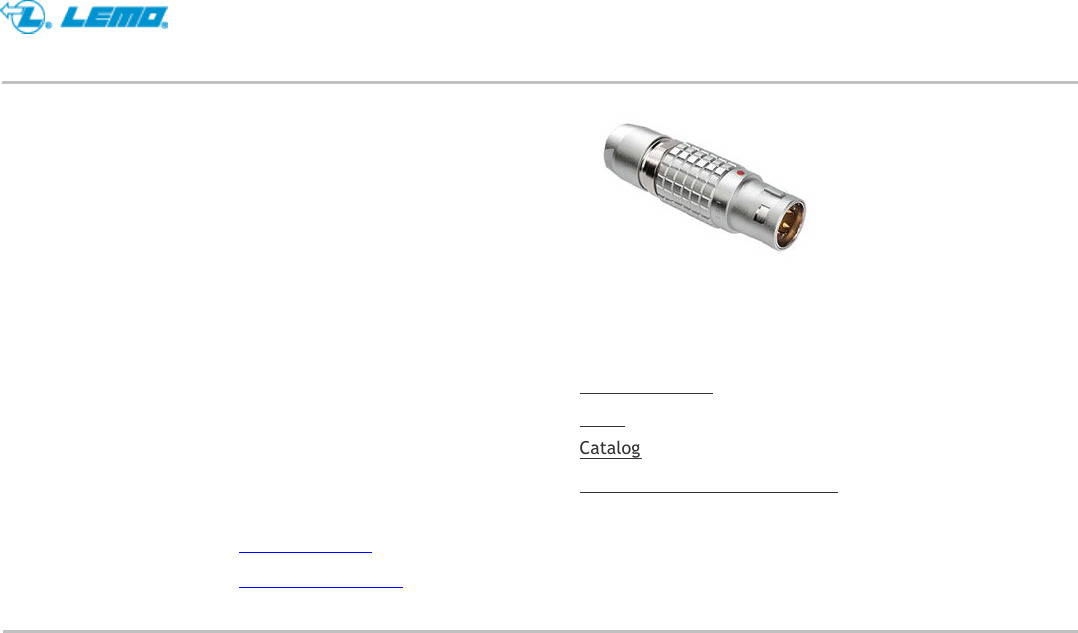

Image is for illustrative purpose only
Status active
AWG wire size 28.00 - 20.00
Matching parts EGG.2B.304.CLL
PHG.2B.304.CLLD52
Low voltage 4
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
82 s1 1 00‘ PCSG +0 A» Go

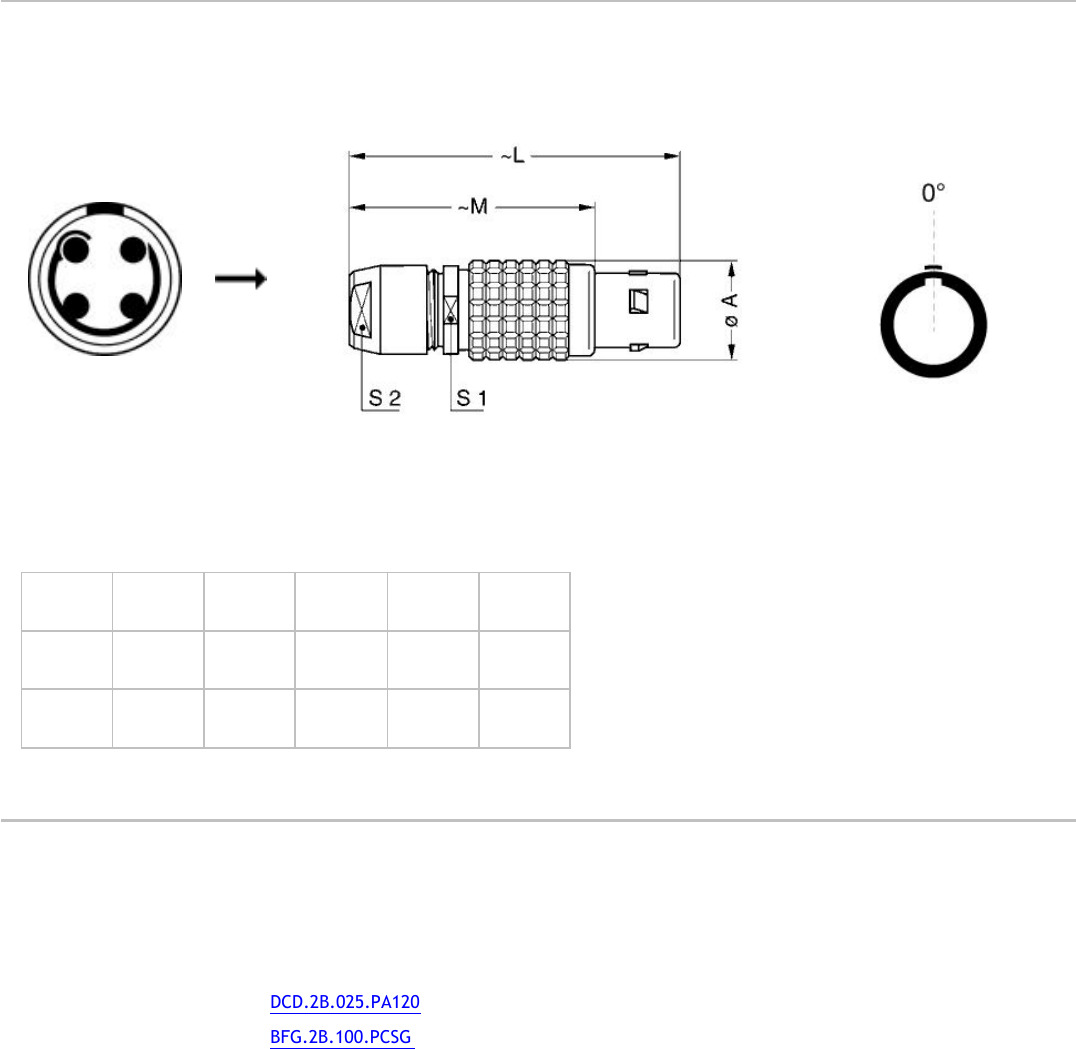

DRAWINGS
A L M S1 S2
mm. 15 50 38 13 12
in. 0,59 1,97 1,50 0,51 0,47
Dimensions
RECOMMENDED BY LEMO
DCD.2B.025.PA120
BFG.2B.100.PCSG
Tools
Spanner wrench:
Caps:
Others
Endurance (Shell): 5000
Temp (min / max): -55°C / +250°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
Salt Spray Corrosion: >1000 hr
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
l

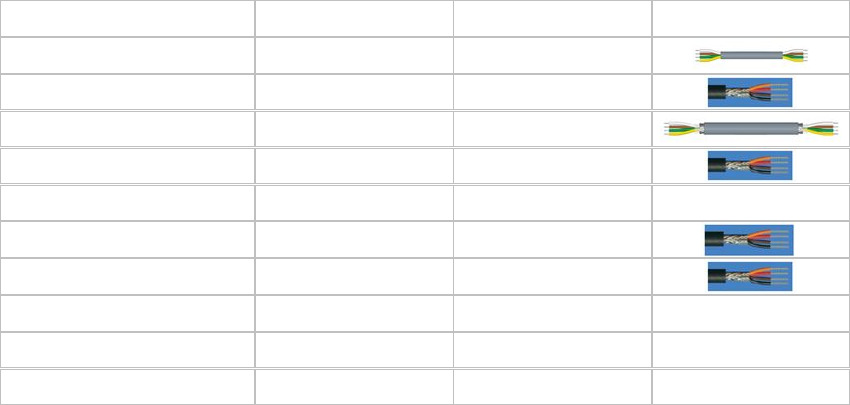

Cables
Grey
Grey
Black
Grey
Black
Grey
Black
Black
Grey
Red
Black
TPR
TPR (medical)
PVC
PVC
PVC
PVC
PVC
PVC
PVC
PVC
PVC
CMN.04.T22.047QGC
CMN.04.T22.048QGZE
140240
140250
40260
4080
4221
4280
80080
80082
80084
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
3/3
