AxyZRxyZR28H102A Drawing Datasheet by JST Sales America Inc.

13 4 5
A
B
D
C
8
76
2
13 4 58
76
2
A
B
D
C
SIZE
DRAWING NO.
GAM-295
REV
DATE
SCALE
1:1
ZONE
REV
DESCRIPTION
DATE
APPROVED
PART NO.
SEE TABLE 1
DESCRIPTION

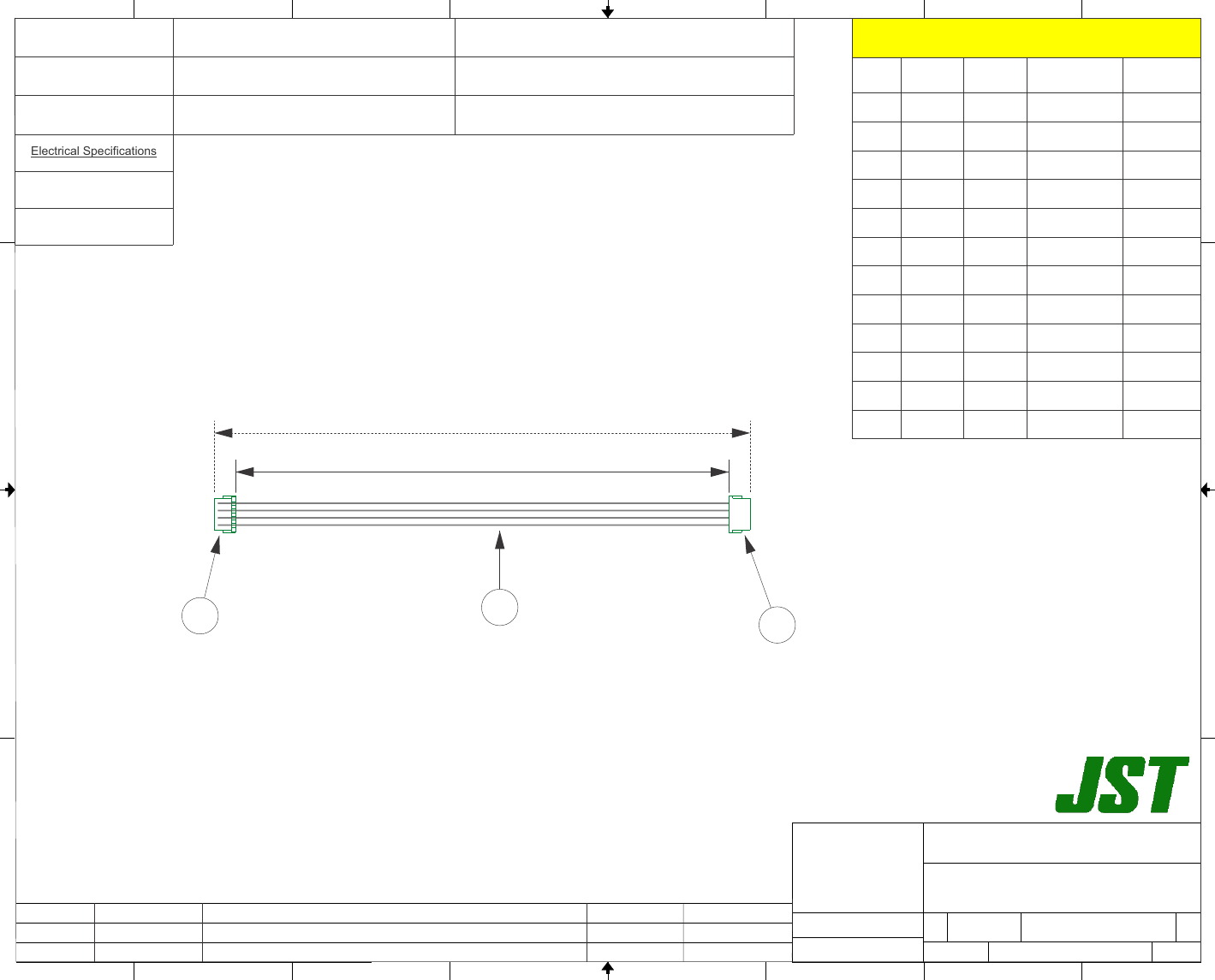

1.5mm Pitch ZR Standard Catalog Assembly - 4” Overall Length - Pin Out: 1 to 1
CUSTOMER NAME
All dimensions are in
millimeters with a default
tolerance of +/- 5.0 unless
otherwise specified.
Drawn By:
Larissa Mosley
Checked By:
Steven Pilkington
Item No.
Part No.
Description
1
See Table 1
ZR Connector
2
L1571, 28 AWG
Grey
TABLE 1
ITEM
NUMBER OF
CIRCUITS
CONNECTOR
PART NO.
ASSEMBLY
PART NO.
1
2
02ZR-8M-P
A02ZR02ZR28H102A
1
3
03ZR-8M-P
A03ZR03ZR28H102A
1
4
04ZR-8M-P
A04ZR04ZR28H102A
1
5
05ZR-8M-P
A05ZR05ZR28H102A
1
6
06ZR-8M-P
A06ZR06ZR28H102A
1
7
07ZR-8M-P
A07ZR07ZR28H102A
1
8
08ZR-8M-P
A08ZR08ZR28H102A
1
9
09ZR-8M-P
A09ZR09ZR28H102A
1
10
10ZR-8M-P
A10ZR10ZR28H102A
1
11
11ZR-8M-P
A11ZR11ZR28H102A
1
12
12ZR-8M-P
A12ZR12ZR28H102A
1
13
13ZR-8M-P
A13ZR13ZR28H102A
CUSTOMER PART NO.
4/13/2018
PIN 1 PIN 1
101.6 +/- 5.0
110.4 +/- 5.0
121
Electrical Specifications
Current: 0.7A AC/DC
Voltage: 50V AC/DC
1Add Electrical Specifications 6/29/2018 LM
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO J.S.T. AND SHALL NOT BE USED OR SHOWN WITHOUT WRITTEN PERMISSION.
