V'.‘ ‘F. B X E I TEXAS INSTRUMENTS
4Z
4Y
3Z
3Y
2Z
2Y
1Z
1Y
13
14
11
10
5
6
3
2
4A
3A
2A
1A
G
15
9
7
1
12
4
G
Copyright © 2016, Texas Instruments Incorporated
Product
Folder
Sample &
Buy
Technical
Documents
Tools &
Software
Support &
Community
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
AM26LV31E
SLLS848B –APRIL 2008–REVISED SEPTEMBER 2016
AM26LV31E Low-Voltage High-Speed Quadruple Differential Line Driver
With ±15-kV IEC ESD Protection
1
1 Features
1• Meets or Exceeds Standards TIA/EIA-422-B and
ITU Recommendation V.11
• Operates From a Single 3.3-V Power Supply
• ESD Protection for RS422 Bus Pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC61000-4-2, Contact Discharge
– ±15-kV IEC61000-4-2, Air-Gap Discharge
• Switching Rates Up to 32 MHz
• Propagation Delay Time: 8 ns Typical
• Pulse Skew Time: 500 ps Typical
• High Output-Drive Current: ±30 mA
• Controlled Rise and Fall Times: 5 ns Typical
• Differential Output Voltage With 100-Ω
Load: 2.6 V Typical
• Accepts 5-V Logic Inputs With 3.3-V Supply
• Ioff Supports Partial-Power-Down Mode Operation
• Driver Output Short-Protection Circuit
• Glitch-Free Power-Up and Power-Down Protection
• Package Options: SO, SOIC, TSSOP, VQFN
2 Applications
• Motor Drives
• Space Avionics and Defense
• Medical Healthcare and Fitness
• Wireless Infrastructure
• Factory Automation and Control
3 Description
The AM26LV31E is a quadruple differential line driver
with 3-state outputs. This driver has ±15-kV ESD
(HBM and IEC61000-4-2, Air-Gap Discharge) and
±8-kV ESD (IEC61000-4-2, Contact Discharge)
protection. This device is designed to meet
TIA/EIA-422-B and ITU Recommendation V.11
drivers with reduced supply voltage.
The device is optimized for balanced-bus
transmission at switching rates up to 32 MHz. The
outputs have high current capability for driving
balanced lines, such as twisted-pair transmission
lines, and provide a high impedance in the power-off
condition.
The AM26LV31EI is characterized for operation from
–40°C to +85°C.
Device Information(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
AM26LV31EID SOIC (16) 9.90 mm × 3.91 mm
AM26LV31EINS SO (16) 10.30 mm × 5.30 mm
AM26LV31EIPW TSSOP (16) 5.00 mm × 4.40 mm
AM26LV31EIRGY VQFN (16) 4.00 mm × 3.50 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.

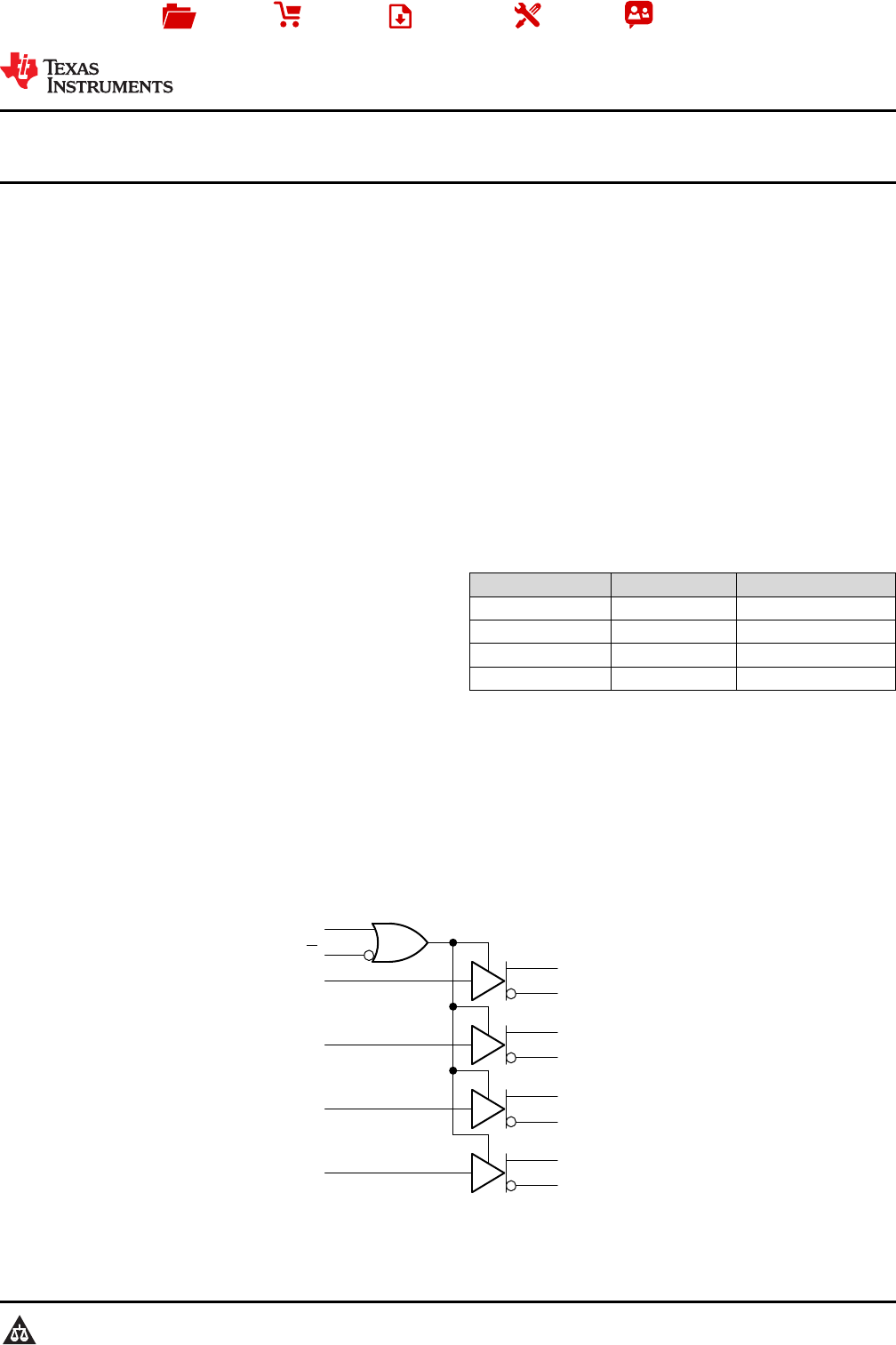

Logic Diagram
l TEXAS INSTRUMENTS
2
AM26LV31E
SLLS848B –APRIL 2008–REVISED SEPTEMBER 2016
www.ti.com
Product Folder Links: AM26LV31E
Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated
Table of Contents
1 Features.................................................................. 1
2 Applications ........................................................... 1
3 Description ............................................................. 1
4 Revision History..................................................... 2
5 Pin Configuration and Functions......................... 3
6 Specifications......................................................... 4
6.1 Absolute Maximum Ratings ...................................... 4
6.2 ESD Ratings.............................................................. 4
6.3 Recommended Operating Conditions....................... 4
6.4 Thermal Information.................................................. 5
6.5 Electrical Characteristics........................................... 5
6.6 Switching Characteristics.......................................... 6
6.7 Typical Characteristics.............................................. 6
7 Parameter Measurement Information .................. 7
8 Detailed Description............................................ 10
8.1 Overview ................................................................. 10
8.2 Functional Block Diagram....................................... 10
8.3 Feature Description................................................. 10
8.4 Device Functional Modes........................................ 11
9 Application and Implementation ........................ 12
9.1 Application Information............................................ 12
9.2 Typical Application .................................................. 12
10 Power Supply Recommendations ..................... 14
11 Layout................................................................... 14
11.1 Layout Guidelines ................................................. 14
11.2 Layout Example .................................................... 14
12 Device and Documentation Support ................. 15
12.1 Documentation Support ........................................ 15
12.2 Receiving Notification of Documentation Updates 15
12.3 Community Resource............................................ 15
12.4 Trademarks........................................................... 15
12.5 Electrostatic Discharge Caution............................ 15
12.6 Glossary................................................................ 15
13 Mechanical, Packaging, and Orderable
Information ........................................................... 15
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision A (May 2008) to Revision B Page
• Added Applications section, Thermal Information table, Feature Description section, Device Functional Modes,
Application and Implementation section, Power Supply Recommendations section, Layout section, Device and
Documentation Support section, and Mechanical, Packaging, and Orderable Information section ..................................... 1
• Deleted Ordering Information table, see Mechanical, Packaging, and Orderable Information at the end of the datasheet.. 1
• Changed ESD PROTECTION to ESD Ratings table ............................................................................................................. 4
• Changed RθJA for PW package from 108°C/W: to 99.5°C/W ................................................................................................. 5
• Changed RθJA for NS package from 64°C/W: to 74.5°C/W .................................................................................................... 5
• Changed RθJA for RGY package from 39°C/W: to 39.3°C/W ................................................................................................. 5
*9 TEXAS INSTRUMENTS
Thermal
Pad
21Y
3 1Z
4 G
5 2Z
6 2Y
7 2A
8 GND
9 3A
10 3Y
11 3Z
12 G
13 4Z
14 4Y
15 4A
16 VCC
1 1A
Not to scale
11A 16 VCC
21Y 15 4A
31Z 14 4Y
4G 13 4Z
52Z 12 G
62Y 11 3Z
72A 10 3Y
8GND 9 3A
Not to scale
3
AM26LV31E
www.ti.com
SLLS848B –APRIL 2008–REVISED SEPTEMBER 2016
Product Folder Links: AM26LV31E
Submit Documentation FeedbackCopyright © 2008–2016, Texas Instruments Incorporated
5 Pin Configuration and Functions
D, NS, or PW Package
16-Pin SOIC, SO, TSSOP
Top View
RGY Package
16-Pin VQFN With Thermal Pad
Top View
Pin Functions
PIN
I/O DESCRIPTION
NAME SOIC, SO,
TSSOP, VQFN
1A 1 I Logic data input to RS422 driver 1
1Y 2 O RS-422 data line for driver 1
1Z 3 O RS-422 data line for driver 1
2A 7 I Logic data input to RS422 driver 2
2Y 6 O RS-422 data line for driver 2
2Z 5 O RS-422 data line for driver 2
3A 9 I Logic data input to RS422 driver 3
3Y 10 O RS-422 data line for driver 3
3Z 11 O RS-422 data line for driver 3
4A 15 I Logic data input to RS422 driver 4
4Y 14 O RS-422 data line for driver 4
4Z 13 O RS-422 data line for driver 4
G 4 I Driver enable (active high)
G 12 I Driver enable (active low)
GND 8 — Device ground pin
VCC 16 — Power input (5 V)
l TEXAS INSTRUMENTS
4
AM26LV31E
SLLS848B –APRIL 2008–REVISED SEPTEMBER 2016
www.ti.com
Product Folder Links: AM26LV31E
Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values except differential input voltage are with respect to the network GND.
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
VCC Supply voltage(2) –0.5 6 V
VIInput voltage –0.5 6 V
VOOutput voltage –0.5 6 V
IIK Input clamp current VI< 0 –20 mA
IOK Output clamp current VO< 0 –20 mA
lOContinuous output current ±150 mA
Continuous current through VCC or GND ±200 mA
TJOperating virtual junction temperature 150 °C
TAOperating free-air temperature –40 85 °C
Tstg Storage temperature –65 150 °C
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.2 ESD Ratings
VALUE UNIT
V(ESD) Electrostatic
discharge
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) Bus pins 2, 3, 5, 6, 10, 11, 13, and 14 ±15000
V
All pins except 2, 3, 5, 6, 10, 11, 13, and 14 ±2000
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±1000
IEC 61000-4-2 contact discharge Bus pins 2, 3, 5, 6, 10, 11, 13, and 14 ±8000
IEC 61000-4-2 air-gap discharge Bus pins 2, 3, 5, 6, 10, 11, 13, and 14 ±15000
6.3 Recommended Operating Conditions
MIN NOM MAX UNIT
VCC Supply voltage 3 3.3 3.6 V
VIInput voltage 0 5.5 V
VIH High-level input voltage 2 V
VIL Low-level input voltage 0.8 V
IOH High-level output current –30 mA
IOL Low-level output current 30 mA
TAOperating free-air temperature –40 85 °C
l TEXAS INSTRUMENTS
5
AM26LV31E
www.ti.com
SLLS848B –APRIL 2008–REVISED SEPTEMBER 2016
Product Folder Links: AM26LV31E
Submit Documentation FeedbackCopyright © 2008–2016, Texas Instruments Incorporated
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
6.4 Thermal Information
THERMAL METRIC(1)
AM26LV31E
UNITD (SOIC) PW (TSSOP) NS (SO) RGY (VQFN)
16 PINS 16 PINS 16 PINS 16 PINS
RθJA Junction-to-ambient thermal resistance 73.0 99.5 74.5 39.3 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 32.8 34.9 31.6 31.9 °C/W
RθJB Junction-to-board thermal resistance 31.0 44.4 35.3 14.8 °C/W
ψJT Junction-to-top characterization parameter 5.1 2.4 5.3 0.4 °C/W
ψJB Junction-to-board characterization parameter 30.7 43.8 35.0 14.8 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance n/a n/a n/a 3.4 °C/W
(1) All typical values are at VCC = 3.3 V, TA= 25°C.
(2) Not more than one output should be shorted at a time, and the duration of the short circuit should not exceed one second.
(3) Cpd determines the no-load dynamic current consumption. IS= Cpd × VCC × f + ICC
6.5 Electrical Characteristics
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP(1) MAX UNIT
VOH High-level output voltage VIH = 2 V, VIL = 0.8 V, IOH = –20 mA 2.4 3 V
VOL Low-level output voltage VIH = 2 V, VIL = 0.8 V, IOL = 20 mA 0.2 0.4 V
|VOD1| Differential output voltage IO= 0 mA 2 4 V
|VOD2| Differential output voltage RL= 100 Ω(see Figure 3) 2 2.6 V
Δ|VOD|Change in magnitude of
differential output voltage RL= 100 Ω(see Figure 3) ±0.4 V
VOC Common-mode output voltage RL= 100 Ω(see Figure 3) 1.5 2 V
Δ|VOC|Change in magnitude of
common-mode output voltage RL= 100 Ω(see Figure 3) ±0.4 V
IO(OFF) Output current with power off VCC = 0, VO= –0.25 V or 5.5 V ±100 μA
IOZ High-impedance state output current VO= –0.25 V or 5.5 V, G = 0.8 V or G = 2 V ±100 μA
IIInput current VCC = 0 or 3.6 V, VI= 0 or 5.5 V ±10 μA
IOS Short-circuit output current VO= VCC or GND(2) –30 –150 mA
ICC Supply current (total package) VI= VCC or GND, No load, enable 100 μA
Cpd Power dissipation capacitance No load(3) 160 pF
l TEXAS INSTRUMENTS 300 300
Frequency (MHz)
ICC (mA)
0.0001 0.001 0.01 0.1 1 10 50
0
50
100
150
200
250
300
D001
100 Ohms 1000pF
100 Ohms 100pF
100 Ohms
No termination
Data Rate (Mbps)
ICC (mA)
0.0001 0.001 0.01 0.1 0.5 2 3 5 10 20 100
0
50
100
150
200
250
300
D001
100 Ohms 1000pF
100 Ohms 100pF
100 Ohms
No termination
6
AM26LV31E
SLLS848B –APRIL 2008–REVISED SEPTEMBER 2016
www.ti.com
Product Folder Links: AM26LV31E
Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated
(1) All typical values are at VCC = 3.3 V, TA= 25°C.
(2) Pulse skew is defined as the |tPLH – tPHL| of each channel of the same device.
(3) Skew limit (device to device) is the maximum difference in propagation delay times between any two channels of any two devices.
6.6 Switching Characteristics
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP(1) MAX UNIT
tPHL Propagation delay time, high- to low-level output See Figure 4 4 8 12 ns
tPLH Propagation delay time, low- to high-level output 4 8 12 ns
ttTransition time (tror tf) See Figure 4 5 10 ns
tPZH Output-enable time to high level See Figure 5 10 20 ns
tPZL Output-enable time to low level See Figure 6 10 20 ns
tPHZ Output-disable time from high level See Figure 5 10 20 ns
tPLZ Output-disable time from low level See Figure 6 10 20 ns
tsk(p) Pulse skew
See Figure 4(2)(3)
0.5 1.5 ns
tsk(o) Skew limit (pin to pin) 1.5 ns
tsk(lim) Skew limit (device to device) 3 ns
f(max) Maximum operating frequency See Figure 4 32 MHz
6.7 Typical Characteristics
Figure 1 and Figure 2 below show typical ICC values at various frequencies/data rates for various termination
conditions.
Figure 1. ICC vs. Frequency Figure 2. ICC vs. Data Rate
l TEXAS INSTRUMENTS The mpm pulse ‘5 supphed by a generator havmg me muowing charactensllcs PRR : 32 MH1,50"/edutycyc\e, I, '4 S
VOD
RL/2
RL/2 VOC
7
AM26LV31E
www.ti.com
SLLS848B –APRIL 2008–REVISED SEPTEMBER 2016
Product Folder Links: AM26LV31E
Submit Documentation FeedbackCopyright © 2008–2016, Texas Instruments Incorporated
7 Parameter Measurement Information
Figure 3. Test Circuit, VOD and VOC

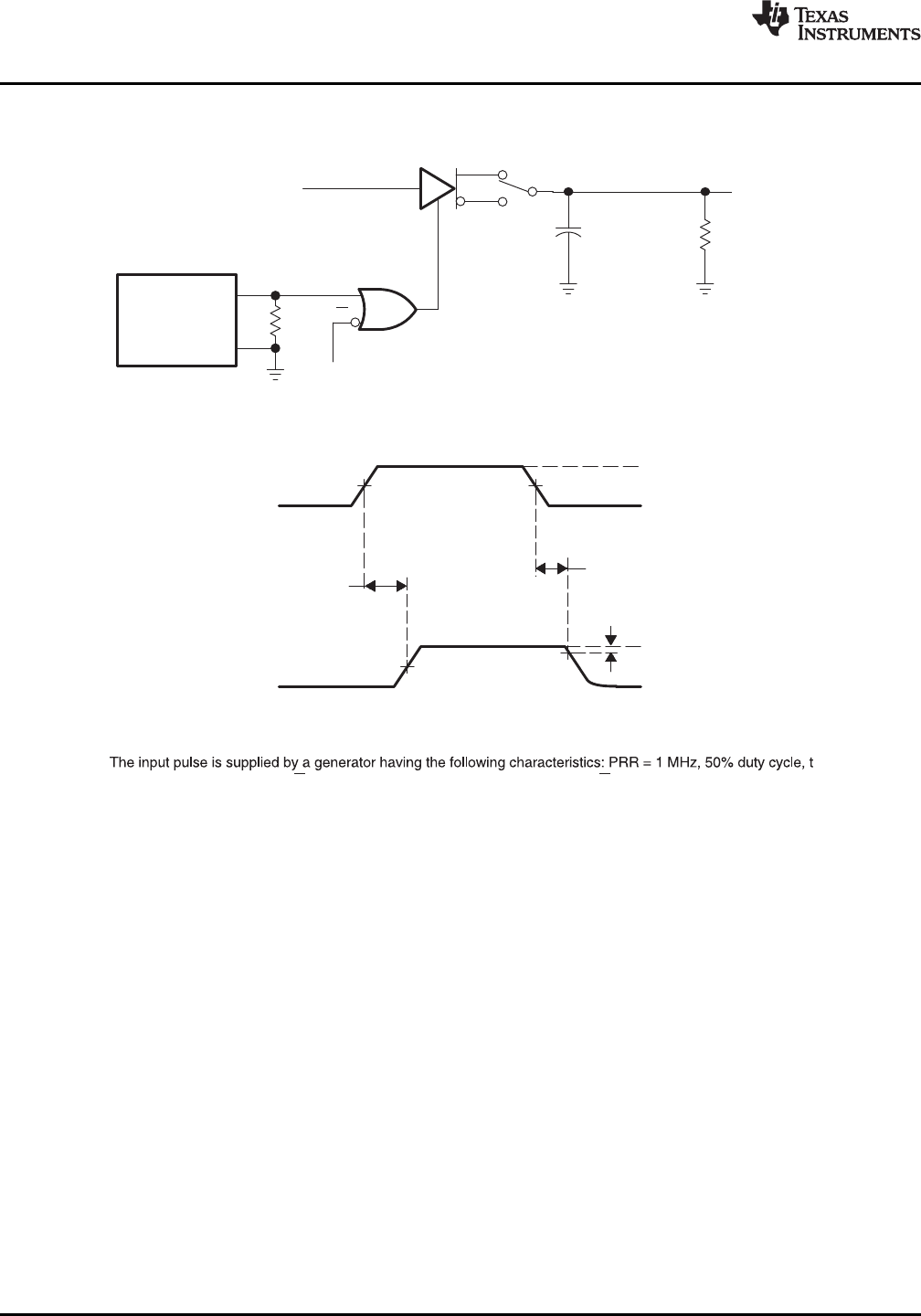

Figure 4. Test Circuit and Voltage Waveforms, tPHL and tPLH
l TEXAS INSTRUMENTS The inpm pulse ‘5 supphed by a generator havmg the tonowing charactensticsfnR : 1 MHz. 50% my cyc\e,t
Input
tPZH
tPHZ
VCC
50% 50%
0 V
Output
VOH
50%
VOLTAGE WAVEFORMS
Voff ≈0
0.3 V
NOTES: A. CLincludes probe and jig capacitance.
B. rand tf≤2 ns.
C. To test the active-low enable G, ground G and apply an inverted waveform to G.
S1
Generator
(see Note B) 50 Ω
VCC
RL= 110 Ω
CL= 40 pF
(see Note A)
VCC
(see Note C)
Output
TEST CIRCUIT
A
Y
G
G
Z
8
AM26LV31E
SLLS848B –APRIL 2008–REVISED SEPTEMBER 2016
www.ti.com
Product Folder Links: AM26LV31E
Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated
Parameter Measurement Information (continued)
Figure 5. Test Circuit and Voltage Waveforms, tPZH and tPHZ
l TEXAS INSTRUMENTS The mpm pulse ‘5 supphed by a generalov havmg the tonowmg chavamensllcs' PRR : ‘ MHz, 50% dmy cyc‘e,‘
Input
tPZL
tPLZ
VCC
50% 50%
0 V
Output
VOL
50%
VOLTAGE WAVEFORMS
Voff ≈VCC
0.3 V
NOTES: A. CLincludes probe and jig capacitance.
B. rand tf≤2 ns.
C. To test the active-low enable G
, ground G and apply an inverted waveform to G.
S1
Generator
(see Note B) 50 Ω
VCC
RL= 110 Ω
CL= 40 pF
(see Note A)
VCC
(see Note C)
Output
TEST CIRCUIT
VCC
AY
Z
G
G
9
AM26LV31E
www.ti.com
SLLS848B –APRIL 2008–REVISED SEPTEMBER 2016
Product Folder Links: AM26LV31E
Submit Documentation FeedbackCopyright © 2008–2016, Texas Instruments Incorporated
Parameter Measurement Information (continued)
Figure 6. Test Circuit and Voltage Waveforms, tPZL and tPLZ
l TEXAS INSTRUMENTS
4Z
4Y
3Z
3Y
2Z
2Y
1Z
1Y
13
14
11
10
5
6
3
2
4A
3A
2A
1A
G
15
9
7
1
12
4
G
Copyright © 2016, Texas Instruments Incorporated
10
AM26LV31E
SLLS848B –APRIL 2008–REVISED SEPTEMBER 2016
www.ti.com
Product Folder Links: AM26LV31E
Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated
8 Detailed Description
8.1 Overview
The AM26LV31E is a quadruple differential line driver with 3-state outputs. The device is designed to meet
TIA/EIA-422-B and ITU Recommendation V.11 drivers with reduced supply voltage. The high current capability of
the outputs allow for driving balanced lines, such as twisted-pair transmission lines, and proved a high
impedance in the power-off condition. The AM26LV31E is optimized for balanced-bus transmission line at
switching rates up to 32 MHz.
From a single 3.3-V power supply, the device operates four 3-state differential line drivers with integrated active
high and active low enables for precise control. The device is capable of accepting 5-V logic inputs with a 3.3-V
supply. The driver is designed to handle loads of a minimum of ±30 mA of sink or source current.
8.2 Functional Block Diagram
Figure 7. Logic Diagram
8.3 Feature Description
8.3.1 Complementary Out-Enable Inputs
The AM26LV31E transmitter outputs can be configured using the G and G logic inputs. The transmitter outputs
are enabled when either G is set to logic HIGH or G is set to logic LOW. The reverse disables the outputs
(G = LOW, G = HIGH). See Table 1 for the complete truth table.
8.3.2 High Output Impedance for Specific Driver Enable Inputs
When the AM26LV31E transmitter outputs are disabled using G and G logic inputs, the outputs are set to a high
impedance state.
l TEXAS INSTRUMENTS GND NT I
VCC
Input
GND
VCC
Output
GND
11
AM26LV31E
www.ti.com
SLLS848B –APRIL 2008–REVISED SEPTEMBER 2016
Product Folder Links: AM26LV31E
Submit Documentation FeedbackCopyright © 2008–2016, Texas Instruments Incorporated
8.4 Device Functional Modes
Table 1 lists the functional modes of the AM26LV31E.
(1) H = high level, L = low level, X = irrelevant,
Z = high impedance (off)
Table 1. Function Table(1)
INPUT
A
ENABLES OUTPUTS
G G Y Z
H H X H L
L H X L H
H X L H L
L X L L H
X L H Z Z
SPACE
SPACE
Figure 8. Equivalent of Each Input (A, G, or G)
Schematic Figure 9. Typical of Each Driver Output Schematic
‘5‘ TEXAS INSTRUMENTS
AD
B
Z
Status
R
DR
DR
DR
AM26LV31E AM26LV32E
Encoder
Interpolation
Electronics
Encoder Phase A
Encoder Phase B
Encoder Index
Status
Servo Drive Motion Controller
Copyright © 2016, Texas Instruments Incorporated
12
AM26LV31E
SLLS848B –APRIL 2008–REVISED SEPTEMBER 2016
www.ti.com
Product Folder Links: AM26LV31E
Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
When designing a system that uses drivers, receivers, and transceivers that comply with RS-422 or RS-485,
proper cable termination is essential for highly reliable applications with reduced reflections in the transmission
line. Because RS-422 allows only one driver on the bus, if termination is used, it is placed only at the end of the
cable near the last receiver. In general, RS-485 requires termination at both ends of the cable. Factors to
consider when determining the type of termination usually are performance requirements of the application and
the ever-present factor, cost. The different types of termination techniques discussed are unterminated lines,
parallel termination, AC termination, and multipoint termination. Laboratory waveforms for each termination
technique (except multipoint termination) illustrate the usefulness and robustness of RS-422 (and indirectly, RS-
485). Similar results can be obtained if 485-compliant devices and termination techniques are used. For
laboratory experiments, 100 feet of 100-Ω, 24-AWG, twisted-pair cable (Bertek) was used. A single driver and
receiver, TI AM26LV31E and AM26LV32E, respectively, were tested at room temperature with a 3.3-V supply
voltage. To show voltage waveforms related to transmission-line reflections, the first plot shows output
waveforms from the driver at the start of the cable (A/B); the second plot shows input waveforms to the receiver
at the far end of the cable (Y).
9.2 Typical Application
Figure 10. Encoder Application
l TEXAS INSTRUMENTS
±3
±2
±1
0
1
2
3
4
5
0 0.1 0.2 0.3 0.4 0.5
Voltage (V)
Time (s)
Y A/B
C001
13
AM26LV31E
www.ti.com
SLLS848B –APRIL 2008–REVISED SEPTEMBER 2016
Product Folder Links: AM26LV31E
Submit Documentation FeedbackCopyright © 2008–2016, Texas Instruments Incorporated
Typical Application (continued)
9.2.1 Design Requirements
This example requires the following:
• 3.3-V power source
• RS-485 bus operating at speed compatible with cable length
• Connector that ensures the correct polarity for port pins
9.2.2 Detailed Design Procedure
Place the device close to bus connector to keep traces (stub) short to prevent adding reflections to the bus
line. If desired, add external fail-safe biasing to ensure 200 mV on the A-B port, if the drive is in high
impedance state (see Failsafe in RS-485 data buses, SLYT080).
9.2.3 Application Curve
Figure 11. Differential 120-ΩTerminated Output Waveforms (Cat 5E Cable)
‘5‘ TEXAS INSTRUMENTS IQ: 1 -DDUDU-D-D-D“ P M n A fimmmmmflmn f. r, f.
Input 2
1A1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
VCC
0.1 PF
AM26LV31E
1Y
1Z
Differential
Output 1 Input 1
2Y
2A
GND
G
2Z
VCC
4A
4Y
3Z
3Y
3A
4Z
G
Differential
Output 2
Active Low
Enable
14
AM26LV31E
SLLS848B –APRIL 2008–REVISED SEPTEMBER 2016
www.ti.com
Product Folder Links: AM26LV31E
Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated
10 Power Supply Recommendations
Place 0.1-µF bypass capacitors close to the power-supply pins to reduce errors coupling in from noisy or high
impedance power supplies.
11 Layout
11.1 Layout Guidelines
For best operational performance of the device, use good PCB layout practices, including:
• Noise can often propagate into analog circuitry through the power supply of the circuit. Bypass capacitors are
used to reduce the coupled noise by providing low impedance power sources local to the analog circuitry.
– Connect low-ESR, 0.1-μF ceramic bypass capacitors between each supply pin and ground, placed as
close to the device as possible. A single bypass capacitor from V+ to ground is applicable for single-
supply applications.
• Separate grounding for analog and digital portions of circuitry is one of the simplest and most-effective
methods of noise suppression. One or more layers on multilayer PCBs are usually devoted to ground planes.
A ground plane helps distribute heat and reduces EMI noise pickup. Make sure to physically separate digital
and analog grounds, paying attention to the flow of the ground current.
• To reduce parasitic coupling, run the input traces as far away from the supply or output traces as possible. If
it is not possible to keep them separate, it is much better to cross the sensitive trace perpendicular as
opposed to in parallel with the noisy trace.
• Place the external components as close to the device as possible. Keeping RF and RG close to the inverting
input minimizes parasitic capacitance.
• Keep the length of input traces as short as possible. Always remember that the input traces are the most
sensitive part of the circuit.
11.2 Layout Example
For all Y and Z outputs, make sure the traces are impedance matched to cable used.
Figure 12. Layout Recommendation
l TEXAS INSTRUMENTS
15
AM26LV31E
www.ti.com
SLLS848B –APRIL 2008–REVISED SEPTEMBER 2016
Product Folder Links: AM26LV31E
Submit Documentation FeedbackCopyright © 2008–2016, Texas Instruments Incorporated
12 Device and Documentation Support
12.1 Documentation Support
12.1.1 Related Documentation
For related documentation see the following:
Failsafe in RS-485 data buses, SLYT080
12.2 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
12.3 Community Resource
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.4 Trademarks
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
12.5 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
12.6 Glossary
SLYZ022 —TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
TEXAS INSTRUMENTS Samples Samples Samples Sample: Sample: Samples Samples
PACKAGE OPTION ADDENDUM
www.ti.com 13-Aug-2021
Addendum-Page 1
PACKAGING INFORMATION
Orderable Device Status
(1)
Package Type Package
Drawing Pins Package
Qty Eco Plan
(2)
Lead finish/
Ball material
(6)
MSL Peak Temp
(3)
Op Temp (°C) Device Marking
(4/5)
Samples
AM26LV31EIDR ACTIVE SOIC D 16 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 AM26LV31EI
AM26LV31EIDRG4 ACTIVE SOIC D 16 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 AM26LV31EI
AM26LV31EINSR ACTIVE SO NS 16 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 26LV31EI
AM26LV31EIPWR ACTIVE TSSOP PW 16 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 SB31
AM26LV31EIPWRG4 ACTIVE TSSOP PW 16 2000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 SB31
AM26LV31EIRGYR ACTIVE VQFN RGY 16 3000 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 SB31
AM26LV31EIRGYRG4 ACTIVE VQFN RGY 16 3000 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 SB31
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based
flame retardants must also meet the <=1000ppm threshold requirement.
(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation
of the previous line and the two combined represent the entire Device Marking for that device.
I TEXAS INSTRUMENTS
PACKAGE OPTION ADDENDUM
www.ti.com 13-Aug-2021
Addendum-Page 2
(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two
lines if the finish value exceeds the maximum column width.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
OTHER QUALIFIED VERSIONS OF AM26LV31E :
•Enhanced Product : AM26LV31E-EP
NOTE: Qualified Version Definitions:
•Enhanced Product - Supports Defense, Aerospace and Medical Applications
I TEXAS INSTRUMENTS 5:. V.’
PACKAGE MATERIALS INFORMATION
www.ti.com 3-Jun-2022

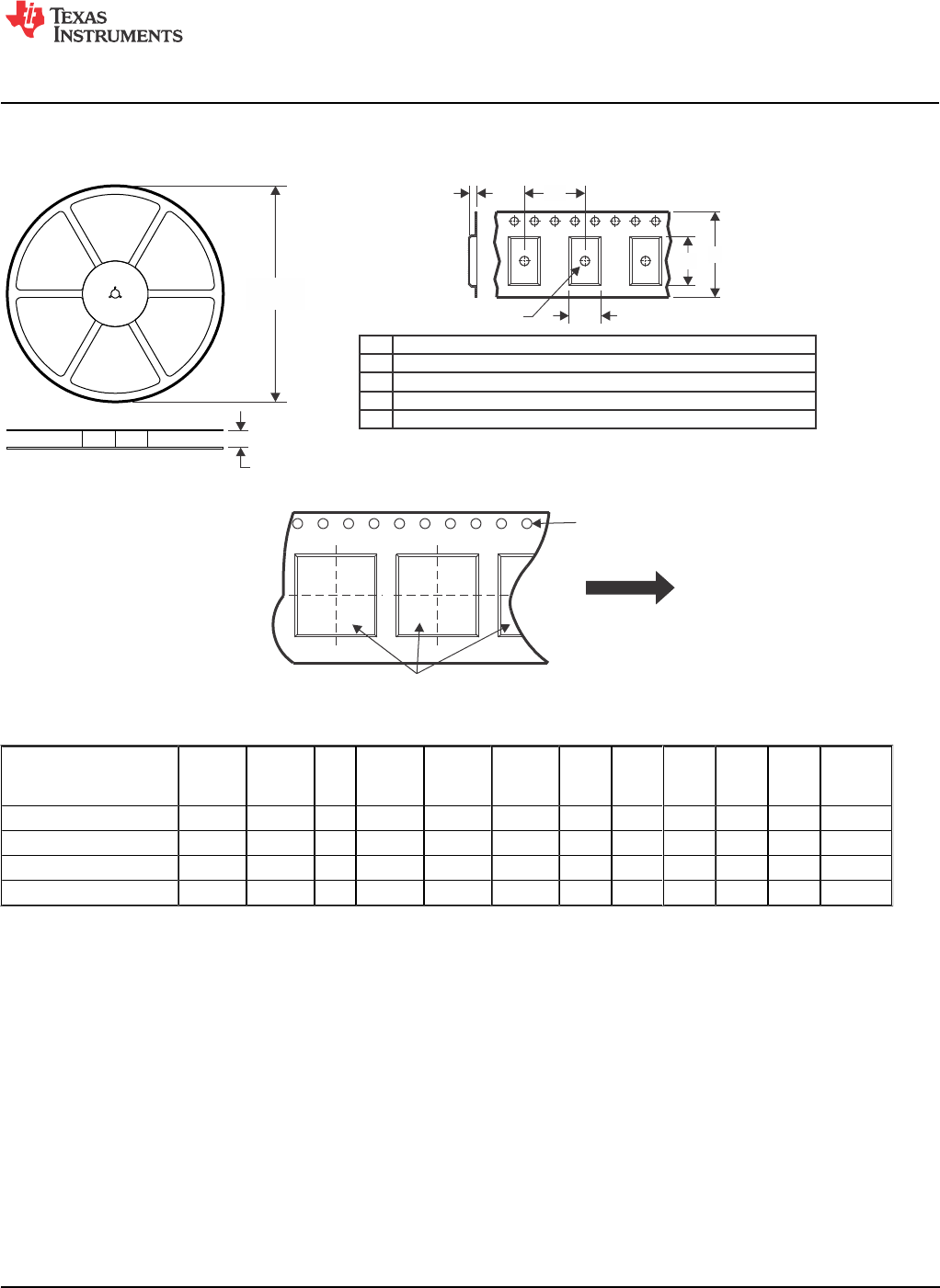

TAPE AND REEL INFORMATION
Reel Width (W1)
REEL DIMENSIONS
A0
B0
K0
W
Dimension designed to accommodate the component length
Dimension designed to accommodate the component thickness
Overall width of the carrier tape
Pitch between successive cavity centers
Dimension designed to accommodate the component width
TAPE DIMENSIONS
K0 P1
B0 W
A0
Cavity
QUADRANT ASSIGNMENTS FOR PIN 1 ORIENTATION IN TAPE
Pocket Quadrants
Sprocket Holes
Q1 Q1Q2 Q2
Q3 Q3Q4 Q4 User Direction of Feed
P1
Reel
Diameter
*All dimensions are nominal
Device Package
Type Package
Drawing Pins SPQ Reel
Diameter
(mm)
Reel
Width
W1 (mm)
A0
(mm) B0
(mm) K0
(mm) P1
(mm) W
(mm) Pin1
Quadrant
AM26LV31EIDR SOIC D 16 2500 330.0 16.4 6.5 10.3 2.1 8.0 16.0 Q1
AM26LV31EINSR SO NS 16 2000 330.0 16.4 8.2 10.5 2.5 12.0 16.0 Q1
AM26LV31EIPWR TSSOP PW 16 2000 330.0 12.4 6.9 5.6 1.6 8.0 12.0 Q1
AM26LV31EIRGYR VQFN RGY 16 3000 330.0 12.4 3.8 4.3 1.5 8.0 12.0 Q1
Pack Materials-Page 1
PACKAGE MATERIALS INFORMATION
www.ti.com 3-Jun-2022

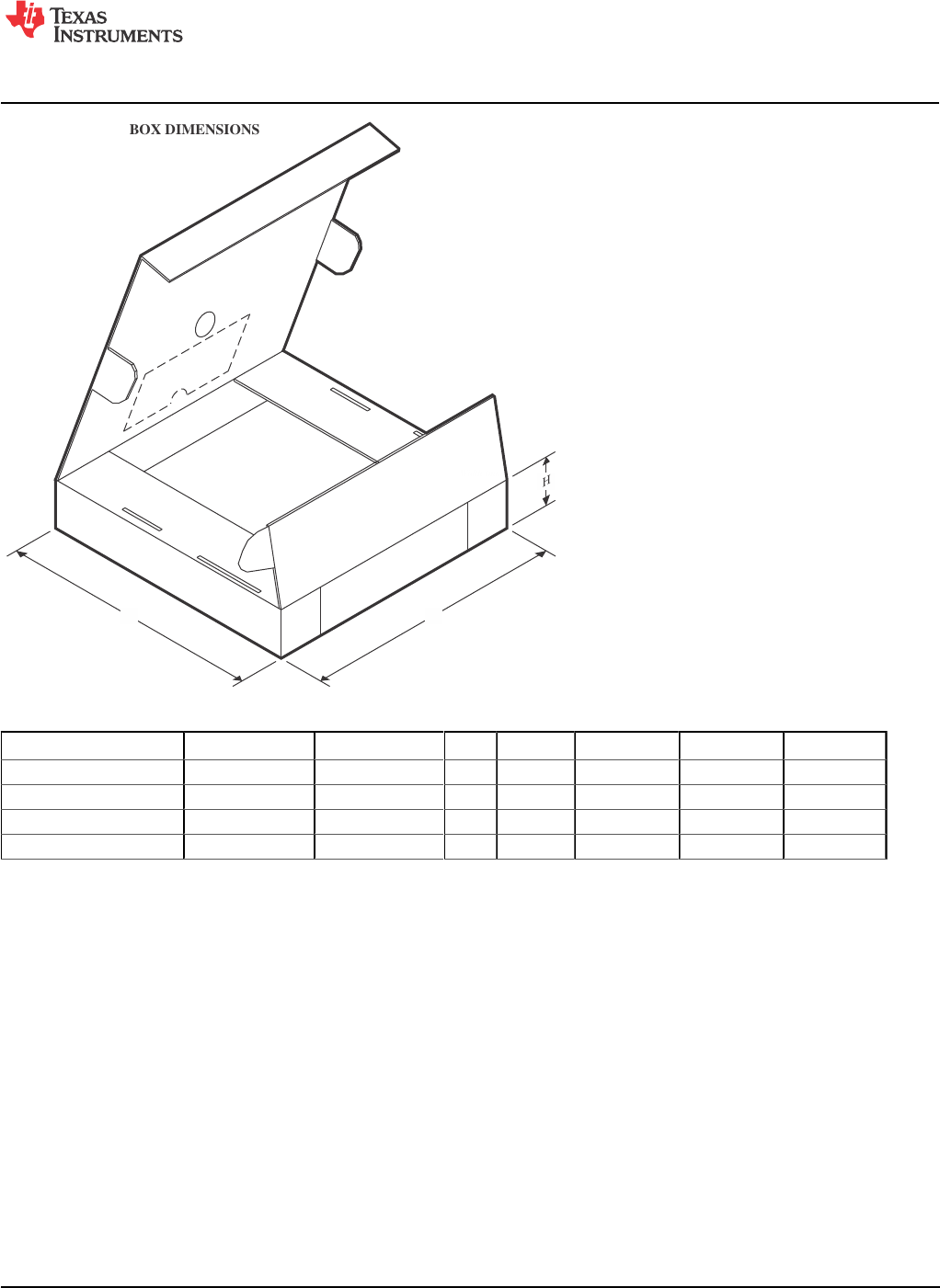

TAPE AND REEL BOX DIMENSIONS
Width (mm)
W
L
H
*All dimensions are nominal
Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
AM26LV31EIDR SOIC D 16 2500 356.0 356.0 35.0
AM26LV31EINSR SO NS 16 2000 367.0 367.0 38.0
AM26LV31EIPWR TSSOP PW 16 2000 367.0 367.0 35.0
AM26LV31EIRGYR VQFN RGY 16 3000 367.0 367.0 35.0
Pack Materials-Page 2
MECHANICAL DATA D ( *"ifi O G if” )LASHC SMALL 0U ¥N¥ 4040047 S/M 06/1‘ NO'ES, A AH Hnec' dimensmrs c'e m 'mc'ves ['nflhmeter5> B Th5 drawer ‘5 subje», ,0 change mm: Home, A Body \cngth docs rm mac mod Hoar, p'omswons, (xv gmc bms Mom mm warmers, or gm buns sha‘ nm exceed 3005 (015) eam swce @ Body mm does 101 meme 11mm fish. E Rdererce JEDEC MS 012 mam Ac, nter‘ec: flash sfu‘ not exceed 0017 (043) each swde {if TEXAS INSTRUMENTS www.1i.com
www.ti.com
PACKAGE OUTLINE
C
14X 0.65
2X
4.55
16X 0.30
0.19
TYP
6.6
6.2
1.2 MAX
0.15
0.05
0.25
GAGE PLANE
-80
B
NOTE 4
4.5
4.3
A
NOTE 3
5.1
4.9
0.75
0.50
(0.15) TYP
TSSOP - 1.2 mm max heightPW0016A
SMALL OUTLINE PACKAGE
4220204/A 02/2017
1
89
16
0.1 C A B
PIN 1 INDEX AREA
SEE DETAIL A
0.1 C
NOTES:
1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing
per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not
exceed 0.15 mm per side.
4. This dimension does not include interlead flash. Interlead flash shall not exceed 0.25 mm per side.
5. Reference JEDEC registration MO-153.
SEATING
PLANE
A 20
DETAIL A
TYPICAL
SCALE 2.500
v¢\‘\‘\‘\+““‘ gimm—LE—urmm M i
www.ti.com
EXAMPLE BOARD LAYOUT
0.05 MAX
ALL AROUND 0.05 MIN
ALL AROUND
16X (1.5)
16X (0.45)
14X (0.65)
(5.8)
(R0.05) TYP
TSSOP - 1.2 mm max heightPW0016A
SMALL OUTLINE PACKAGE
4220204/A 02/2017
NOTES: (continued)
6. Publication IPC-7351 may have alternate designs.
7. Solder mask tolerances between and around signal pads can vary based on board fabrication site.
LAND PATTERN EXAMPLE
EXPOSED METAL SHOWN
SCALE: 10X
SYMM
SYMM
1
89
16
15.000
METAL
SOLDER MASK
OPENING METAL UNDER
SOLDER MASK SOLDER MASK
OPENING
EXPOSED METAL
EXPOSED METAL
SOLDER MASK DETAILS
NON-SOLDER MASK
DEFINED
(PREFERRED)
SOLDER MASK
DEFINED
YL““‘+““‘ fimmamfl J
www.ti.com
EXAMPLE STENCIL DESIGN
16X (1.5)
16X (0.45)
14X (0.65)
(5.8)
(R0.05) TYP
TSSOP - 1.2 mm max heightPW0016A
SMALL OUTLINE PACKAGE
4220204/A 02/2017
NOTES: (continued)
8. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate
design recommendations.
9. Board assembly site may have different recommendations for stencil design.
SOLDER PASTE EXAMPLE
BASED ON 0.125 mm THICK STENCIL
SCALE: 10X
SYMM
SYMM
1
89
16
MECHANICAL DATA NS (R-PDSO-G") PLASTIC SMALL—OUTLINE PACKAGE 14-PINS SHOWN HHFHHFH j j t t H H j, A jfi/—\ % lgLLLLLiLLL/fiif A MAX 1060 1060 1290 1530 A MW 990 9,90 1230 14‘70 4040062/0 03/03 VOTES: A. AH Hneur dimenswons are m mHHmetevs a, Tm: druwmg 5 subject to change wmom name. 0 Body dwmenswons do not mamas mom flash 0v pmtmswom not to exceed 0,15 INSTRUMEN'IS www.li.m
MECHANICAL DATA ROY (R7P\/Q:\7WG> PLASUC (DJ/XE :L/fP/NCK VOi,:/‘« flfliflm «,fl H H 420353973fl US/ZUM AH \mecr mmensm are m m hmeters mmensnmnq and tu‘erc'mmg per Aw: msmiwgga m drawmq ‘5 sumo nomc O:N (mud F‘ctpcck No Lcud) pc 4 mm, Tre pucmge Mermm pc: must be so‘cerec m the ward for ther'nc and memumcm perfurmunce See 'Jve uddihonu‘ Mrs m we mam Data Sheet rm detm‘s reguvdmg me expused 0mm: pud {Holmes and dimenswuns A B C D E & P'w 1 \derh‘we's are \ocuted ur bo:h top and bckkorr of :he package 0er wkhv‘ the zone 'nmcutec We Pm 1 'demmers are ewiher u ma‘ded, marked‘ or msid feature, [3 Package Carma: m JF‘IFC M04141 vermin RA ‘5’ hams INSI'RUMENT‘S www.1i.com
THERMAL PAD MECHANICAL DATA RGY (RiPVQFNiNiB) PLASTlC QUAD FLATPACK NOiLEAD THERMAL lNFORMATlON This package incorporates an exposed thermal pad that is designed to be attached directly to an external heatsihh. The thermal pad must be soldered directly to the printed circuit board (PCB). After soldering, the PCB can be used as a heatsink. In addition, through the use of thermal vias, the thermal pad can be attached directly to the appropriate copper plane shown in the electrical Schematic for the device, or alternatively, can be attached to a special heatsink structure designed into the PCB, This design optimizes the heat transfer from the integrated circuit (IC). For iniormatlon on the Quad Flatpack No—Lead (QFN) package and its advantages. reier to Application Report. OFN/SON PCB Attachment. Texas instruments Literature No. SLUA271. This document is available at wwwti‘cam, The exposed thermal pad dimensions for this package are shown in the following illustration. f] U U U U a iExposed Thermal Pad t l: K C8 2.05i0,‘l0 + l 16:) C9 H Ti ii Ti 15 10 «25510.10» Bottom View Exposed Thermal Pad Dimensions 4206353—3/P 03/14 NOTE: All linear dimensions are in millimeters ”I. "-216 ‘5 INSTRUMENTS www.li.com
LAND PATTERN DATA ROY (R—PVQFN—Nle) PLAST‘C QUAD FLAT—PACK NO—LEAD E OelEgg’rNrdeSZ‘eiyclN‘TEiecstjrglgss xampleffitrrd Lawut (Nat: E) HUJUUU so... HDEJUU l:) (:l 4:) ‘ CI 4.30 zsaT 7 1.55» 7 "15 165 T_ “:2 _ _ 1 ¥ tin 2.07, ‘11,: x2t=t ‘ — 0.55 x is PL 7 D E— man 1‘6 PL BUD 7 U , 1 U U ,l Deeeeeeee ' 4 Due.” @0504» ”119.50 57% solder coverage by printed area on center thermal pad Example ma Layout Design may vary depending on canstraints (Note D. r) Non Solder Mask Delined Pad ..... Example \ ”" \“ Solder Musk Dpenlng (Note F) /' i P Exgmp‘el 6x¢0,3 '. o eomery \\ 007 J (Note c) All Around I \s e\‘ \__\ ____ ,./ lzoale/F 03/14 NOTES: A. All linear dimensions are in millimeters Thls drawing is suaiect to change without noticee B, a, Publication ch—735l is recommended for alternate designse D. This package is designed to toe soldered to a thermal pad on the board. Reler to Application Note, Quad Flat—Pack OFN/SON PCB Attachment. Texas Instruments Literature No, SLUA271, and also the Product Data Sheets tor specific thermal inlormation, via requirements, and recommended board layout These documents are auailahle at wwwticom , E. Laser cutting apertures with trapezoidal walls and also raundlng corners will after better paste release. Customers should contact their board assemaly site tar stencll design recommendations, Reler to we 7525 tor stencil deslgn considerations. F. Customers should contact their board fabrication site for mlnimum solder mask web tolerances between signal pads. {I TEXAS INSTRUMENTS www.li.com
www.ti.com
PACKAGE OUTLINE
C
8.2
7.4 TYP
14X 1.27
16X 0.51
0.35
2X
8.89
0.15 TYP
0 - 10
0.3
0.1
2.00 MAX
(1.25)
0.25
GAGE PLANE
1.05
0.55
A
10.4
10.0
NOTE 3
B5.4
5.2
NOTE 4
4220735/A 12/2021
SOP - 2.00 mm max heightNS0016A
SOP
NOTES:
1. All linear dimensions are in millimeters. Dimensions in parenthesis are for reference only. Dimensioning and tolerancing
per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not
exceed 0.15 mm, per side.
4. This dimension does not include interlead flash. Interlead flash shall not exceed 0.25 mm, per side.
116
0.25 C A B
9
8
PIN 1 ID
AREA
SEATING PLANE
0.1 C
SEE DETAIL A
DETAIL A
TYPICAL
SCALE 1.500
£353 RE Vi“““‘ ““““““ WEECE = Era ,MQL 1"
www.ti.com
EXAMPLE BOARD LAYOUT
0.07 MAX
ALL AROUND 0.07 MIN
ALL AROUND
14X (1.27)
(R0.05) TYP
(7)
16X (1.85)
16X (0.6)
4220735/A 12/2021
SOP - 2.00 mm max heightNS0016A
SOP
NOTES: (continued)
5. Publication IPC-7351 may have alternate designs.
6. Solder mask tolerances between and around signal pads can vary based on board fabrication site.
METAL SOLDER MASK
OPENING
NON SOLDER MASK
DEFINED
SOLDER MASK DETAILS
OPENING
SOLDER MASK METAL
SOLDER MASK
DEFINED
LAND PATTERN EXAMPLE
SCALE:7X
SYMM
1
89
16
SEE
DETAILS
SYMM
Efimfifij v¢\‘\‘\‘\
www.ti.com
EXAMPLE STENCIL DESIGN
(7)
(R0.05) TYP
16X (1.85)
16X (0.6)
14X (1.27)
4220735/A 12/2021
SOP - 2.00 mm max heightNS0016A
SOP
NOTES: (continued)
7. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate
design recommendations.
8. Board assembly site may have different recommendations for stencil design.
SOLDER PASTE EXAMPLE
BASED ON 0.125 mm THICK STENCIL
SCALE:7X
SYMM
SYMM
1
89
16
IMPORTANT NOTICE AND DISCLAIMER
TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATA SHEETS), DESIGN RESOURCES (INCLUDING REFERENCE
DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”
AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD
PARTY INTELLECTUAL PROPERTY RIGHTS.
These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate
TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable
standards, and any other safety, security, regulatory or other requirements.
These resources are subject to change without notice. TI grants you permission to use these resources only for development of an
application that uses the TI products described in the resource. Other reproduction and display of these resources is prohibited. No license
is granted to any other TI intellectual property right or to any third party intellectual property right. TI disclaims responsibility for, and you
will fully indemnify TI and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these
resources.
TI’s products are provided subject to TI’s Terms of Sale or other applicable terms available either on ti.com or provided in conjunction with
such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for
TI products.
TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2022, Texas Instruments Incorporated
