Cover
RX65N Group, RX651 Group
Flash Memory
User’s Manual: Hardware Interface
Notice
1. Descriptions of circuits, software and other related information in this document are provided only to illustrate the operation of
semiconductor products and application examples. You are fully responsible for the incorporation or any other use of the circuits,
software, and information in the design of your product or system. Renesas Electronics disclaims any and all liability for any losses and
damages incurred by you or third parties arising from the use of these circuits, software, or information.
2. Renesas Electronics hereby expressly disclaims any warranties against and liability for infringement or any other disputes involving
patents, copyrights, or other intellectual property rights of third parties, by or arising from the use of Renesas Electronics products or
technical information described in this document, including but not limited to, the product data, drawing, chart, program, algorithm,
application examples.
3. No license, express, implied or otherwise, is granted hereby under any patents, copyrights or other intellectual property rights of Renesas
Electronics or others.
4. You shall not alter, modify, copy, or otherwise misappropriate any Renesas Electronics product, whether in whole or in part. Renesas
Electronics disclaims any and all liability for any losses or damages incurred by you or third parties arising from such alteration,
modification, copy or otherwise misappropriation of Renesas Electronics products.
5. Renesas Electronics products are classified according to the following two quality grades: "Standard" and "High Quality". The intended
applications for each Renesas Electronics product depends on the product’s quality grade, as indicated below.
"Standard": Computers; office equipment; communications equipment; test and measurement equipment; audio and visual equipment;
home electronic appliances; machine tools; personal electronic equipment; and industrial robots etc.
"High Quality": Transportation equipment (automobiles, trains, ships, etc.); traffic control (traffic lights); large-scale communication
equipment; key financial terminal systems; safety control equipment; etc.
Renesas Electronics products are neither intended nor authorized for use in products or systems that may pose a direct threat to human life
or bodily injury (artificial life support devices or systems, surgical implantations etc.), or may cause serious property damages (space and
undersea repeaters; nuclear power control systems; aircraft control systems; key plant systems; military equipment; etc.). Renesas
Electronics disclaims any and all liability for any damages or losses incurred by you or third parties arising from the use of any Renesas
Electronics product for which the product is not intended by Renesas Electronics.
6. When using the Renesas Electronics products, refer to the latest product information (data sheets, user’s manuals, application notes,
"General Notes for Handling and Using Semiconductor Devices" in the reliability handbook, etc.), and ensure that usage conditions are
within the ranges specified by Renesas Electronics with respect to maximum ratings, operating power supply voltage range, heat radiation
characteristics, installation, etc. Renesas Electronics disclaims any and all liability for any malfunctions or failure or accident arising out
of the use of Renesas Electronics products beyond such specified ranges.
7. Although Renesas Electronics endeavors to improve the quality and reliability of Renesas Electronics products, semiconductor products
have specific characteristics such as the occurrence of failure at a certain rate and malfunctions under certain use conditions. Further,
Renesas Electronics products are not subject to radiation resistance design. Please ensure to implement safety measures to guard them
against the possibility of bodily injury, injury or damage caused by fire, and social damage in the event of failure or malfunction of
Renesas Electronics products, such as safety design for hardware and software including but not limited to redundancy, fire control and
malfunction prevention, appropriate treatment for aging degradation or any other appropriate measures by your own responsibility as
warranty for your products/system. Because the evaluation of microcomputer software alone is very difficult and not practical, please
evaluate the safety of the final products or systems manufactured by you.
8. Please contact a Renesas Electronics sales office for details as to environmental matters such as the environmental compatibility of each
Renesas Electronics product. Please investigate applicable laws and regulations that regulate the inclusion or use of controlled
substances, including without limitation, the EU RoHS Directive carefully and sufficiently and use Renesas Electronics products in
compliance with all these applicable laws and regulations. Renesas Electronics disclaims any and all liability for damages or losses
occurring as a result of your noncompliance with applicable laws and regulations.
9. Renesas Electronics products and technologies shall not be used for or incorporated into any products or systems whose manufacture, use,
or sale is prohibited under any applicable domestic or foreign laws or regulations. You shall not use Renesas Electronics products or
technologies for (1) any purpose relating to the development, design, manufacture, use, stockpiling, etc., of weapons of mass destruction,
such as nuclear weapons, chemical weapons, or biological weapons, or missiles (including unmanned aerial vehicles (UAVs)) for
delivering such weapons, (2) any purpose relating to the development, design, manufacture, or use of conventional weapons, or (3) any
other purpose of disturbing international peace and security, and you shall not sell, export, lease, transfer, or release Renesas Electronics
products or technologies to any third party whether directly or indirectly with knowledge or reason to know that the third party or any
other party will engage in the activities described above. When exporting, selling, transferring, etc., Renesas Electronics products or
technologies, you shall comply with any applicable export control laws and regulations promulgated and administered by the governments
of the countries asserting jurisdiction over the parties or transactions.
10. Please acknowledge and agree that you shall bear all the losses and damages which are incurred from the misuse or violation of the terms
and conditions described in this document, including this notice, and hold Renesas Electronics harmless, if such misuse or violation results
from your resale or making Renesas Electronics products available any third party.
11. This document shall not be reprinted, reproduced or duplicated in any form, in whole or in part, without prior written consent of Renesas
Electronics.
12. Please contact a Renesas Electronics sales office if you have any questions regarding the information contained in this document or
Renesas Electronics products.
(Note 1) "Renesas Electronics" as used in this document means Renesas Electronics Corporation and also includes its majority-owned
subsidiaries.
(Note 2) "Renesas Electronics product(s)" means any product developed or manufactured by or for Renesas Electronics.
(Rev.3.0-1 November 2016)
General Precautions in the Handling of Microprocessing Unit and Microcontroller Unit Products
The following usage notes are applicable to all Microprocessing unit and Microcontroller unit products from Renesas.
For detailed usage notes on the products covered by this document, refer to the relevant sections of the document as well
as any technical updates that have been issued for the products.
1. Handling of Unused Pins
Handle unused pins in accordance with the directions given under Handling of Unused Pins in the
manual.
¾ The input pins of CMOS products are generally in the high-impedance state. In operation with an
unused pin in the open-circuit state, extra electromagnetic noise is induced in the vicinity of LSI, an
associated shoot-through current flows internally, and malfunctions occur due to the false
recognition of the pin state as an input signal become possible. Unused pins should be handled as
described under Handling of Unused Pins in the manual.
2. Processing at Power-on
The state of the product is undefined at the moment when power is supplied.
¾ The states of internal circuits in the LSI are indeterminate and the states of register settings and
pins are undefined at the moment when power is supplied.
In a finished product where the reset signal is applied to the external reset pin, the states of pins
are not guaranteed from the moment when power is supplied until the reset process is completed.
In a similar way, the states of pins in a product that is reset by an on-chip power-on reset function
are not guaranteed from the moment when power is supplied until the power reaches the level at
which resetting has been specified.
3. Prohibition of Access to Reserved Addresses
Access to reserved addresses is prohibited.
¾ The reserved addresses are provided for the possible future expansion of functions. Do not access
these addresses; the correct operation of LSI is not guaranteed if they are accessed.
4. Clock Signals
After applying a reset, only release the reset line after the operating clock signal has become stable.
When switching the clock signal during program execution, wait until the target clock signal has
stabilized.
¾ When the clock signal is generated with an external resonator (or from an external oscillator)
during a reset, ensure that the reset line is only released after full stabilization of the clock signal.
Moreover, when switching to a clock signal produced with an external resonator (or by an external
oscillator) while program execution is in progress, wait until the target clock signal is stable.
5. Differences between Products
Before changing from one product to another, i.e. to a product with a different part number, confirm
that the change will not lead to problems.
¾ The characteristics of Microprocessing unit or Microcontroller unit products in the same group but
having a different part number may differ in terms of the internal memory capacity, layout pattern,
and other factors, which can affect the ranges of electrical characteristics, such as characteristic
values, operating margins, immunity to noise, and amount of radiated noise. When changing to a
product with a different part number, implement a system-evaluation test for the given product.
1. Features ........................................................................................................................................... 6
2. Module Configuration ....................................................................................................................... 7
3. Address Space ................................................................................................................................. 8
4. Registers .......................................................................................................................................... 9
4.1 Flash P/E Protect Register (FWEPROR) ............................................................................. 10
4.2 Flash Access Status Register (FASTAT) ............................................................................. 11
4.3 Flash Access Error Interrupt Enable Register (FAEINT) ..................................................... 13
4.4 Flash Ready Interrupt Enable Register (FRDYIE) ............................................................... 14
4.5 FACI Command Start Address Register (FSADDR) ............................................................ 15
4.6 FACI Command End Address Register (FEADDR) ............................................................. 16
4.7 Flash Status Register (FSTATR) ......................................................................................... 17
4.8 Flash P/E Mode Entry Register (FENTRYR) ....................................................................... 21
4.9 Flash Sequencer Set-Up Initialization Register (FSUINITR) ............................................... 22
4.10 FACI Command Register (FCMDR) .................................................................................... 23
4.11 Data Flash Blank Check Control Register (FBCCNT) ......................................................... 24
4.12 Data Flash Blank Check Status Register (FBCSTAT) ......................................................... 24
4.13 Data Flash Programming Start Address Register (FPSADDR) ........................................... 25
4.14 Flash Access Window Monitor Register (FAWMON) .......................................................... 26
4.15 Flash Sequencer Processing Switching Register (FCPSR) ................................................ 27
4.16 Flash Sequencer Processing Clock Frequency Notification Register (FPCKAR) ................ 28
4.17 Start-Up Area Control Register (FSUACR) .......................................................................... 29
5. Operating Modes of the Flash Sequencer ..................................................................................... 30
6. FACI Commands ............................................................................................................................ 31
6.1 List of FACI Commands ....................................................................................................... 31
6.2 Relationship between the Flash Sequencer State and FACI Commands ........................... 32
6.3 Usage of FACI Commands .................................................................................................. 34
6.3.1 Transition to Code Flash Memory P/E Mode ............................................................................. 34
6.3.2 Transition to Data Flash Memory P/E Mode .............................................................................. 34
6.3.3 Transition to Read Mode ............................................................................................................ 35

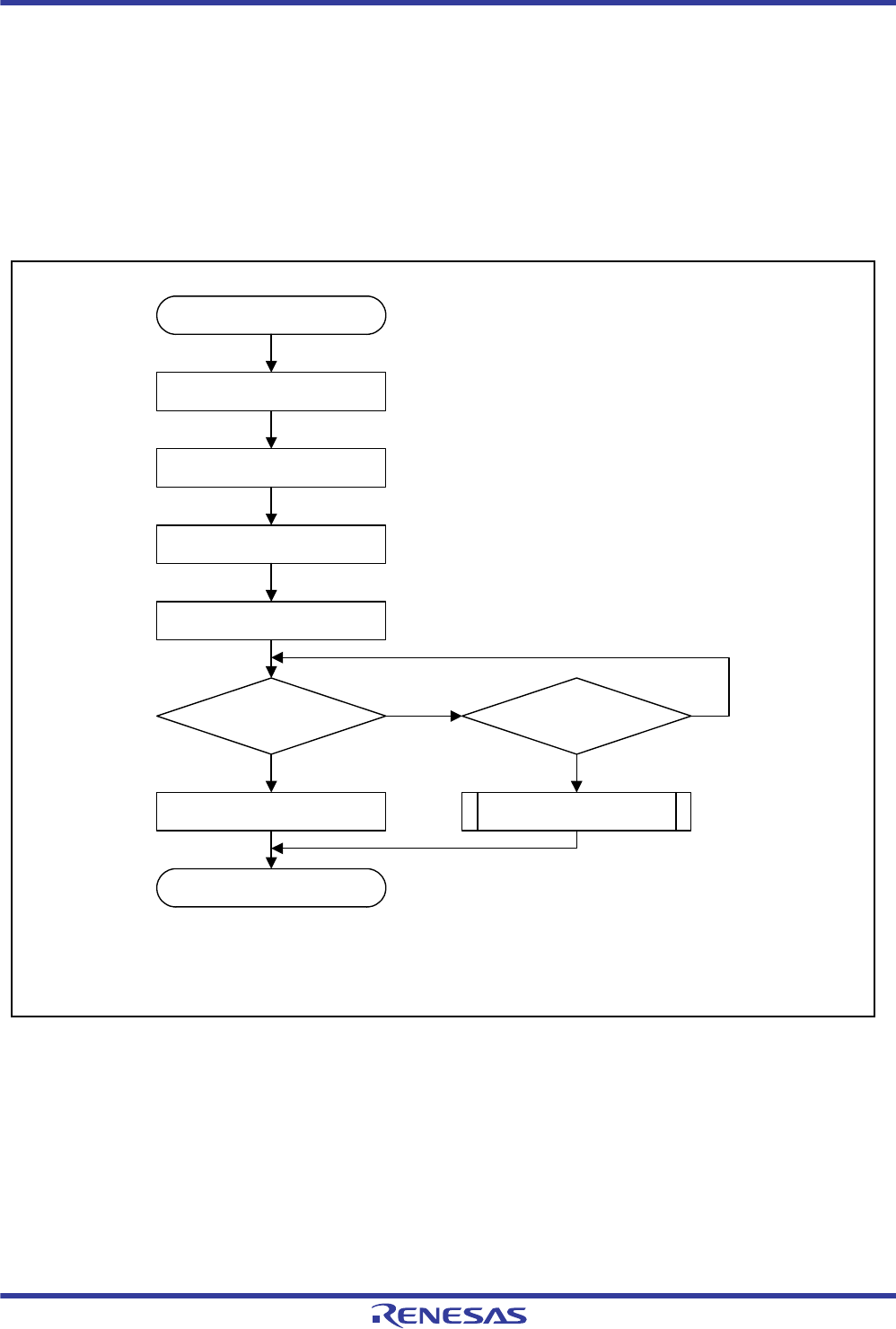

6.3.4 Overview Flow when FACI Command is Used ......................................................................... 36
6.3.5 Recovery from the Command-Locked State .............................................................................. 37
6.3.6 Programming Command ............................................................................................................. 38
6.3.7 Block Erase Command ............................................................................................................... 40
6.3.8 Multi-Block Erase Command ..................................................................................................... 41
6.3.9 P/E Suspend Command .............................................................................................................. 42
6.3.10 P/E Resume Command ............................................................................................................... 47
6.3.11 Status Clear Command ............................................................................................................... 48
6.3.12 Forced Stop Command ............................................................................................................... 49
6.3.12.1 How to Use the Forced Stop Command when a Command is being issued ..................... 49
6.3.13 Blank Check Command .............................................................................................................. 50
6.3.14 Configuration Set Command ...................................................................................................... 52
Contents
7. Protection Function ........................................................................................................................ 54
7.1 Software Protection ............................................................................................................. 54
7.1.1 Protection through FWEPROR .................................................................................................. 54
7.1.2 Protection through FENTRYR ................................................................................................... 54
7.2 Error Protection .................................................................................................................... 54
7.3 Start-Up Program Protection ............................................................................................... 57
7.4 Protection by Area Protection ..............................................................................................61

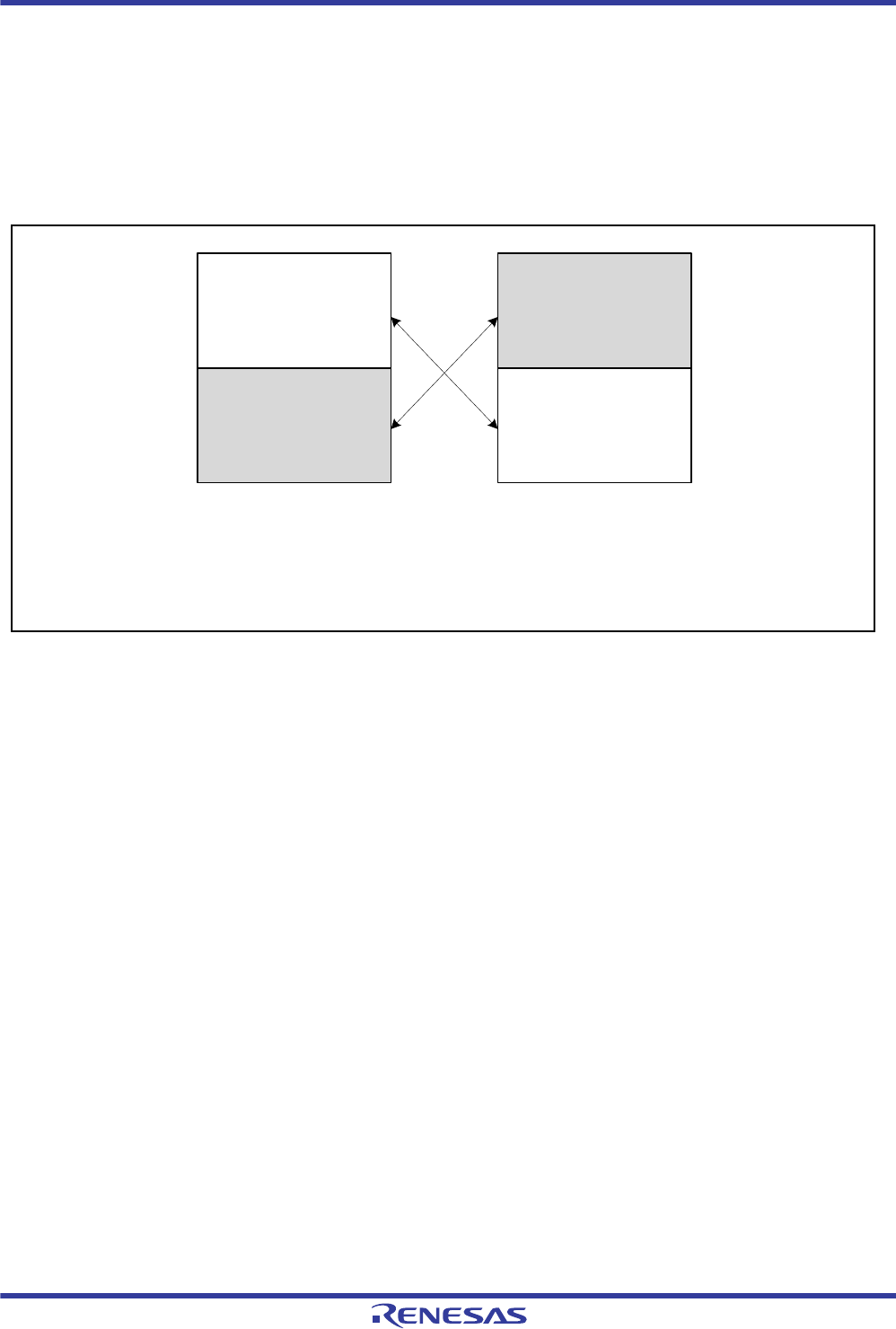

7.5 Dual Bank Function ............................................................................................................. 62
7.5.1 Switching Bank Modes ............................................................................................................... 62
7.5.2 Selecting the Startup Bank ......................................................................................................... 63
8. Usage Notes .................................................................................................................................. 65
REVISION HISTORY ............................................................................................................................... 66
RENESAS RENESAS
R01UH0602EJ0200 Rev.2.00 Page 6 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory
User’s Manual: Hardware Interface
1. Features
The features of the hardware interface of the flash memory are described below. Refer to the User’s Manual: Hardware
for differences in specifications between products with at least 1.5 Mbytes code flash memory and those with 1 Mbyte
code flash memory or less, and for information on the capacity, block structure, and addresses of the flash memory in this
MCU.
Programming/Erasure
A dedicated sequencer for the flash memory (flash sequencer) executes programming and erasure via internal peripheral
bus 6. The flash sequencer also supports the suspension or resumption of programming or erasure, and background
operation (BGO).
Security Functions
The flash memory incorporates hardware functions to prevent falsification or unauthorized reading of data in flash
memory.
Protection Functions
The flash memory incorporates hardware functions to prevent erroneous rewriting.
Interrupts
The flash memory supports an interrupt to indicate completion of processing by the flash sequencer and an error interrupt
to indicate operations that were in error.
R01UH0602EJ0200
Rev.2.00
May 24, 2017
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 7 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 2. Module Configuration
2. Module Configuration
Modules related to the flash memory are configured as shown in Figure 2.1. The flash sequencer is configured of the
Flash Control Unit (FCU) and Flash Application Command Interface (FACI). The FCU basically controls of overwriting
of the flash memory. The FACI receives FACI commands via internal peripheral bus 6 and controls FCU operations
accordingly.

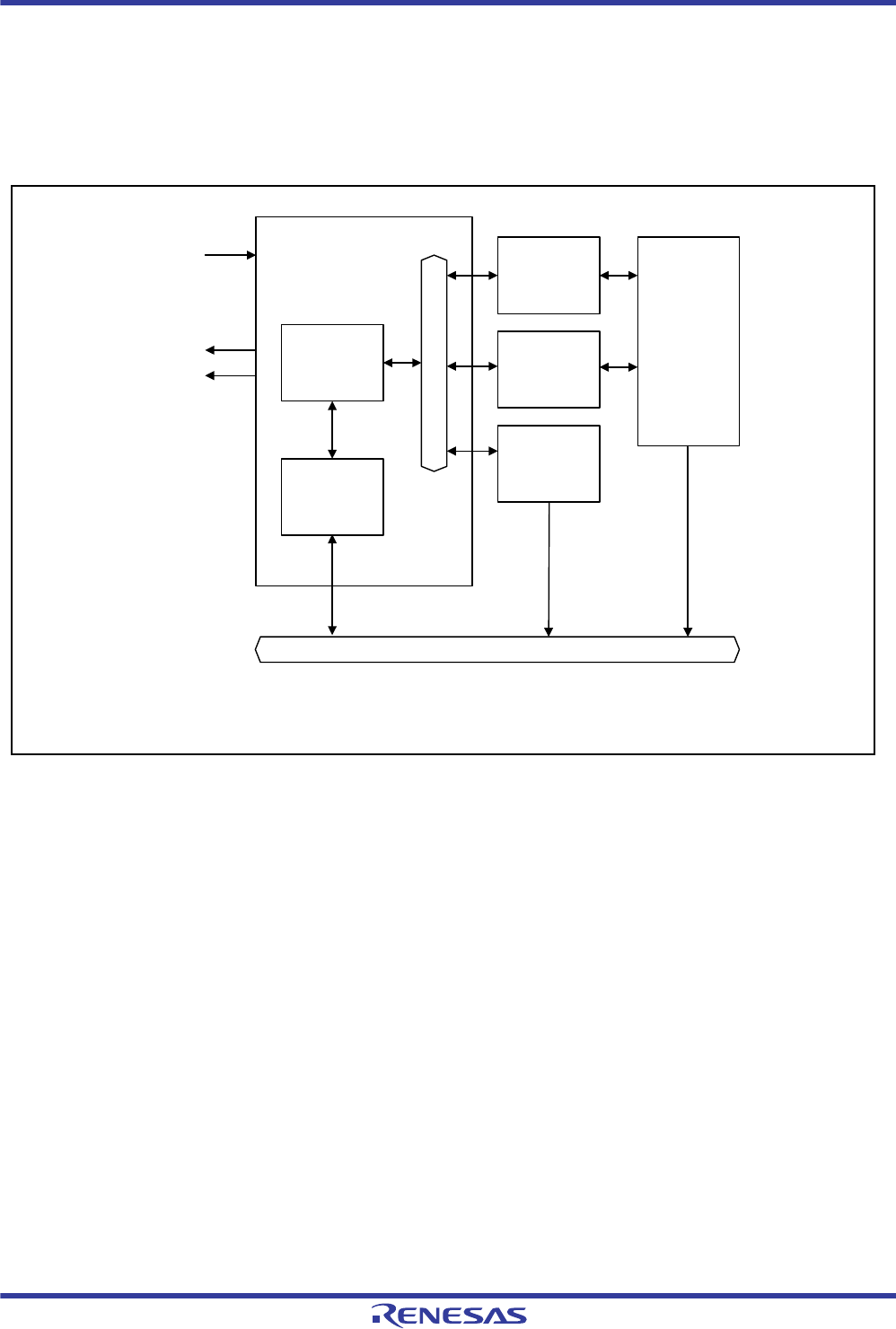

Figure 2.1 Configuration of Flash Memory-Related Modules
Flash sequencer
Option-setting
memory
FACI
FCU
CPU
Code
flash memory
Internal peripheral bus 6
FCU: Flash Control Unit
FACI: Flash Application Command Interface
FCLK
FIFERR
FRDYI
Flash sequencer bus
Data
flash memory
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 8 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 3. Address Space
3. Address Space
Using the hardware interface with the flash memory requires accessing to the area containing registers of the hardware,
that for the issuing of FACI commands. Table 3.1 summarizes information on all of these areas.
Refer to the User’s Manual: Hardware for information on the addresses of the flash memory.
Table 3.1 Information on the Hardware Interface Area
Area Address Capacity
Area containing the various registers of the hardware See section 4, Registers. See section 4, Registers.
FACI command-issuing area 007E 0000h 4 bytes
Option-setting memory (configuration setting area) FE7F 5D00h to FE7F 5D7Fh 128 bytes
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 9 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
4. Registers
This section contains information on registers to which access is required when using the hardware interface of the flash
memory. Reset registers that are not specifically mentioned to their initial states.
For information on the option-setting memory, see the User’s Manual: Hardware for the product you are using.
Note 1. This register is only available for products with at least 1.5 Mbytes of code flash memory.
Table 4.1 List of Registers
Address
Module
Symbol Register Name
Register
Symbol
Number
of Bits
Access
Size
Number of Access Cycles
Reference
Page
ICLK ≥
PCLKB/FCLK
ICLK <
PCLKB/FCLK
0008 C296h FLASH Flash P/E Protect Register FWEPROR 8 8 4 to 5 PCLKB 2 to 3 ICLK 10
007F E010h FLASH Flash Access Status Register FASTAT 8 8 2 to 4 FCLK 2 to 3 ICLK 11
007F E014h FLASH Flash Access Error Interrupt Enable Register FAEINT 8 8 2 to 4 FCLK 2 to 3 ICLK 13
007F E018h FLASH Flash Ready Interrupt Enable Register FRDYIE 8 8 2 to 4 FCLK 2 to 3 ICLK 14
007F E030h FLASH FACI Command Start Address Register FSADDR 32 32 2 to 4 FCLK 2 to 3 ICLK 15
007F E034h FLASH FACI Command End Address Register*1FEADDR 32 32 2 to 4 FCLK 2 to 3 ICLK 16
007F E080h FLASH Flash Status Register FSTATR 32 32 2 to 4 FCLK 2 to 3 ICLK 17
007F E084h FLASH Flash P/E Mode Entry Register FENTRYR 16 16 2 to 4 FCLK 2 to 3 ICLK 21
007F E08Ch FLASH Flash Sequencer Set-Up Initialization Register FSUINITR 16 16 2 to 4 FCLK 2 to 3 ICLK 22
007F E0A0h FLASH FACI Command Register FCMDR 16 16 2 to 4 FCLK 2 to 3 ICLK 23
007F E0D0h FLASH Data Flash Blank Check Control Register*1FBCCNT 8 8 2 to 4 FCLK 2 to 3 ICLK 27
007F E0D4h FLASH Data Flash Blank Check Status Register*1FBCSTAT 8 8 2 to 4 FCLK 2 to 3 ICLK 28
007F E0D8h FLASH Data Flash Programming Start Address Register*1FPSADDR 32 32 2 to 4 FCLK 2 to 3 ICLK 28
007F E0DCh FLASH Flash Access Window Monitor Register FAWMON 32 32 2 to 4 FCLK 2 to 3 ICLK 26
007F E0E0h FLASH Flash Sequencer Processing Switching Register FCPSR 16 16 2 to 4 FCLK 2 to 3 ICLK 27
007F E0E4h FLASH Flash Sequencer Processing Clock Frequency Notifica-
tion Register
FPCKAR 16 16 2 to 4 FCLK 2 to 3 ICLK 28
007F E0E8h FLASH Start-Up Area Control Register FSUACR 16 16 2 to 4 FCLK 2 to 3 ICLK 29
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 10 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
4.1 Flash P/E Protect Register (FWEPROR)
Programming/erasure of the flash memory and blank checking are enabled or disabled by hardware.
This register is initialized by a reset due to the signal on the RES# pin, a power-on reset, a voltage-monitoring 0 reset, an
independent watchdog timer reset, a watchdog timer reset, a voltage-monitoring 1 reset, a voltage-monitoring 2 reset,
and a software reset, and by transitions to deep software standby and software standby modes.
Address(es): 0008 C296h
b7 b6 b5 b4 b3 b2 b1 b0
——————FLWE[1:0]
Value after reset: 00000010
Bit Symbol Bit Name Description R/W
b1, b0 FLWE[1:0] Flash Programming and
Erasure Enable
Products with at least 1.5 Mbytes of code flash memory:
b1 b0
0 0: Programming/erasure and blank checking are disabled
0 1: Programming/erasure and blank checking are enabled
1 0: Programming/erasure and blank checking are disabled
1 1: Programming/erasure and blank checking are disabled
Products with 1 Mbyte of code flash memory or less:
b1 b0
0 0: Programming/erasure is disabled
0 1: Programming/erasure is enabled
1 0: Programming/erasure is disabled
1 1: Programming/erasure is disabled
R/W
b7 to b2 — Reserved These bits are read as 0. The write value should be 0. R/W
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 11 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
4.2 Flash Access Status Register (FASTAT)
Note 1. Only 0 can be written to clear the flag after 1 is read.
Note 2. This bit is reserved for products with 1 Mbyte of code flash memory or less. This bit is read as 0. The write value should be 0.
This register indicates whether a code flash memory or data flash memory access violation has occurred. If either of the
CFAE, and DFAE flags is 1, the CMDLK flag is set to 1 and the flash sequencer enters the command-locked state (see
section 7.2, Error Protection). To release it from the command-locked state, a status clear command or forced stop
command must be issued by the FACI.
DFAE Flag (Data Flash Memory Access Violation Flag)
This flag indicates whether a data flash memory access violation has occurred. If this flag is set to 1, the
FSTATR.ILGLERR flag is set to 1, placing the flash sequencer in the command-locked state.
[Setting Condition]
•See Table 7.1, Error Protection Type
[Clearing Condition]
•When 0 is written after reading of 1
•When a status clear command or forced stop command is issued
CMDLK Flag (Command Lock Flag)
This flag indicates that the flash sequencer is in the command-locked state.
[Setting Condition]
•When the flash sequencer detects any of errors listed in Table 7.1, Error Protection Type and transitions to the
command-locked state
[Clearing Condition]
•When the flash sequencer starting to process a status clear or forced stop command
CFAE Flag (Code Flash Memory Access Violation Flag)
This flag indicates whether a code flash memory access violation has occurred. If this flag is set to 1, the
FSTATR.ILGLERR flag is set to 1, placing the flash sequencer in the command-locked state.
[Setting Conditions]
•See Table 7.1, Error Protection Type
[Clearing Condition]
Address(es): 007F E010h
b7 b6 b5 b4 b3 b2 b1 b0
CFAE — — CMDLK DFAE — — —
Value after reset: 00000000
Bit Symbol Bit Name Description R/W
b2 to b0 — Reserved These bits are read as 0. The write value should be 0. R/W
b3 DFAE Data Flash Memory Access
Violation Flag*2
0: No data flash memory access violation has occurred.
1: A data flash memory access violation has occurred.
R/W*1
b4 CMDLK Command Lock Flag 0: The flash sequencer is not in the command-locked state.
1: The flash sequencer is in the command-locked state.
R
b6, b5 — Reserved These bits are read as 0. The write value should be 0. R/W
b7 CFAE Code Flash Memory Access
Violation Flag
0: No code flash memory access violation has occurred.
1: A code flash memory access violation has occurred.
R/W*1
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 12 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
•When 0 is written after reading of 1
•When a status clear command or forced stop command is issued
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 13 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
4.3 Flash Access Error Interrupt Enable Register (FAEINT)
Note 1. This bit is reserved for products with 1 Mbyte of code flash memory or less. This bit is read as 1. The write value should be 1.
This register enables or disables generation of a flash access error (FIFERR) interrupt request.
DFAEIE Bit (Data Flash Memory Access Violation Interrupt Enable)
This bit enables or disables generation of an FIFERR interrupt request when a data flash memory access violation occurs
and the FASTAT.DFAE flag is set to 1.
CMDLKIE Bit (Command Lock Interrupt Enable)
This bit enables or disables generation of an FIFERR interrupt request when the flash sequencer enters the command-
locked state and the FASTAT.CMDLK flag is set to 1.
CFAEIE Bit (Code Flash Memory Access Violation Interrupt Enable)
This bit enables or disables generation of an FIFERR interrupt request when a code flash memory access violation occurs
and the FASTAT.CFAE flag is set to 1.
Address(es): 007F E014h
b7 b6 b5 b4 b3 b2 b1 b0
CFAEIE — — CMDLK
IE DFAEIE ———
Value after reset: 10011000
Bit Symbol Bit Name Description R/W
b2 to b0 — Reserved These bits are read as 0. The write value should be 0. R/W
b3 DFAEIE Data Flash Memory Access
Violation Interrupt Enable*1
0: Generation of an FIFERR interrupt request is disabled when
FASTAT.DFAE is set to 1.
1: Generation of an FIFERR interrupt request is enabled when
FASTAT.DFAE is set to 1.
R/W
b4 CMDLKIE Command Lock Interrupt
Enable
0: Generation of an FIFERR interrupt request is disabled when
FASTAT.CMDLK is set to 1.
1: Generation of an FIFERR interrupt request is enabled when
FASTAT.CMDLK is set to 1.
R/W
b6, b5 — Reserved These bits are read as 0. The write value should be 0. R/W
b7 CFAEIE Code Flash Memory Access
Violation Interrupt Enable
0: Generation of an FIFERR interrupt request is disabled when
FASTAT.CFAE is set to 1.
1: Generation of an FIFERR interrupt request is enabled when
FASTAT.CFAE is set to 1.
R/W
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 14 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
4.4 Flash Ready Interrupt Enable Register (FRDYIE)
This register enables or disables generation of a flash ready (FRDY) interrupt request.
FRDYIE Bit (Flash Ready Interrupt Enable)
This bit is used to enable or disable generation of an FRDY interrupt request when the FASTAT.FRDY flag is changed
from 0 to 1 upon completion of processing by the flash sequencer of programming, erasure, and blank checking
command.
Address(es): 007F E018h
b7 b6 b5 b4 b3 b2 b1 b0
———————
FRDYI
E
Value after reset: 00000000
Bit Symbol Bit Name Description R/W
b0 FRDYIE Flash Ready Interrupt Enable 0: Generation of an FRDY interrupt request is disabled.
1: Generation of an FRDY interrupt request is enabled.
R/W
b7 to b1 — Reserved These bits are read as 0. The write value should be 0. R/W
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 15 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
4.5 FACI Command Start Address Register (FSADDR)
Note 1. Writing to these bits is possible only when the FSTATR.FRDY flag is 1. Writing to these bits while the FSTATR.FRDY flag = 0 is
ignored. Note that b0 and b1 are read-only.
This register specifies the address where the target area for command processing starts when the FACI command for
programming, block erasure, multi-block erasure, blank checking, or configuration setting is issued.
The FSADDR register is initialized when the FSUINITR.SUINIT bit is set to 1. It is also initialized by a reset.
FSADDR[31:0] Bits (Start Address for FACI Command Processing)
These bits specify the start address for FACI command processing. Bits 31 to 24 are ignored in FACI command
processing for the code flash memory. Bits 31 to 17 are ignored in FACI command processing for the data flash memory.
Bits 31 to 10 are ignored in processing of the FACI command for the option-setting memory. Bits that do not reach the
address boundaries are also ignored. Table 4.2, Address Boundary for Each of the Commands shows the address
boundary for each command.
Refer to the User’s Manual: Hardware for the start addresses of the code flash memory area. See Table 6.6, Address
Used by Configuration Set Command for the start address of the option-setting memory (configuration setting area).
Address(es): 007F E030h
b31 b30 b29 b28 b27 b26 b25 b24 b23 b22 b21 b20 b19 b18 b17 b16
FSADDR[31:16]
Value after reset: 0000000000000000
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
FSADDR[15:0]
Value after reset: 0000000000000000
Bit Symbol Bit Name Description R/W
b31 to b0 FSADDR
[31:0]
Start Address for FACI
Command Processing
Start Address for FACI Command Processing R/W*1
Table 4.2 Address Boundary for Each of the Commands
Command Address Boundary
Programming (code flash memory) 128-byte
Programming (data flash memory) 4-byte
Block erase (code flash memory) 8-Kbyte or 32-Kbyte
Block erase (data flash memory) 64-byte
Multi-block erase (data flash memory) 64-, 128-, or 256-byte
Blank check (data flash memory) 4-byte
Configuration setting 16-byte
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 16 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
4.6 FACI Command End Address Register (FEADDR)
Note 1. Writing to these bits is possible only when the FSTATR.FRDY flag is 1. Writing to these bits while the FSTATR.FRDY flag = 0 is
ignored. Note that b0 and b1 are read-only.
This register is only available for products with at least 1.5 Mbytes of code flash memory.
This register is used to specify the end address of the area targeted for the multi-block erase command and blank
checking command handling. When executing the multi-block erase command, the setting value of the register must be
the setting of the FEADDR register or lower. If the setting value of the FSADDR register is larger than the FEADDR
register setting value, the flash sequencer enters the command locked state.
When the FBCCNT.BCDIR bit is 0, the value of the FSADDR register must be that of this register or less. When the
FBCCNT.BCDIR bit is 1, the value of the FSADDR register must be at least that of this register. If the settings of the
FBCCNT.BCDIR bit and the FSADDR and FEADDR registers are inconsistent with the above rules, the flash sequencer
enters the command-locked state (see section 7.2, Error Protection).
The FEADDR register is initialized when the FSUINITR.SUINIT bit is set to 1. It is also initialized by a reset.
FEADDR [31:0] Bits (End Address for FACI Command Processing)
These bits are used to specify the end address for handling of the multi-block erase command and blank checking
command. In command processing, bits 31 to 17 and any bits that do not reach the address boundaries listed in Tabl e
4.2, Address Boundary for Each of the Commands are ignored.
Refer to the User’s Manual: Hardware for the end address of the data flash memory area.
Address(es): 007F E034h
b31 b30 b29 b28 b27 b26 b25 b24 b23 b22 b21 b20 b19 b18 b17 b16
FEADDR[31:16]
Value after reset: 0000000000000000
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
FEADDR[15:0]
Value after reset: 0000000000000000
Bit Symbol Bit Name Description R/W
b31 to b0 FEADDR
[31:0]
End Address for FACI
Command Processing
The end address for FACI command processing R/W*1
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 17 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
4.7 Flash Status Register (FSTATR)
Address(es): 007F E080h
b31 b30 b29 b28 b27 b26 b25 b24 b23 b22 b21 b20 b19 b18 b17 b16
————————
ILGCO
MERR
FESET
ERR
SECER
ROTERR————
Value after reset: 0000000000000000
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
FRDY ILGLER
R
ERSER
R
PRGER
R
SUSRD
Y
DBFUL
L
ERSSP
D
PRGSP
D—FLWEE
RR ——————
Value after reset: 1000000000000000
Bit Symbol Bit Name Description R/W
b5 to b0 — Reserved These bits are read as 0. The write value should be 0. R/W
b6 FLWEERR Flash Write/Erase Protect Error Flag 0: An error has not occurred.
1: An error has occurred.
R
b7 — Reserved This bit is read as 0. The write value should be 0. R/W
b8 PRGSPD Programming Suspend Status Flag 0: The flash sequencer is in a state other than those
corresponding to the value 1.
1: The flash sequencer is in the programming suspension
processing state or the programming suspended state.
R
b9 ERSSPD Erasure Suspend Status Flag 0: The flash sequencer is in a state other than those
corresponding to the value 1.
1: The flash sequencer is in the erasure suspension
processing state or the erasure-suspended state.
R
b10 DBFULL Data Buffer Full Flag 0: The data buffer is empty.
1: The data buffer is full.
R
b11 SUSRDY Suspend Ready Flag 0: The flash sequencer cannot receive P/E suspend
commands.
1: The flash sequencer can receive P/E suspend
commands.
R
b12 PRGERR Programming Error Flag 0: Programming has been completed successfully.
1: An error has occurred during programming.
R
b13 ERSERR Erasure Error Flag 0: Erasure has been completed successfully.
1: An error has occurred during erasure.
R
b14 ILGLERR Illegal Error Flag 0: The flash sequencer has not detected an illegal FACI
command or illegal flash memory access.
1: The flash sequencer has detected an illegal FACI
command or illegal flash memory access.
R
b15 FRDY Flash Ready Flag 0: Programming, block erase, multi-block erase, P/E
suspend, P/E resume, forced stop, blank check, or
configuration setting command processing is in progress.
1: None of the above is in progress.
R
b19 to b16 — Reserved These bits are read as 0. The write value should be 0. R/W
b20 OTERR Other Error Flag 0: An error has not occurred.
1: An error has occurred.
R
b21 SECERR Security Error Flag 0: Write protection by the FAW.FSPR bit is not violated
1: Write protection by the FAW.FSPR bit is violated
R
b22 FESETER
R
FENTRY Setting Error Flag 0: A setting error in the FENTRYR register has not been
detected.
1: A setting error in the FENTRYR register has been
detected.
R
b23 ILGCOME
RR
Illegal Command Error Flag 0: The flash sequencer has not detected an illegal FACI
command error.
1: The flash sequencer has detected an illegal FACI
command error.
R
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 18 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
This register indicates the state of the flash sequencer.
FLWEERR Flag (Flash Write/Erase Protect Error Flag)
This flag indicates a violation of the flash memory overwrite protection setting in the FWEPROR register. When this flag
is 1, the flash sequencer is in the command-locked state.
[Setting Condition]
•See Table 7.1, Error Protection Type
[Clearing Condition]
•When the flash sequencer starts processing of a forced stop command
PRGSPD Flag (Programming Suspend Status Flag)
This flag indicates that the flash sequencer is in the processing of suspension of programming or has transitioned to the
programming suspended state.
[Setting Condition]
•When the flash sequencer starts processing in response to a programming suspend command
[Clearing Conditions]
• When the flash sequencer has received a P/E resume command
(after write access to the FACI command-issuing area is completed)
•When the flash sequencer starts processing of a forced stop command
ERSSPD Flag (Erasure Suspend Status Flag)
This flag indicates that the flash sequencer is the processing of erasure suspension or has transitioned to the erasure
suspended state.
[Setting Condition]
•When the flash sequencer starts processing in response to an erasure suspend command
[Clearing Conditions]
• Reception of the P/E resume command by the flash sequencer
(after write access to the FACI command-issuing area is completed)
•When the flash sequencer starts processing of a forced stop command
DBFULL Flag (Data Buffer Full Flag)
This flag indicates the state of the data buffer when a programming command or configuration setting command is
issued. The FACI incorporates a buffer for write data (data buffer). When data for writing to the flash memory are issued
to the FACI command-issuing area while the data buffer is full, the FACI inserts a wait cycle in the peripheral bus 6.
[Setting Condition]
•When the data buffer becomes full while a programming command or configuration setting command is being
issued
[Clearing Condition]
•When the data buffer becomes empty
SUSRDY Flag (Suspend Ready Flag)
This flag indicates whether the flash sequencer can receive a P/E suspend command.
[Setting Condition]
•After starting programming/erasure processing and when the flash sequencer enters a state in which P/E suspend
b31 to b24 — Reserved These bits are read as 0. The write value should be 0. R/W
Bit Symbol Bit Name Description R/W
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 19 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
commands can be received
[Clearing Conditions]
•When the flash sequencer has accepted the P/E suspend command or forced stop command (after write access to the
FACI command-issuing area is completed)
•When the flash sequencer enters the command-locked state during programming or erasure
•When programming or erasure has been completed
PRGERR Flag (Programming Error Flag)
This flag indicates the result of programming of the flash memory. If this flag is 1, the flash sequencer is in the
command-locked state.
[Setting Condition]
•See Table 7.1, Error Protection Type
[Clearing Condition]
•When the flash sequencer starts processing of a status clear or forced stop command
ERSERR Flag (Erasure Error Flag)
This flag indicates the result of erasure of the flash memory. If this flag is 1, the flash sequencer is in the command-
locked state.
[Setting Condition]
•See Table 7.1, Error Protection Type
[Clearing Condition]
•When the flash sequencer starts processing of a status clear or forced stop command
ILGLERR Flag (Illegal Error Flag)
This flag indicates that the flash sequencer has detected an illegal FACI command or flash memory access. When this
flag is 1, the flash sequencer is in the command-locked state.
[Setting Condition]
•See Table 7.1, Error Protection Type
[Clearing Condition]
•When the flash sequencer starts processing of a status clear or forced stop command.
FRDY Flag (Flash Ready Flag)
This flag indicates the command processing state of the flash sequencer.
[Setting Conditions]
•When the flash sequencer completes command processing
•When the flash sequencer receives a P/E suspend command and suspends programming or erasure of the flash
memory
•When the flash sequencer has received a forced stop command and ended command processing
[Clearing Conditions]
•When the flash sequencer receives the FACI command of the setting of the program and configuration and after the
first write access is made to the FACI command-issuing area
•When the flash sequencer receives any FACI command other than of the setting of the program and configuration
and after the last write access is made to the FACI command issuing area
OTERR Flag (Other Error Flag)
This flag indicates that an FACI command has been issued when the condition of accepting commands is not satisfied.
The OTERR flag is 1, the flash sequencer is in the command-locked state.
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 20 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
[Setting Condition]
•See Table 7.1, Error Protection Type
[Clearing Condition]
•When the flash sequencer starts processing of a status clear or forced stop command
SECERR Flag (Security Error Flag)
This flag indicates that write protection by the FAW.FSPR bit is violated. When the SECERR flag is 1, the flash
sequencer is in the command-locked state.
[Setting Condition]
•See Table 7.1, Error Protection Type
[Clearing Condition]
•When the flash sequencer starts processing of a status clear or forced stop command
FESETERR Flag (FENTRY Setting Error Flag)
This flag indicates that a value of AA81h is written in the FENTRYR register or the value in the FENTRYR register
differs when P/E is suspended and resumed. When the FESETERR flag is 1, the flash sequencer is in the command-
locked state.
[Setting Condition]
•See Table 7.1, Error Protection Type
[Clearing Condition]
•When the flash sequencer starts processing of a status clear or forced stop command
ILGCOMERR Flag (Illegal Command Error Flag)
This flag indicates that the flash sequencer has detected an illegal FACI command. When the ILGCOMERR flag is 1, the
flash sequencer is in the command-locked state.
[Setting Condition]
•See Table 7.1, Error Protection Type
[Clearing Condition]
•When the flash sequencer starts processing of a status clear or forced stop command
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 21 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
4.8 Flash P/E Mode Entry Register (FENTRYR)
Note 1. Writing to these bits is possible only when the FSTATR.FRDY flag is 1. Writing to these bits while the FSTATR.FRDY flag = 0 is
ignored.
Note 2. Writing to this bit is possible only when AAh is written to the KEY bits in 16-bit units.
Note 3. Written values are not retained by these bits. These bits are read as 0.
Note 4. This bit is reserved for products with 1 Mbyte of code flash memory or less. This bit is read as 0. The write value should be 0.
This register is used to specify code flash memory P/E mode and data flash memory P/E mode. To specify code flash
memory P/E mode or data flash memory P/E mode so that the flash sequencer can receive FACI commands, set either the
FENTRYD or FENTRYC bit to 1 to place the flash sequencer in P/E mode.
Note that writing AA81h in this register causes the FSTATR.ILGLERR and FSTATR.FESETERR flags to be set to 1,
and the flash sequencer to enter the command-locked state.
The FENTRYR register is initialized when the FSUINITR.SUINIT bit is set to 1. It is also initialized by a reset.
FENTRYC Bit (Code Flash Memory P/E Mode Entry)
This bit specifies the P/E mode for code flash memory.
[Setting Condition]
•When 1 is written to the FENTRYC bit while writing to the FENTRYR register is enabled and the FENTRYR
register is 0000h
[Clearing Conditions]
•When the FENTRYR register is accessed in 8-bit units while the FSTATR.FRDY flag is 1
•When a value other than AAh is specified in the KEY bits and the FENTRYR register is accessed in 16-bit units
while the FSTATR.FRDY flag is 1
•When 0 is written to the FENTRYC bit while writing to the FENTRYR register is enabled
•When the FENTRYR register is written while writing to the FENTRYR register is enabled and the value of the
FENTRYR register is other than 0000h
FENTRYD Bit (Data Flash Memory P/E Mode Entry)
This bit specifies the P/E mode for data flash memory.
[Setting Condition]
•When 1 is written to the FENTRYR.FENTRYD bit while writing to the FENTRYR register is enabled and the
FENTRYR register is 0000h
[Clearing Conditions]
•When the FENTRYR register is written in 8-bit units while the FSTATR.FRDY flag is 1
•When a value other than AAh is specified for the KEY bits while the FSTATR.FRDY flag is 1, and the FENTRYR
Address(es): 007F E084h
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
KEY[7:0] FENTR
YD ——————
FENTR
YC
Value after reset: 0000000000000000
Bit Symbol Bit Name Description R/W
b0 FENTRYC Code Flash Memory P/E Mode
Entry
0: Code flash memory is in read mode.
1: Code flash memory is in P/E mode.
R/W*1, *2
b6 to b1 — Reserved These bits are read as 0. The write value should be 0. R/W
b7 FENTRYD Data Flash Memory P/E Mode
Entry*4
0: Data flash memory is in read mode.
1: Data flash memory is in P/E mode.
R/W*1, *2
b15 to b8 KEY[7:0] Key Code Key code R/W*3
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 22 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
register is written in 16-bit units
•When 0 is written to the FENTRYD bit while writing to the FENTRYR register is enabled
•When the FENTRYR register is written while writing to FENTRYR register is enabled and the value of the
FENTRYR register is other than 0000h
KEY[7:0] Bits (Key Code)
These bits control permission and prohibition of writing to the FENTRYD and FENTRYC bits.
4.9 Flash Sequencer Set-Up Initialization Register (FSUINITR)
Note 1. Writing to these bits is possible only when the FSTATR.FRDY flag is 1. Writing to these bits while the FSTATR.FRDY flag = 0 is
ignored.
Note 2. Writing to these bits is possible only when 2Dh is written to the KEY bits in 16-bit units.
Note 3. Written values are not retained by these bits. This bit is read as 0.
This register is used for initialization of the flash sequencer set-up.
SUINIT Bit (Set-Up Initialization)
This bit initializes the following flash sequencer set-up registers.
•FEADDR
•FCPSR
•FSADDR
•FENTRYR
•FBCCNT
KEY[7:0] Bits (Key Code)
These bits control permission and prohibition of writing to the SUINIT bit.
Address(es): 007F E08Ch
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
KEY[7:0] ———————SUINIT
Value after reset: 0000000000000000
Bit Symbol Bit Name Description R/W
b0 SUINIT Set-Up Initialization 0: The FEADDR, FCPSR, FSADDR, FENTRYR, and FBCCNT
flash sequencer set-up registers keep their current values.
1: The FEADDR, FCPSR, FSADDR, FENTRYR, and FBCCNT
flash sequencer set-up registers are initialized.
R/W*1, *2
b7 to b1 — Reserved These bits are read as 0. The write value should be 0. R/W
b15 to b8 KEY[7:0] Key Code Key code R/W*3
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 23 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
4.10 FACI Command Register (FCMDR)
This register records the two most recent commands accepted by the FACI.
PCMDR[7:0] Flags (Precommand Flag)
These flags indicate the command received immediately before the last command received by the FACI.
CMDR[7:0] Flags (Command Flag)
These flags indicate the latest command received by the FACI.
Note 1. This command is only available for products with at least 1.5 Mbytes of code flash memory.
Address(es): 007F E0A0h
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
CMDR[7:0] PCMDR[7:0]
Value after reset: 1111111111111111
Bit Symbol Bit Name Description R/W
b7 to b0 PCMDR[7:0] Precommand Flag The command immediately before the latest command is
stored.
R
b15 to b8 CMDR[7:0] Command Flag The latest command is stored. R
Table 4.3 States of FCMDR after Receiving Commands
Command CMDR PCMDR
Programming E8h Previous command
Block erase D0h 20h
Multi-block erase*1D0h 21h
P/E suspend B0h Previous command
P/E resume D0h Previous command
Status clear 50h Previous command
Forced stop B3h Previous command
Blank check*1D0h 71h
Configuration setting 40h Previous command
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 24 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
4.11 Data Flash Blank Check Control Register (FBCCNT)
This register is only available for products with at least 1.5 Mbytes of code flash memory.
This register specifies the addressing mode in processing of a blank check command. The register is initialized when the
FSUINITR.SUINIT bit is set to 1. It is also initialized by a reset.
BCDIR Bit (Blank Check Direction)
This bit specifies the addressing mode for blank checking.
4.12 Data Flash Blank Check Status Register (FBCSTAT)
This register is only available for products with at least 1.5 Mbytes of code flash memory.
This register stores the results of checking in response to a blank check command.
BCST Flag (Blank Check Status Flag)
This flag indicates the results of checking in response to a blank check command.
[Setting condition]
• When the blank checking command is issued and data of 0 or 1 is written to the target area
[Clearing condition]
•When the blank checking command is executed and the target area is blank
Address(es): 007F E0D0h
b7 b6 b5 b4 b3 b2 b1 b0
———————BCDIR
Value after reset: 00000000
Bit Symbol Bit Name Description R/W
b0 BCDIR Blank Check Direction 0: Blank checking is executed from lower addresses to higher
addresses (incremental mode).
1: Blank checking is executed from higher addresses to lower
addresses (decremental mode).
R/W
b7 to b1 — Reserved These bits are read as 0. The write value should be 0. R/W
Address(es): 007F E0D4h
b7 b6 b5 b4 b3 b2 b1 b0
———————BCST
Value after reset: 00000000
Bit Symbol Bit Name Description R/W
b0 BCST Blank Check Status Flag 0: The target area is in the non-programmed state (i.e. is blank; the
area has been erased but has not yet been re-programmed).
1: The target area has been programmed with 0s or 1s.
R
b7 to b1 — Reserved These bits are read as 0. The write value should be 0. R/W
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 25 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
4.13 Data Flash Programming Start Address Register (FPSADDR)
This register is only available for products with at least 1.5 Mbytes of code flash memory.
This register indicates the starting address of the programmed area to be found firstly in processing of a blank check
command.
PSADR[16:0] Bits (Programmed Area Start Address)
These bits indicate the starting address of the programmed area to be found firstly in processing of a blank check
command. The offset value is stored from the first address of the data flash memory. The value of the bits is valid only
while the FBCSTAT.BCST bit is 1.
Address(es): 007F E0D8h
b31 b30 b29 b28 b27 b26 b25 b24 b23 b22 b21 b20 b19 b18 b17 b16
———————————————
PSADR
[16]
Value after reset: 0000000000000000
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
PSADR[15:0]
Value after reset: 1000000000000000
Bit Symbol Bit Name Description R/W
b16 to b0 PSADR[16:0] Programmed Area Start Address The starting address of the programmed area to be found
firstly
R
b31 to b17 — Reserved These bits are read as 0. The write value should be 0. R/W
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 26 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
4.14 Flash Access Window Monitor Register (FAWMON)
Note 1. For products in which the option-setting memory has not been specifically set, the value is FFFF FFFFh. The value will be set by
the user.
Note 2. When the FSUACR.SAS[1:0] bits are changed to 1xb, the startup area is dependent on the setting of the FSUACR.SAS[1:0] bits
regardless of the setting of this bit.
This register indicates the values of the write protection flag and start-up area select flag for setting the flash access
window start/end address, and the access window. When a reset or configuration setting command is executed, the FACI
transfers data from the option-setting memory to this register and the setting of the option-setting memory is enabled.
FAWS[11:0] Bits (Flash Access Window Start Address)
These bits are used to verify the access window start address setting value.
FSPR Flag (Access Window Protection Flag)
This flag indicates whether or not protection for a configuration setting command for the access window setting, for a
configuration clear command, or for writing to the FSUACR register is available.
FAWE[11:0] Bits (Flash Access Window End Address)
These bits are used to verify the access window end address setting value. The value of these bits indicates the first
address of the next P/E-enabled block as configured in the access window.
BTFLG Flag (Start-Up Area Select Flag)
This flag indicates whether the start-up area is switched by using start-up program protection.
Address(es): 007F E0DCh
b31 b30 b29 b28 b27 b26 b25 b24 b23 b22 b21 b20 b19 b18 b17 b16
BTFLG — — — FAWE[11:0]
Value after reset: The value set by the user*1
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
FSPR — — — FAWS[11:0]
Value after reset: The value set by the user*1
Bit Symbol Bit Name Description R/W
b11 to b0 FAWS[11:0] Flash Access Window Start Address Flash access window start address R
b14 to b12 — Reserved These bits are read as 0. The write value should be 0. R/W
b15 FSPR Access Window Protection Flag 0: With protection (P/E disabled)
1: Without protection (P/E enabled)
R
b27 to b16 FAWE[11:0] Flash Access Window End Address Flash access window end address R
b30 to b28 — Reserved These bits are read as 0. The write value should be 0. R/W
b31 BTFLG Start-Up Area Select Flag*20: Startup area 0 is in the range from FFFF C000h to
FFFF DFFFh, startup area 1 is in the range from
FFFF E000h to FFFF FFFFh.
1: Startup area 1 is in the range from FFFF C000h to
FFFF DFFFh, startup area 0 is in the range from
FFFF E000h to FFFF FFFFh.
R
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 27 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
4.15 Flash Sequencer Processing Switching Register (FCPSR)
This register is for selecting the erasure suspension mode.
The register is initialized when the FSUINITR.SUINIT bit is set to 1. It is also initialized by a reset.
ESUSPMD Bit (Erasure Suspend Mode)
This bit is for selecting the erasure suspension mode when a P/E suspend command is issued while the flash sequencer is
executing erasure processing (see section 6.3.9, P/E Suspend Command). This bit should be set before issuing a
block erase command.
Address(es): 007F E0E0h
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
———————————————
ESUSP
MD
Value after reset: 0000000000000000
Bit Symbol Bit Name Description R/W
b0 ESUSPMD Erasure Suspend Mode 0: Suspension priority mode
1: Erasure priority mode
R/W
b15 to b1 — Reserved These bits are read as 0. The write value should be 0. R/W
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 28 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
4.16 Flash Sequencer Processing Clock Frequency Notification Register (FPCKAR)
Note 1. Writing to these bits is possible only when the FSTATR.FRDY flag is 1. Writing to these bits while the FSTATR.FRDY flag = 0 is
ignored.
Note 2. Writing to these bits is possible only when 1Eh is written to the KEY[7:0] bits in 16-bit units.
Note 3. Written values are not retained by these bits. These bits are read as 0.
This register specifies the frequency of the FlashIF clock (FCLK) generated in the clock generator and notifies the flash
sequencer of the frequency used. The flash sequencer determines the FACI command processing time based on the
frequency notified by the FPCKAR register. The initial value is set to the maximum operating frequency of the FCLK.
PCKA[7:0] Bits (Flash Sequencer Processing Clock Frequency Notification)
These bits are used to specify the frequency of the FCLK generated in the clock generator and to notify the flash
sequencer of the frequency used. Set the desired frequency in these bits before issuing an FACI command. Specifically,
convert the frequency represented in MHz into a binary number and set it in these bits.
Example: When frequency is 35.9 MHz (PCKA[7:0] = 24h)
Round up the first decimal place of 35.9 MHz to a whole number (= 36) and convert it into a binary number.
If the value set in these bits is smaller than the frequency of the FCLK, the rewriting characteristics of the flash memory
cannot be guaranteed. Conversely, if the value set in these bits is greater than the frequency of the FCLK, the rewriting
characteristics of the flash memory can be guaranteed although the FACI command processing time such as time for
rewriting will increase (the FACI command processing time becomes the shortest when the frequency of the FCLK is the
same as the value set in the bits).
KEY[7:0] Bits (Key Code)
These bits control permission and prohibition of writing to the PCKA[7:0] bits.
Address(es): 007F E0E4h
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
KEY[7:0] PCKA[7:0]
Value after reset: 000000000/10/10/10/10/10/10/10/1
Bit Symbol Bit Name Description R/W
b7 to b0 PCKA[7:0] Flash Sequencer Processing
Clock Frequency Notification
These bits are used to set the frequency of the FlashIF clock
(FCLK) and notify the flash sequencer of the frequency used
R/W*1, *2
b15 to b8 KEY[7:0] Key Code Key code R/W*3
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 29 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 4. Registers
4.17 Start-Up Area Control Register (FSUACR)
x: Don’t care
Note 1. Writable only when the FAW.FSPR bit is 1. When the FAW.FSPR bit is 0, writing to these bits are ignored.
Note 2. Writing to these bits is possible only when 66h is written to the KEY bit in 16-bit units.
Note 3. Written values are not retained by these bits. These bits are read as 0.
This register is used to switch startup areas 0 and 1 by startup program protection.
Do not use this register in dual mode (the MDE.BANKMD[2:0] bits are 000b). In dual mode, starting up proceeds from
startup area 0.
SAS[1:0]Bits (Start-Up Area Select)
These bits are used to switch startup areas 0 and 1.
KEY[7:0] Bits (Key Code)
These bits enables or disable overwriting to the SAS[1:0] bits.
Address(es): 007F E0E8h
b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0
KEY[7:0] —————— SAS[1:0]
Value after reset: 0000000000000000
Bit Symbol Bit Name Description R/W
b1, b0 SAS[1:0] Start-Up Area Select b1 b0
0 x: A start-up area is selected based on the setting of the
FAW.BTFLG bit.
1 0: The area from FFFF E000h to FFFF FFFFh is selected
as the address range for startup area 0, and the area
from FFFF C000h to FFFF DFFFh is selected as the
address range for startup area 1, regardless of the
setting of the FAW.BTFLG bit.
1 1: The area from FFFF E000h to FFFF FFFFh is selected
as the address range for startup area 1, and the area
from FFFF C000h to FFFF DFFFh is selected as the
address range for startup area 0, regardless of the
setting of the FAW.BTFLG bit.
R/W*1, *2
b7 to b2 — Reserved These bits are read as 0. The write value should be 0. R/W
b15 to
b8
KEY[7:0] Key Code Key codes R/W*3
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 30 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 5. Operating Modes of the Flash Sequencer
5. Operating Modes of the Flash Sequencer
The flash sequencer has three operating modes as shown in Figure 5.1. Transitions between modes are initiated by
changing the value of the FENTRYR register.
When the value of the FENTRYR register is 0000h, the flash sequencer is in read mode. In this mode, it does not receive
FACI commands. The code flash memory and data flash memory are readable.
When the value of the FENTRYR register is 0001h, the flash sequencer is in code flash memory P/E mode where the
code flash memory can be programmed or erased by FACI commands. In this mode, reading from the code flash memory
is disabled under the conditions where BGO cannot be used. Under the conditions where BGO can be used, reading from
the code flash memory is enabled.
When the value of the FENTRYR register is 0080h, the flash sequencer is in data flash memory P/E mode where the data
flash memory can be programmed or erased by FACI commands. In this mode, the data flash memory is not readable.
However, the code flash memory is readable.

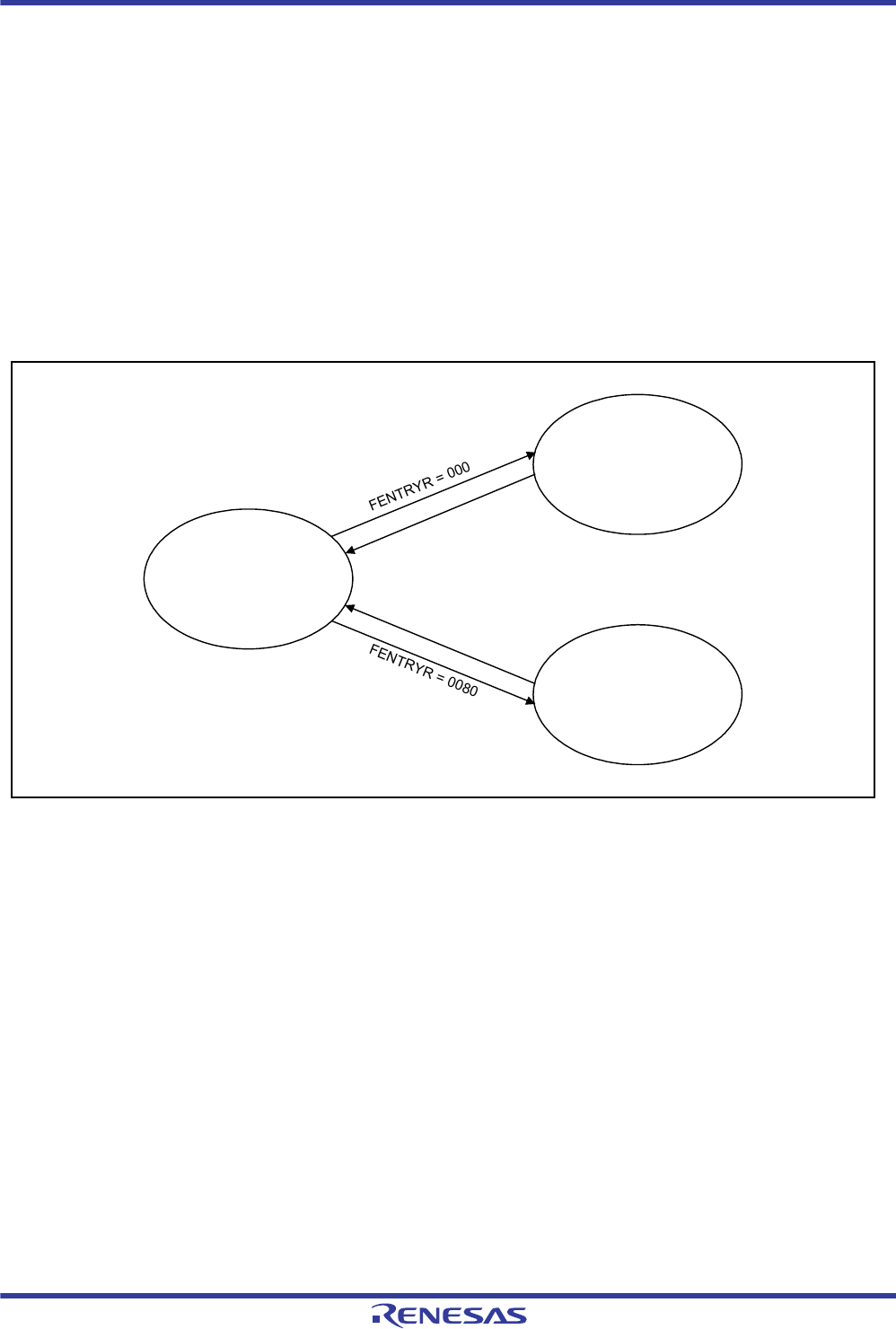

Figure 5.1 Modes of the Flash Sequencer
Code flash memory P/E mode
Data flash memory P/E mode
FENTRYR = 0080h
FENTRYR = 0000h
FENTRYR = 0001h
FENTRYR = 0000h
Read mode
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 31 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
6. FACI Commands
6.1 List of FACI Commands
Refer to the User’s Manual: Hardware for the option-setting memory.
The FACI commands are issued by writing to the FACI command-issuing area (see Table 3.1). When write access as
shown in Table 6.2 proceeds in the specified state, the flash sequencer executes the processing corresponding to the
given command (see section 6.2, Relationship between the Flash Sequencer State and FACI Commands).
Note: WDN (N = 1, 2,…): Nth 16-bit data to be programmed.
Table 6.1 List of FACI Commands
FACI Command Description
Programming This is used to program the code or data flash memory.
Units of programming are 128 bytes for the code flash memory and 4 bytes for the data flash memory.
Block erase This is used to erase the code or data flash memory.
The unit of erasure is one block.
(code flash memory: 8 K or 32 Kbytes, data flash memory: 64 bytes)
Multi-block erase This is used to erase the data flash memory.
The unit of erasure is 64, 128, 256 bytes
P/E suspend This suspends programming or erasure processing.
P/E resume This resumes suspended programming or erasure processing.
Status clear This initializes the ILGLERR, ERSERR, PRGERR, ILGCOMERR, FESETERR, SECERR, and OTERR
flags in the FSTATR register and the CMDLK, CFAE, and DFAE flags in the FASTAT releases the flash
sequencer from the command-locked state.
Forced stop This forcibly stops processing of FACI commands and initializes the FASTAT and FSTATR registers.
Blank check This is used to blank-check the data flash memory.
Units of blank checking: 4 bytes to 64 Kbytes (specified in 4-byte units).
Configuration setting This is used to set the option-setting memory (configuration setting area).
Units of setting: 16 bytes.
Table 6.2 FACI Command Formats
FACI Commands
Number of
Write
Access
Data to be Written to the FACI Command-Issuing Area
1st Access 2nd Access
3rd to (N+2)th
Access (N+3)th Access
Programming (code flash memory)
128-byte programming, N = 64
67 E8h 40h (= N) WD1 to WD64 D0h
Programming (data flash memory)
4-byte programming, N = 2
5 E8h 02h (= N) WD1 to WD2D0h
Block erase (code flash memory) 2 20h D0h — —
Block erase (data flash memory 64-
byte)
2 20h D0h — —
Multi-block erase (data flash memory
64-byte/128-byte/256-byte)
2 21h D0h — —
P/E suspend 1 B0h — — —
P/E resume 1 D0h — — —
Status clear 1 50h — — —
Forced stop 1 B3h — — —
Blank check 2 71h D0h — —
Configuration setting
N = 8
11 40h 08h (= N) WD1 to WD8D0h
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 32 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
The flash sequencer clears the FSTATR.FRDY flag to 0 at the start of processing of a command other than the status
clear command and sets this bit to 1 upon completion of command processing.
When the setting of the FRDYIE.FRDYIE bit is 1 and when the FSTATR.FRDY flag is set to 1, a flash ready (FRDY)
interrupt is generated.
6.2 Relationship between the Flash Sequencer State and FACI Commands
Each FACI command can be accepted in a specific mode or state of the flash sequencer. FACI commands should be
issued after the transition of the flash sequencer to the code flash memory P/E mode or data flash memory P/E mode and
checking of the state of the flash sequencer. Use the FSTATR and FASTAT registers to check the state of the flash
sequencer. The value of the FASTAT.CMDLK flag is the logical OR of values of the ILGLERR, ILGCOMERR,
FESETERR, SECERR, OTERR, ERSERR, PRGERR, and FLWEERR flags in the FSTATR register. Therefore, the
occurrence of errors can be checked by reading the value of the FASTAT.CMDLK flag.
Table 6.3 lists the available commands in each operating mode.
Table 6.3 Operating Mode and Available Commands
Operating Mode FENTRYR Register Value Available Commands
Read mode 0000h None
Code flash memory P/E mode 0001h Programming
Block erase
P/E suspend
P/E resume
Status clear
Forced stop
Configuration setting
Data flash memory P/E mode 0080h Programming
Block erase
Multi-block erase
P/E suspend
P/E resume
Status clear
Forced stop
Blank check
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 33 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
Table 6.4 shows the state of the flash sequencer and acceptable FACI commands. An appropriate mode is assumed to be
set before the commands are executed.
: Acceptable
×: Not acceptable (the sequencer in the command-locked state)
—: Ignored
Note 1. Acceptable only in data flash memory P/E mode
Note 2. Acceptable only in code flash memory P/E mode
Note 3. Programming is acceptable only for blocks other than blocks where erasure has been suspended.
Note 4. Do not issue a FACI command when configuration setting is being processed and the FSTATR.DBFULL bit is 1.
Table 6.4 Acceptable FACI Commands and the State of the Flash Sequencer
Processing of Programming or Erasure
Processing of Configuration Setting
Processing to Suspend Programming or Erasure
Processing of Blank Checking
Programming Suspended
Erasure Suspended
Programming while Erasure is Suspended
Command-Locked State (FRDY = 1)
Command-Locked State (FRDY = 0)
Processing of Forced Stop Command
Other State
FRDY flag 00001101001
SUSRDY flag 10000000000
ERSSPD flag 0 0 0/1 0/1 0 1 1 0/1 0/1 0 0
PRGSPD flag 0 0 0/1 0/1 1 0 0 0/1 0/1 0 0
CMDLK flag 00000001100
Programming × ×
*4
×××
*3
××××
Block erase × ×
*4
××××××××
Multi-block erase × ×
*4
××××××××
P/E suspend ×
*4
×××××—××—
P/E resume × ×
*4
×××××××
Status clear × ×
*4
×××××
Forced stop 
*4

Blank check ××××
*1
*1
××××
*1
Configuration setting × ×
*4
××××××××
*2
Z Z
R01UH0602EJ0200 Rev.2.00 Page 34 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
6.3 Usage of FACI Commands
This section gives an overview of the usage of FACI commands.
6.3.1 Transition to Code Flash Memory P/E Mode
To use the FACI commands for the code flash memory, a transition to code flash memory P/E mode is required. To cause
shift to code flash memory P/E mode, set the FENTRYR.FENTRYC bit to 1.

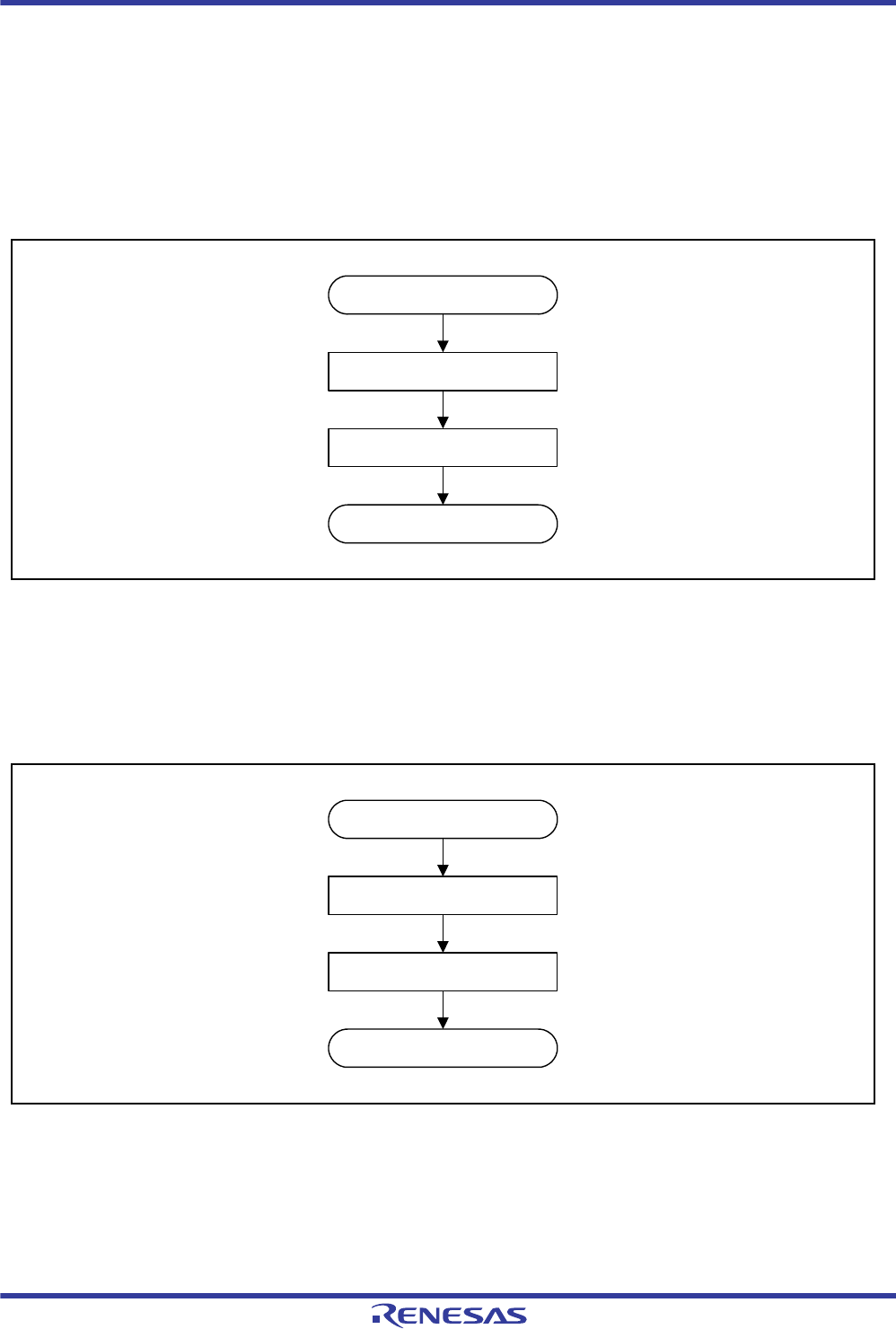

Figure 6.1 Procedure for Transition to Code Flash Memory P/E Mode
6.3.2 Transition to Data Flash Memory P/E Mode
To use the FACI commands for the data flash memory, a transition to data flash memory P/E mode is required. To shift to
data flash memory P/E mode, set the FENTRYR.FENTRYRD bit to 1.
Figure 6.2 Procedure for Transition to Data Flash Memory P/E Mode
Start
End
Check that the FENTRYR register
value is 0001h
Write AA01h
to the FENTRYR register
Start
End
Check that the FENTRYR register
value is 0080h
Write AA80h to
the FENTRYR register
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 35 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
6.3.3 Transition to Read Mode
To read the flash memory without using the BGO function, a transition to read mode is required. To shift to read mode,
set the FENTRYR register to 0000h. The transition to read mode should be made after processing by the flash sequencer
is completed and while operation is in other than in the command-locked state. In addition, operation is started in read
mode after release from the reset state.

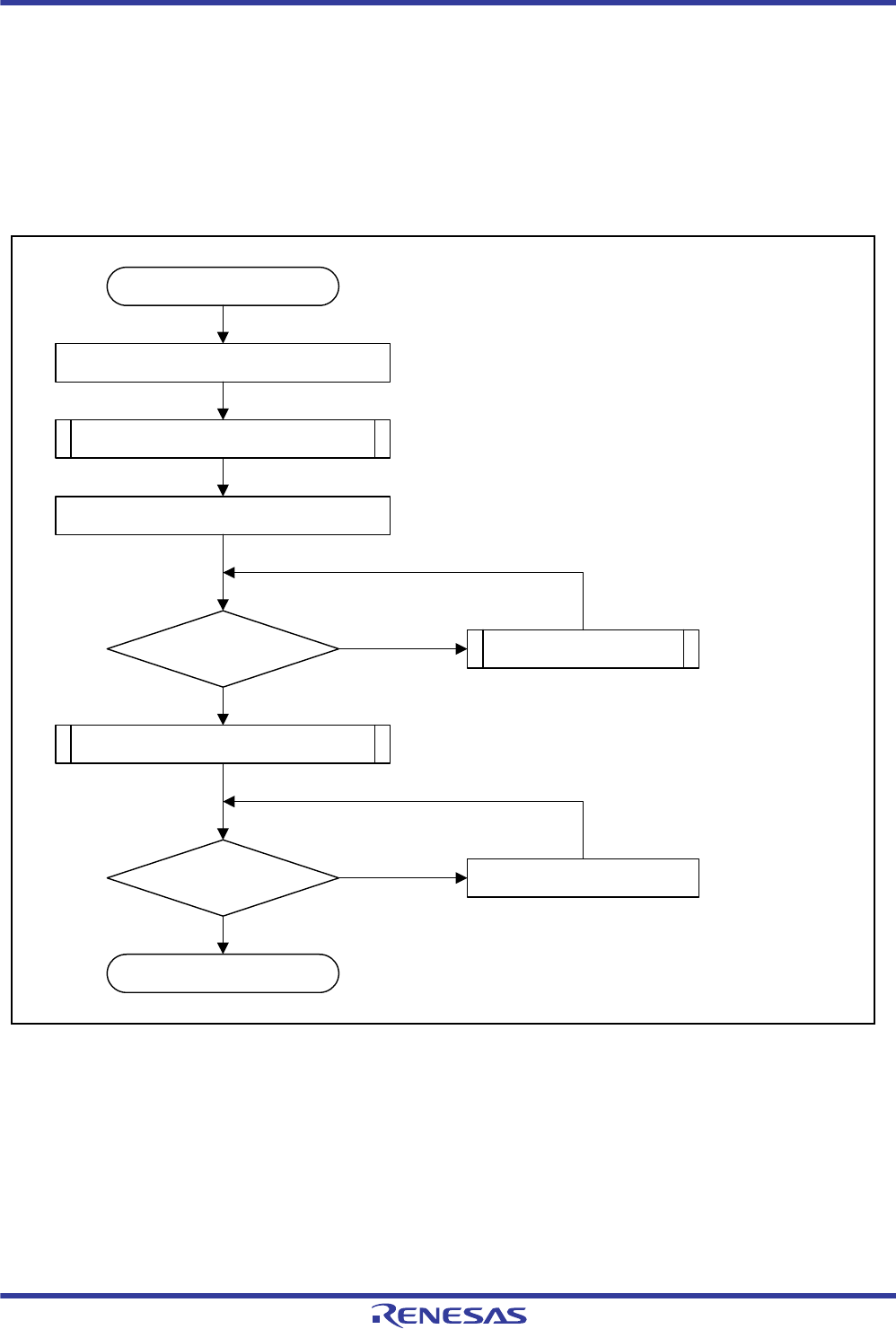

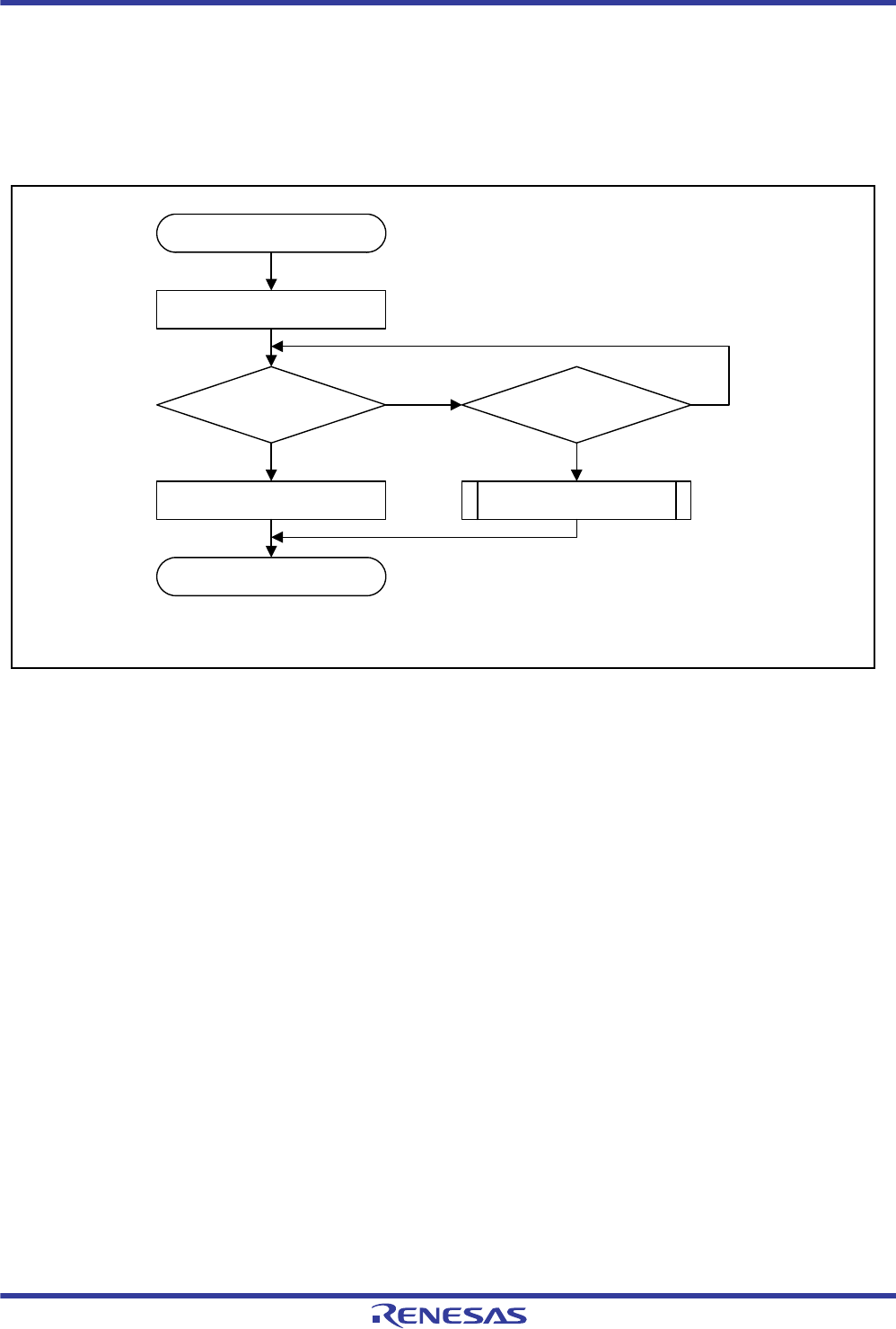

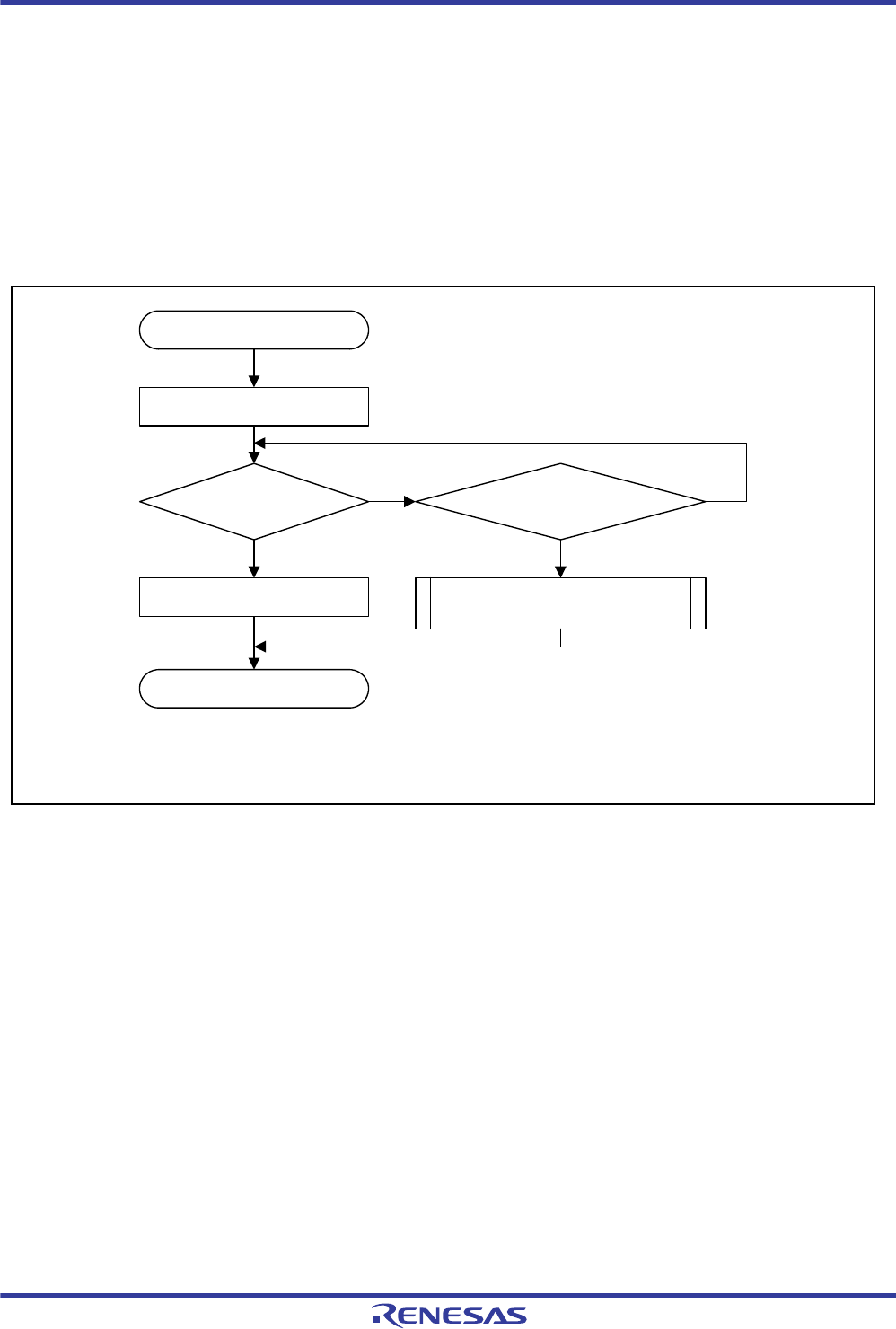

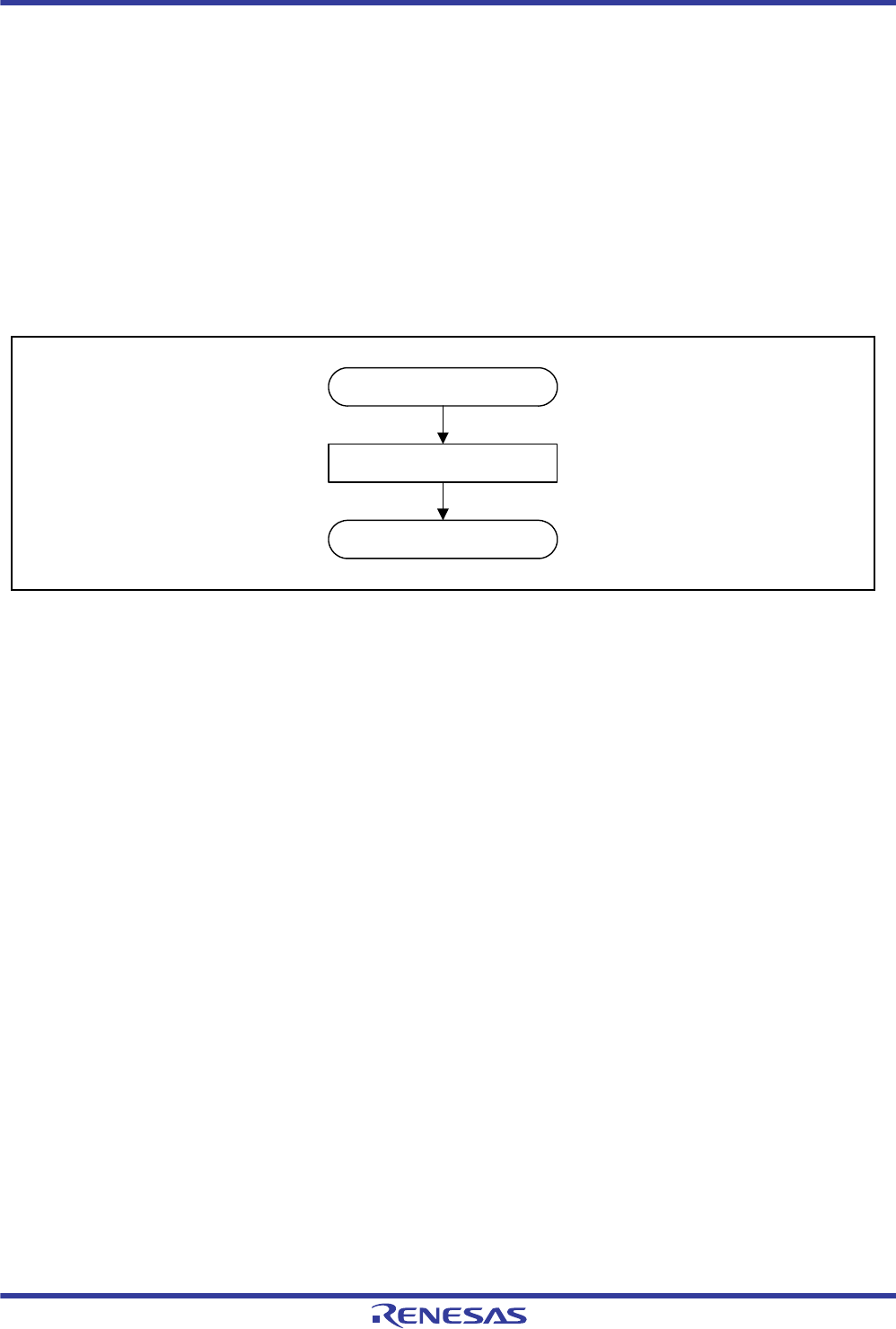

Figure 6.3 Procedure for Transition to Read Mode
Note 1. Judgment of the timeout is based on 1.1 times the maximum time for processing of the FACI command that is in
progress (refer to the Electrical Characteristics chapter in the User’s Manual: Hardware).
R01UH0602EJ0200 Rev.2.00 Page 36 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands

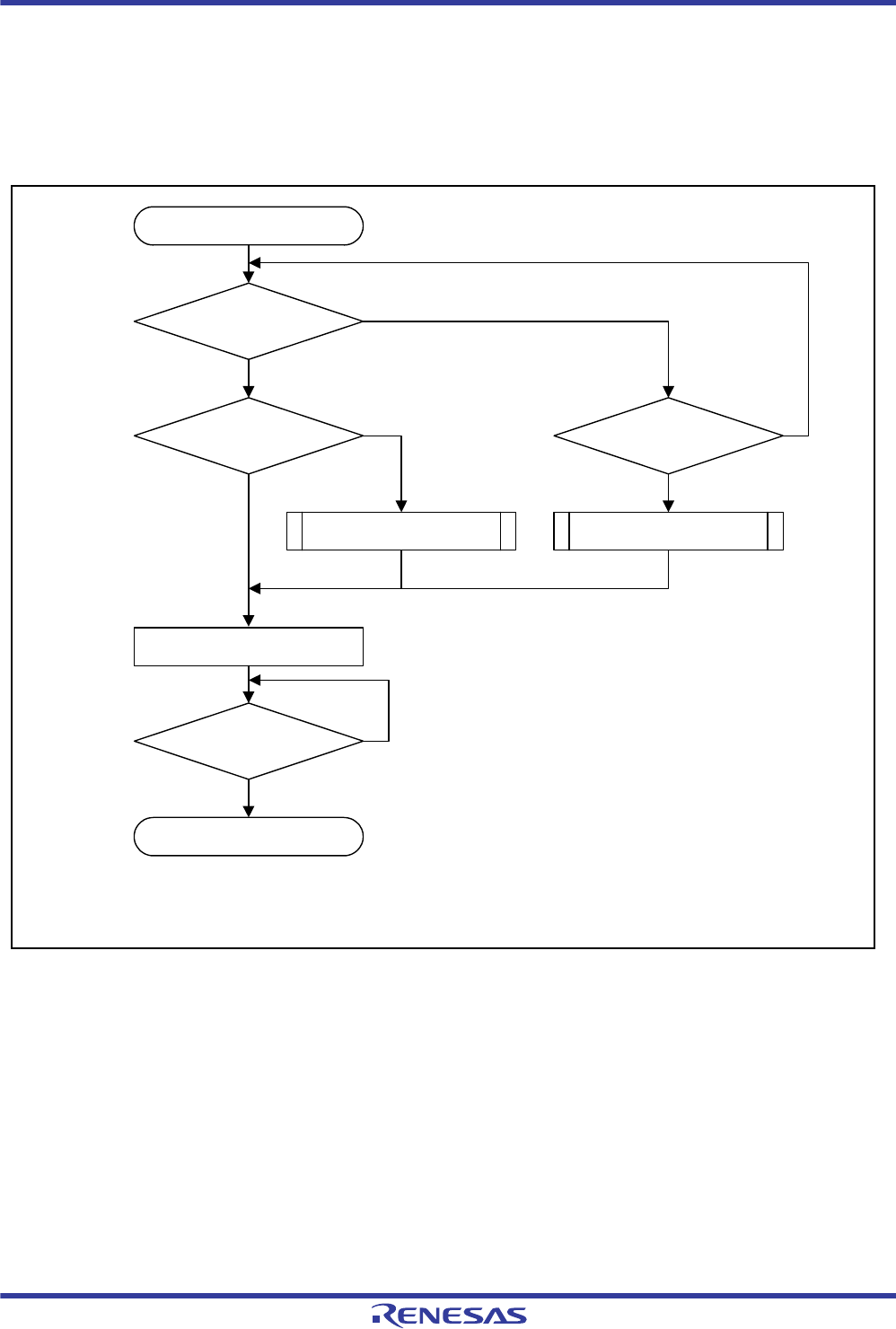

6.3.4 Overview Flow when FACI Command is Used

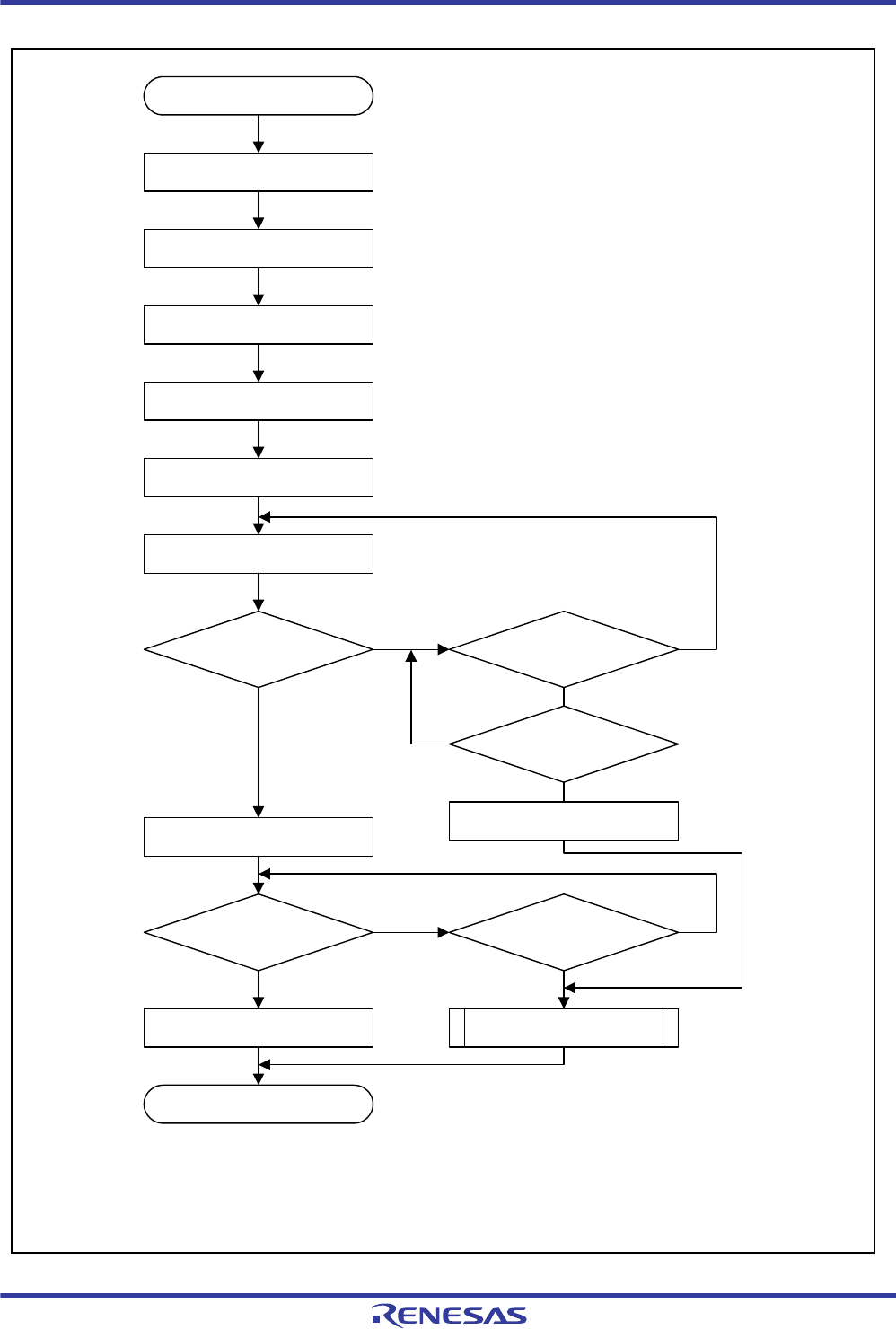

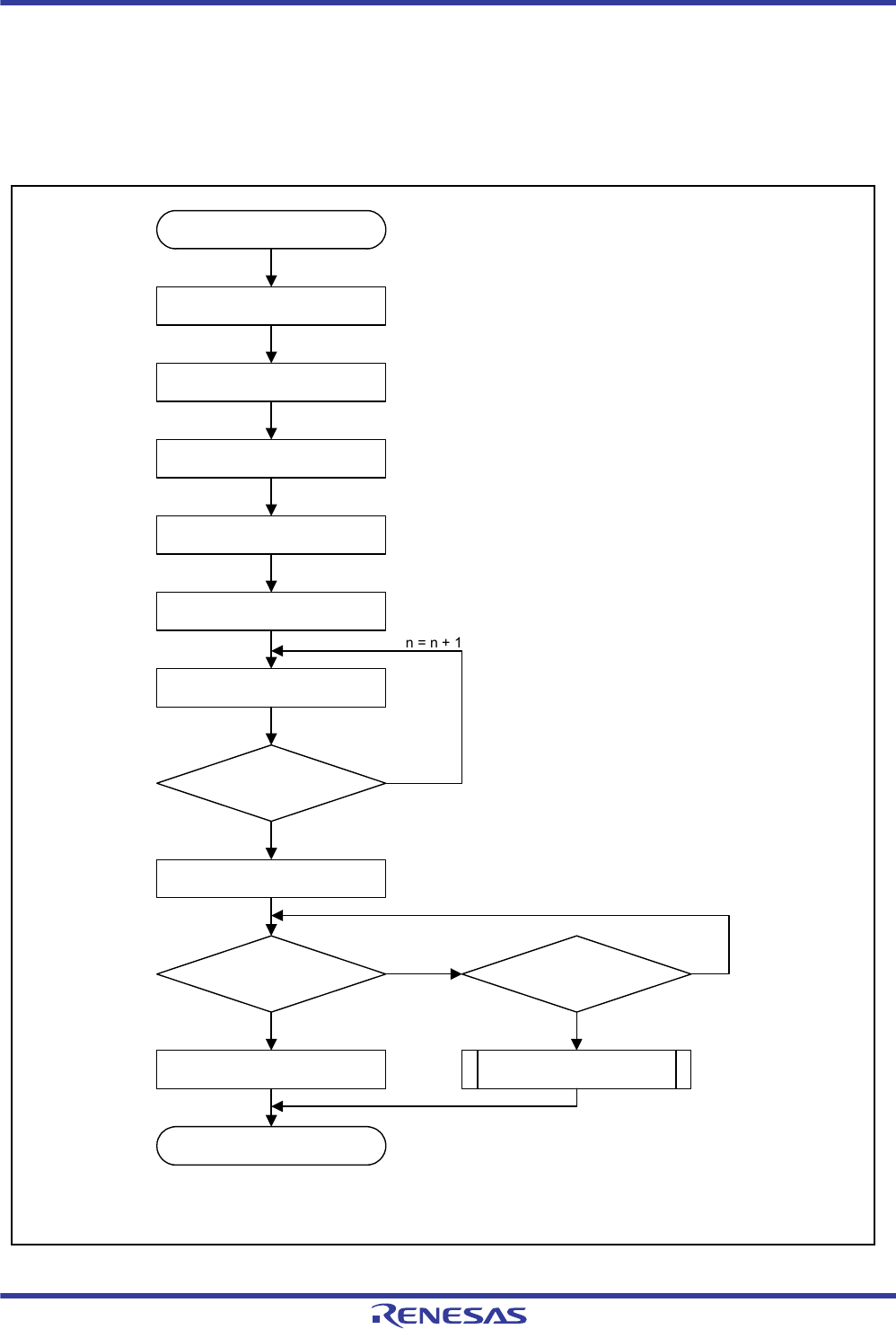

Figure 6.4 shows an overview flow when the FACI command is used.
If BGO is enabled, the jump to the internal RAM or external area (other than code flash memory) is not required because
an FACI command can be issued for the code or data flash memory by using the rewriting program in the code flash
memory.
When the FCLK is changed, changing the FPCKAR register shortens time for processing the FACI command. For
details, refer to section 4.16, Flash Sequencer Processing Clock Frequency Notification Register (FPCKAR).
Figure 6.4 Overview Flow when FACI Command is Used
Set this register only when the FCLK is changed and optimization
of the command processing time is required.
Start
Jump to the internal RAM or external area
(except code flash memory)
Shift to code flash memory or data flash
memory P/E mode
Set the FPCKAR register
FASTAT.CMDLK flag = 1 Status clearing or issuing of
the forced stop command
Command lock
Other than command lock
Issuing the FACI command
End
Is there any error?
An error occurred
No error
Proceed error processing
This step is not required when the FACI command is issued by
BGO.
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 37 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
6.3.5 Recovery from the Command-Locked State
When the flash sequencer enters the command-locked state, FACI commands cannot be accepted. To release the
sequencer from the command-locked state, use the status clear command, or forced stop command.
When the command-locked state is detected by checking for an error before issuing the P/E suspend command, the
FSTATR.FRDY flag may hold 0 as the command processing has not been completed. When the processing is not
completed even after time equal to the maximum programming or erasure time specified in the User’s Manual: Hardware
times 1.1 has elapsed, this is considered a time-out and the flash sequencer should be stopped by the forced stop
command.

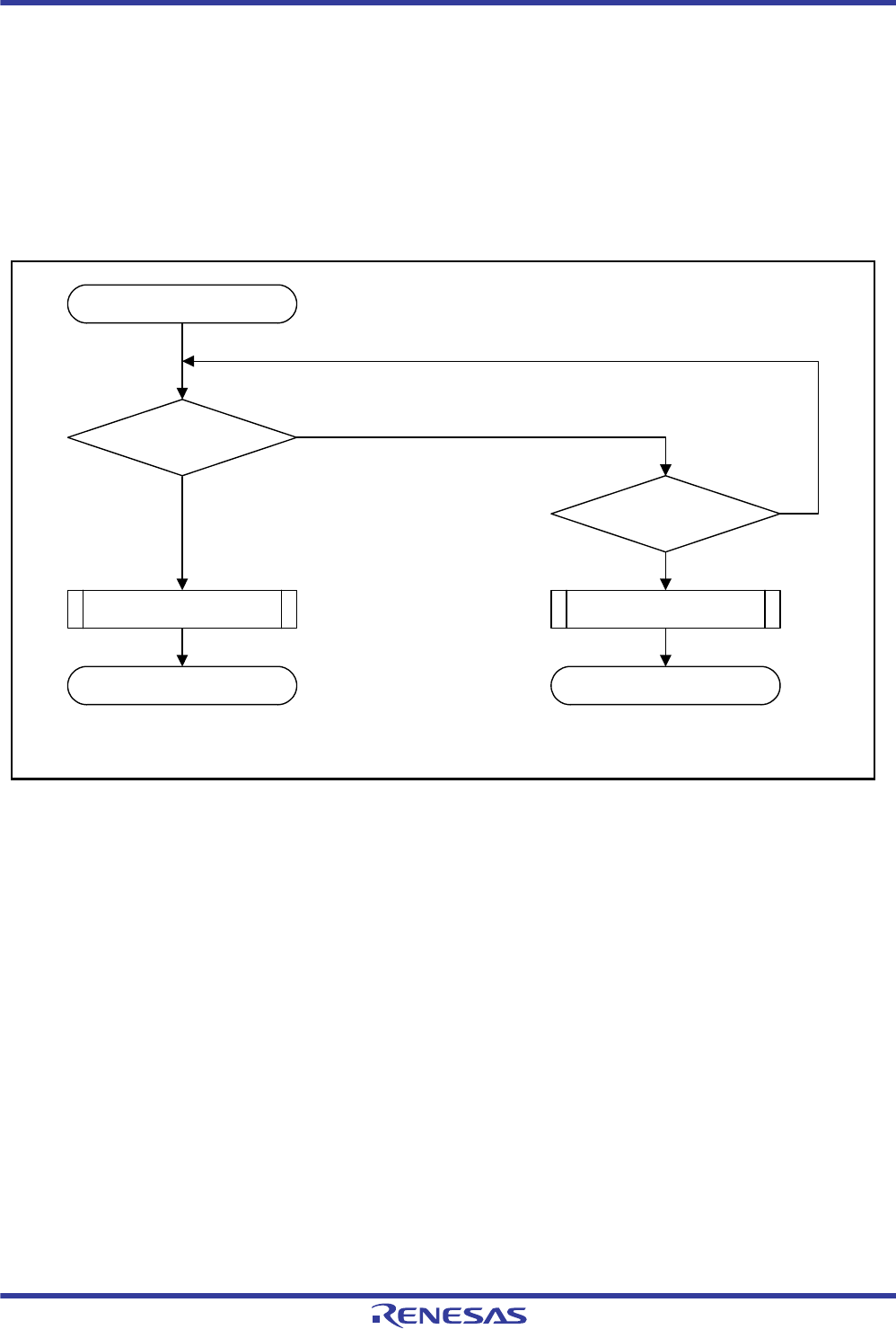

Figure 6.5 Recovery from the Command-Locked State
Note 1. Judgment of the timeout is based on 1.1 times the maximum time for processing of the FACI command that is in
progress (refer to the Electrical Characteristics chapter in the User’s Manual: Hardware).
Start
Check the FRDY flag 0
1
Issue
a forced stop command
End
Timeout?*1 No
Yes
Issue a status clear
or forced stop command
End
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 38 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
6.3.6 Programming Command
A programming command is used for programming the code or data flash memory.
Before issuing a programming command, set the first address of the target block in the FSADDR register.
Writing D0h to the FACI command-issuing area at the final access of the FACI command-issuing starts the programming
command processing. Completion of command processing can be checked by reading the FSTATR.FRDY flag. If the
target area of programming command processing contains the area not for writing, write FFFFh to the corresponding
area.
Issuing a programming command consecutively while the FACI internal data buffer is full leads to a wait on the
peripheral bus 6 and this may affect on the bus accesses of the other peripheral IP modules. To avoid the generation of
such a wait, issue an FACI command while the FSTATR.DBFULL flag is 0.
In addition, the data buffer never becomes full during programming of the data flash memory.
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 39 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
Figure 6.6 Usage of the Programming Command
Start
Issue
a forced stop command
End
Check the CMDLK flag
n = N - 1?
Timeout?*2No
Yes
DBFULL flag? 0
1
Set the first address of the target
block to the FSADDR register
Write E8h
to the FACI command-issuing area
Write N
to the FACI command-issuing area
N
40h: Code flash memory
02h: Data flash memory (writing in 4-byte units)
Write first 2 bytes of data
to the FACI command-issuing area
n = 1
Write next 2 bytes of data
to the FACI command-issuing area
Write D0h
to the FACI command-issuing area
FRDY flag?
No
Yes
n = n + 1
0
1
Read the FACI command-issuing
area
Timeout?*1
Yes
No
Note 1. Judgment of the timeout is based on 1.4 μs elapsing (when FCLK ≥ 20 MHz)
Note 2. Judgment of the timeout is based on 1.1 times 128-byte programming time (max) for code flash memory.
For data flash memory, judgment is based on 1.1 times 4-byte programming time (max).
For the 128-byte programming time and 4-byte programming time, refer to the Electrical Characteristics
chapter in the User’s Manual: Hardware.
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 40 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
6.3.7 Block Erase Command
A block erase command is used to erase the code or data flash memory in single-block units.
Before issuing a block erase command, set the first address of the target block in the FSADDR register. Writing 20h and
D0h to the FACI command-issuing area starts processing of a block erase command. Completion of command processing
can be confirmed by reading the FSTATR.FRDY flag.
The FCPSR register must be set before issuing the block erase command. The setting of the FCPSR register must be
changed to switch the suspending method (suspension priority mode/erasure priority mode) by the P/E suspend
command.
Figure 6.7 Usage of the Block Erase Command
Start
Issue
a forced stop command
End
Check the CMDLK flag
Timeout?*1 No
Yes
Set the FCPSR register
Set the first address of the target
block to the FSADDR register
Write 20h
to the FACI command-issuing area
Write D0h
to the FACI command-issuing area
FRDY flag? 0
1
When switching erase suspension handling mode
is required
Note 1. Judgment of the timeout is based on 1.1 times 32-Kbyte erasure time (max) for code flash memory.
For data flash memory, judgment is based on 1.1 times 64-byte erasure time (max).
For the 32-Kbyte erasure time and 64-byte erasure time, refer to the Electrical Characteristics chapter in
the User's Manual: Hardware.
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 41 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
6.3.8 Multi-Block Erase Command
The multi-block erase command can also be issued to erase data in the data flash memory. The unit for erasure is 64, 128, or
256 bytes.
Set the first address of the target area for erasure to the FSADDR register and the end address to the FEADDR register
before issuing a multi-block erase command. When 21h and D0h are written to the FACI command issuing area, the
process of the multi-block erase command proceeds. The end of command processing can be confirmed by the
FSTATR.FRDY flag.
The FCPSR register must be set before issuing the multi-block erase command. The setting of the FCPSR register must
be changed when P/E suspension command is used to switch the handling of suspension of erasure (between suspension
priority and erasure priority).

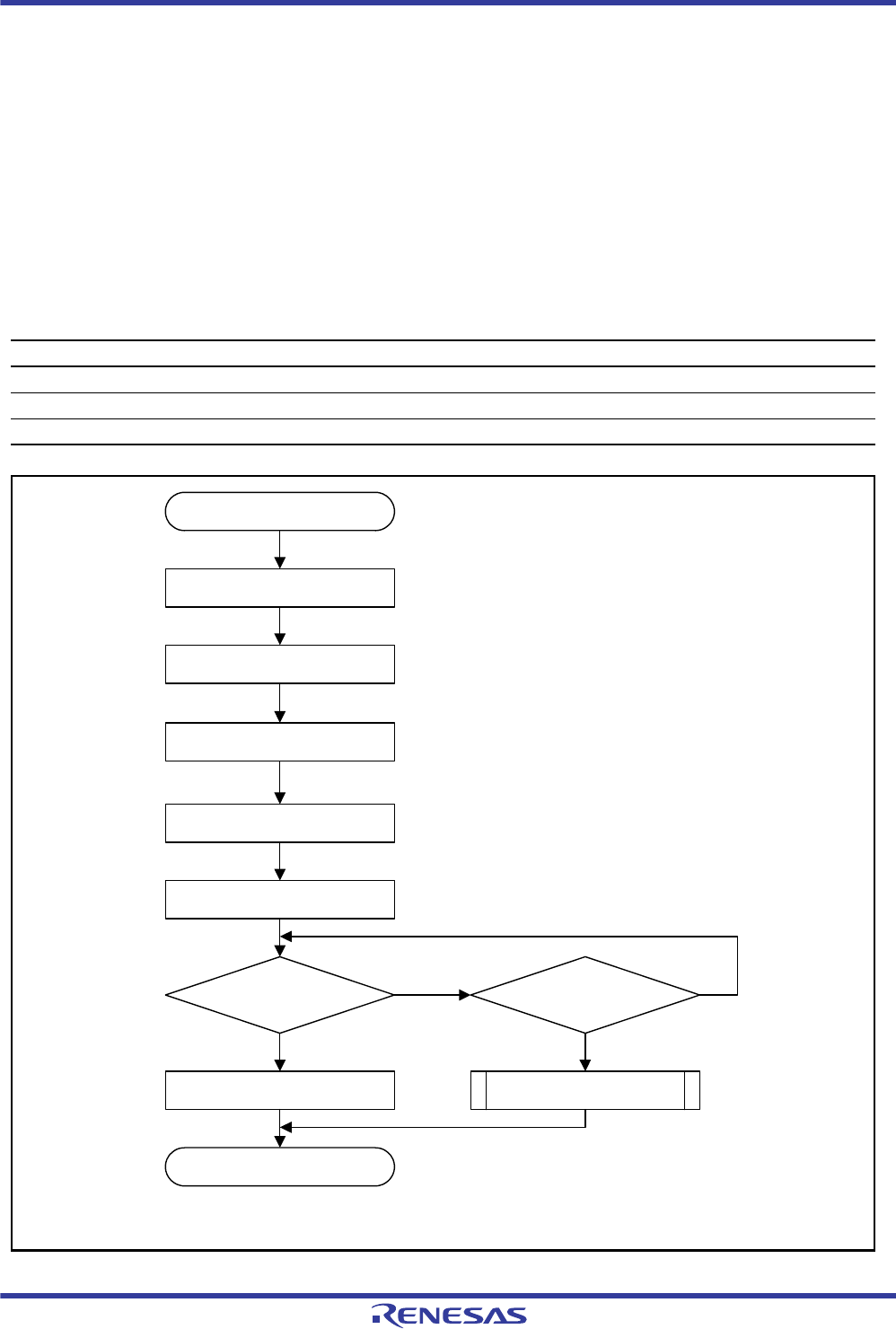

Figure 6.8 Usage of the Multi-Block Erase Command
Table 6.5 Size Setting for Erasure
Erasure Size FSADDR FEADDR
64 bytes FSA0 to FSA5 = 0 (64-byte boundary) FSADDR + 3Ch
128 bytes FSA0 to FSA6 = 0 (128-byte boundary) FSADDR + 7Ch
256 bytes FSA0 to FSA7 = 0 (256-byte boundary) FSADDR + FCh
Start
Issue
a forced stop command
End
Check the CMDLK flag
Timeout?*1No
Yes
Write D0h
to the FACI command-issuing area
FRDY flag? 0
1
Set the FCPSR register
Set the first address of the target
block to the FSADDR register
Write 21h
to the FACI command-issuing area
When switching erase suspension handling mode
is required
Set the end address of the target
block in the FEADDR register
Note 1. Judgement of the timeout is based on 1.1 times 64-, 128-, or 256-byte erasure time (max).
For each erasure time, refer to the Electrical Characteristics chapter in the User’s Manual: Hardware.
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 42 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
6.3.9 P/E Suspend Command
The P/E suspend command is used to suspend programming or erasure. Before issuing a P/E suspend command, check
that the FASTAT.CMDLK flag is 0, and the execution of programming/erasure is normally performed. To confirm that
the P/E suspend command can be received, also check that the FSTATR.SUSRDY flag is 1. After issuing a P/E suspend
command, read the FASTAT.CMDLK flag to confirm that its value is not 1 (the flash sequencer is not in the command-
locked state).
If an error occurs during programming or erasure processing, the FASTAT.CMDLK flag is set to 1. When P/E processing
is completed between the FSTATR.SUSRDY flag having been confirmed to be 1 and acceptance of the P/E suspension
command, the P/E suspension command is ignored and the flash sequencer does not enter the suspended state (the
FSTATR.FRDY flag is 1 and the ERSSPD and PRGSPD flags in the FSTATR register are 0).
When a P/E suspend command is received and then the programming/erasure suspend processing finishes normally, the
flash sequencer enters the suspended state, the FSTATR.FRDY flag is set to 1, and the ERSSPD or PRGSPD flag in the
FSTATR register is 1. After issuing a P/E suspend command, check that the ERSSPD or PRGSPD flag in the FSTATR
register is 1 and the suspended state is entered, and then decide the subsequent flow. If a P/E resume command is issued
in the subsequent flow although the suspended state is not entered, an illegal command error occurs and the flash
sequencer shifts to the command-locked state (see section 7.2, Error Protection).
If the erasure suspended state is entered, programming to blocks targeted for other than erasure can be performed.
Additionally, the programming and erasure suspended states can shift to read mode by clearing the FENTRYR register.
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 43 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands

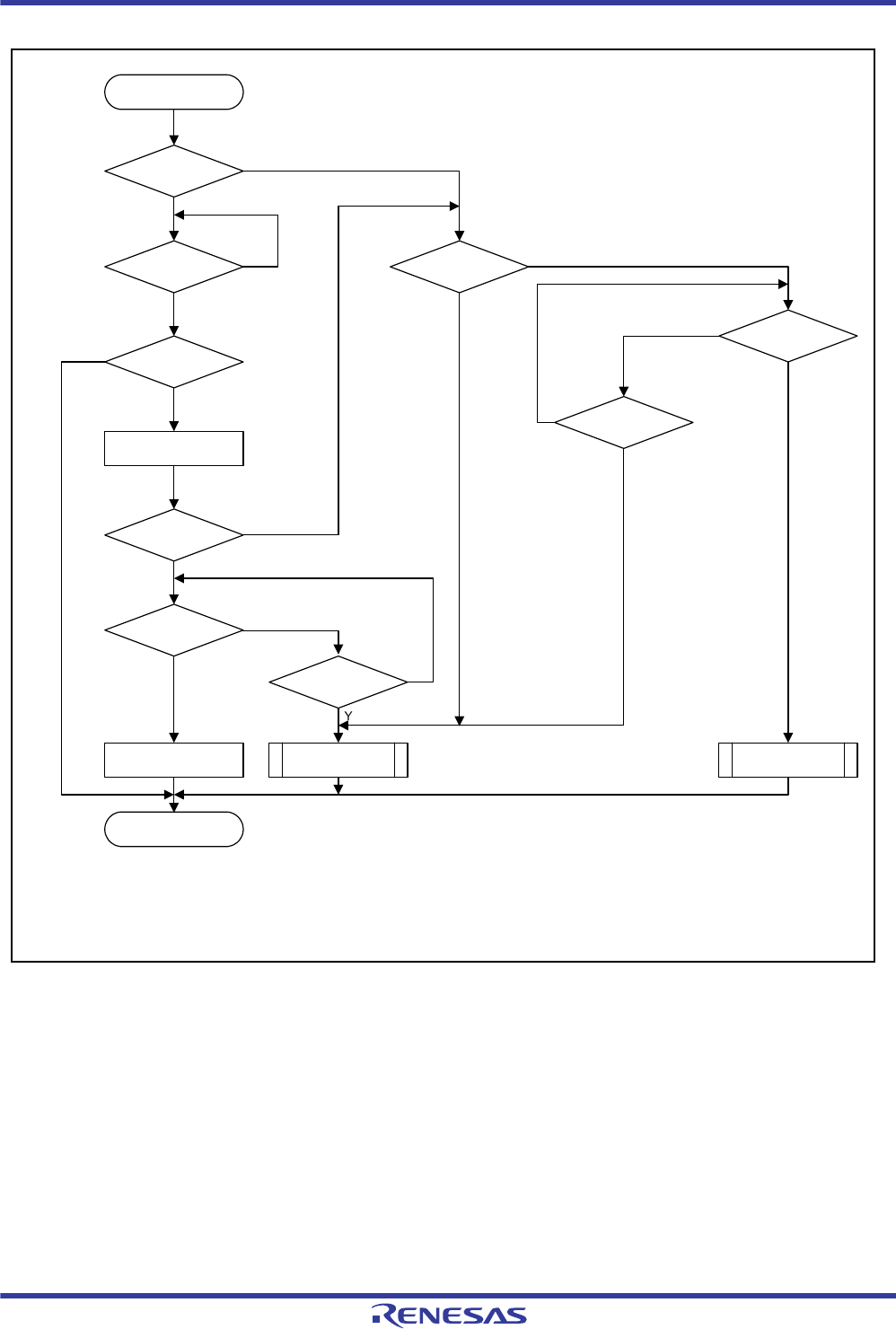

Figure 6.9 Usage of the P/E Suspend Command
Note 1. Judgment of the timeout is based on 1.1 times the suspend delay time during erasure (max) for both code
flash memory and data flash memory.
For the suspend delay time during erasure, refer to the Electrical Characteristics chapter in the User’s
Manual: Hardware.
Start
Issue a forced
stop command
End
Check the ERSSPD,
PRGSPD flags
Timeout?*1 No
Yes
FRDY flag? 0
1
Error check
SUSRDY flag?
Other than command lock
Command lock
0
1
FRDY flag?
0
Write B0h to the FACI
command-issuing area
Error check
Other than command lock
Command lock
Error check FLWEERR = 0
Timeout?*1
FRDY flag?
Issue a status
clear command
No
Yes
0
1
1
FLWEERR = 1
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 44 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
(1) Suspension during Programming
When issuing a P/E suspend command during the flash memory programming, the flash sequencer suspends
programming processing. Figure 6.10 shows the suspend operation of programming. When receiving a programming-
related command, the flash sequencer clears the FSTATR.FRDY flag to 0 to start programming. When the flash
sequencer enters the state in which the P/E suspend command can be received after starting programming, it sets the
FSTATR.SUSRDY flag to 1. When a P/E suspend command is issued, the flash sequencer receives the command and
clears the FSTATR.SUSRDY flag to 0. When the flash sequencer receives a P/E suspend command while a programming
pulse is being applied, the flash sequencer continues applying the pulse. After the specified pulse application time, the
flash sequencer finishes pulse application, and starts the programming suspend processing and sets the
FSTATR.PRGSPD flag to 1.
When the suspend processing finishes, the flash sequencer sets the FSTATR.FRDY flag to 1 to enter the programming
suspended state. When receiving a P/E resume command in the programming suspended state, the flash sequencer clears
the FSTATR.FRDY and FSTATR.PRGSPD flags to 0 and resumes programming.

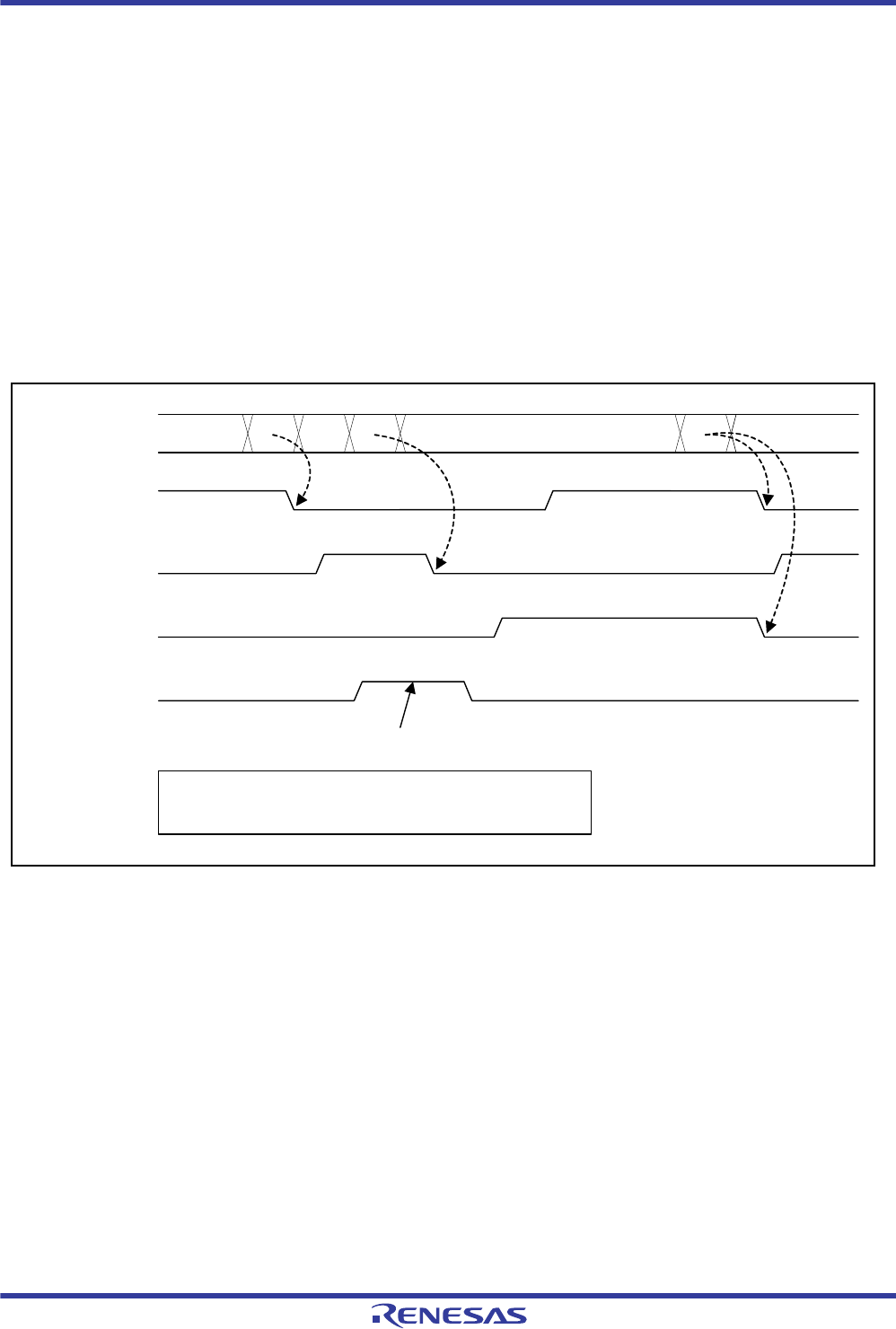

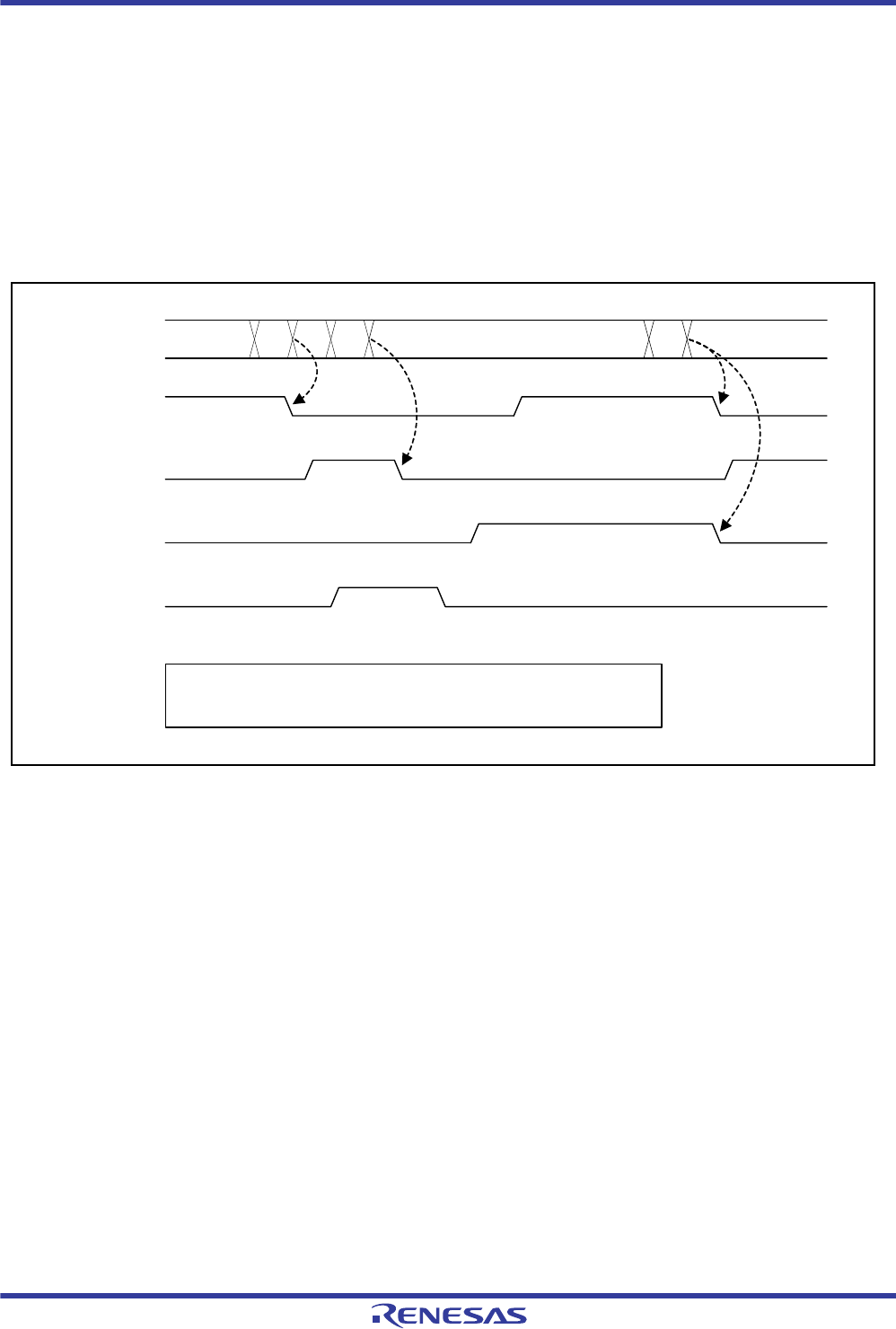

Figure 6.10 Suspension during Programming
FACI command
P: Programming-related command (programming, P/E resume)
S: P/E suspend command
R: P/E resume command
Pulse application continues
P S R
FRDY flag
SUSRDY flag
PRGSPD flag
Programming pulse
;\ \ y“ k ’5 a t g : l ." 5' r 5' “ RENESAS
R01UH0602EJ0200 Rev.2.00 Page 45 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands

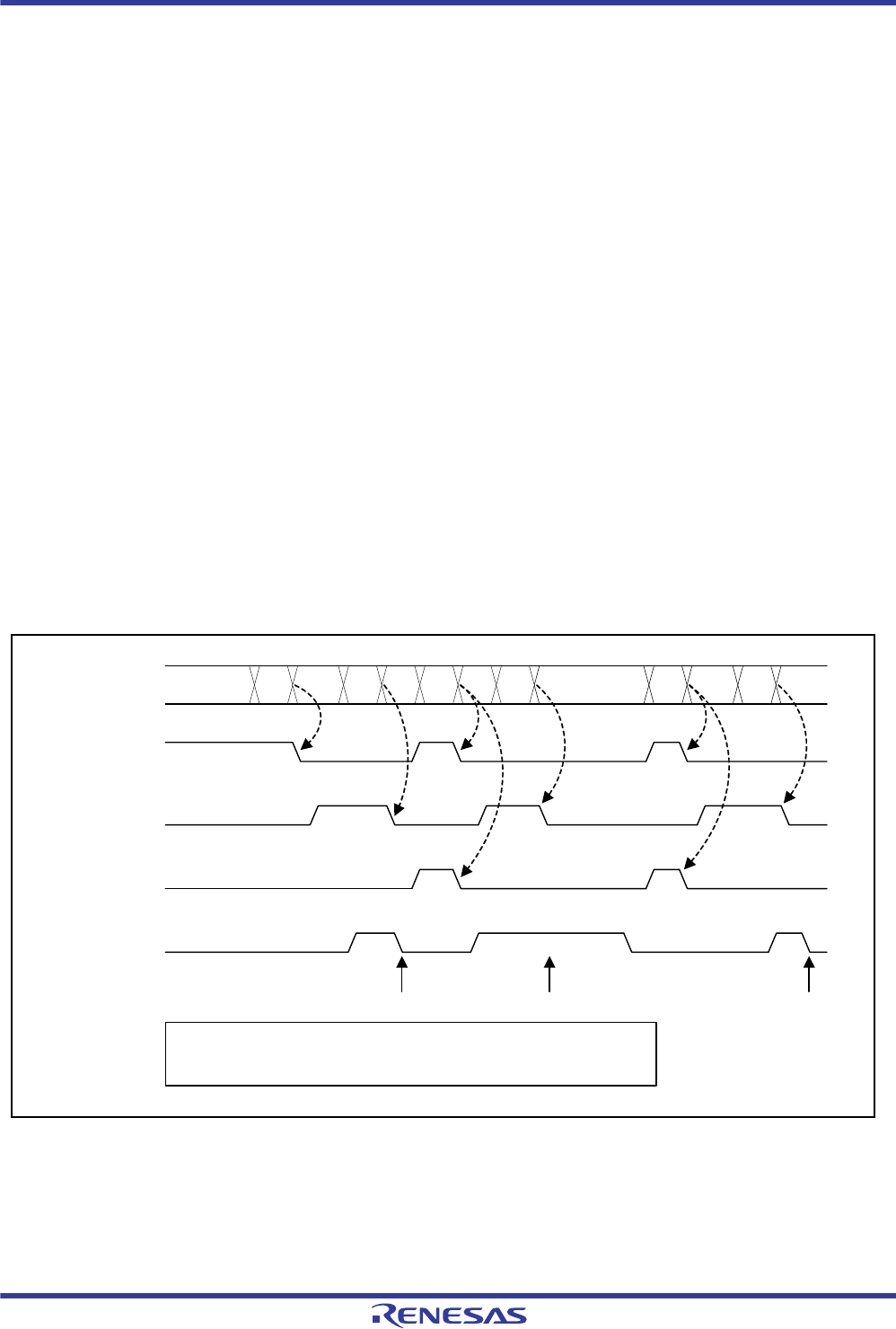

(2) Suspension during Erasure (Suspension Priority Mode)
This MCU has a suspension priority mode for the suspension of erasure. Figure 6.11 shows the suspend operation of
erasure in suspension priority mode (the FCPSR.ESUSPMD bit is 0).
When receiving an erasure-related command, the flash sequencer clears the FSTATR.FRDY flag to 0 to start erasure.
When the flash sequencer enters the state in which the P/E suspend command can be received after starting erasure, it
sets the FSTATR.SUSRDY flag to 1. When a P/E suspend command is issued, the flash sequencer receives the command
and clears the FSTATR.SUSRDY flag to 0. When receiving a suspend command during erasure, the flash sequencer
starts the suspend processing and sets the FSTATR.ERSSPD flag to 1 even if it is applying an erasure pulse. When the
suspend processing is completed, the flash sequencer sets the FSTATR.FRDY flag to 1 to enter the erasure suspended
state. When receiving a P/E resume command in the erasure suspended state, the flash sequencer clears the FRDY and
ERSSPD flags in the FSTATR register to 0 and resumes erasure. Operations of the FRDY, SUSRDY, and ERSSPD flags
in the FSTATR register at the suspension and resumption of erasure are the same, regardless of the erasure suspend
mode.
The setting of the erasure suspend mode affects the control method of erasure pulses. In suspension priority mode, when
receiving a P/E suspend command while erasure pulse A that has never been suspended in the past is being applied, the
flash sequencer suspends the application of erasure pulse A and enters the erasure suspended state. When receiving a P/E
suspend command while reapplying erasure pulse A after erasure is resumed by a P/E resume command, the flash
sequencer continues applying erasure pulse A. After the specified pulse application time, the flash sequencer finishes
erasure pulse application and enters the erasure suspended state. When the flash sequencer receives a P/E resume
command next and erasure pulse B starts to be newly applied, and then the flash sequencer receives a P/E suspend
command again, the application of erasure pulse B is suspended. In suspension priority mode, delay due to suspension
can be minimized because the application of an erasure pulse is suspended one time per pulse and priority is given to the
suspend processing.
Figure 6.11 Suspension during Erasure (Suspension Priority Mode)
SFACI command
E: Erasure-related command (block erase, multi-block erase, P/E resume)
S: P/E suspend command
R: P/E resume command
Pulse A application halted
E S R
FRDY flag
SUSRDY flag
ERSSPD flag
Erasure pulse
R S
Pulse A application continues Pulse B application halted
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 46 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
(3) Suspension during Erasure (Erasure Priority Mode)
This MCU has an erasure priority mode for the suspension of erasure.
Figure 6.12 shows the suspend operation of erasure when the erasure suspend mode is set to the erasure priority mode
(the FCPSR.ESUSPMD bit is 1). The control method of erasure pulses in erasure priority mode is the same as that of
programming pulses for the programming suspend processing.
When the flash sequencer receives a P/E suspend command while an erasure pulse is being applied, the flash sequencer
definitely continues applying the pulse. In this mode, the required time for the whole erasure processing can be reduced
as compared with the suspension priority mode because the reapplication of erasure pulses does not occur when a P/E
resume command is issued.
Figure 6.12 Suspension during Erasure (Erasure Priority Mode)
FACI command
E: Erasure-related command (block erase, multi-block erase, P/E resume)
S: P/E suspend command
R: P/E resume command
E S R
FRDY flag
SUSRDY flag
ERSSPD flag
Erasure pulse
Pulse A application continues
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 47 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
6.3.10 P/E Resume Command
To resume suspended programming or erasure, use the P/E resume command. When the settings of the FENTRYR
register are changed during suspension, reset the setting of the FENTRYR register to the value immediately before the P/
E suspend command was issued, and then issue a P/E resume command. Completion of processing of the resumed
command can be confirmed by reading the FSTATR.FRDY flag.
Figure 6.13 Usage of the P/E Resume Command
Start
Issue
a forced stop command
End
Check the CMDLK flag
Timeout?*1 No
Yes
FRDY flag? 0
1
Write D0h
to the FACI command-issuing area
Note 1. Judgment of the timeout is based on 1.1 times the maximum time for halted processing of the FACI command
(refer to the Electrical Characteristics chapter in the User’s Manual: Hardware).
H RENESAS
R01UH0602EJ0200 Rev.2.00 Page 48 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
6.3.11 Status Clear Command
When one of the ILGLERR, ILGCOMERR, FESETERR, SECERR, OTERR, ERSERR, PRGERR, and FLWEERR flag
bits in the FSTATR register is set to 1, the flash sequencer enters the command-locked state. When one of the CFAE and
DFAE flags in the FASTAT register is set to 1, the flash sequencer also enters the command lock state. In the command-
locked state, the flash sequencer can accept only status clearing command or forced end command.
The status clear command is used to clear the command-locked state (see section 6.3.5, Recovery from the
Command-Locked State). To clear the CFAE, DFAE, and CMDLK flags in the FASTAT register, and the ILGLERR,
ILGCOMERR, FESETERR, SECERR, OTEERR, ERSERR, and PRGERR flags in the FSTATR register in the
command-locked state, the status clear command is available.
The FLWEERR flag cannot only be cleared by the status clearing command, but can only be cleared by the forced end
command.
Figure 6.14 Usage of the Status Clear Command
Start
End
Write 50h
to the FACI command-issuing area
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 49 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
6.3.12 Forced Stop Command
The forced stop command forcibly ends command processing by the flash sequencer. Although this command halts
command processing in higher speed than the P/E suspension command, values from the area where programming or
erasure was in progress are not guaranteed. Furthermore, resumption of processing is not possible. Processing of
programming or erasure that was terminated by the forced stop command is also defined as one round of programming.
Executing a forced stop command also initializes the whole FCU and a part of the FACI, and the FASTAT and FSTATR
registers. Accordingly, this command can be used in the procedure for recovery from the command-locked state and in
processing in response to a time-out of the flash sequencer (see section 6.3.5, Recovery from the Command-Locked
State).
Figure 6.15 Usage of the Forced Stop Command
6.3.12.1 How to Use the Forced Stop Command when a Command is being issued
When processing is terminated by the forced stop command while a timeout is generated based on the DBFULL bit
judgment of the program command, writing to the FACI command issuing area may be handled as the data written by the
program command. In this case, read the FACI command issuing area and generate a command lock intentionally, then
issue the forced stop command according to the method of returning from the command lock state. A command lock can
be generated although the access size for reading the FACI command issuing area is in 8-, 16-, or 32-bit units.
Start
End
Check the CMDLK flag
FRDY flag? 0
1
Write B3h
to the FACI command-issuing area
Hardware reset due to the RES# pin or re-
issuance of the forced end command
Timeout?*1 No
Yes
Note 1. Judgment of the timeout is based on 1.1 times the maximum time for the forced stop command
(refer to the Electrical Characteristics chapter in the User’s Manual: Hardware).
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 50 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
6.3.13 Blank Check Command
Values read from data flash memory that has been erased but not yet been programming again (i.e. that is in the
nonprogrammed state) are undefined. Use the blank check command when you need to confirm that an area is in the
nonprogrammed state.
Before issuing a blank check command, set addressing mode, start and end addresses of the target area for blank
checking to the FBCCNT, FSADDR, and FEADDR registers.
When the FBCCNT.BCDIR bit is 1, the value specified in the FSADDR register must be set at least the value specified in
the FEADDR register.
When the FBCCNT.BCDIR bit is 0, the value specified in the FSADDR register must be the value specified in the
FEADDR register or less.
When the settings of the FBCCNT.BCDIR bit, FSADDR register, and FEADDR register are inconsistent, the flash
sequencer enters the command-locked state. The size of the target area for blank checking is in the range from 4 bytes to
64 Kbytes and is set in units of 4 bytes.
Write 71h and D0h to the FACI command-issuing area to start blank checking. Completion of processing can be
confirmed by the FSTATR.FRDY flag. At the end of processing, the result of blank checking is stored in the
FBCSTAT.BCST flag. If the target area for blank checking includes areas where programming has been completed, the
flash sequencer stores the address of the programmed data that it first detected in the FPSADDR register.
R01UH0602EJ0200 Rev.2.00 Page 51 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
Figure 6.16 Usage of the Blank Check Command
Start
Issue
a forced stop command
End
Check the CMDLK flag
Check the BCST flag and the
FPSADDR register
Timeout?*1 No
Yes
Set the addressing mode
in the FBCCNT register
00h: (Incremental mode) FSADDR ≤ FEADDR
01h: (Decremental mode) FSADDR ≥ FEADDR
Set the first address of the area to be
checked in the FSADDR register
Set the last address of the area to be
checked in the FEADDR register
Write 71h
to the FACI command-issuing area
Write D0h
to the FACI command-issuing area
FRDY flag? 0
1
Note 1. Judgment of the timeout is based on 1.1 times the blank checking time (max.) for the entire target area.
For the blank checking time, refer to the Electrical Characteristics chapter in the User’s Manual:
Hardware.
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 52 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
6.3.14 Configuration Set Command
The configuration set command is used to set the option-setting memory (configuration setting area).
Before issuing a configuration set command, set the specified address (shown in Table 6.6) in the FSADDR register.
Writing D0h to the FACI command-issuing area in the final access for issuing the FACI command starts processing of
the configuration set command.
Figure 6.17 Usage of the Configuration Set Command
Start
Issue
a forced stop command
End
Check the CMDLK flag
n = 7?
Timeout?*1 No
Yes
Set the specified address
to the FSADDR register
Write 40h
to the FACI command-issuing area
Write 08h
to the FACI command-issuing area
Write first 2 bytes of data
to the FACI command-issuing area
n = 1
Write next 2 bytes of data
to the FACI command-issuing area
Write D0h
to the FACI command-issuing area
FRDY flag?
No
Yes
n = n + 1
0
1
Note 1. Timeout is judged to be after 185 ms (when FCLK ≥ 20 MHz), 205 ms (when FCLK = 15 MHz), or 340 ms
(when FCLK = 4 MHz).
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 53 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 6. FACI Commands
The correspondence between the possible target data for configuration setting and the address value set in the FSADDR
register is shown in Table 6.6. For details on the FSADDR register, see section 4.5, FACI Command Start Address
Register (FSADDR).
Note 1. Once these bits are set to 0, the bits cannot be restored to 1 by using the configuration setting command.
Note 2. The FAW.FSPR bit cannot be restored to 1 by using the configuration setting command once it is set to 0. Therefore, setting the
access window and start-up area select flags again becomes impossible. (when the configuration setting command is issued to
the address of FE7F 5D64h, the command is locked.) Exercise extra caution when handling the FAW.FSPR bit.
Note 3. The setting in the serial programmer command control register (SPCC) is enabled after a reset. The setting of the TM enable
flag register (TMEF) is enabled when a reset or command is executed.
Table 6.6 Address Used by Configuration Set Command
Address
FSADDR
Register Value Setting Data
Operation of additional writing
Timing when the
Setting is Enabled
FAW.FSPR bit
is 1
FAW.FSPR bit
is 0
FE7F 5D00h 00FF 5D00h Option function select register 0 (OFS0),
option function select register 1 (OFS1),
endian select register (MDE)
Writable Writable At a reset
FE7F 5D10h 00FF 5D10h TM identification data register (TMINF) Writable Writable At a reset
FE7F 5D20h 00FF 5D20h Bank select register (BANKSEL) Writable Writable At a reset
FE7F 5D40h 00FF 5D40h Serial programmer command control
register (SPCC),
TM enable flag register (TMEF)
Writable*1
(from 1 to 0 only)
Writable*1
(from 1 to 0 only)
When a reset or
command is
executed*3
FE7F 5D50h 00FF 5D50h OCD/serial programmer ID setting register
(OSIS)
Writable Writable At a reset
FE7F 5D64h 00FF 5D60h Flash access window setting register
(FAW)*2
Writable Not writable*2When a reset or
command is
executed
FE7F 5D70h 00FF 5D70h ROM code protect register (ROMCODE) Writable Writable At a reset
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 54 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 7. Protection Function
7. Protection Function
7.1 Software Protection
Software protection disables programming and erasure for the flash memory through the settings of control registers. If
an attempt is made to issue an FACI command against software protection, the flash sequencer enters the command-
locked state.
7.1.1 Protection through FWEPROR
Programming cannot proceed in any mode unless the FWEPROR.FLWE[1:0] bits are set to 01b.
7.1.2 Protection through FENTRYR
When the FENTRYR register is set to 0000h, the flash sequencer enters read mode. In read mode, FACI commands
cannot be accepted. If an attempt is made to issue an FACI command in read mode, the flash sequencer enters the
command-locked state.
7.2 Error Protection
Error protection detects erroneous issuance of FACI commands, unauthorized access, and flash sequencer malfunction.
FACI command acceptance is disabled (command-locked state) in response to the detection of these errors. The flash
memory cannot be programmed or erased while the flash sequencer is in the command-locked state. For release from the
command-locked state, issue a status clear or forced stop command. The status clear command can only be used while
the FSTATR.FRDY flag is 1. The forced stop command can be used regardless of the value of the FSTATR.FRDY flag.
Generation of a flash access error (FIFERR) interrupt detects malfunction. An FIFERR interrupt is generated under any
of the following conditions.
•When the flash sequencer enters the command lock state (when the FASTAT.CMDLK flag is 1) while the
FAEINT.CMDLKIE bit is 1
•When violation in access to the data flash memory occurred (the FASTAT.DFAE flag is 1) while the
FAEINT.DFAEIE bit is 1
•When violation in access to the code flash memory occurred (when the FASTAT.CFAE flag is 1) while the
FAEINT.CFAEIE bit is 1
When the flash sequencer enters the command-locked state in response to a command other than the P/E suspend
command during programming or erasure processing, the flash sequencer continues the processing for programming or
erasure. In this state, the P/E suspend command cannot be used to suspend the processing for programming or erasure. If
a command is issued in the command-locked state, the ILGLERR and ILGCOMERR flags in the FSTATR register
becomes 1 and the other flags retain the values set due to previous error detection.
Table 7.1 shows error protection types and status bit values after error detection.
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 55 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 7. Protection Function
Table 7.1 Error Protection Type (1 / 2)
Error Type Description
ILGCOMERR
FESETERR
SECERR
OTERR
ILGLERR
ERSERR
PRGERR
FLWEERR
CFAE
DFAE
FENTRYR
setting error
The FENTRYR setting is AA81h 0 1 0 0 1 0 0 0 0 0
The FENTRYR setting at suspension disagrees with that at
resumption
0100100000
Illegal
command
error
Access with an undefined unit was attempted in the first
access by the FACI command (not writing of a byte)
1000100000
Access with an undefined code was attempted in the first
access by the FACI command
1000100000
The value specified in the last access of the multiple-access
FACI command is not D0h.
1000100000
The value “N” (see Table 6.2) specified in the second write
access of an FACI command in the programming or
configuration setting command is wrong.
1000100000
When a blank check command has been issued under one
of the following conditions
•When the FBCCNT.BCDIR bit is 0, and the value in
FSADDR > that in FEADDR
•When the FBCCNT.BCDIR bit is 1, and the value in
FEADDR > that in FSADDR
•The setting range of bits 16 to 0 in FEADDR is between
0 8000h and 1 FFFFh
1000100000/1
*1
When a multi-block erasure command has been issued
under one of the following settings.
•The value in FSADDR > that in FEADDR
•The setting range of bits 16 to 0 in FEADDR is between
0 8000h and 1 FFFFh
1000100000/1
*1
An FACI command not acceptable in each mode has been
issued (see Table 6.3)
1000100000
Program or block erase command has been issued to the
area protected by the area protection
1000100000
A program command has been issued to the area where
the erasure has been suspended during the processing of
erase suspension
1000100000
An FACI command has been issued when command
acceptance conditions are not satisfied (see Table 6.4)
0/1
*2
0/1
*2
0/1
*2
0/1
*2
10/1
*2
0/1
*2
0/1
*2
0/1
*2
0/1
*2
Erasure error An error occurs during erasure 0 0 0 0 0 1 0 0 0 0
Programming
error
An error occurs during programming 0 0 0 0 0 0 1 0 0 0
Code flash
memory
access
violation
When a program command or block erase command has
been issued under the following settings in code flash
memory P/E mode
Products with at least 1.5 Mbytes of code flash memory:
•The setting value of bits 23 to 0 in FSADDR is within the
range from 00 0000h to DF FFFFh
Products with 1 Mbyte of code flash memory or less:
•The setting value of bits 23 to 0 in FSADDR is within the
range from 00 0000h to EF FFFFh
0000100010
When a configuration program command has been issued
under the following settings in code flash memory P/E mode
•The setting value of bits 9 to 0 in the FSADDR register
ranges from 000h to 0FFh, or from 180h to 3FFh
0000100010
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 56 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 7. Protection Function
Note 1. If the setting value in the FSADDR register matches the condition for violations in access to the data flash memory, the
FASTAT.DFAE bit is set to 1.
Note 2. This is the value when a command is executed.
Note 3. For details on the FWEPROR register, see section 4.1, Flash P/E Protect Register (FWEPROR).
Data flash
memory
access
violation
When a program command or block erase command has
been issued under the following settings in data flash
memory P/E mode
•The setting value of bits 16 to 0 in FSADDR is within the
range from 0 8000h to 1 FFFFh
0000100001
When a multi-block erase command or blank check
command has been issued under the following settings in
data flash memory P/E mode
•The setting value of bits 16 to 0 in FSADDR is within the
range from 0 8000h to 1 FFFFh
1000100001
Security error When the FAW.FSPR bit is 0, a configuration setting
command is issued for the settings of access window and
the FAW.BTFLG bit
0010100000
Others The FACI command-issuing area has been accessed in
read mode
0001100000
The FACI command-issuing area has been read in code
flash memory P/E mode or data flash memory P/E mode
0001100000
FLWE error When the FACI command is processed, disable
programming or erasure by using the FWEPROR register*3
000000/10/1100
Table 7.1 Error Protection Type (2 / 2)
Error Type Description
ILGCOMERR
FESETERR
SECERR
OTERR
ILGLERR
ERSERR
PRGERR
FLWEERR
CFAE
DFAE
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 57 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 7. Protection Function
7.3 Start-Up Program Protection
Protection of the startup program is for protection of the program to be started after a reset (the startup program). This
function provides a way to safely update the startup program when rewriting is suspended during a reset.
The startup area is 8 Kbytes in size and is assigned to the user area in the code flash memory. This function uses the
values of the FAW.BTFLG bit and the FSUACR.SAS[1:0] bits to change the area where the startup program is stored in
block units (see Figure 7.1 to Figure 7.4).
In protection of the startup program, the state of the selection of the startup area can be fixed by the access window
protection bit (FAW.FSPR). However, the FAW.FSPR bit never be restored to 1 once the flag is set to 0. Exercise extra
caution when handling the FAW.FSPR bit.
In addition, this protection cannot be used when dual mode is selected by the bank mode switching function (when the
MDE.BANKMD[2:0] bits are 000b).

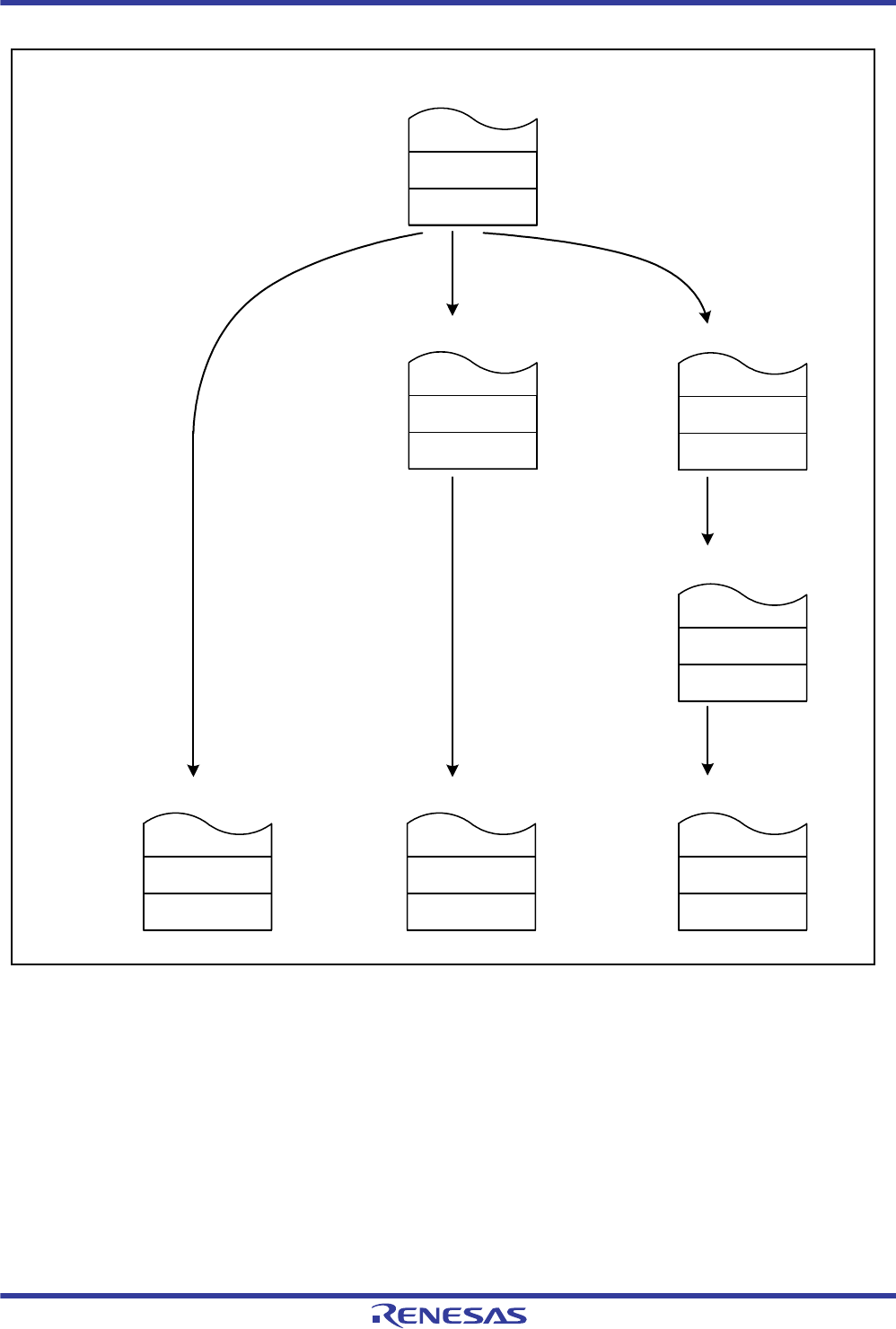

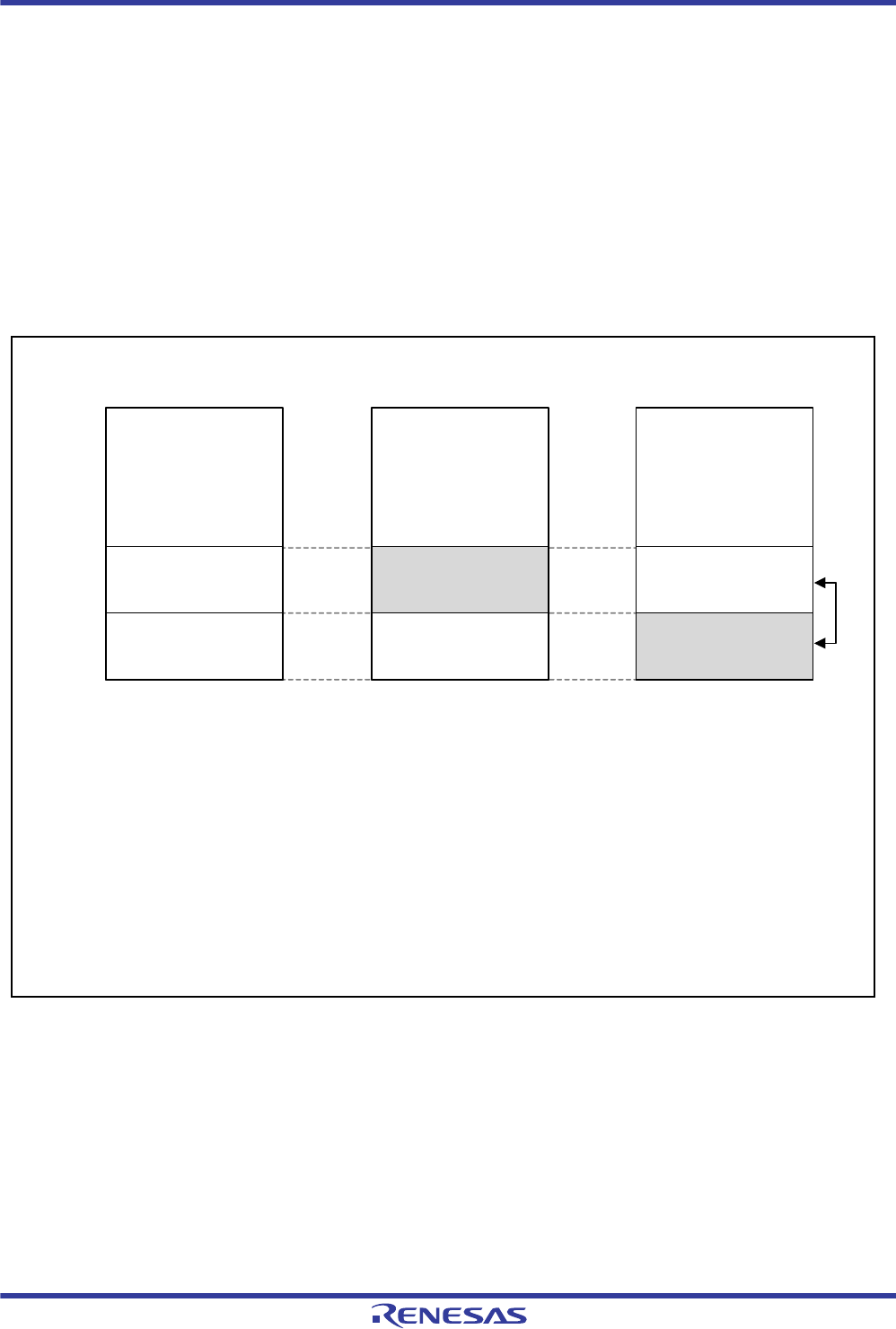

Figure 7.1 Concept of Protection of the Startup Program
User programUser programUser program
FFFF C000h
FFFF FFFFh
(1) Before the startup program
is updated
FFFF C000h
FFFF E000h
FFFF FFFFh
Original startup program
(Startup area 0)
Original startup program
(Startup area 0)
No program
(Startup area 1)
FFFF C000h
FFFF E000h
FFFF FFFFh
New startup program
(Startup area 1)
FFFF E000h
New startup program
(Startup area 1)
Original startup program
(Startup area 0)
(2) After the startup program
has been updated
(3) After a reset (when startup areas
0 and 1 are switched)
(1) Before the startup program is updated
When the FAW.BTFLG bit is 1 and the SAS[1:0] bits are 0xb, the address range from FFFF C000h to FFFF DFFFh is
selected as startup area 1 and the address range from FFFF E000h to FFFF FFFFh is selected as startup area 0.
(2) After the startup program has been updated
A new startup program can be written to startup area 1. At this time, startup area 0 will still contain the previous startup
program, so rewriting by starting up from startup area 0 remains possible if rewriting to the startup area 1 fails.
(3) After a reset (when startup areas 0 and 1 are switched)
When rewriting startup area 1 is successfully completed, switch the assignment of startup areas 0 and 1 by rewriting the
startup area selection bit (the FAW.BTFLG bit) with the configuration setting command. Afterwards, the program is started
up from startup area 1 after a reset.
Note: The addresses are used for reading, programming, and erasure. Startup area 0 is erased when a block erase
command is issued for the address FFFF C000h with allocation shown under (3).
R01UH0602EJ0200 Rev.2.00 Page 58 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 7. Protection Function
Figure 7.2 Example 1 of Transitions for Startup Program Protection Settings
BTFLG = 0 SAS[1:0] = 10b
BTFLG = 0
Reset
BTFLG = 1, SAS[1:0] = 0xb
FFFF C000h
FFFF FFFFh
FFFF E000h Startup area 0
Startup area 1
BTFLG = 0, SAS[1:0] = 0xb
FFFF C000h
FFFF FFFFh
FFFF E000h Startup area 1
Startup area 0
BTFLG = 1, SAS[1:0] = 10b
FFFF C000h
FFFF FFFFh
FFFF E000h Startup area 0
Startup area 1
BTFLG = 0, SAS[1:0] = 10b
FFFF C000h
FFFF FFFFh
FFFF E000h Startup area 0
Startup area 1
BTFLG = 0, SAS[1:0] = 00b
FFFF C000h
FFFF FFFFh
FFFF E000h Startup area 1
Startup area 0
BTFLG = 0, SAS[1:0] = 00b
FFFF C000h
FFFF FFFFh
FFFF E000h Startup area 1
Startup area 0
Reset
Reset
BTFLG = 1, SAS[1:0] = 00b
FFFF C000h
FFFF FFFFh
FFFF E000h Startup area 0
Startup area 1
R01UH0602EJ0200 Rev.2.00 Page 59 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 7. Protection Function
Figure 7.3 Example 2 of Transitions for Startup Program Protection Settings
BTFLG = 1 SAS[1:0] = 11b
BTFLG = 1
Reset
BTFLG = 0, SAS[1:0] = 0xb
FFFF C000h
FFFF FFFFh
FFFF E000h Startup area 1
Startup area 0
BTFLG = 1, SAS[1:0] = 0xb
FFFF C000h
FFFF FFFFh
FFFF E000h Startup area 0
Startup area 1
BTFLG = 0, SAS[1:0] = 11b
FFFF C000h
FFFF FFFFh
FFFF E000h Startup area 1
Startup area 0
BTFLG = 1, SAS[1:0] = 11b
FFFF C000h
FFFF FFFFh
FFFF E000h Startup area 1
Startup area 0
BTFLG = 1, SAS[1:0] = 00b
FFFF C000h
FFFF FFFFh
FFFF E000h Startup area 0
Startup area 1
BTFLG = 1, SAS[1:0] = 00b
FFFF C000h
FFFF FFFFh
FFFF E000h Startup area 0
Startup area 1
Reset
Reset
BTFLG = 0, SAS[1:0] = 00b
FFFF C000h
FFFF FFFFh
FFFF E000h Startup area 1
Startup area 0
«fl RENESAS
R01UH0602EJ0200 Rev.2.00 Page 60 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 7. Protection Function

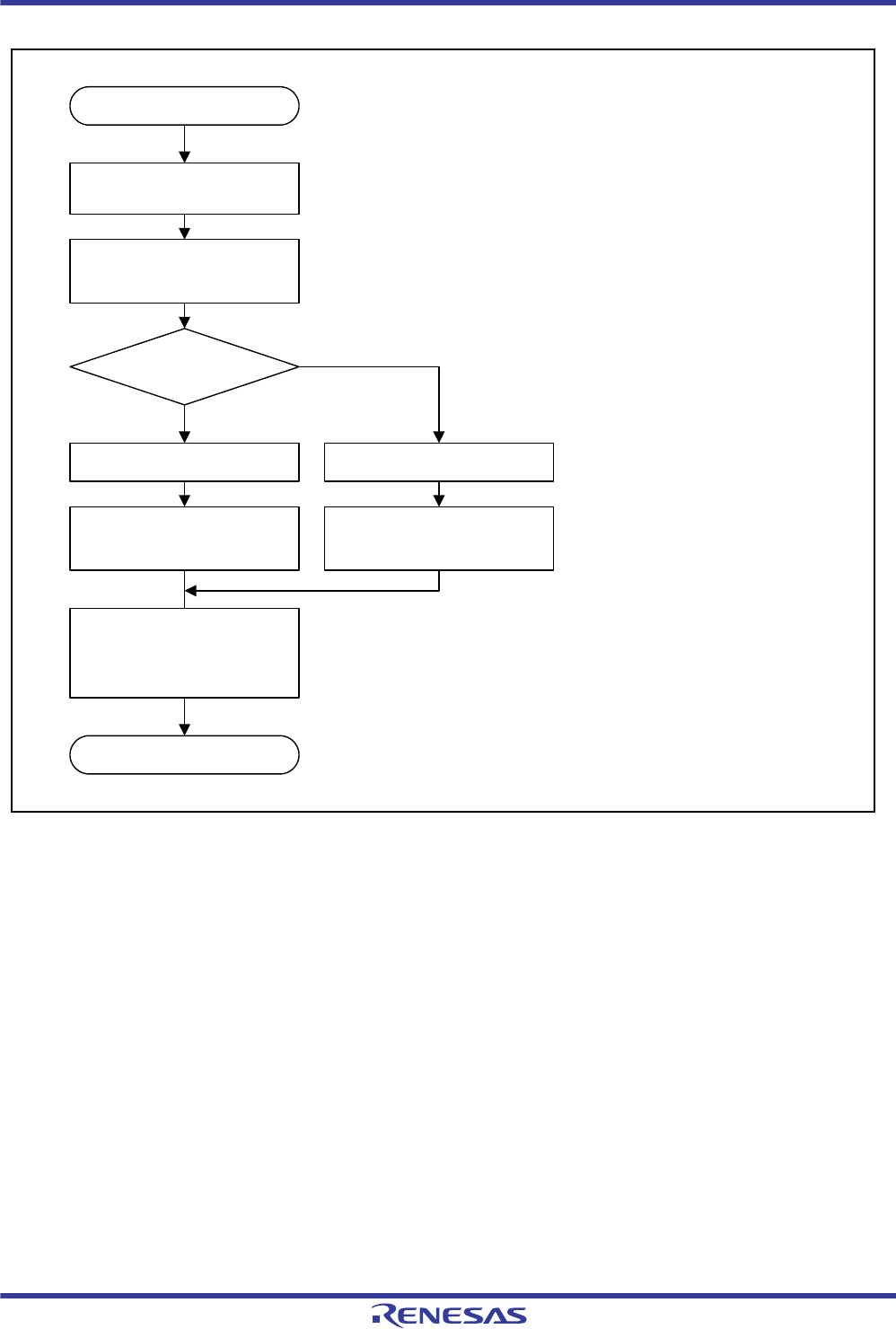

Figure 7.4 Example of Flowchart for Selecting Startup Area
Start
End
FSUACR.SAS[1:0] bits = 10b
No
Yes
FAWMON.BTFLG
flag = 1?
Erase the area range from
FFFF C000h to FFFF DFFFh.
Write a new startup program in the
area range from FFFF C000h to
FFFF DFFFh.
FSUACR.SAS[1:0] bits = 11b
Set the FAW.BTFLG flag to 0 by the
configuration setting command.
Set the FAW.BTFLG flag to 1 by the
configuration setting command.
Issue a reset. (Once a reset is
issued, startup areas 0 and 1 are
switched)*1.
Erase the previous startup program.
Write a new startup program.
Check the assignment of the current
startup areas 0 and 1.
Retain the assignment of the current
startup areas 0 and 1.
Assign startup areas 0 and 1 after a
reset.
A new startup program is started after
a reset.
Note 1. For details, see Figure 7.2 and Figure 7.3.
>4 >4 RENESAS
R01UH0602EJ0200 Rev.2.00 Page 61 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 7. Protection Function
7.4 Protection by Area Protection
Issuing an FACI command that programs or erases the area set outside the access window leads to the command-locked
state. The access window is valid only in the user area of the code flash memory. The access window is valid in self-
programming mode or serial programming mode.
The access window can be set in block units.

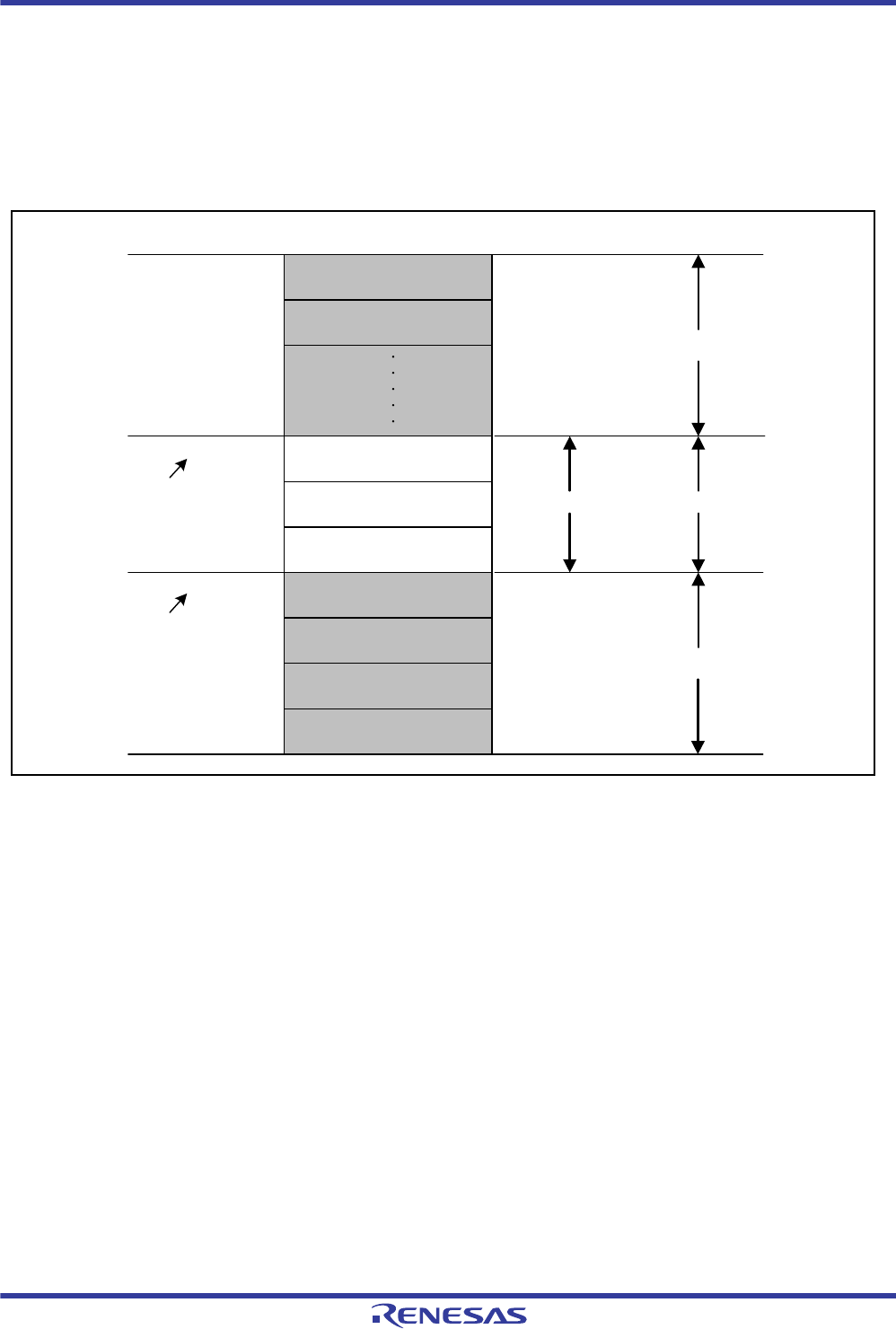

Figure 7.5 shows the Area Protection Overview.
Figure 7.5 Area Protection Overview (When Blocks 4 to 6 are Set as the Access Window in Products with 2
Mbytes of Code Flash Memory)
Block 69
Block 68
Block 4
Block 3
Block 2
Block 1
Block 0
Block 6
Block 5 Enabled
Disabled
Disabled
Address Rewrite
Access window
Access window
start address
(FAWS = 7F9h)
FFE0 0000h
FFFF 1FFFh
FFFF 2000h
FFFF 7FFFh
Access window
end address
(FAWE = 7FCh)
FFFF 8000h
FFFF FFFFh
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 62 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 7. Protection Function
7.5 Dual Bank Function
This function is only available for products with at least 1.5 Mbytes of code flash memory.
This protection uses the functions of bank mode switching and startup bank selection to update a program while a user
program is running and to provide a safe method of updating in cases where programming is suspended during a reset.
7.5.1 Switching Bank Modes
The bank mode switching function selects either linear mode in which the user area in the code flash memory is used as
one area, or dual mode in which the user area is divided into two bank areas. Figure 7.6 shows an example of flow of
switching bank modes. A reset after setting the MDE.BANKMD[2:0] bits in the option setting memory determines the
mode of the bank mode switching function. Selecting dual mode enables the startup bank selection function.
When dual mode is selected by bank mode switching function (the MDE.BANKMD[2:0] bits are 000b), start-up
program protection function cannot be used.

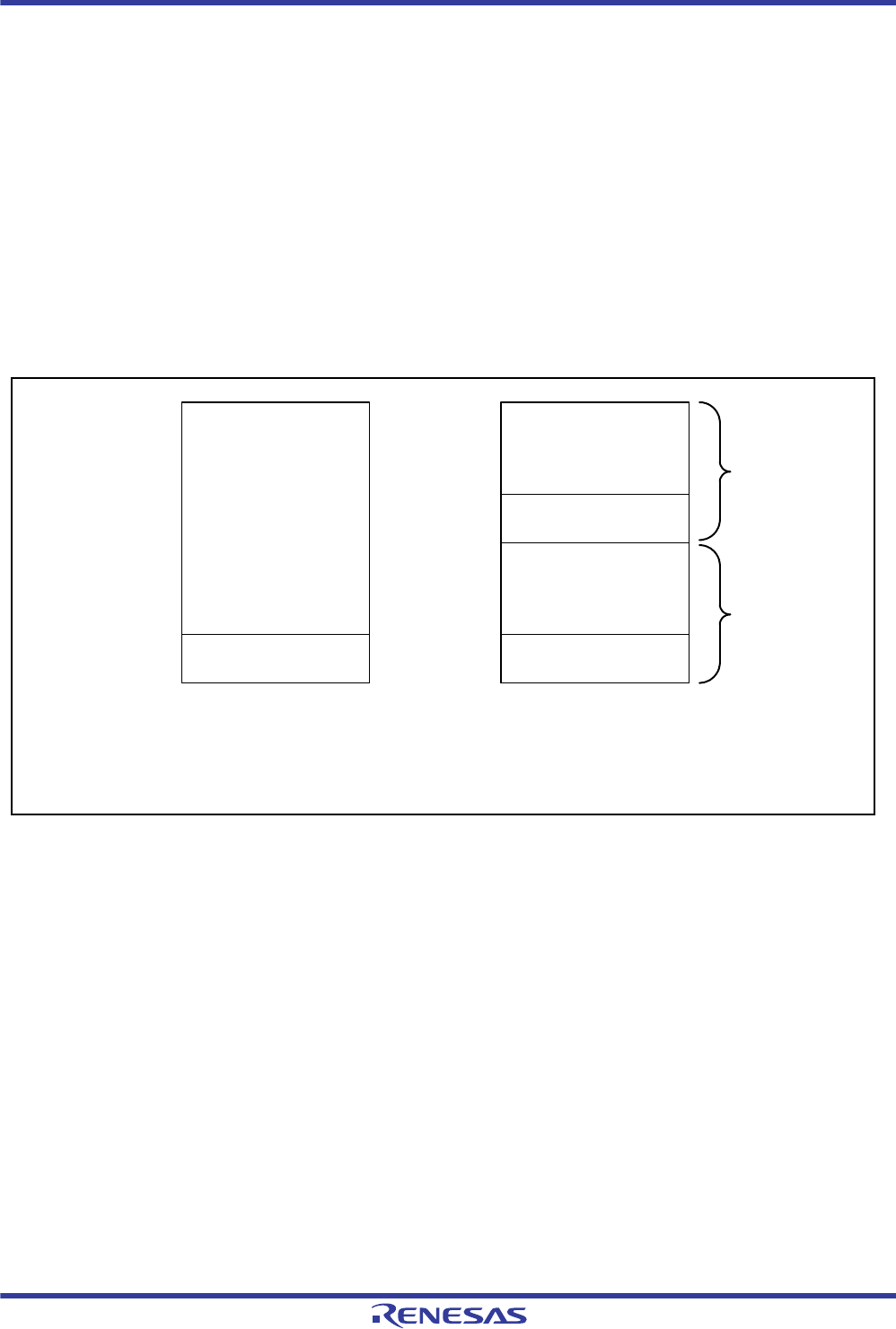

Figure 7.6 Example of Flow of Switching Bank Modes (For Products with 2 Mbytes of Code Flash Memory)
Blocks 8 to 37
(32 Kbytes block)
Blocks 46 to 75
(32 Kbytes block)
FFE0 0000h
FFFF FFFFh
Blocks 8 to 69
(32 Kbytes block)
MDE.BANKMD[2:0] bits are 111b*1
linear mode
MDE.BANKMD[2:0] bits are 000b
dual mode
FFE0 0000h
FFF0 0000h
FFEF FFFFh
FFFF FFFFh
Blocks 0 to 7
(8 Kbytes block)
Blocks 0 to 7
(8 Kbytes block)
Blocks 38 to 45
(8 Kbytes block)
Bank 0
Bank 1
Note 1. For products without setting of the option-setting memory, the MDE.BANKMD[2:0] bits are 111b.
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 63 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 7. Protection Function
7.5.2 Selecting the Startup Bank
Startup bank selection provides a way to safely update the program by selecting a bank area to be started in dual mode
(when the MDE.BANKMD[2:0] bits are 000b) when programming is suspended during a reset. Figure 7.7 is a
schematic view of startup bank selection and Figure 7.8 shows an example of the flow of startup bank selection. A reset
after setting the value of the BANKSEL.BANKSWP[2:0] bits in the option-setting memory changes the addresses of
banks 0 and 1 and booting up a program proceeds from the updated area. When the address is switched by using startup
bank selection, the P/E target for the FACI commands is also switched. This function is invalid in linear mode.
Figure 7.7 Example of Startup Bank Selection (For Products with 2 Mbytes of Code Flash Memory)
Bank 0
Bank 1
FFE0 0000h
FFF0 0000h
FFEF FFFFh
FFFF FFFFh
Bank 1
Bank 0
BANKSEL.BANKSWP[2:0]
bits are 111b*1BANKSEL.BANKSWP[2:0]
bits are 000b
FFE0 0000h
FFF0 0000h
FFEF FFFFh
FFFF FFFFh
Note: The addresses of the reset vector are fixed to FFFF FFFCh to FFFF FFFFh.
Note 1. For products without setting of the option-setting memory, the BANKSEL.BANKSWP[2:0] bits are 111b.
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 64 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 7. Protection Function

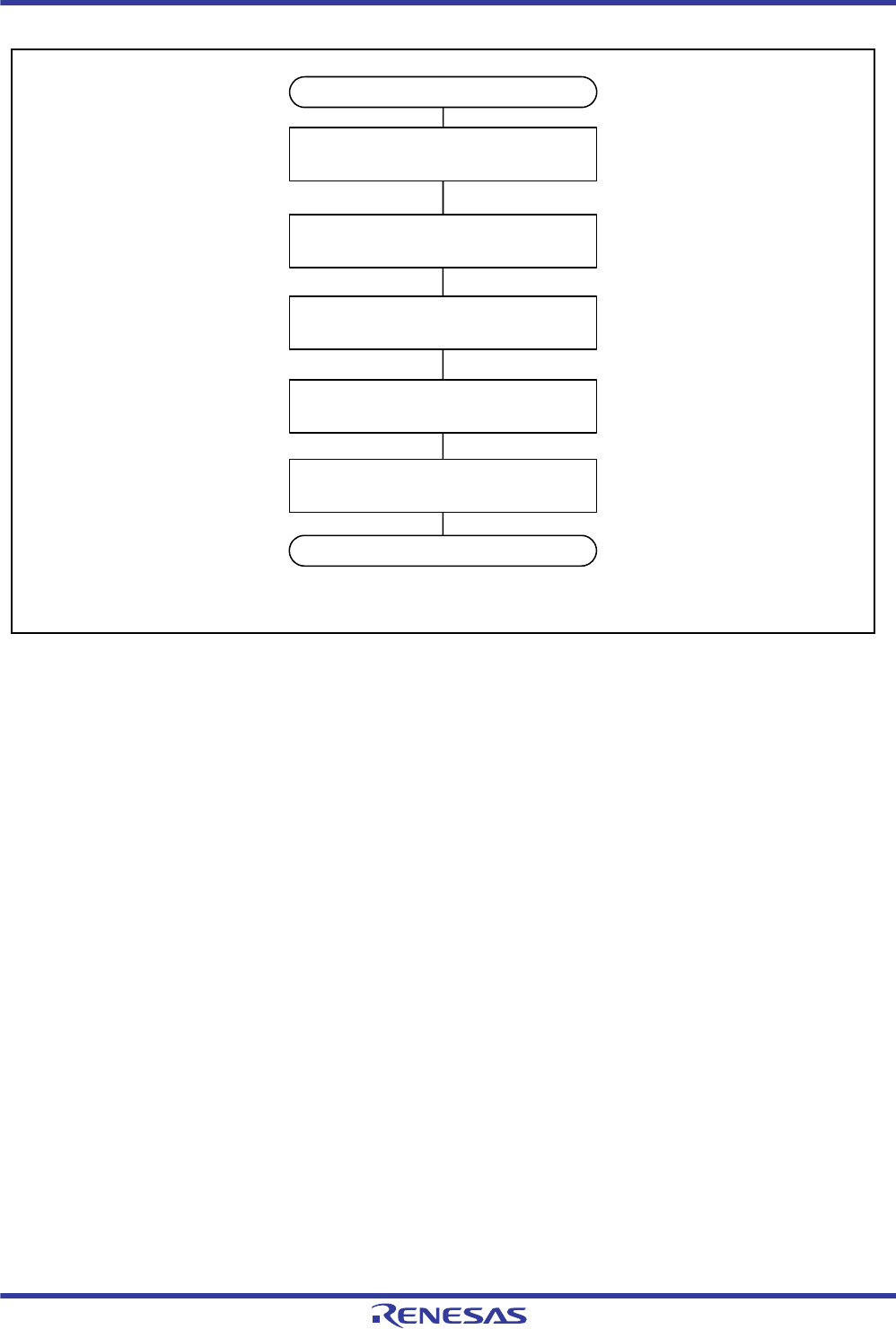

Figure 7.8 Example of Startup Bank Selection Flow (For Products with 2 Mbytes of Code Flash Memory)
Erase blocks to be programed in the address
range from FFE0 0000h to FFEF FFFFh.
End
Program a new software in the address range
from FFE0 0000h to FFEF FFFFh.
Write an inverted value in the
BANKSEL.BANKSWP[2:0] bits*1.
Issue a reset
(A reset switches the banks.)
Start
Read the value of the
BANKSEL.BANKSWP[2:0] bits.
Note 1. Set the inverse of the read value of the BANKSEL.BANKSWP[2:0] bits (000b or 111b).
RENESAS
R01UH0602EJ0200 Rev.2.00 Page 65 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory 8. Usage Notes
8. Usage Notes
(1) Reading Area Where Programming/Erasure has been Forcibly Ended and Area Targeted for
Suspension
The data stored in the area where programming/erasure is forcibly ended or the area targeted for suspension are
undefined. To avoid faulty operation caused by reading undefined data, take care not to fetch instructions or read data
from areas where programming/erasure was forcibly ended and from areas targeted for suspension.
(2) Suspension During Programming/Erasure
When processing of programming/erasure is stopped by issuing the P/E suspend command, the programming/erasure
processing can be resumed by issuing the P/E resume command. If the flash sequencer enters the command-locked state
for any reason and issues the forced stop command after the suspended processing is normally completed and the
ERSSPD flag or PRGSPD flag is set to 1, the suspended processing cannot be resumed. In addition, the values in the area
where the processing was suspended are not guaranteed. Erase that area.
(3) Prohibition of Additional Programming
The same area in code or data flash memory cannot be programmed more than once in a row. To program the code or
data flash memory where has been programed, erase the target area. Additional writing to the option-setting memory is
possible.
(4) Resets During Programming/Erasure, or Blank Checking
In the case of a reset due to the signal on the RES# pin during programming/erasure of the code flash memory and during
programming/erasure, or blank checking of the data flash memory, wait for at least tRESWF (see the User's Manual:
Hardware for details) of the reset input period once the operating voltage is within the range stipulated in the electrical
characteristics, then release the device from the reset state.
(5) Allocation of Vectors for Interrupts and Other Exceptions During Programming/Erasure
Generation of an interrupt or other exception during programming/erasure may lead to fetching of the vector from the
code flash memory. Under conditions where BGO cannot be used, set the address of the vector to an address that is not in
the code flash memory. Alternatively, make sure that no handling of interrupts or exceptions proceeds during
programming/erasure.
(6) Items Prohibited During Programming/Erasure or Blank Checking
High voltage is applied to the flash memory during programming/erasure or blank checking. To prevent damage to the
flash memory, do not perform the following operations.
•Have the operating voltage from the power supply go beyond the permitted range.
•Change the FWEPROR.FLWE[1:0] bits.
•Change the SYSCR0.ROME bit.
•Change the OPCCR.OPCM[2:0] bits.
•Change the SCKCR.FCK[3:0] and PCLKB[3:0] bits.
•Change the SCKCR3.CKSEL[2:0] bits.
•Change the RSTCKCR.RSTCKEN bit.
•Transition to the all module clock stop mode, software standby mode, or deep software standby mode.
RX65N Group, RX651 Group Flash Memory Description Summary RENESAS
R01UH0602EJ0200 Rev.2.00 Page 66 of 69
May 24, 2017
RX65N Group, RX651 Group Flash Memory REVISION HISTORY
REVISION HISTORY RX65N Group, RX651 Group Flash Memory
User’s Manual: Hardware Interface
Rev. Date Description
Page Summary
1.00 Aug 24, 2016 —First edition, issued
2.00 May 24, 2017 —Products with at least 1.5 Mbytes of code flash memory added
The conventional products indicated as “products with 1 Mbyte of code flash memory or less”
15 4.5 FACI Command Start Address Register (FSADDR), changed
26 4.14 Flash Access Window Monitor Register (FAWMON), changed
29 4.17 Start-Up Area Control Register (FSUACR), changed
36 6.3.4 Overview Flow when FACI Command is Used, changed
48 6.3.11 Status Clear Command, changed
52 6.3.14 Configuration Set Command
Figure 6.17 Usage of the Configuration Set Command, Note 1. changed
53 Table 6.6 Address Used by Configuration Set Command, changed
54 7.2 Error Protection, changed
55 to 56 Table 7.1 Error Protection Type, changed
57 to 60 7.3 Start-Up Program Protection, changed
Figure 7.1 Concept of Protection of the Startup Program, added
Figure 7.2 Example 1 of Transitions for Startup Program Protection Settings, added
Figure 7.3 Example 2 of Transitions for Startup Program Protection Settings, added
Figure 7.4 Example of Flowchart for Selecting Startup Area, added
—9. Electrical Characteristics, deleted
REVISION HISTORY
RX65N Group, RX651 Group Flash Memory
User’s Manual: Hardware Interface
