INFRARED
DS190 LUXEON IR Compact Line Product Datasheet ©2018 Lumileds Holding B.V. All rights reserved.
The LUXEON IR Compact Line is a product line of high power infrared
emitters specifically designed for high efficiency as required in a small
spaces. Their compact and well-defined light source geometry allows
them to be easily coupled into secondary optics for tight beam control.
LUXEON IR Compact Line is designed with innovative LUXEON technology
to provide industry-leading performance. Through best-in-class thermal
conductivity, LUXEON IR Compact Line has excellent performance at
actual operating conditions.
LUXEON IR Compact Line
High power infrared emitters enabling
the next level of design flexibility
FEATURES AND BENEFITS PRIMARY APPLICATIONS
Available in 850nm and 940nm wavelengths to provide optimized performance
for each type of application Surveillance / CCTV
Radiant Power: 1050mW (850nm) and 1150mW (940nm) for a greater system
performance Machine Vision
Compact package of 1.9mm x 1.37mm with a 2-pad configuration provides the
highest power density in the industry for a new level of miniaturization 3D Scanning / Time of Flight
Ultra-low Rth of 2.8°C/W, solves thermal challenges and supports space saving
designs Biometric Identification
User Interface Control
Augmented / Virtual Reality
DS190 LUXEON IR Compact Line Product Datasheet 20180619 ©2018 Lumileds Holding B.V. All rights reserved. i
Table of Contents
General Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Product Test Conditions ..............................................................................2
Part Number Nomenclature ..........................................................................2
Radiometric Power Maintenance ......................................................................2
Environmental Compliance ...........................................................................2
Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Product Selection Guide..............................................................................3
Electrical and Thermal Characteristics..................................................................3
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Characteristic Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Spectral Power Distribution Characteristics .............................................................4
Light Output Characteristics ..........................................................................4
Forward Current Characteristics.......................................................................6
Wavelength Shift Characteristics.......................................................................6
Radiation Pattern Characteristics ......................................................................7
Permissible Pulse Handling Characteristics .............................................................8
Product Bin and Labeling Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Decoding Product Bin Labeling........................................................................9
Radiometric Power Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Peak Wavelength Bins...............................................................................10
Forward Voltage Bins ...............................................................................10
Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Reflow Soldering Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
JEDEC Moisture Sensitivity ...........................................................................12
Solder Pad Design ..................................................................................13
Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Pocket Tape Dimensions ............................................................................13
Reel Dimensions ...................................................................................14
DS190 LUXEON IR Compact Line Product Datasheet 20180619 ©2018 Lumileds Holding B.V. All rights reserved. 2
General Product Information
Product Test Conditions
LUXEON IR Compact Line emitters are tested and binned with a 20ms monopulse of 1000mA at a junction temperature,
Tj, of 25°C.
Part Number Nomenclature
Part numbers for LUXEON IR Compact Line follow the convention below:
L 1 I Z – 0 A A A X X X X X X X X X
Where:
A A A – designates nominal peak wavelength
X X X X X X X X X – reserved for further customization
Therefore, the following part number is used for a LUXEON IR Compact emitter with a peak wavelength of 850nm:
L 1 I Z – 0 8 5 0 0 0 0 0 0 0 0 0 0
Radiometric Power Maintenance
Please contact your local Sales Representative or Lumileds Technical Solutions Manager for more information about the long-
term performance of this product.
Environmental Compliance
Lumileds LLC is committed to providing environmentally friendly products to the solid-state lighting market. LUXEON IR Compact
Line is compliant to the European Union directives on the restriction of hazardous substances in electronic equipment, namely
the RoHS Directive 2011/65/EU and REACH Regulation (EC) 1907/2006. Lumileds LLC will not intentionally add the following
restricted materials to its products: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) or
polybrominated diphenyl ethers (PBDE).
DS190 LUXEON IR Compact Line Product Datasheet 20180619 ©2018 Lumileds Holding B.V. All rights reserved. 3
Performance Characteristics
Product Selection Guide
Table 1 . Product performance and optical characteristics of LUXEON IR Compact Line at 1000mA, Tj=25°C .
PEAK
WAVELENGTH [1]
(nm)
TYPICAL
FWHM BEAM
ANGLE (°)
RADIOMETRIC POWER [2]
(mW)TYPICAL RADIANT
INTENSITY
(mW/sr)
TYPICAL
SPECTRUM FWHM
(nm)
PART NUMBER
MINIMUM TYPICAL
850 150 900 1050 250 35 L1IZ-0850000000000
940 150 1000 1150 300 50 L1IZ-0940000000000
Notes for Table 1:
1. Lumileds maintains a tolerance of ±0.5nm on peak wavelength measurements.
1. Lumileds maintains a tolerance of ±7% on radiometric power measurements.
Electrical and Thermal Characteristics
Table 2 . Electrical and thermal characteristics for LUXEON IR Compact Line at 1000mA, Tj=25°C .
PART NUMBER
FORWARD VOLTAGE [1] (Vf)TYPICAL TEMPERATURE
COEFFICIENT OF FORWARD
VOLTAGE [2]
(mV/°C)
TYPICAL TEMPERATURE
COEFFICIENT OF PEAK
WAVELENGTH [2]
(nm/°C)
TYPICAL THERMAL
RESISTANCE—JUNCTION
TO SOLDER PAD
(°C/W)
MINIMUM TYPICAL MAXIMUM
L1IZ-0850000000000 2.7 3.2 3.7 -4.6 0.26 2.8
L1IZ-0940000000000 2.3 2.9 3.4 -2.6 0.29 2.8
Notes for Table 2:
1. Lumileds maintains a tolerance of ±1% on forward voltage measurements.
2. Measured between 25°C and 85°C.
Absolute Maximum Ratings
Table 3 . Absolute maximum ratings for LUXEON IR Compact Line .
PARAMETER MAXIMUM PERFORMANCE
DC Forward Current [1, 2] 1000mA
Peak Pulsed Forward Current [1, 3] 3000mA
Emitter Junction Temperature [1] (DC & Pulse) 145°C
ESD Sensitivity (ANSI/ESDA/JEDEC JS-001-2012) Class 3B
Operating Case Temperature [1] -40°C to 125°C
Emitter Storage Temperature -40°C to 125°C
SMD Process Classification Temperature 260°C per JEDEC J-STD-020E
Allowable Reflow Cycles 3
Reverse Voltage (Vreverse)LUXEON IR LEDs are not designed to be driven in reverse bias
Notes for Table 3:
1. Proper current derating must be observed to maintain the junction temperature below the maximum allowable junction temperature.
2. Residual periodic variations due to power conversion from alternating current (AC) to direct current (DC), also called “ripple,” are acceptable if the following conditions are met:
– The frequency of the ripple current is 100Hz or higher
– The average current for each cycle does not exceed the maximum allowable DC forward current
– The maximum amplitude of the ripple does not exceed the maximum peak pulsed forward current
3. For pulse handling capability details see figure 9.
no — mm — 940mm 0 3 a g D 6 a a u w d E E 0 4 E z u.2 0 ‘ 9am m m m 900 950 1000 min Wave‘ength [nm] 1 1 — 35on _ gnonm 1 1* a 3 a a ‘E E u m m u m Normal u 6 ‘ ‘ ‘ o m 40 so so 100 120 m case Temperature [”C]
DS190 LUXEON IR Compact Line Product Datasheet 20180619 ©2018 Lumileds Holding B.V. All rights reserved. 4
Characteristic Curves
Spectral Power Distribution Characteristics
Light Output Characteristics
Figure 1. Typical normalized power vs. wavelength for LUXEON IR Compact Line at 1000mA, Tj=25°C .
Figure 2. Typical normalized radiant power vs. case temperature for LUXEON IR Compact Line at 1000mA .
(fl E
DS190 LUXEON IR Compact Line Product Datasheet 20180619 ©2018 Lumileds Holding B.V. All rights reserved. 5
Figure 3. Typical normalized radiant power vs. forward current for LUXEON IR Compact Line at Tj=25°C .
Figure 4. Typical rise and fall times of optical signal vs. forward current for LUXEON IR Compact Line at Tj=25°C .
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0500 1000 1500 2000 2500 3000
[ rewoP tnaidaR dezilamroN-]
Forward Current [mA]
850nm
940nm
0
5
10
15
20
25
30
35
40
0500 1000 1500 2000 2500 3000
Time [ns]
Forward Current [mA]
t_rise
t_fall
Peak Wave‘ength [nm] Forward Vouage [v] 40 ‘ ‘ — asonm 4 O0 20 40 50 ED 100 120 14!! Case Temperature [’C]
DS190 LUXEON IR Compact Line Product Datasheet 20180619 ©2018 Lumileds Holding B.V. All rights reserved. 6
Forward Current Characteristics
Wavelength Shift Characteristics

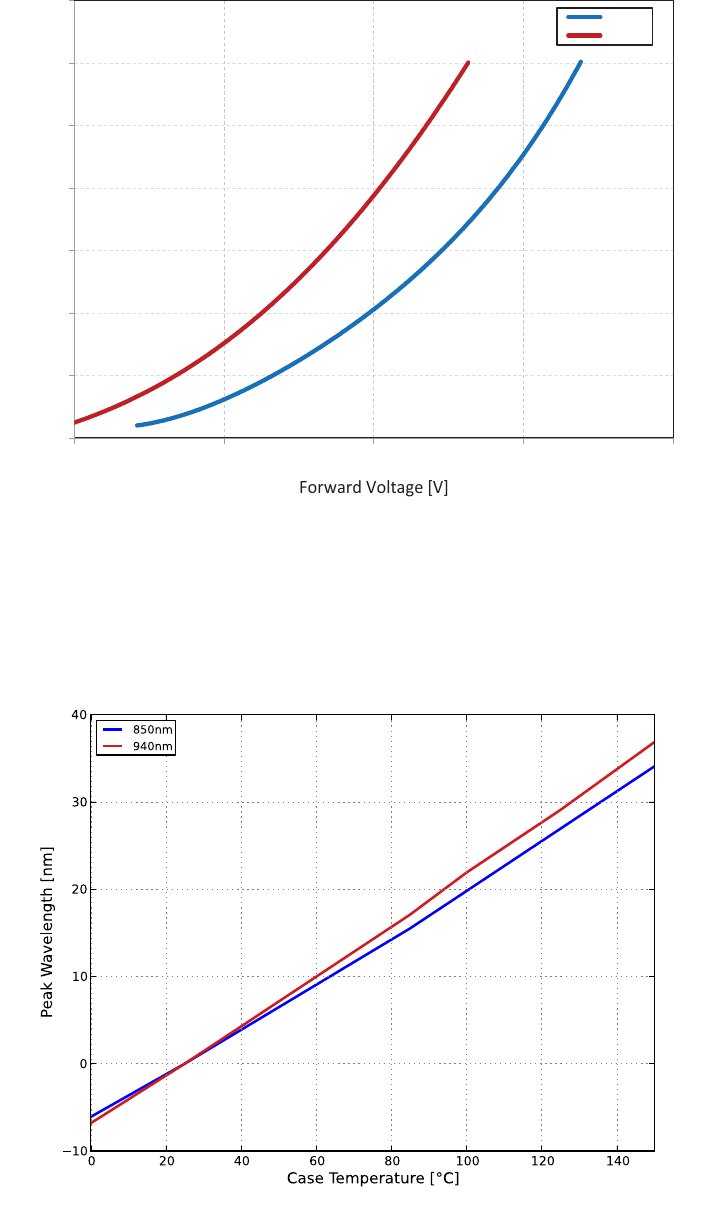

Figure 5. Typical forward current vs. forward voltage for LUXEON IR Compact Line at Tj=25°C .
Figure 6. Typical peak wavelength shift vs. case temperature for LUXEON IR Compact Line at 1000mA .
0
500
1000
1500
2000
2500
3000
3500
2.4 2.8 3.23.6 4
Forward Current [mA]
Forward Voltage [V]
850nm
940nm
Relatwe Intensity [Va] 100 . V . V — 850nm so 60 40 20 990 775 —50 745 —3o 715 0 15 20 A5 50 75 so Ang‘e [degrees] 0“ . 35., 15. 3“. K‘ 3 fig 0% 20% 40% 60% 30% 100%
DS190 LUXEON IR Compact Line Product Datasheet 20180619 ©2018 Lumileds Holding B.V. All rights reserved. 7
Radiation Pattern Characteristics
Figure 7 . Typical radiation pattern for LUXEON IR Compact Line at 1000mA, Tj=25°C .
Figure 8 . Typical polar radiation pattern for LUXEON IR Compact Line at 1000mA, Tj=25°C .
E
DS190 LUXEON IR Compact Line Product Datasheet 20180619 ©2018 Lumileds Holding B.V. All rights reserved. 8
Permissible Pulse Handling Characteristics
Figure 9 . Permissible pulse handling capability for LUXEON IR Compact Line at Tj=85°C for various duty cycles (D) .
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
1E-5 1E-4 1E-3 1E-2 1E-1 1E+0 1E+1 1E+2
]A[ tnerruC drawroF
Pulse Width [s]
D = 0.005
D = 0.01
D = 0.02
D = 0.05
D = 0.10
D = 0.20
D = 0.50
D = 0.75
85°C
DS190 LUXEON IR Compact Line Product Datasheet 20180619 ©2018 Lumileds Holding B.V. All rights reserved. 9
Product Bin and Labeling Definitions
Decoding Product Bin Labeling
In the manufacturing of semiconductor products, there are variations in performance around the average values given in the
technical datasheet. For this reason, Lumileds bins components for luminous flux or radiometric power, color point, peak or
dominant wavelength and forward voltage.
LUXEON IR Compact Line emitters are labeled using a 4-digit alphanumeric CAT code following the format below:
A B C D
Where:
A – designates radiometric power bin (example: J=900 to 950mW, N=1200 to 1300mW)
B C – designates peak wavelength bin (example: 8K=845nm to 850nm, 9H=935nm to 940nm)
D – designates forward voltage bin (example: D=2.5 to 3.0V, F=3.5 to 4.0V)
Therefore, a LUXEON IR Compact emitter with a radiometric power range of 1200 to 1300mW, peak wavelength range of 845 to
850nm and a forward voltage range of 2.5 to 3.0V has the following CAT code:
N 8 K D
Radiometric Power Bins
Table 4 lists the standard radiometric power bins for LUXEON IR Compact Line emitters. Although several bins are outlined,
product availability in a particular bin varies by production run and by product performance. Not all bins are available in all CCTs.
Table 4. Radiometric power bin definitions for LUXEON IR Compact Line at 1000mA, Tj=25°C .
BIN RADIOMETRIC POWER [1] (mW)
MINIMUM MAXIMUM
J 900 950
K 950 1000
L 1000 1100
M 1100 1200
N 1200 1300
Notes for Table 4:
1. Lumileds maintains a tolerance of ±7% on radiometric power measurements.
DS190 LUXEON IR Compact Line Product Datasheet 20180619 ©2018 Lumileds Holding B.V. All rights reserved. 10
Peak Wavelength Bins
Table 5. Peak wavelength bins for LUXEON IR Compact Line at 1000mA, Tj=25°C .
BIN PEAK WAVELENGTH [1] (nm)
MINIMUM MAXIMUM
8J 840 845
8K 845 850
8L 850 855
8M 855 860
8N 860 865
8P 865 870
8Q 870 875
9F 925 930
9G 930 935
9H 935 940
9J 940 945
9K 945 950
9L 950 955
9M 955 960
Notes for Table 5:
1. Lumileds maintains a tolerance of ±0.5nm on peak wavelength measurements.
Forward Voltage Bins
Table 6. Forward voltage bin definitions for LUXEON IR Compact Line at 1000mA, Tj=25°C .
BIN FORWARD VOLTAGE [1] (Vf)
MINIMUM MAXIMUM
C 2.0 2.5
D2.5 3.0
E 3.0 3.5
F3.5 4.0
Notes for Table 6:
1. Lumileds maintains a tolerance of ±1% on forward voltage measurements.
0.25 0.49 1.37 :007"
DS190 LUXEON IR Compact Line Product Datasheet 20180619 ©2018 Lumileds Holding B.V. All rights reserved. 11
Mechanical Dimensions
Figure 10 . Mechanical dimensions for LUXEON IR Compact Line .
Theoretical
Optical
Center
1.37 ±0.07*
0.685
1.90 ±0.07*
TOP VIEW SIDE VIEW BOTTOM VIEW
0.90 ±0.10*
ANODE
CATHODE
0.49
0.25
0.49
1.75
Notes for Figure 10:
1. Drawings are not to scale.
2. All dimensions are in millimeters.
Alyssagfi
DS190 LUXEON IR Compact Line Product Datasheet 20180619 ©2018 Lumileds Holding B.V. All rights reserved. 12
Reflow Soldering Guidelines
Table 7. Reflow profile characteristics for LUXEON IR Compact Line.
PROFILE FEATURE LEAD-FREE ASSEMBLY
Preheat Minimum Temperature (Tsmin) 150°C
Preheat Maximum Temperature (Tsmax) 200°C
Preheat Time (tsmin to tsmax)120 seconds
Ramp-Up Rate (TL to Tp) 3°C / second maximum
Liquidus Temperature (TL) 217°C
Time Maintained Above Temperature TL (tL) 150 seconds
Peak / Classification Temperature (Tp) 260°C
Time Within 5°C of Actual Temperature (tp)10 to 30 seconds
Ramp-Down Rate (Tp to TL) 6°C / second maximum
Time 25°C to Peak Temperature 8 minutes maximum
JEDEC Moisture Sensitivity
Table 8 . Moisture sensitivity levels for LUXEON IR Compact Line .
LEVEL FLOOR LIFE SOAK REQUIREMENTS STANDARD
TIME CONDITIONS TIME CONDITIONS
1 Unlimited ≤30°C / 85% RH 168 Hours +5 / -0 85°C / 85% RH
Tp
TL
25
Time 25ºC to Peak
JEDEC J-STD-020D
Critical Zone
TL to Tp
tL
tp
Ramp-up
Ramp-down
Temperature
Time
ts
Preheat Area
Tsmax
Tsmin
Figure 11. Visualization of the acceptable reflow temperature profile as specified in Table 7.
1.41110063 @ / A 00 $0.10 1,7 0,50 10,05 1 35:0? 1 10:0.051Ko1 0251002 ”1—W% 1 57 :0 05 [A0]
DS190 LUXEON IR Compact Line Product Datasheet 20180619 ©2018 Lumileds Holding B.V. All rights reserved. 13
Solder Pad Design
Notes for Figure 12:
1. Drawings are not to scale.
2. All dimensions are in millimeters.
3. Electrode pads are symmetric.
Figure 12 . Recommended PCB solder pad layout for LUXEON IR Compact Line .
Packaging Information
Pocket Tape Dimensions
Notes for Figure 13:
1. Drawings are not to scale.
2. All dimensions are in millimeters.
Figure 13 . Pocket tape dimensions for LUXEON IR Compact Line .
Center of package
LUXEON IR Compact pkg outline
Stencil pattern
Solder mask opening
SECTION B-B
2
2.10 ±0.05 (Bo)
1.411 ±0.063
1
2
4.00 ±0.10
1.75 ±0.10
3.50 ±0.058.00
+
-
0.30
0.10
0.80 ±0.05
1.50 ±0.10
4.00 ±0.10
2.00 ±0.05
B
B
AA
SECTION A-A
0.25 ±0.021.10 ±0.05 (Ko)1.35 ±0.05
1.57 ±0.05 (Ao)
2
1Carrier tape
Cover tape, thickness 0.061 0.013
XX.X 0.25mm
XX.XX 0.10mm
TOLERANCES
(UNLESS OTHERWISE SPECIFIED)
i l / \ DEIAIL a DEYAIL A
DS190 LUXEON IR Compact Line Product Datasheet 20180619 ©2018 Lumileds Holding B.V. All rights reserved. 14
Reel Dimensions
Notes for Figure 14:
1. Drawings are not to scale.
2. All dimensions are in millimeters.
Figure 14 . Reel dimensions for LUXEON IR Compact Line .
20.20
MIN
LED ELECTRICAL
ORIENTATION
ANODECATHODE
DETAIL B
ANODE PAD
CATHODE PAD
DETAIL A
13.0
1.5 MIN
THRU
HOLE
THRU
HOLE
THRU
HOLE
ARBOR HOLE
1) LEADER LENGTH 150 POCKETS (MINIMUM)
2) TRAILER LENGTH 90 POCKETS (MINIMUM)
DIRECTION OF UNREELING
0.5
329.0 ±1.0
0.2
0.0
-
3.0
HUB DIA
100.0
14.4 MAX
SPROCKET HOLE
Unit
B
ENVIRONMENTAL
LABEL
CUSTOMER
1.0
LABEL
38.0INTERNAL
12.30.5 (3x)
A
XX.X 0.25mm
XX.XX 0.10mm
TOLERANCES
(UNLESS OTHERWISE SPECIFIED)
GLUMILEDS
DS190 LUXEON IR Compact Line
Product Datasheet 20180619
©2018 Lumileds Holding B.V. All rights reserved.
LUXEON is a registered trademark of the Lumileds
Holding B.V. in the United States and other countries.
lumileds.com
Neither Lumileds Holding B.V. nor its affiliates shall be liable for any kind of loss of data or any other damages,
direct, indirect or consequential, resulting from the use of the provided information and data. Although Lumileds
Holding B.V. and/or its affiliates have attempted to provide the most accurate information and data, the materials
and services information and data are provided “as is,” and neither Lumileds Holding B.V. nor its affiliates
warrants or guarantees the contents and correctness of the provided information and data. Lumileds Holding
B.V. and its affiliates reserve the right to make changes without notice. You as user agree to this disclaimer and
user agreement with the download or use of the provided materials, information and data. A listing of Lumileds
product/patent coverage may be accessed at lumileds.com/patents.
About Lumileds
Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with
them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions
company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the
inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation,
quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is
making the world safer, better and more beautiful—with light.
To learn more about our lighting solutions, visit lumileds.com.
