ISO7420
,
ISO7420M
,
ISO7421
SLLS984I –JUNE 2009–REVISED JULY 2015
ISO742x Low-Power Dual-Channel Digital Isolators
1 Features 3 Description
The ISO7420, ISO7420M and ISO7421 provide
1• Highest Signaling Rate: 1 Mbps galvanic isolation up to 2500 VRMS for 1 minute per
• Low Power Consumption, Typical ICC per Channel UL. These digital isolators have two isolated
(3.3-V operation): channels. Each isolation channel has a logic input
– ISO7420: 1.1 mA, ISO7421: 1.5 mA and output buffer separated by a silicon dioxide
(SiO2) insulation barrier. Used in conjunction with
• Low Propagation Delay – 9 ns Typical isolated power supplies, these devices prevent noise
• Low Skew – 300 ps Typical currents on a data bus or other circuit from entering
• Wide TARange: –40°C to 125°C (M-Grade) the local ground and interfering with or damaging
sensitive circuitry. The suffix M indicates wide
• 50-kV/μs Transient Immunity, Typical temperature range (–40°C to 125°C).
• Over 25-Year Isolation Integrity at Rated Voltage These devices have TTL input thresholds and require
• Operates From 3.3-V and 5-V Supply and Logic two supply voltages, 3.3 or 5 V, or any combination.
Levels All inputs are 5-V tolerant when supplied from a 3.3-V
• 3.3-V and 5-V Level Translation supply.
• Narrow Body SOIC-8 Package Note: The ISO7420 and ISO7421 are specified for
• Safety and Regulatory Approvals: signaling rates up to 1 Mbps. Due to their fast
– 4242 VPK Isolation per DIN V VDE V 0884-10 response time, under most cases, these devices will
and DIN EN 61010-1 also transmit data with much shorter pulse widths.
Designers should add external filtering to remove
– 2500 VRMS Isolation for 1 minute per UL 1577 spurious signals with input pulse duration <20 ns if
– CSA Component Acceptance Notice 5A, IEC desired.
60950-1 and IEC 61010-1 Standards
Device Information(1)
– CQC Certification per GB4943.1-2011
PART NUMBER PACKAGE BODY SIZE (NOM)
2 Applications ISO7420
ISO7420M SOIC (8) 4.90 mm × 3.91 mm
• Optocoupler Replacement in:
ISO7421
– Industrial Fieldbus
(1) For all available packages, see the orderable addendum at
– Profibus the end of the data sheet.
– Modbus
– DeviceNet™ Data Buses
– Servo Control Interface
– Motor Control
– Power Supplies
– Battery Packs
Simplified Schematic
VCCI and GNDI are supply and ground connections respectively for the input channels.
VCCO and GNDO are supply and ground connections respectively for the output channels.
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. UNLESS OTHERWISE NOTED, this document contains PRODUCTION
DATA.
l TEXAS INSTRUMENTS
ISO7420
,
ISO7420M
,
ISO7421
SLLS984I –JUNE 2009–REVISED JULY 2015
www.ti.com
Table of Contents
±5%.......................................................................... 11
1 Features.................................................................. 16.14 Typical Characteristics.......................................... 12
2 Applications ........................................................... 17 Parameter Measurement Information ................ 13
3 Description ............................................................. 18 Detailed Description............................................ 14
4 Revision History..................................................... 28.1 Overview ................................................................. 14
5 Pin Configuration and Functions......................... 68.2 Functional Block Diagram....................................... 14
6 Specifications......................................................... 78.3 Feature Description................................................. 15
6.1 Absolute Maximum Ratings ..................................... 78.4 Device Functional Modes........................................ 17
6.2 ESD Ratings.............................................................. 79 Application and Implementation ........................ 18
6.3 Recommended Operating Conditions....................... 79.1 Application Information............................................ 18
6.4 Thermal Information.................................................. 89.2 Typical Application ................................................. 18
6.5 Electrical Characteristics: VCC1 and VCC2 at 5 V
±5%............................................................................ 810 Power Supply Recommendations ..................... 20
6.6 Electrical Characteristics: VCC1 at 5 V ±5%, VCC2 at 11 Layout................................................................... 20
3.3 V ±5% .................................................................. 911.1 Layout Guidelines ................................................. 20
6.7 Electrical Characteristics: VCC1 at 3.3 V ±5%, VCC2 at 11.2 Layout Example .................................................... 20
5 V ±5% ..................................................................... 912 Device and Documentation Support ................. 21
6.8 Electrical Characteristics: VCC1 and VCC2 at 3.3 V 12.1 Documentation Support ........................................ 21
±5%.......................................................................... 10 12.2 Related Links ........................................................ 21
6.9 Power Dissipation Characteristics .......................... 10 12.3 Community Resources.......................................... 21
6.10 Switching Characteristics: VCC1 and VCC2 at 5 V 12.4 Trademarks........................................................... 21
±5%.......................................................................... 10
12.5 Electrostatic Discharge Caution............................ 21
6.11 Switching Characteristics: VCC1 at 5 V ±5%, VCC2 at
3.3 V ±5% ................................................................ 10 12.6 Glossary................................................................ 21
6.12 Switching Characteristics: VCC1 at 3.3 V ±5%, VCC2 13 Mechanical, Packaging, and Orderable
at 5 V ±5% ............................................................... 11 Information ........................................................... 21
6.13 Switching Characteristics: VCC1 and VCC2 at 3.3 V
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision H (May 2013) to Revision I Page
• VDE standard changed to DIN V VDE V 0884-10 (VDE V 0884-10):2006-12 ...................................................................... 1
• Added Pin Configuration and Functions section, ESD Ratings table, Feature Description section, Device Functional
Modes,Application and Implementation section, Power Supply Recommendations section, Layout section, Device
and Documentation Support section, and Mechanical, Packaging, and Orderable Information section .............................. 1
Changes from Revision G (May 2013) to Revision H Page
• Changed Feature From: 4~242 Vpeak Isolation To: 4242 Vpeak Isolation ........................................................................... 1
Changes from Revision F (January 2013) to Revision G Page
• Changed VIORM in the INSULATION CHARACTERISTICS table, Specification value From: 56~6 To: 566........................ 15
• Changed VPR in the Specification value From: 10~62 To: 1062 .......................................................................................... 15
• Changed VIOTM t = 60 s (qualification) Specification value From: 4~242 To: 4242.............................................................. 15
Changes from Revision E (June 2011) to Revision F Page
• Changed Feature From: 242 Vpeak Maximum Isolation-per DIN EN 60747-5-2 (VDE 0884 Part 2) - To: 4~242
Vpeak Isolation ....................................................................................................................................................................... 1
• Changed Feature From: IEC/VDE and CSA Approvals, IEC 60950-1–IEC 61010-1 End Equipment Standards
Approvals, All Approvals Pending To: CSA 60950-1 and IEC 61010-1 Approved ................................................................ 1
2Submit Documentation Feedback Copyright © 2009–2015, Texas Instruments Incorporated
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS
ISO7420
,
ISO7420M
,
ISO7421
www.ti.com
SLLS984I –JUNE 2009–REVISED JULY 2015
• Added table Note to VIORM .................................................................................................................................................... 15
• Changed VIORM in the INSULATION CHARACTERISTICS table, Specification value From: 56~0 To: 56~6...................... 15
• Changed VPR in the Specification value From: 10~50 To: 10~62........................................................................................ 15
• Changed VIOTM t = 60 s (qualification) Specification value From: 4~000 To: 4~242............................................................ 15
• Changed the IEC 60664-1 RATINGS TABLE. Row - Basic isolation group SPECIFICATION From: III-a To: II................. 15
• Changed CTI in the PACKAGE CHARACTERISTICS table, Min value From: >175 To 400 .............................................. 15
• Changed the text of NOTE: ................................................................................................................................................. 16
• Changed the REGULATORY INFORMATION table ............................................................................................................ 17
Changes from Revision D (July 2010) to Revision E Page
• Added new fifth bullet to Features and deleted text from 4-kVpeak bullet item..................................................................... 1
• Changed first paragraph in Description from: ISO7420M, ISO7421, and ISO7421M to: ISO7420M and ISO7421.............. 1
• Changed ISO742xM in the ELEC CHAR and SWITCHING CHAR table to ISO7420M ........................................................ 8
• Changed ISO742xM in the ELEC CHAR and SWITCHING CHAR table to ISO7420M ........................................................ 9
• Changed ISO742xM in the ELEC CHAR and SWITCHING CHAR table to ISO7420M ........................................................ 9
• Changed ISO742xM in the ELEC CHAR and SWITCHING CHAR table to ISO7420M ...................................................... 10
• Changed the MAX value in the SWITCHING CHAR table 2nd row from 3.5 to 3.7 and 3rd row from 4 to 4.9................... 10
• Changed the MAX value in the 2nd SWITCHING CHAR table 2nd row from 4 to 5.6 and 3rd row from 5 to 6.3............... 10
• Changed the MAX value in the 3rd SWITCHING CHAR table 3rd row from 5 to 8.5 ......................................................... 11
• Changed the MAX value in the 4rd SWITCHING CHAR table 3rd row from 6 to 6.8 ......................................................... 11
• Changed Regulatory Information table last row, last column from: pending (E181974) to: E181974 ................................. 17
• Changed Note 2 in Function Table from: ISO7420M, ISO7421, and ISO7421M to: ISO7420M and ISO7421................... 17
Changes from Revision C (March 2010) to Revision D Page
• Updated the Features List ...................................................................................................................................................... 1
• Deleted devices ISO7420F and ISO7420FM from the data sheet......................................................................................... 1
• Updated the device Description. Add paragraph - Note: The ISO7420 and ISO7421........................................................... 1
• Added Tstg to the Absolute Maximum Ratings Table............................................................................................................ 7
• Updated the Recommended Operating Conditions table....................................................................................................... 7
• Updates throughout the Electrical Characteristics and Switching Characteristics tables ...................................................... 8
• Updated the Supply Current test conditions........................................................................................................................... 8
• Deleted the SUPPLY CURRENT vs SIGNAL RATE (ALL CHANNELS) graphs and the EYE DIAGRAM plots ................. 12
• Changed Figure 7................................................................................................................................................................. 13
• Changed the VIORM, VPR, and VIOTM unit values From: V To: Vpeak .................................................................................... 15
• Changed Minimum internal gap MIN value From: 0.008 To: 0.014mm ............................................................................... 15
• Changed the Barrier capacitance, input to output test conditions........................................................................................ 15
• Changed the Input capacitance test conditions ................................................................................................................... 15
• Changed VIFrom: 5.5 V To: 5.25 V..................................................................................................................................... 16
• Changed From: 107mA To: 112mA...................................................................................................................................... 16
• Changed VIFrom: 3.6 V To: 3.45 V..................................................................................................................................... 16
• Changed From: 164mA To: 171mA...................................................................................................................................... 16
• Changed Figure 10............................................................................................................................................................... 16
• Deleted the ICC equations section......................................................................................................................................... 16
• Changed the Function Table Output values for PU (Open) From: H/L To: H...................................................................... 17
• Changed Figure 11............................................................................................................................................................... 17
Copyright © 2009–2015, Texas Instruments Incorporated Submit Documentation Feedback 3
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS
ISO7420
,
ISO7420M
,
ISO7421
SLLS984I –JUNE 2009–REVISED JULY 2015
www.ti.com
Changes from Revision B (February 2010) to Revision C Page
• Added devices ISO7420F and ISO7420FM to the data sheet............................................................................................... 1
• Added The suffix M indicates wide temperature range (–55°C to 125°C) and the suffix F indicates output-low option
in fail-safe condition. All other devices without the F suffix default to output-high in fail-safe state. ..................................... 1
• Added ISO7420F and ISO7420FM to the Available Options Table....................................................................................... 6
• Changed value from a max of 4 mA to a min of –4 mA......................................................................................................... 7
• Changed value from a min of –4 mA to a max of 4 mA ........................................................................................................ 7
• Changed Electrical Characteristics Conditions....................................................................................................................... 8
• Deleted Cifrom the ELECTRICAL CHARACTERISTICS....................................................................................................... 8
• Added (All inputs switching with square wave clock signal for dynamic ICC measurement)................................................. 8
• Changed ELECTRICAL CHARACTERISTICS conditions...................................................................................................... 9
• Added High-level output voltage ISO7420 / 7421 (3.3-V side) test condition ....................................................................... 9
• Changed High-level output voltage min value........................................................................................................................ 9
• Deleted CIspecification .......................................................................................................................................................... 9
• Added (All inputs switching with square wave clock signal for dynamic ICC measurement)................................................. 9
• Changed ELECTRICAL CHARACTERISTICS conditions...................................................................................................... 9
• Added High-level output voltage ISO7420 / 7421 (5-V side) test condition........................................................................... 9
• Changed High-level output voltage min value........................................................................................................................ 9
• Deleted CIspecification .......................................................................................................................................................... 9
• Added (All inputs switching with square wave clock signal for dynamic ICC measurement)................................................. 9
• Changed ELECTRICAL CHARACTERISTICS conditions.................................................................................................... 10
• Deleted CIspecification ........................................................................................................................................................ 10
• Added (All inputs switching with square wave clock signal for dynamic ICC measurement)............................................... 10
• Changed SWITCHING CHARACTERISTICS conditions ..................................................................................................... 10
• Changed PWD parameter from duration to width ................................................................................................................ 10
• Changed Switching Characteristics conditions..................................................................................................................... 10
• Changed Pulse duration distortion to Pulse width distortion ............................................................................................... 10
• Changed Switching Characteristics conditions..................................................................................................................... 11
• Changed SWITCHING CHARACTERISTICS conditions ..................................................................................................... 11
• Changed Pulse duration distortion to Pulse width distortion ............................................................................................... 11
• Changed SWITCHING CHARACTERISTICS conditions ..................................................................................................... 11
• Changed Pulse duration distortion to Pulse width distortion................................................................................................ 11
• Changed Figure 7................................................................................................................................................................. 13
• Added input to output and note 1 to Isolation resistance, input to output............................................................................ 15
• Changed the Isolation resistance test conditions................................................................................................................. 15
• Changed the Isolation resistance test conditions................................................................................................................. 15
• Added note 1 to Barrier capacitance, input to output........................................................................................................... 15
• Added Input capacitance...................................................................................................................................................... 15
• Changed TJ= 170°C to TJ= 150°C...................................................................................................................................... 16
• Changed From: 124mA To: 107mA...................................................................................................................................... 16
• Changed TJ= 170°C to TJ= 150°C...................................................................................................................................... 16
• Changed From: 190mA To: 164mA...................................................................................................................................... 16
• Changed Figure 10............................................................................................................................................................... 16
• Changed the Function Table Output values for PU (Open) From: H To: H/L...................................................................... 17
• Changed the Function Table Output values for PU (X) From: H To: H/L............................................................................. 17
• Changed the Function Table Output values for PU (X) From: H/L To: H............................................................................. 17
4Submit Documentation Feedback Copyright © 2009–2015, Texas Instruments Incorporated
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS
ISO7420
,
ISO7420M
,
ISO7421
www.ti.com
SLLS984I –JUNE 2009–REVISED JULY 2015
• Added Note (2) in the Function Table .................................................................................................................................. 17
• Changed Figure 11............................................................................................................................................................... 17
Changes from Revision A (December 2009) to Revision B Page
• Switching Characteristics Table, Added Note (2) - Typical specifications are measured at ideal conditions of 25°C.
Max or Min specifications are measured at worst case conditions for VCC and temperature. ............................................... 8
Changes from Original (June 2009) to Revision A Page
• Added devices ISO7420 and ISO7420M to the data sheet ................................................................................................... 1
• Added the ICC equations section........................................................................................................................................... 16
Copyright © 2009–2015, Texas Instruments Incorporated Submit Documentation Feedback 5
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS 5252“ YA“ HHHH V HHHH HHHH HHHH
VCC1
OUTA
INB
GND1
VCC2
INA
OUTB
GND2
1
2
3
4
8
7
6
5
Isolation
VCC1
INA
INB
GND1
VCC2
OUTA
OUTB
GND2
1
2
3
4
8
7
6
5
Isolation
ISO7420
,
ISO7420M
,
ISO7421
SLLS984I –JUNE 2009–REVISED JULY 2015
www.ti.com
5 Pin Configuration and Functions
ISO7420: D Package ISO7421: D Package
8-Pin SOIC 8-Pin SOIC
(Top View) (Top View)
Pin Functions
PIN I/O DESCRIPTION
NAME ISO7420 ISO7421
GND1 4 4 — Ground connection for VCC1
GND2 5 5 — Ground connection for VCC2
INA 2 7 I Input, channel A
INB 3 3 I Input, channel B
OUTA 7 2 O Output, channel A
OUTB 6 6 O Output, channel B
VCC1 1 1 — Power supply, VCC1
VCC2 8 8 — Power supply, VCC2
6Submit Documentation Feedback Copyright © 2009–2015, Texas Instruments Incorporated
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS
ISO7420
,
ISO7420M
,
ISO7421
www.ti.com
SLLS984I –JUNE 2009–REVISED JULY 2015
6 Specifications
6.1 Absolute Maximum Ratings
See (1) MIN MAX UNIT
VCC Supply voltage(2), VCC1, VCC2 –0.5 6 V
VIVoltage at IN, OUT –0.5 VCC + 0.5(3) V
IOOutput current –15 15 mA
TJ(max) Maximum junction temperature 150 °C
Tstg Storage temperature –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values except differential I/O bus voltages are with respect to network ground terminal and are peak voltage values.
(3) Maximum voltage must not exceed 6 V.
6.2 ESD Ratings
VALUE UNIT
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±4000
Field-induced charged-device model, JEDEC Standard 22, Test Method ±1500
V(ESD) Electrostatic discharge V
C101
Machine model, ANSI/ESDS5.2-1996 ±200
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
MIN NOM MAX UNIT
Supply voltage - 3.3-V operation 3.15 3.3 3.45
VCC1,V
VCC2 Supply voltage - 5-V operation 4.75 5 5.25
IOH High-level output current –4 mA
IOL Low-level output current 4 mA
VIH High-level input voltage 2 5.25 V
VIL Low-level input voltage 0 0.8 V
1/tui Signaling rate 0 1 Mbps
tui Input pulse duration 1 us
TJ(1) Junction temperature –40 136 °C
ISO7420, ISO7421 -40 25 105
TAAmbient temperature °C
ISO7420M -40 25 125
(1) To maintain the recommended operating conditions for TJ, see the Thermal Information.
Copyright © 2009–2015, Texas Instruments Incorporated Submit Documentation Feedback 7
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS
ISO7420
,
ISO7420M
,
ISO7421
SLLS984I –JUNE 2009–REVISED JULY 2015
www.ti.com
6.4 Thermal Information
ISO742x
THERMAL METRIC(1) D (SOIC) UNIT
8 PINS
Low-K Board 212
RθJA Junction-to-ambient thermal resistance °C/W
High-K Board 116.6
RθJC(top) Junction-to-case (top) thermal resistance 71.6 °C/W
RθJB Junction-to-board thermal resistance 57.3 °C/W
ψJT Junction-to-top characterization parameter 28.3 °C/W
ψJB Junction-to-board characterization parameter 56.8 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
6.5 Electrical Characteristics: VCC1 and VCC2 at 5 V ±5%
TA= –40°C to 125°C for ISO7420M, TA= –40°C to 105°C for ISO742x
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
IOH = –4 mA; see Figure 6. VCCO(1) – 0.8 4.6
VOH High-level output voltage V
IOH = –20 μA; see Figure 6. VCCO – 0.1 5
IOL = 4 mA; see Figure 6. 0.2 0.4
VOL Low-level output voltage V
IOL = 20 μA; see Figure 6. 0 0.1
VI(HYS) Input threshold voltage hysteresis 400 mV
IIH High-level input current 10 μA
INx at 0 V or VCCI (1)
IIL Low-level input current –10 μA
CMTI Common-mode transient immunity VI= VCCI or 0 V; see Figure 8. 25 50 kV/μs
SUPPLY CURRENT (ALL INPUTS SWITCHING WITH SQUARE WAVE CLOCK SIGNAL FOR DYNAMIC ICC MEASUREMENT)
ISO7420
ICC1 Supply current for VCC1 0.4 1
DC to 1 Mbps VI= VCCI or 0 V, 15 pF load mA
ICC2 Supply current for VCC2 3 6
ISO7421
ICC1 Supply current for VCC1 2 4
DC to 1 Mbps VI= VCCI or 0 V, 15 pF load mA
ICC2 Supply current for VCC2 2 4
(1) VCCI = Input-side power supply, VCCO = Output-side power supply
8Submit Documentation Feedback Copyright © 2009–2015, Texas Instruments Incorporated
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS
ISO7420
,
ISO7420M
,
ISO7421
www.ti.com
SLLS984I –JUNE 2009–REVISED JULY 2015
6.6 Electrical Characteristics: VCC1 at 5 V ±5%, VCC2 at 3.3 V ±5%
TA= –40°C to 125°C for ISO7420M, TA= –40°C to 105°C for ISO742x
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
IOH = –4 mA; ISO7421 (5-V side) VCCO(1) – 4.6
see Figure 6. 0.8
VOH High-level output voltage V
ISO7420 / 7421 (3.3-V side). VCCO – 0.4 3
IOH = –20 μA; see Figure 6, VCCO – 0.1 VCC
IOL = 4 mA; see Figure 6. 0.2 0.4
VOL Low-level output voltage V
IOL = 20 μA; see Figure 6. 0 0.1
VI(HYS) Input threshold voltage hysteresis 400 mV
IIH High-level input current 10 μA
INx at 0 V or VCCI (1)
IIL Low-level input current –10 μA
CMTI Common-mode transient immunity VI= VCCI or 0 V; seeFigure 8 . 25 40 kV/μs
SUPPLY CURRENT (ALL INPUTS SWITCHING WITH SQUARE WAVE CLOCK SIGNAL FOR DYNAMIC ICC MEASUREMENT)
ISO7420
ICC1 Supply current for VCC1 0.4 1 mA
DC to 1 Mbps VI= VCCI or 0 V, 15 pF load
ICC2 Supply current for VCC2 2 4.5 mA
ISO7421
ICC1 Supply current for VCC1 2 4 mA
DC to 1 Mbps VI= VCCI or 0 V, 15 pF load
ICC2 Supply current for VCC2 1.5 3.5 mA
(1) VCCI = Input-side power supply, VCCO = Output-side power supply
6.7 Electrical Characteristics: VCC1 at 3.3 V ±5%, VCC2 at 5 V ±5%
TA= –40°C to 125°C for ISO7420M, TA= –40°C to 105°C for ISO742x
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
IOH = –4 mA; VCCO(1) –
ISO7420 / 7421 (5-V side). 4.6
see Figure 6. 0.8
VOH High-level output voltage V
ISO7421 (3.3-V side) VCCO – 0.4 3
IOH = –20 μA; see Figure 6 VCCO – 0.1 VCC
IOL = 4 mA; see Figure 6. 0.2 0.4
VOL Low-level output voltage V
IOL = 20 μA; see Figure 6. 0 0.1
VI(HYS) Input threshold voltage hysteresis 400 mV
IIH High-level input current 10 μA
INx at 0 V or VCCI(1)
IIL Low-level input current –10 μA
CMTI Common-mode transient immunity VI= VCCI or 0 V; see Figure 8. 25 40 kV/μs
SUPPLY CURRENT (ALL INPUTS SWITCHING WITH SQUARE WAVE CLOCK SIGNAL FOR DYNAMIC ICC MEASUREMENT)
ISO7420
ICC1 Supply current for VCC1 0.2 0.7
DC to 1 Mbps VI= VCCI or 0 V, 15 pF load mA
ICC2 Supply current for VCC2 3 6
ISO7421
ICC1 Supply current for VCC1 1.5 3.5
DC to 1 Mbps VI= VCCI or 0 V, 15 pF load mA
ICC2 Supply current for VCC2 2 4
(1) VCCI = Input-side power supply, VCCO = Output-side power supply
Copyright © 2009–2015, Texas Instruments Incorporated Submit Documentation Feedback 9
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS
ISO7420
,
ISO7420M
,
ISO7421
SLLS984I –JUNE 2009–REVISED JULY 2015
www.ti.com
6.8 Electrical Characteristics: VCC1 and VCC2 at 3.3 V ±5%
TA= –40°C to 125°C for ISO7420M, TA= –40°C to 105°C for ISO742x
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
IOH = –4 mA; see Figure 6. VCCO(1) – 0.4 3
VOH High-level output voltage V
IOH = –20 μA; see Figure 6. VCCO – 0.1 3.3
IOL = 4 mA; see Figure 6. 0.2 0.4
VOL Low-level output voltage V
IOL = 20 μA; see Figure 6. 0 0.1
VI(HYS) Input threshold voltage hysteresis 400 mV
IIH High-level input current 10 μA
INx at 0 V or VCCI(1)
IIL Low-level input current –10 μA
Common-mode transient
CMTI VI= VCCI or 0 V; seeFigure 8 . 25 40 kV/μs
immunity
SUPPLY CURRENT (ALL INPUTS SWITCHING WITH SQUARE WAVE CLOCK SIGNAL FOR DYNAMIC ICC MEASUREMENT)
ISO7420
ICC1 Supply current for VCC1 0.2 0.7
DC to 1 Mbps VI= VCCI or 0 V, 15 pF load mA
ICC2 Supply current for VCC2 2 4.5
ISO7421
ICC1 Supply current for VCC1 1.5 3.5
DC to 1 Mbps VI= VCCI or 0 V, 15 pF load mA
ICC2 Supply current for VCC2 1.5 3.5
(1) VCCI = Input-side power supply, VCCO = Output-side power supply
6.9 Power Dissipation Characteristics
ISO742x
THERMAL METRIC D (SOIC) UNIT
8 PINS
VCC1 = VCC2 = 5.25 V, TJ= 150°C, CL= 15 pF
PDDevice power dissipation 55 mW
Input a 1-Mbps 50% duty-cycle square wave
6.10 Switching Characteristics: VCC1 and VCC2 at 5 V ±5%
TA= –40°C to 125°C for ISO7420M, TA= –40°C to 105°C for ISO742x
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tPLH, tPHL Propagation delay time See Figure 6. 9 14 ns
PWD(1) Pulse width distortion |tPHL – tPLH| 0.3 3.7 ns
tsk(pp) Part-to-part skew time 4.9 ns
tsk(o) Channel-to-channel output skew time 3.6 ns
trOutput signal rise time See Figure 6. 1 ns
tfOutput signal fall time 1 ns
tfs Fail-safe output delay time from input power loss See Figure 7. 6 μs
(1) Also known as pulse skew.
6.11 Switching Characteristics: VCC1 at 5 V ±5%, VCC2 at 3.3 V ±5%
TA= –40°C to 125°C for ISO7420M, TA= –40°C to 105°C for ISO742x
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tPLH, tPHL Propagation delay time See Figure 6. 10 17 ns
PWD(1) Pulse width distortion |tPHL – tPLH| 0.5 5.6 ns
tsk(pp) Part-to-part skew time 6.3 ns
tsk(o) Channel-to-channel output skew time 4 ns
trOutput signal rise time See Figure 6. 2 ns
(1) Also known as pulse skew.
10 Submit Documentation Feedback Copyright © 2009–2015, Texas Instruments Incorporated
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS
ISO7420
,
ISO7420M
,
ISO7421
www.ti.com
SLLS984I –JUNE 2009–REVISED JULY 2015
Switching Characteristics: VCC1 at 5 V ±5%, VCC2 at 3.3 V ±5% (continued)
TA= –40°C to 125°C for ISO7420M, TA= –40°C to 105°C for ISO742x
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tfOutput signal fall time 2 ns
tfs Fail-safe output delay time from input power loss See Figure 7. 6 μs
6.12 Switching Characteristics: VCC1 at 3.3 V ±5%, VCC2 at 5 V ±5%
TA= –40°C to 125°C for ISO7420M, TA= –40°C to 105°C for ISO742x
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tPLH, tPHL Propagation delay time See Figure 6. 10 17 ns
PWD(1) Pulse width distortion |tPHL – tPLH| 0.5 4 ns
tsk(pp) Part-to-part skew time 8.5 ns
tsk(o) Channel-to-channel output skew time 4 ns
trOutput signal rise time See Figure 6. 2 ns
tfOutput signal fall time 2 ns
tfs Fail-safe output delay time from input power loss See Figure 7. 6 μs
(1) Also known as pulse skew.
6.13 Switching Characteristics: VCC1 and VCC2 at 3.3 V ±5%
TA= –40°C to 125°C for ISO7420M, TA= –40°C to 105°C for ISO742x
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tPLH, tPHL Propagation delay time 12 20 ns
PWD(1) Pulse width distortion |tPHL – tPLH| See Figure 6. 1 5 ns
tsk(pp) Part-to-part skew time 6.8 ns
tsk(o) Channel-to-channel output skew time 5.5 ns
trOutput signal rise time 2 ns
See Figure 6.
tfOutput signal fall time 2 ns
tfs Fail-safe output delay time from input power loss See Figure 7. 6 μs
(1) Also known as pulse skew.
Copyright © 2009–2015, Texas Instruments Incorporated Submit Documentation Feedback 11
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS 1 A Pmpagahan De‘ay Tune 4 n5 sum was 262 Isaac Bum 5m
VOL − Low-Level Output Voltage − V
0
10
20
30
40
50
60
70
80
0 1 2 3 4 5 6
IOL − Low-Level Output Current − mA
VCC1, V
CC2 at 3.3 V
G008
VCC1, VCC2 at 5 V
TA= 25°C
TA− Free-Air Temperature − °C
2.52
2.53
2.54
2.55
2.56
2.57
2.58
2.59
2.60
2.61
2.62
−55 −35 −15 5 25 45 65 85 105 125
Fail-Safe Voltage Threshold − V
G006
FS+
FS−
VOH − High-Level Output Voltage − V
−90
−80
−70
−60
−50
−40
−30
−20
−10
0
0 1 2 3 4 5 6
IOH − High-Level Output Current − mA
VCC1, V
CC2 at 3.3 V
G007
VCC1, VCC2 at 5 V
TA= 25°C
TA− Free-Air Temperature − °C
0
2
4
6
8
10
12
14
−55 −35 −15 5 25 45 65 85 105 125
tpd − Propagation Delay Time − ns
VCC1, V
CC2 at 3.3 V
G004
VCC1, VCC2 at 5 V
TA− Free-Air Temperature − °C
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
−55 −35 −15 5 25 45 65 85 105 125
Input Voltage Switching Threshold − V
VIT−, 3.3 V
G005
VIT+, 5 V
VIT+, 3.3 V
VIT−, 5 V
ISO7420
,
ISO7420M
,
ISO7421
SLLS984I –JUNE 2009–REVISED JULY 2015
www.ti.com
6.14 Typical Characteristics
Figure 1. Propagation Delay Time vs Free-Air Temperature Figure 2. Input Voltage Switching Threshold vs Free-Air
Temperature
Figure 3. Fail-Safe Voltage Threshold vs Free-Air Figure 4. High-Level Output Current vs High-Level Output
Temperature Voltage
Figure 5. Low-Level Output Current vs Low-Level Output Voltage
12 Submit Documentation Feedback Copyright © 2009–2015, Texas Instruments Incorporated
Product Folder Links: ISO7420 ISO7420M ISO7421
Isolation Barrier
VI
IN = 0 V VO
CL
(1)
OUT
VCCI
tfs
2.7 V
VCCI
0 V
VOL
VOH
50% Fail-Safe HIGH
VI
VO
Isolation Barrier
VI50 W
IN
VO
Input
Generator(1) CL
(2)
OUT 1.4 V
10%
90%
VI
VO
tPLH tPHL
1.4 V
VCCI
0 V
50%
trtf
VOH
50%
VOL
ISO7420
,
ISO7420M
,
ISO7421
www.ti.com
SLLS984I –JUNE 2009–REVISED JULY 2015
7 Parameter Measurement Information
(1) The input pulse is supplied by a generator having the following characteristics: PRR ≤50 kHz, 50% duty cycle,
tr≤3 ns, tf≤3 ns, ZO= 50 Ω. At the input, a 50-Ωresistor is required to terminate the Input Generator signal. It is not
needed in actual application.
(2) CL= 15 pF and includes instrumentation and fixture capacitance within ±20%.
Figure 6. Switching Characteristic Test Circuit and Voltage Waveforms
(1) CL= 15 pF ± 20% includes instrumentation and fixture capacitance.
Figure 7. Fail-Safe Output Delay-Time Test Circuit and Voltage Waveforms
(1) CL= 15 pF and includes instrumentation and fixture capacitance within ±20%.
Figure 8. Common-Mode Transient Immunity Test Circuit
Copyright © 2009–2015, Texas Instruments Incorporated Submit Documentation Feedback 13
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS \N —>—- H [m , Frequency \Sulatmn Eamer Channe‘ (mm ths mum) VREF OUT
ISO7420
,
ISO7420M
,
ISO7421
SLLS984I –JUNE 2009–REVISED JULY 2015
www.ti.com
8 Detailed Description
8.1 Overview
The isolator in Figure 9 is based on a capacitive isolation barrier technique. The I/O channel of the device
consists of two internal data channels, a high-frequency channel (HF) with a bandwidth from 100 kbps up to
1 Mbps, and a low-frequency channel (LF) covering the range from 100 kbps down to DC. In principle, a
single- ended input signal entering the HF-channel is split into a differential signal via the inverter gate at the
input. The following capacitor-resistor networks differentiate the signal into transients, which then are
converted into differential pulses by two comparators. The comparator outputs drive a NOR-gate flip-flop
whose output feeds an output multiplexer. A decision logic (DCL) at the driving output of the flip-flop
measures the durations between signal transients. If the duration between two consecutive transients
exceeds a certain time limit, (as in the case of a low-frequency signal), the DCL forces the output-multiplexer
to switch from the high- to the low-frequency channel.
Because low-frequency input signals require the internal capacitors to assume prohibitively large values,
these signals are pulse-width modulated (PWM) with the carrier frequency of an internal oscillator, thus
creating a sufficiently high frequency signal, capable of passing the capacitive barrier. As the input is
modulated, a low-pass filter (LPF) is needed to remove the high-frequency carrier from the actual data before
passing it on to the output multiplexer.
8.2 Functional Block Diagram

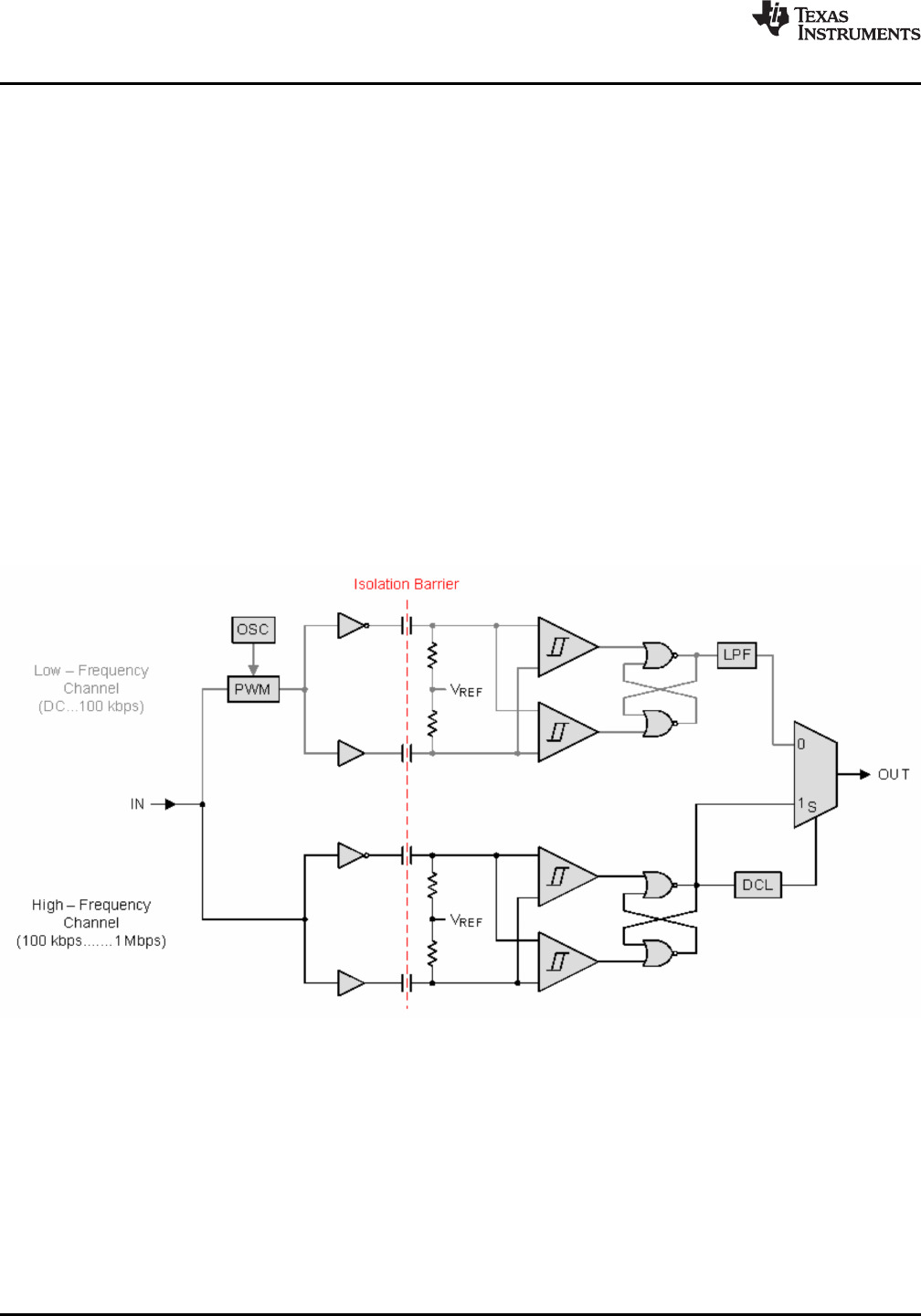

Figure 9. Conceptual Block Diagram of a Digital Capacitive Isolator
14 Submit Documentation Feedback Copyright © 2009–2015, Texas Instruments Incorporated
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS
ISO7420
,
ISO7420M
,
ISO7421
www.ti.com
SLLS984I –JUNE 2009–REVISED JULY 2015
8.3 Feature Description
8.3.1 Insulation Characteristics
over recommended operating conditions (unless otherwise noted)
PARAMETER(1) TEST CONDITIONS SPECIFICATION UNIT
DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
VIORM Maximum working insulation voltage 566 VPK
VPR Input-to-output test voltage t = 1 s (100% production), partial discharge 5 pC 1062 VPK
t = 60 s (qualification)
VIOTM Transient overvoltage 4242 VPK
t = 1 s (100% production)
RSInsulation resistance VIO = 500 V at TS>109Ω
Pollution degree 2
UL 1577
VTEST = VISO = 2500 VRMS, t = 60 s (qualification)
VISO Isolation voltage per UL 2500 VRMS
VTEST = 1.2 x VISO = 3000 VRMS, t = 1 s (100%
production)
(1) Climatic Classification 40/125/21
Table 1. IEC 60664-1 Ratings Table
PARAMETER TEST CONDITIONS SPECIFICATION
Material group II
Rated mains voltage ≤150 VRMS I–IV
Installation classification Rated mains voltage ≤300 VRMS I–III
8.3.2 Package Characteristics
over recommended operating conditions (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
L(I01) Minimum air gap (clearance) Shortest terminal-to-terminal distance through air 4 mm
Minimum external tracking Shortest terminal-to-terminal distance across the
L(I02) 4 mm
(creepage) package surface
Tracking resistance (comparative
CTI DIN EN 60112 (VDE 0303-11); IEC 60112 >400 V
tracking index)
DTI Distance through the insulation Minimum internal gap (internal clearance) 0.014 mm
VIO = 500 V, TA= 25°C >1012 Ω
Isolation resistance, input to
RIO output(1) VIO = 500 V, 100°C ≤TA≤max >1011 Ω
Barrier capacitance, input to
CIO VIO = 0.4 sin (2πft), f = 1 MHz 1 pF
output(1)
CIInput capacitance(2) VI= VCC/2 + 0.4 sin (2πft), f = 1 MHz, VCC = 5 V 1 pF
(1) All pins on each side of the barrier tied together creating a two-terminal device.
(2) Measured from input pin to ground.
Copyright © 2009–2015, Texas Instruments Incorporated Submit Documentation Feedback 15
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS 3232
Case Temperature − C°
0
20
40
60
80
100
120
140
160
180
0 50 100 150 200
Safety Limiting Current − mA
G002
VCC1, V
CC2 at 3.45 V
VCC1, VCC2 at 5.25 V
ISO7420
,
ISO7420M
,
ISO7421
SLLS984I –JUNE 2009–REVISED JULY 2015
www.ti.com
SPACER
NOTE
Creepage and clearance requirements should be applied according to the specific
equipment isolation standards of an application. Care should be taken to maintain the
creepage and clearance distance of a board design to ensure that the mounting pads of
the isolator on the printed-circuit board do not reduce this distance.
Creepage and clearance on a printed-circuit board become equal in certain cases.
Techniques such as inserting grooves and/or ribs on a printed circuit board are used to
help increase these specifications.
8.3.3 Safety Limiting Values
Safety limiting intends to prevent potential damage to the isolation barrier upon failure of input or output circuitry. A failure of
the I/O can allow low resistance to ground or the supply and, without current limiting, dissipate sufficient power to overheat
the die and damage the isolation barrier, potentially leading to secondary system failures.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
θJA = 212°C/W, VI= 5.25 V, TJ= 150°C, TA= 25°C 112
Safety input, output, or supply
ISmA
current θJA = 212°C/W, VI= 3.45 V, TJ= 150°C, TA= 25°C 171
TSMaximum safety temperature 150 °C
The safety-limiting constraint is the absolute-maximum junction temperature specified in the Absolute Maximum
Ratings table. The power dissipation and junction-to-air thermal impedance of the device installed in the
application hardware determines the junction temperature. The assumed junction-to-air thermal resistance in the
Thermal Information table is that of a device installed in the JESD51-3, Low-Effective-Thermal-Conductivity Test
Board for Leaded Surface-Mount Packages and is conservative. The power is the recommended maximum input
voltage times the current. The junction temperature is then the ambient temperature plus the power times the
junction-to-air thermal resistance.
Figure 10. θJC Thermal Derating Curve per VDE
16 Submit Documentation Feedback Copyright © 2009–2015, Texas Instruments Incorporated
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS
IN
1 MW
500 W
VCCI VCCI VCCI
OUT
8W
13 W
Output
VCCO
Input
ISO7420
,
ISO7420M
,
ISO7421
www.ti.com
SLLS984I –JUNE 2009–REVISED JULY 2015
8.3.4 Regulatory Information
VDE CSA UL CQC
Certified according to
DIN V VDE V 0884-10 (VDE V Recognized under UL1577
Approved under CSA Component Certified according to
0884-10):2006-12 and Component Recognition
Acceptance Notice #5A GB4943.1-2011
DIN EN 61010-1 (VDE 0411-1): Program(1)
2011-07
Basic Insulation Basic insulation per CSA 60950-1- Basic Insulation, Altitude ≤
Maximum Transient Overvoltage, 07 and IEC 60950-1 (2nd Ed), 5000 m, Tropical Climate, 250
4242 VPK Single Protection, 2500 VRMS VRMS maximum working
390 VRMS maximum working
Maximum Working Voltage, 566 voltage
voltage
VPK
Certificate number:
Certificate number: 40016131 Master contract number: 220991 File number: E181974 CQC14001109540
(1) Production tested ≥3000 VRMS for 1 second in accordance with UL 1577.
8.4 Device Functional Modes
Table 2. Function Table(1)
INPUT OUTPUT
VCCI VCCO INA, INB OUTA, OUTB
H H
PU PU L L
Open H(2)
PD PU X H(2)
X PD X Undetermined
(1) VCCI = Input-side power supply; VCCO = Output-side power supply;
PU = Powered up (VCC ≥3.15 V); PD = Powered down (VCC ≤2.1
V); X = Irrelevant; H = High level; L = Low level
(2) In fail-safe condition, output defaults to high level.
8.4.1 Device I/O Schematics
Figure 11. Device I/O Schematics
Copyright © 2009–2015, Texas Instruments Incorporated Submit Documentation Feedback 17
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS Vs ‘L IF ”V g“ u [I 11 MERDSZDL 33wa V“ 023 . :S—fi‘ "m om SEW smsm . i . murinmr a "”5763“ 2 ‘ :E ,, 2: EN GND GND 0‘ I u T 45 .19!“ I MERDSZDL I J7 E I.______I_se-ww___ ‘1' n n 0qu 200 um; Loopv um; um; : umr ufiF‘fi 3 ’1 J”— J: ’— : FH1' uLow V‘ W n r F 2 ‘ l 5 9 “Sim W w 5 Wm H 2 M 7 5 ERRLVL xour Msmg m cum > WA usac>< now”="" 229="" u="" 5="" xw="" 62‘32="" p31="" '2="" 3="" ma="" outs="" 5="" ‘="" um="" dvss="" gndi="" sum="" 51="" c2="" c3="" coma="" cowou="" 9="" $="" loop»="" 11,4="" :5="" mum="" w="">
ISO7421
V
CC1 V
CC2
ISO7420
,
ISO7420M
,
ISO7421
SLLS984I –JUNE 2009–REVISED JULY 2015
www.ti.com
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
ISO742x utilize single-ended TTL-logic switching technology. Its supply voltage range is from 3.15 V to 5.25 V for
both supplies, VCC1 and VCC2. When designing with digital isolators, it is important to keep in mind that due to the
single-ended design structure, digital isolators do not conform to any specific interface standard and are only
intended for isolating single-ended CMOS or TTL digital signal lines. The isolator is typically placed between the
data controller (i.e. μC or UART), and a data converter or a line transceiver, regardless of the interface type or
standard.
9.2 Typical Application
ISO7421 can be used with Texas Instruments' mixed signal micro-controller, digital-to-analog converter,
transformer driver, and voltage regulator to create an isolated 4-20 mA current loop.
Figure 12. Isolated 4-20 mA Current Loop
9.2.1 Design Requirements
Unlike optocouplers, which require external components to improve performance, provide bias, or limit current,
the ISO742x only require two external bypass capacitors to operate.
18 Submit Documentation Feedback Copyright © 2009–2015, Texas Instruments Incorporated
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS TA TB
10
100
0 250 500 750 1000
V – Working Voltage – V
IORM
Life Expectancy – Years
880120
V at 566 V
IORM
28 Years
G001
ISO7420
1
2
3
4
8
7
6
5
INA
INB
OUTA
OUTB
VCC2
0.1 µF
GND2
0.1 µF
VCC1
GND1
ISO7421
1
2
3
4
8
7
6
5
INA
INB
OUTA
OUTB
VCC2
0.1 µF
GND2
0.1 µF
VCC1
GND1
ISO7420
,
ISO7420M
,
ISO7421
www.ti.com
SLLS984I –JUNE 2009–REVISED JULY 2015
Typical Application (continued)
9.2.2 Detailed Design Procedure
Figure 13. Typical ISO7420 and ISO7421 Circuit Hookup
9.2.3 Application Curve
Figure 14. Life Expectancy vs Working Voltage
Copyright © 2009–2015, Texas Instruments Incorporated Submit Documentation Feedback 19
Product Folder Links: ISO7420 ISO7420M ISO7421
I TFJms INSTRUMENTS
10 mils
10 mils
40 mils FR-4
0r~ 4.5
Keep this
space free
from planes,
traces , pads,
and vias
Ground plane
Power plane
Low-speed traces
High-speed traces
ISO7420
,
ISO7420M
,
ISO7421
SLLS984I –JUNE 2009–REVISED JULY 2015
www.ti.com
10 Power Supply Recommendations
To ensure reliable operation at all data rates and supply voltages, a 0.1 µF bypass capacitor is recommended at
input and output supply pins (VCC1 and VCC2). The capacitors should be placed as close to the supply pins as
possible. If only a single primary-side power supply is available in an application, isolated power can be
generated for the secondary-side with the help of a transformer driver such as Texas Instruments' SN6501. For
such applications, detailed power supply design and transformer selection recommendations are available in
SN6501 datasheet (SLLSEA0).
11 Layout
11.1 Layout Guidelines
A minimum of four layers is required to accomplish a low EMI PCB design (see Figure 15). Layer stacking should
be in the following order (top-to-bottom): high-speed signal layer, ground plane, power plane and low-frequency
signal layer.
• Routing the high-speed traces on the top layer avoids the use of vias (and the introduction of their
inductances) and allows for clean interconnects between the isolator and the transmitter and receiver circuits
of the data link.
• Placing a solid ground plane next to the high-speed signal layer establishes controlled impedance for
transmission line interconnects and provides an excellent low-inductance path for the return current flow.
• Placing the power plane next to the ground plane creates additional high-frequency bypass capacitance of
approximately 100pF/in2.
• Routing the slower speed control signals on the bottom layer allows for greater flexibility as these signal links
usually have margin to tolerate discontinuities such as vias.
If an additional supply voltage plane or signal layer is needed, add a second power / ground plane system to the
stack to keep it symmetrical. This makes the stack mechanically stable and prevents it from warping. Also the
power and ground plane of each power system can be placed closer together, thus increasing the high-frequency
bypass capacitance significantly.
For detailed layout recommendations, see Application Note Digital Isolator Design Guide,SLLA284.
11.1.1 PCB Material
For digital circuit boards operating below 150 Mbps, (or rise and fall times higher than 1 ns), and trace lengths of
up to 10 inches, use standard FR-4 epoxy-glass as PCB material. FR-4 (Flame Retardant 4) meets the
requirements of Underwriters Laboratories UL94-V0, and is preferred over cheaper alternatives due to its lower
dielectric losses at high frequencies, less moisture absorption, greater strength and stiffness, and its self-
extinguishing flammability-characteristics.
11.2 Layout Example
Figure 15. Recommended Layer Stack
20 Submit Documentation Feedback Copyright © 2009–2015, Texas Instruments Incorporated
Product Folder Links: ISO7420 ISO7420M ISO7421
l TEXAS INSTRUMENTS
ISO7420
,
ISO7420M
,
ISO7421
www.ti.com
SLLS984I –JUNE 2009–REVISED JULY 2015
12 Device and Documentation Support
12.1 Documentation Support
12.1.1 Related Documentation
For related documentation, see the following:
•SN6501 Transformer Driver for Isolated Power Supplies,SLLSEA0
•Isolation Glossary,SLLA353
•Digital Isolator Design Guide,SLLA284
12.2 Related Links
The table below lists quick access links. Categories include technical documents, support and community
resources, tools and software, and quick access to sample or buy.
Table 3. Related Links
TECHNICAL TOOLS & SUPPORT &
PARTS PRODUCT FOLDER SAMPLE & BUY DOCUMENTS SOFTWARE COMMUNITY
ISO7420 Click here Click here Click here Click here Click here
ISO7420M Click here Click here Click here Click here Click here
ISO7421 Click here Click here Click here Click here Click here
ISO7421M Click here Click here Click here Click here Click here
12.3 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.4 Trademarks
DeviceNet, E2E are trademarks of Texas Instruments.
All other trademarks are the property of their respective owners.
12.5 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
12.6 Glossary
SLYZ022 —TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Copyright © 2009–2015, Texas Instruments Incorporated Submit Documentation Feedback 21
Product Folder Links: ISO7420 ISO7420M ISO7421
I TEXAS INSTRUMENTS Samples Samples Sample: Sample: Samples Samples
PACKAGE OPTION ADDENDUM
www.ti.com 10-Dec-2020
Addendum-Page 1
PACKAGING INFORMATION
Orderable Device Status
(1)
Package Type Package
Drawing Pins Package
Qty Eco Plan
(2)
Lead finish/
Ball material
(6)
MSL Peak Temp
(3)
Op Temp (°C) Device Marking
(4/5)
Samples
ISO7420D ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 IS7420
ISO7420DR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 IS7420
ISO7420MD ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 I7420M
ISO7420MDR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 I7420M
ISO7421D ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 IS7421
ISO7421DR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 IS7421
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based
flame retardants must also meet the <=1000ppm threshold requirement.
(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation
of the previous line and the two combined represent the entire Device Marking for that device.
(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two
lines if the finish value exceeds the maximum column width.
I TEXAS INSTRUMENTS
PACKAGE OPTION ADDENDUM
www.ti.com 10-Dec-2020
Addendum-Page 2
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
OTHER QUALIFIED VERSIONS OF ISO7421 :
•Enhanced Product: ISO7421-EP
NOTE: Qualified Version Definitions:
•Enhanced Product - Supports Defense, Aerospace and Medical Applications

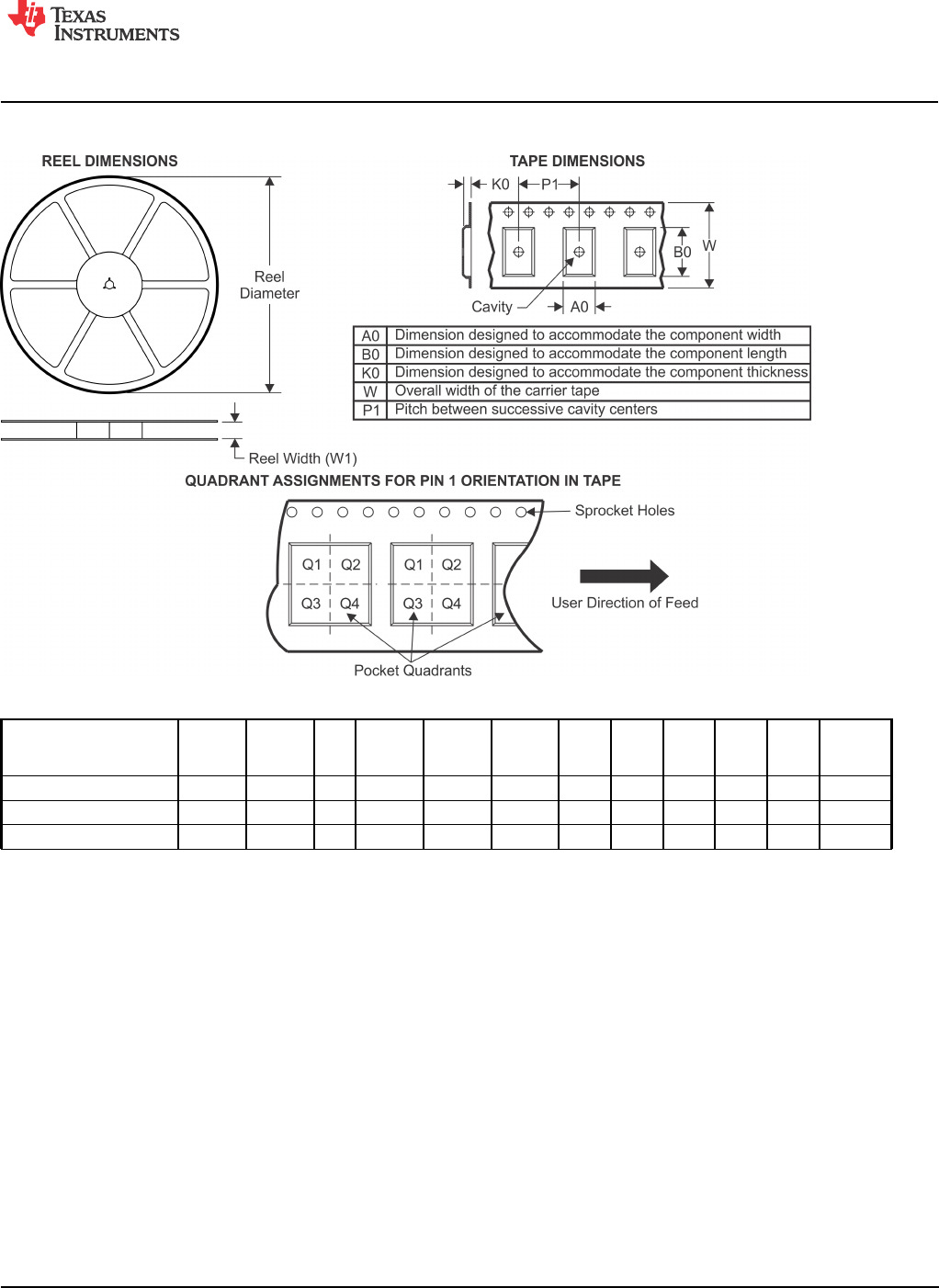

l TEXAS INSTRUMENTS REEL DIMENSIONS TAPE DIMENSIONS 7 “K0 '«Pi» Reel Diame|er AD Dimension designed to accommodate the componeni width ED Dimension deSigned to eccemmodaie me componeni iengm KO Dlmenslun designed to accommodate the eomponeni thickness 7 w Overeii Widlh loe earner cape i p1 Piich between successive cawiy ceniers f T Reel Width (W1) QUADRANT ASSIGNMENTS FOR PIN 1 ORIENTATION IN TAPE O O O D O O D D SprockeiHules ,,,,,,,,,,, ‘ User Direcllon 0' Feed Pockel Quadrams
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device Package
Type Package
Drawing Pins SPQ Reel
Diameter
(mm)
Reel
Width
W1 (mm)
A0
(mm) B0
(mm) K0
(mm) P1
(mm) W
(mm) Pin1
Quadrant
ISO7420DR SOIC D 8 2500 330.0 12.4 6.4 5.2 2.1 8.0 12.0 Q1
ISO7420MDR SOIC D 8 2500 330.0 12.4 6.4 5.2 2.1 8.0 12.0 Q1
ISO7421DR SOIC D 8 2500 330.0 12.4 6.4 5.2 2.1 8.0 12.0 Q1
PACKAGE MATERIALS INFORMATION
www.ti.com 5-Jan-2022
Pack Materials-Page 1
l TEXAS INSTRUMENTS TAPE AND REEL BOX DIMENSIONS
*All dimensions are nominal
Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
ISO7420DR SOIC D 8 2500 350.0 350.0 43.0
ISO7420MDR SOIC D 8 2500 350.0 350.0 43.0
ISO7421DR SOIC D 8 2500 350.0 350.0 43.0
PACKAGE MATERIALS INFORMATION
www.ti.com 5-Jan-2022
Pack Materials-Page 2
l TEXAS INSTRUMENTS T - Tube height| L - Tube length l ,g + w-Tuhe _______________ _ ______________ width 47 — B - Alignment groove width
TUBE
*All dimensions are nominal
Device Package Name Package Type Pins SPQ L (mm) W (mm) T (µm) B (mm)
ISO7420D D SOIC 8 75 505.46 6.76 3810 4
ISO7420MD D SOIC 8 75 505.46 6.76 3810 4
ISO7421D D SOIC 8 75 505.46 6.76 3810 4
PACKAGE MATERIALS INFORMATION
www.ti.com 5-Jan-2022
Pack Materials-Page 3
‘J
www.ti.com
PACKAGE OUTLINE
C
.228-.244 TYP
[5.80-6.19]
.069 MAX
[1.75]
6X .050
[1.27]
8X .012-.020
[0.31-0.51]
2X
.150
[3.81]
.005-.010 TYP
[0.13-0.25]
0 - 8 .004-.010
[0.11-0.25]
.010
[0.25]
.016-.050
[0.41-1.27]
4X (0 -15 )
A
.189-.197
[4.81-5.00]
NOTE 3
B .150-.157
[3.81-3.98]
NOTE 4
4X (0 -15 )
(.041)
[1.04]
SOIC - 1.75 mm max heightD0008A
SMALL OUTLINE INTEGRATED CIRCUIT
4214825/C 02/2019
NOTES:
1. Linear dimensions are in inches [millimeters]. Dimensions in parenthesis are for reference only. Controlling dimensions are in inches.
Dimensioning and tolerancing per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not
exceed .006 [0.15] per side.
4. This dimension does not include interlead flash.
5. Reference JEDEC registration MS-012, variation AA.
18
.010 [0.25] C A B
5
4
PIN 1 ID AREA
SEATING PLANE
.004 [0.1] C
SEE DETAIL A
DETAIL A
TYPICAL
SCALE 2.800
Yl“‘+
www.ti.com

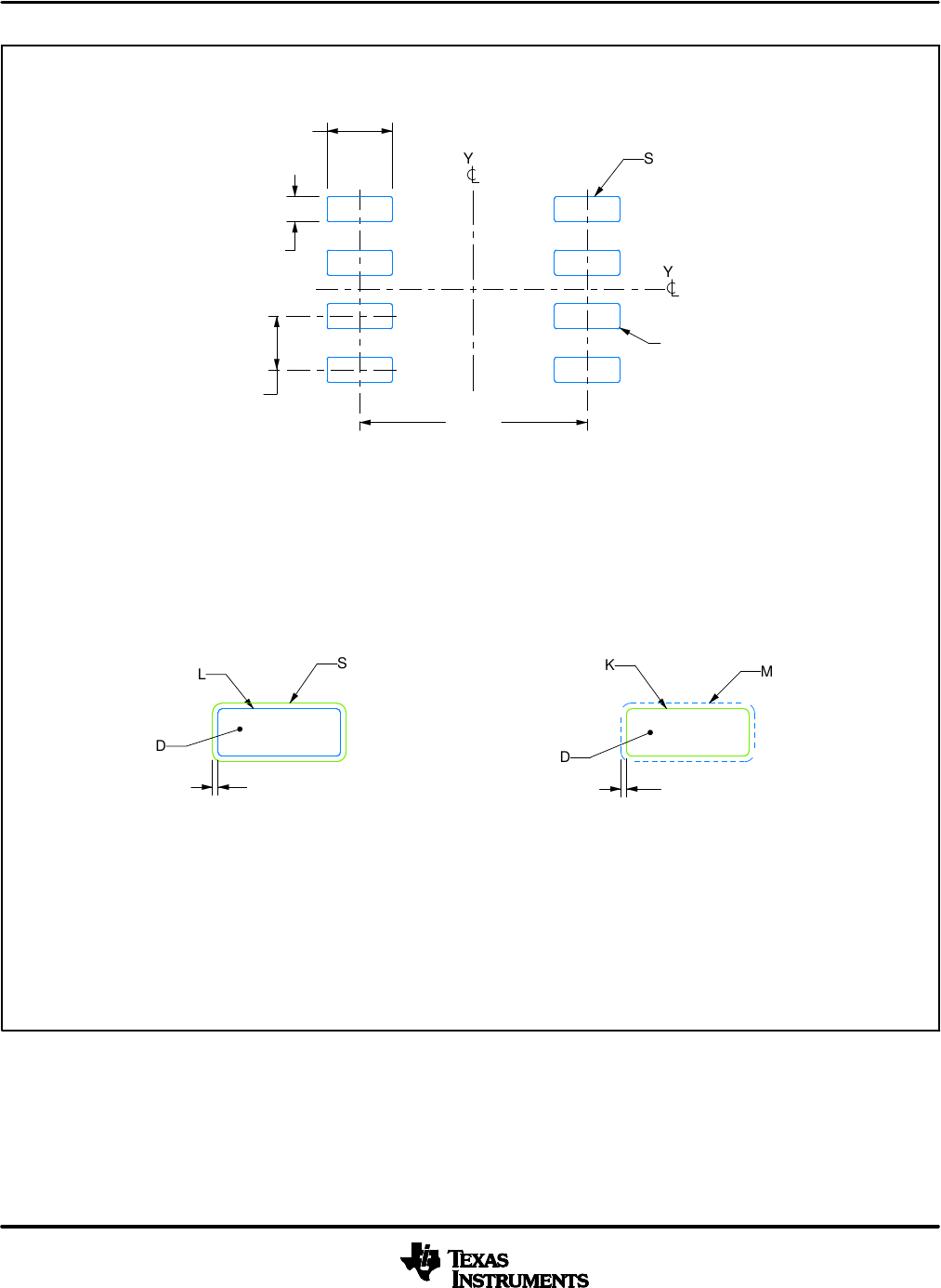

EXAMPLE BOARD LAYOUT
.0028 MAX
[0.07]
ALL AROUND
.0028 MIN
[0.07]
ALL AROUND
(.213)
[5.4]
6X (.050 )
[1.27]
8X (.061 )
[1.55]
8X (.024)
[0.6]
(R.002 ) TYP
[0.05]
SOIC - 1.75 mm max heightD0008A
SMALL OUTLINE INTEGRATED CIRCUIT
4214825/C 02/2019
NOTES: (continued)
6. Publication IPC-7351 may have alternate designs.
7. Solder mask tolerances between and around signal pads can vary based on board fabrication site.
METAL SOLDER MASK
OPENING
NON SOLDER MASK
DEFINED
SOLDER MASK DETAILS
EXPOSED
METAL
OPENING
SOLDER MASK METAL UNDER
SOLDER MASK
SOLDER MASK
DEFINED
EXPOSED
METAL
LAND PATTERN EXAMPLE
EXPOSED METAL SHOWN
SCALE:8X
SYMM
1
45
8
SEE
DETAILS
SYMM
www.ti.com

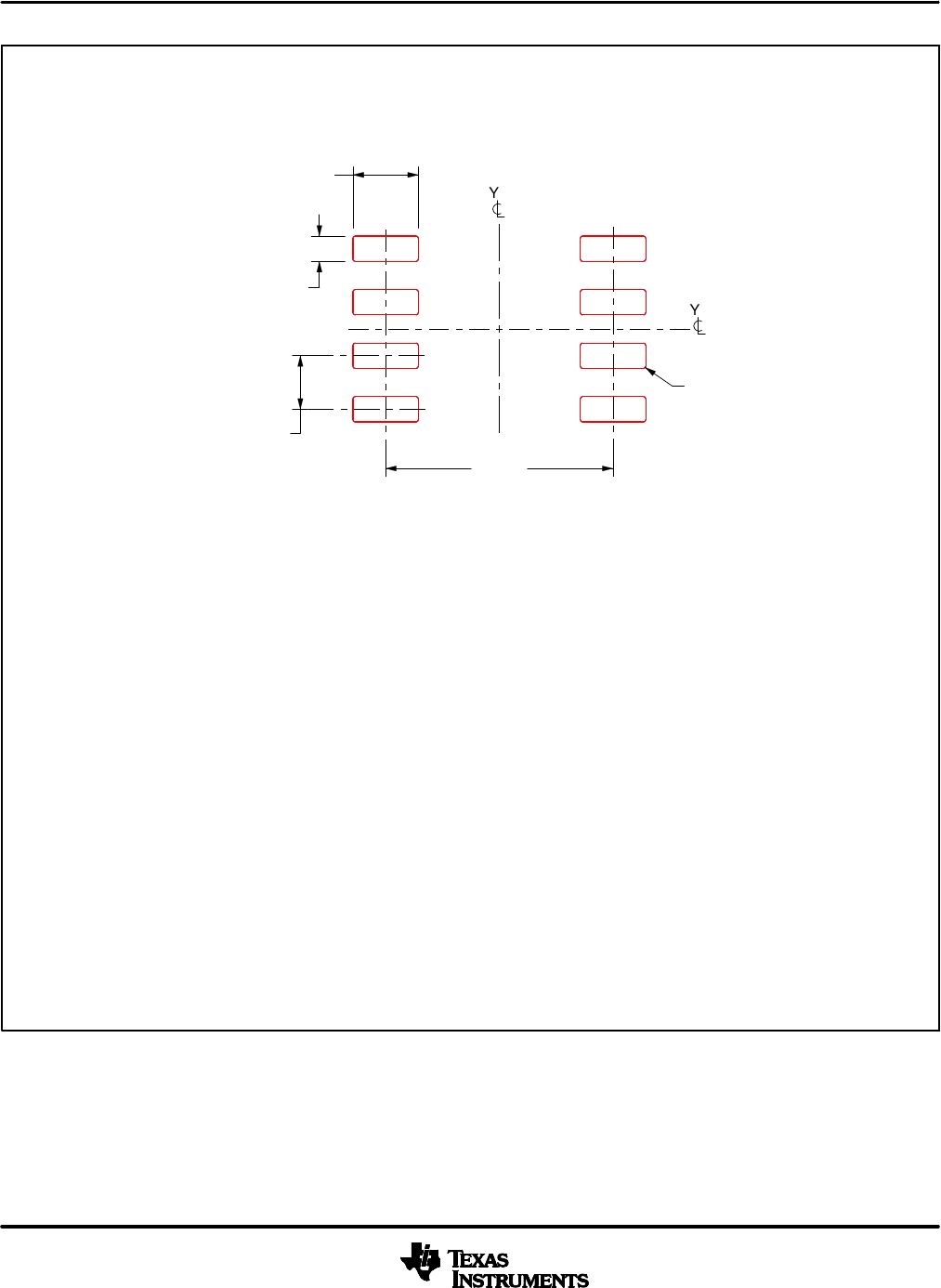

EXAMPLE STENCIL DESIGN
8X (.061 )
[1.55]
8X (.024)
[0.6]
6X (.050 )
[1.27] (.213)
[5.4]
(R.002 ) TYP
[0.05]
SOIC - 1.75 mm max heightD0008A
SMALL OUTLINE INTEGRATED CIRCUIT
4214825/C 02/2019
NOTES: (continued)
8. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate
design recommendations.
9. Board assembly site may have different recommendations for stencil design.
SOLDER PASTE EXAMPLE
BASED ON .005 INCH [0.125 MM] THICK STENCIL
SCALE:8X
SYMM
SYMM
1
45
8
IMPORTANT NOTICE AND DISCLAIMER
TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATA SHEETS), DESIGN RESOURCES (INCLUDING REFERENCE
DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”
AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD
PARTY INTELLECTUAL PROPERTY RIGHTS.
These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate
TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable
standards, and any other safety, security, regulatory or other requirements.
These resources are subject to change without notice. TI grants you permission to use these resources only for development of an
application that uses the TI products described in the resource. Other reproduction and display of these resources is prohibited. No license
is granted to any other TI intellectual property right or to any third party intellectual property right. TI disclaims responsibility for, and you
will fully indemnify TI and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these
resources.
TI’s products are provided subject to TI’s Terms of Sale or other applicable terms available either on ti.com or provided in conjunction with
such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for
TI products.
TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2022, Texas Instruments Incorporated
