DUAL GENERAL PURPOSE LOW VOLTAGE COMPARATOR
Description
The AZV393 is a low voltage 2.5V to 5.5V, dual comparator, which
has a very low supply current of 100µA, making the part an excellent
choice for portable electronic systems. The device is pin-for-pin
compatible replacement of the LMV393.
The AZV393 is built with BiCMOS process with bipolar input and
output stages for improved noise performance. It is a cost-effective
solution for portable consumer products where space, low voltage,
low power and price are the primary specification in circuit design.
The AZV393 is available in standard SOIC-8 and space saving
TSSOP-8 and MSOP-8 packages.
Features
• Guaranteed 2.5V to 5.5V Performance
• Industrial Temperature Range: -40°C to +85°C
• Low Supply Current: 100µA Typical
• Input Common Mode Voltage Range Includes Ground
• Low Output Saturation Voltage: 200mV Typical
• Open Collector Output for Maximal Flexibility
Pin Assignments
M/G/MM Package
(SOIC-8/TSSOP-8/MSOP-8)
Applications
• Notebook and PDA
• Low Power, Low Voltage Applications
• General Purpose Portable Devices
• Mobile Communications
• Battery Powered Electronics
AZV393
Document number: DS36552 Rev. 1 - 4
1 of 16
www.diodes.com September 2013
© Diodes Incorporated
Typical Applications Circuit
+V
IN
+V
REF
1/2 AZV393
V
CC
3K
V
O
+
-
100K
5V
+
-4
8
+V
IN
+V
REF
V
O
1/2 AZV393
Basic Comparator Driving CMOS
1
2
3
4
8
7
6
5
OUTPUT 1
IN 1-
IN 1+
VEE
VCC
OUTPUT 2
IN 2-
IN 2+
............ I. I. A W 3W a hiya ”my“; VW 100K 100K :W _ iww '- __________________________ 1 I Q ' : I : O M: O I : I I : 1 K : ?——K 17 ‘ —? + ‘E : : I f/ ./_—‘\. _ E ' Q l ; f f :
A
ZV393
A
Product Line o
f
Diodes Incorporated
Typical Applications Circuit
(Cont.)
AZV393
Document number: DS36552 Rev. 1 - 4
2 of 16
www.diodes.com September 2013
© Diodes Incorporated
One Shot Multivibrator Squarewave Oscillator
Functional Block Diagram
V
CC
8
OUTPUT
1,7
V
EE
4
IN+
3,5
IN-
2,6
muss. ' :3 EB
A
ZV393
A
Product Line o
f
Diodes Incorporated
AZV393
Document number: DS36552 Rev. 1 - 4
3 of 16
www.diodes.com September 2013
© Diodes Incorporated
Absolute Maximum Ratings
(Note 1)
Symbol
Parameter Rating Unit
V
CC
Power Supply Voltage 6 V
T
J
Operation Junction Temperature +150 °C
T
STG
Storage Temperature Range -65 to +150 °C
T
LEAD
Lead Temperature (Soldering, 10 seconds) +260 °C
– ESD (Machine Model) 300 V
– ESD (Human Body Model) 4000 V
Note 1: Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “Recommended Operating Conditions” is not implied.
Exposure to “Absolute Maximum Ratings” for extended periods may affect device reliability.
Recommended Operating Conditions
Symbol Parameter Min Max Unit
V
CC
Supply Voltage 2.5 5.5 V
T
A
Ambient Operating Temperature Range -40 +85 °C
2.7V DC Electrical Characteristics
(@T
A
= +25°C, V
CC
= 2.7V, V
EE
= 0V, R
L
= 5.1kΩ connected to V
CC
and V
CM
= 0, bold
typeface applies over full temperature ranges, unless otherwise specified.)
Symbol Parameter Conditions Min Typ Max Unit
V
OS
Input Offset Voltage – – 1.7 7
mV
– – – 9
TCV
OS
Input Offset Voltage Average Drift – – 5 – μV/°C
I
B
Input Bias Current I
IN
+ or I
IN
- with output in
linear range, V
CM
= 0V
– 10 250
nA
– – 400
I
IO
Input Offset Current I
IN
+ - I
IN
-, V
CM
= 0V – 5 50
nA
– – 150
V
SAT
Saturation Voltage I
SINK
≤ 1mA – 200 – mV
– – 500
I
SINK
Output Sink Current V
O
≤ 1.5V 5 23 – mA
V
CM
Input Common Mode Voltage Range – -0.1 – 2 V
I
CC
Supply Current – – 70 150
μA
– – 200
I
LEAKAGE
Output Leakage Current – – 0.003 – μA
A
ZV393
A
Product Line o
f
Diodes Incorporated
AZV393
Document number: DS36552 Rev. 1 - 4
4 of 16
www.diodes.com September 2013
© Diodes Incorporated
2.7V AC Electrical Characteristics
(@T
A
= +25°C, V
CC
= 2.7V, V
EE
= 0V, R
L
= 5.1kΩ connected to V
CC
and V
CM
= 0, unless
otherwise specified.)
Symbol Parameter Conditions Min Typ Max Unit
T
PHL
Propagation Delay (High to Low) Input Overdrive = 10mV – 1000 – ns
Input Overdrive = 100mV – 350 –
T
PLH
Propagation Delay (Low to High) Input Overdrive = 10mV – 500 – ns
Input Overdrive = 100mV – 400 –
5V DC Electrical Characteristics
(@T
A
= +25°C, V
CC
= 5V, V
EE
= 0V, R
L
= 5.1kΩ connected to V
CC
and V
CM
= 0, bold typeface
applies over full temperature ranges, unless otherwise specified.)
Symbol Parameter Conditions Min Typ Max Unit
V
OS
Input Offset Voltage – – 1.7 7
mV
– – – 9
TCV
OS
Input Offset Voltage Average Drift – – 5 – μV/°C
I
B
Input Bias Current I
IN
+ or I
IN
- with output in
linear range, V
CM
=0V
– 25 250
nA
– – 400
I
IO
Input Offset Current I
IN
+ - I
IN
-, V
CM
=0V – 2 50
nA
– – 150
V
SAT
Saturation Voltage I
SINK
≤4mA – 200 400 mV
– – 500
I
SINK
Output Sink Current V
O
≤1.5V 10 84 – mA
V
CM
Input Common Mode Voltage Range – -0.1 – 4.2 V
A
V
Voltage Gain – 20 50 – V/mV
I
CC
Supply Current – – 100 200 μA
– – 250
I
LEAKAGE
Output Leakage Current – – 0.003 – μA
5V AC Electrical Characteristics
(@T
A
= +25°C, V
CC
= 5V, V
EE
= 0V, R
L
= 5.1kΩ connected to V
CC
and V
CM
= 0, unless
otherwise specified.)
Symbol Parameter Conditions Min Typ Max Unit
T
PHL
Propagation Delay (High to Low) Input Overdrive=10mV – 600 – ns
Input Overdrive=100mV – 200 –
T
PLH
Propagation Delay (Low to High) Input Overdrive=10mV – 450 – ns
Input Overdrive=100mV – 300 –
A
ZV393
A
Product Line o
f
Diodes Incorporated
Performance Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Supply Current vs. Supply Voltage Supply Current vs. Supply Voltage
AZV393
Document number: DS36552 Rev. 1 - 4
5 of 16
www.diodes.com September 2013
© Diodes Incorporated
12345678
0
20
40
60
80
100
120
140
160
180
200
TC=-40oC
TC=25oC
TC=125oC
Supply Current (μA)
Supply Voltage (V)
Output Low
12345678
0
10
20
30
40
50
60
70
80
90
100
110
TC=-40oC
TC=25oC
TC=125oC
Supply Current (μA)
Supply Voltage (V)
Output High
Supply Current vs. Case Temperature Supply Current vs. Case Temperature
-40 -20 0 20 40 60 80 100 120
40
50
60
70
80
90
100
110
120
130
140
150
160
Supply Current (μA)
Case Tempareture (oC)
Output High
Output Low
VCC=5V, VEE=0V
-40 -20 0 20 40 60 80 100 120
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
Supply Current (μA)
Case Tempareture (oC)
Output High
Output Low
VCC=2.7V, VEE=0V
Output Voltage vs. Output Sink Current Output Voltage vs. Output Sink Current
0 102030405060708090100
-0.2
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
Output Voltage (V)
Output Sink Current (mA)
VCC=5V, VEE=0V
0 102030405060
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
3.0
Output Voltage (V)
Output Sink Current (mA)
VCC=2.7V, VEE=0V
ms. ' :3 EB
A
ZV393
A
Product Line o
f
Diodes Incorporated
Performance Characteristics
(@T
A
= +25°C, unless otherwise specified.) (Cont.)
Propagation Delay vs. Temperature Propagation Delay vs. Input Overdrive Voltage
AZV393
Document number: DS36552 Rev. 1 - 4
6 of 16
www.diodes.com September 2013
© Diodes Incorporated
-40-200 20406080100120
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
Propagation Delay (ns)
Case Temperature (oC)
TPHL to 50%
TPLH to 50%
Input Overdrive Voltage=100mV
VCC=5V, RL=5.1kΩ
0 25 50 75 100 125 150 175 200
-1
0
1
2
3
4
5
6
7
8
Propagation Delay (μs)
Input Overdrive Voltage (mV)
VCC=5V, VEE=0V
RL=5.1KΩ, TPHL to 50%
Propagation Delay vs. Input Overdrive Voltage Propagation Delay vs. Load Capacitor
0 25 50 75 100 125 150 175 200
0.16
0.17
0.18
0.19
0.20
0.21
0.22
0.23
0.24
0.25
0.26
0.27
0.28
Propagation Delay (μs)
Input Overdrive Voltage (mV)
VCC=5V, VEE=0V
RL=5.1KΩ, TPLH to 50%
25 50 75 100 125 150
100
200
300
400
500
600
700
800
TPHL to 50%
Propagation Delay (ns)
Load Capacitor (pF)
VCC=5V, VEE=0V
Input Overdrive Voltage=100mV
RL=5.1KΩ
TPLH to 50%
Saturation Voltage vs. Case Temperature
-40-200 20406080100120
80
100
120
140
160
180
200
220
240
260
Saturation Voltage (mV)
Case Temperature (0C)
VCC=5V, ISINK=4mA
VCC=2.7V, ISINK=1mA
Outmfl Outpu: Output ”L4...” Input _/ Vcc- 7V Input Output 3‘ «55.1w 1» RL=5.1Kfl Input Owrdrive Vonagmomv In at Overdrive vmmumoomv m 5|:an mi mini «‘sz A inl"\—Izomv Lm mar-Jen: .W WWW A Emu-Juan.» Input —‘ Input—1 n I) °"‘”"3v RL= 1m WW}, RL .1m ; lupux 0mm 2 V9|hgg=1DmV . Vultage onmv lflrsiommficmil «W’LMT A m J mx * _________,________ mi . Inpul overdrive w...“ lnputoverd 3 mm.— Voluge=1ODmV °""’“E ‘ \ “ Valtage=100mv ‘ ' “ zomv ‘ ‘ ‘r+—1dfiv Input a (hr snumv mi in“? w’mnag'i’m \ uzn’m
A
ZV393
A
Product Line o
f
Diodes Incorporated
Performance Characteristics
(@T
A
= +25°C, unless otherwise specified.) (Cont.)
Response Time for Positive Transition Response Time for Positive Transition
Response Time for Negative Transition Response Time for Negative Transition
Response Time for Positive Transition Response Time for Negative Transition
AZV393
Document number: DS36552 Rev. 1 - 4
7 of 16
www.diodes.com September 2013
© Diodes Incorporated
Vac-SV- Rl— .mh Input 0 . ,— [— Outpug __.—J _ Inpm Overd 've Vollage=100mV mr IDDniV ma 'zaav'xmms A'cm \ mm ___________ Vcc—5V, #1354 K0 Input Inpuk Overdrive Voltage=1ODmV Innmv m2 lunv wanna; A on '\ zn-u ompu; ‘ vcc=5v. Rt=SJKn Input . _J - e Voltage-10mv "‘mz'uoui A (M '\ 2.§~l\ Outpu; Input Overd ' um vuio’mv"'~r m ' re
A
ZV393
A
Product Line o
f
Diodes Incorporated
Performance Characteristics
(@T
A
= +25°C, unless otherwise specified.) (Cont.)
100kHz Response 100kHz Response
500kHz Response
AZV393
Document number: DS36552 Rev. 1 - 4
8 of 16
www.diodes.com September 2013
© Diodes Incorporated
moles. ' :3 EB £393 El EI-EI ALL
A
ZV393
A
Product Line o
f
Diodes Incorporated
Ordering Information
AZV393
-
AZV393
Document number: DS36552 Rev. 1 - 4
9 of 16
www.diodes.com September 2013
© Diodes Incorporated
Circuit Type
E1: Lead Free
G1: Green
Package
M: SOIC-8
G: TSSOP-8
MM: MSOP-8
Blank: Tube
TR: Tape & Reel
Package Temperature
Range
Part Number Marking ID Packing Type
Lead Free Green Lead Free Green
SOIC-8 -40 to +85°C
AZV393M-E1 AZV393M-G1 AZV393M-E1 AZV393M-G1 Tube
AZV393MTR-E1 AZV393MTR-G1 AZV393M-E1 AZV393M-G1 Tape & Reel
TSSOP-8 -40 to +85°C
AZV393G-E1 AZV393G-G1 EG3D GG3D Tube
AZV393GTR-E1 AZV393GTR-G1 EG3D GG3D Tape & Reel
MSOP-8 -40 to +85°C
AZV393MM-E1 AZV393MM-G1 AZV393MM-E1 AZV393MM-G1 Tube
AZV393MMTR-E1 AZV393MMTR-G1 AZV393MM-E1 AZV393MM-G1 Tape & Reel
BCD Semiconductor's Pb-free products, as designated with "E1" suffix in the part number, are RoHS compliant. Products with “G1” suffix are available in green
packages.
ms. ’ :3 EB
A
ZV393
A
Product Line o
f
Diodes Incorporated
Package Outline Dimensions
(All dimensions in mm(inch).)
SOIC-8
0°
8°
1°
7°
R0.150(0.006)
R0.150(0.006)
1.000(0.039)
0.300(0.012)
0.510(0.020)
1.350(0.053)
1.750(0.069)
0.100(0.004)
0.300(0.012)
0.900(0.035)
3.800(0.150)
4.000(0.157)
7°
7°
20:1
D
1.270(0.050)
TYP
0.150(0. 006)
0.250(0. 010)
8°
D
5.800(0. 228)
6.200(0. 244)
0.675(0.027)
0.725(0.029)
0.320(0.013)
8°
0. 450(0. 017)
0. 800(0. 031)
4.700(0.185)
5.100(0.201)
Note: Eject hole , oriented hole and mold mark is optional .
Option 1
Option 1
Option 2
0.350(0.014)
TYP
TYP
TYP
TYP
AZV393
Document number: DS36552 Rev. 1 - 4
10 of 16
www.diodes.com September 2013
© Diodes Incorporated
2900(0 114) 3‘1 00(1) 122) SEE DETA1L A \ '1' 1) 050(1) 002) 1) 150(0 006) 71) 000(1) 031) 1 050(0 041) HHHHi 1 200(1) 047) 1 950(1) 077) TVP 0 090(1) 004) 0 200(1) 005) 12 ° TOP & BOTTOM R1) 090(1) 004) R1) 090(1) 004) GAGE PLANE PLANE 1) 250(0 010) WP Note Elem hole, oriented hale and mold mark 15 ophona‘ SEATWG 0 450(1) 010) 1) 750(1) 030) 1 000(1) 039) REF DETA1LA
A
ZV393
A
Product Line o
f
Diodes Incorporated
Package Outline Dimensions
(Cont.) (All dimensions in mm(inch).)
TSSOP-8
4.300(0.169)
0.400(0.016)
6.400(0.252)
4.500(0.177)
TYP
0.650(0.026)
TYP
AZV393
Document number: DS36552 Rev. 1 - 4
11 of 16
www.diodes.com September 2013
© Diodes Incorporated
m5 \ IIIII u some mzmrp 0 650(0 uzemrp ; o,15u(0.oufi)TVP o.750(u.oau) osmwma) 0.300(01131) ' 1.200(011T7) 290m a 10m ‘ i Note Elem he‘a onenfied hole and mold mark ‘5 opmnal
A
ZV393
A
Product Line o
f
Diodes Incorporated
Package Outline Dimensions
(Cont.) (All dimensions in mm(inch).)
MSOP-8
4.700(0.185)
5.100(0.201)
0.400(0.016)
0.800(0.031)
0.000(0.000)
0.200(0.008)
3.100(0.122)
2.900(0.114)
AZV393
Document number: DS36552 Rev. 1 - 4
12 of 16
www.diodes.com September 2013
© Diodes Incorporated
’\ IIIII IIIIIIIIIIIIIII
A
ZV393
A
Product Line o
f
Diodes Incorporated
Suggested Pad Layout
SOIC-8
Grid
placement
courtyard
ZG
Y
EX
Dimensions Z
(mm)/(inch)
G
(mm)/(inch)
X
(mm)/(inch)
Y
(mm)/(inch)
E
(mm)/(inch)
Value 6.900/0.272 3.900/0.154 0.650/0.026 1.500/0.059 1.270/0.050
AZV393
Document number: DS36552 Rev. 1 - 4
13 of 16
www.diodes.com September 2013
© Diodes Incorporated
,,,,,,,,,,,,,,,,,,,,,,,,,
A
ZV393
A
Product Line o
f
Diodes Incorporated

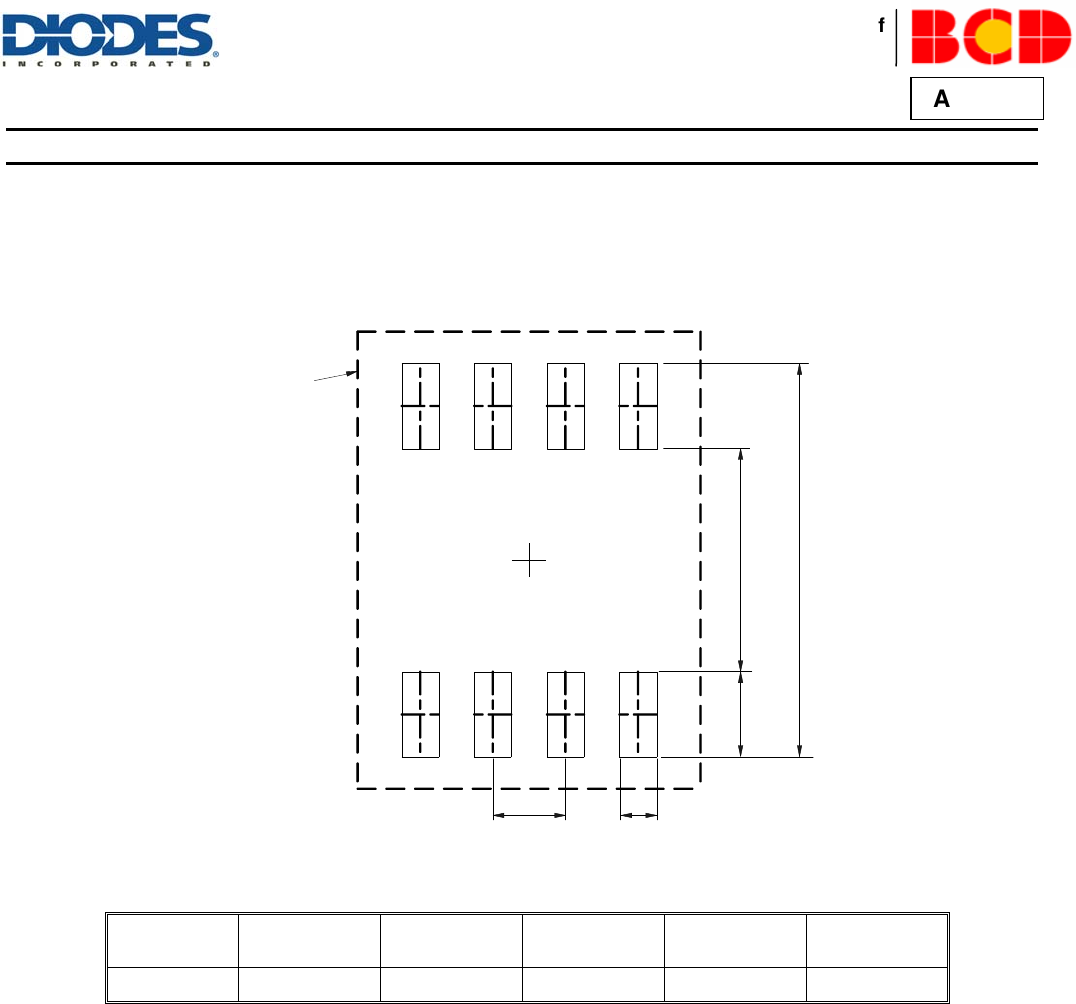

Suggested Pad Layout
(Cont.)
TSSOP-8
AZV393
Document number: DS36552 Rev. 1 - 4
14 of 16
www.diodes.com September 2013
© Diodes Incorporated
Dimensions Z
(mm)/(inch)
G
(mm)/(inch)
X
(mm)/(inch)
Y
(mm)/(inch)
E
(mm)/(inch)
E1
(mm)/(inch)
Value 7.720/0.304 4.160/0.164 0.420/0.017 1.780/0.070 0.650/0.026 1.950/0.077
A
ZV393
A
Product Line o
f
Diodes Incorporated
Suggested Pad Layout
(Cont.)
MSOP-8
X
E
Y
GZ
Dimensions Z
(mm)/(inch)
G
(mm)/(inch)
X
(mm)/(inch)
Y
(mm)/(inch)
E
(mm)/(inch)
Value 5.500/0.217 2.800/0.110 0.450/0.018 1.350/0.053 0.650/0.026
AZV393
Document number: DS36552 Rev. 1 - 4
15 of 16
www.diodes.com September 2013
© Diodes Incorporated
m5 ‘\ IIIII AZV393 15 0'16 Document number DSBBSSZ Rev 174 WWW.diOdeS.COm
AZV393
Document number: DS36552 Rev. 1 - 4
16 of 16
www.diodes.com September 2013
© Diodes Incorporated
A
ZV393
A
Product Line o
f
Diodes Incorporated
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2013, Diodes Incorporated
www.diodes.com
