This is information on a product in full production.
September 2018 DS6520 Rev 30 1/47
M24512-W M24512-R
M24512-DF
512-Kbit serial I²C bus EEPROM
Datasheet - production data
Features
•Compatible with all I2C bus modes:
–1 MHz
– 400 kHz
– 100 kHz
•Memory array:
– 512 Kbit (64 Kbyte) of EEPROM
– Page size: 128 byte
– Additional Write lockable page (M24512-D
order codes)
•Single supply voltage and high speed:
– 1 MHz clock from 1.7 V to 5.5 V
• Write:
– Byte Write within 5 ms
– Page Write within 5 ms
•Operating temperature range:
– from -40 °C up to +85 °C
•Random and sequential Read modes
•Write protect of the whole memory array
•Enhanced ESD/Latch-Up protection
•More than 4 million Write cycles
•More than 200-years data retention

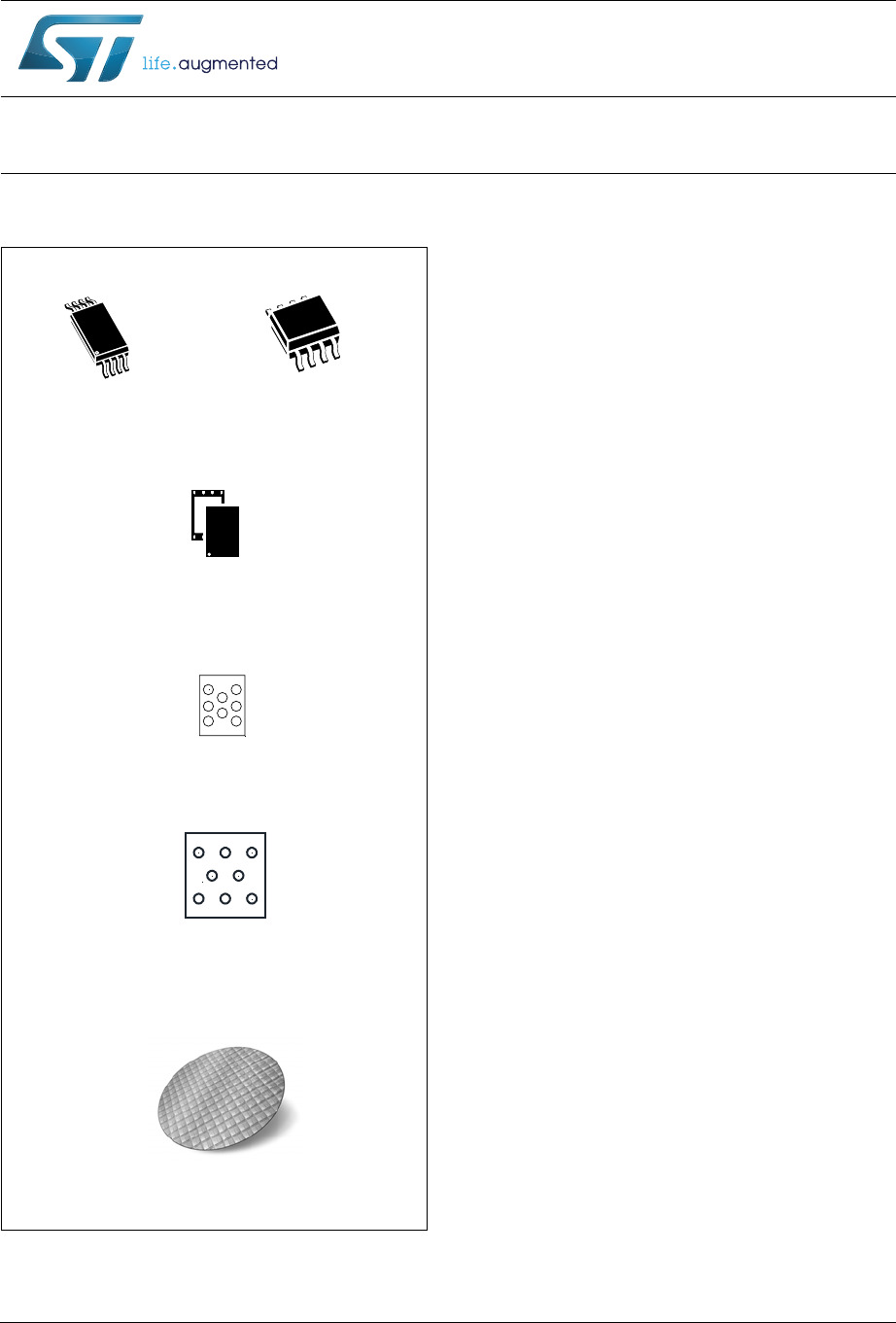

Packages
•SO8 ECOPACK2®
•TSSOP8 ECOPACK2®
•UFDFPN8 ECOPACK2®
•WLCSP ECOPACK2®
•Unsawn wafer (each die is tested)
UFDFPN8 (MC)
DFN8 - 2x3 mm
SO8 (MN)
150 mil width
TSSOP8 (DW)
169 mil width
WLCSP (CS)
Unsawn wafer
WLCSP (CU)
www.st.com
Contents M24512-W M24512-R M24512-DF
2/47 DS6520 Rev 30
Contents
1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Signal description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1 Serial Clock (SCL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Serial Data (SDA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Chip Enable (E2, E1, E0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Write Control (WC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.5 VSS (ground) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.6 Supply voltage (VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.6.1 Operating supply voltage (VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.6.2 Power-up conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.6.3 Device reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.6.4 Power-down conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Memory organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 Device operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1 Start condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.2 Stop condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.3 Data input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.4 Acknowledge bit (ACK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.5 Device addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5 Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.1 Write operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.1.1 Byte Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.1.2 Page Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.1.3 Write Identification Page (M24512-D only) . . . . . . . . . . . . . . . . . . . . . . 17
5.1.4 Lock Identification Page (M24512-D only) . . . . . . . . . . . . . . . . . . . . . . . 17
5.1.5 ECC (Error Correction Code) and Write cycling . . . . . . . . . . . . . . . . . . 17
5.1.6 Minimizing Write delays by polling on ACK . . . . . . . . . . . . . . . . . . . . . . 18
5.2 Read operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.2.1 Random Address Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
DS6520 Rev 30 3/47
M24512-W M24512-R M24512-DF Contents
3
5.2.2 Current Address Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.2.3 Sequential Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3 Read Identification Page (M24512-D only) . . . . . . . . . . . . . . . . . . . . . . . 20
5.4 Read the lock status (M24512-D only) . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6 Initial delivery state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7 Maximum rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8 DC and AC parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9 Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
9.1 UFDFPN8 (DFN8) package information . . . . . . . . . . . . . . . . . . . . . . . . . . 33
9.2 TSSOP8 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
9.3 SO8N package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9.4 WLCSP8 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.5 WLCSP8 ultra thin package information . . . . . . . . . . . . . . . . . . . . . . . . . 40
10 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
11 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
List of tables M24512-W M24512-R M24512-DF
4/47 DS6520 Rev 30
List of tables
Table 1. Signal names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Table 2. Signals vs. bump position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Table 3. Device select code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table 4. Most significant address byte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Table 5. Least significant address byte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Table 6. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Table 7. Operating conditions (voltage range W) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Table 8. Operating conditions (voltage range R) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Table 9. Operating conditions (voltage range F) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Table 10. AC measurement conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Table 11. Input parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Table 12. Cycling performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Table 13. Memory cell data retention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Table 14. DC characteristics (M24512-W, device grade 6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Table 15. DC characteristics (M24512-R device grade 6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Table 16. DC characteristics (M24512-DF, device grade 6). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Table 17. 400 kHz AC characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Table 18. 1 MHz AC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Table 19. UFDFPN8 – 2x3 mm, 0.55 thickness, ultra thin fine pitch dual flat package,
no lead - package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Table 20. TSSOP8 – 3 x 4.4 mm, 0.65 mm pitch, 8-lead thin shrink small outline,
package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Table 21. SO8N – 3.9x4.9 mm, 8-lead plastic small outline, 150 mils body width,
package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Table 22. WLCSP - 8 bumps, 1.271 x 1.937 mm, 0.5 mm pitch wafer level chip scale
package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Table 23. WLCSP - 8 balls, 1.289x1.955 mm, 1 mm pitch, wafer level chip scale
mechanical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Table 24. Ordering information scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Table 25. Ordering information scheme (unsawn wafer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Table 26. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
DS6520 Rev 30 5/47
M24512-W M24512-R M24512-DF List of figures
5
List of figures
Figure 1. Logic diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Figure 2. 8-pin package connections, top view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Figure 3. WLCSP connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 4. Chip enable inputs connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 5. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

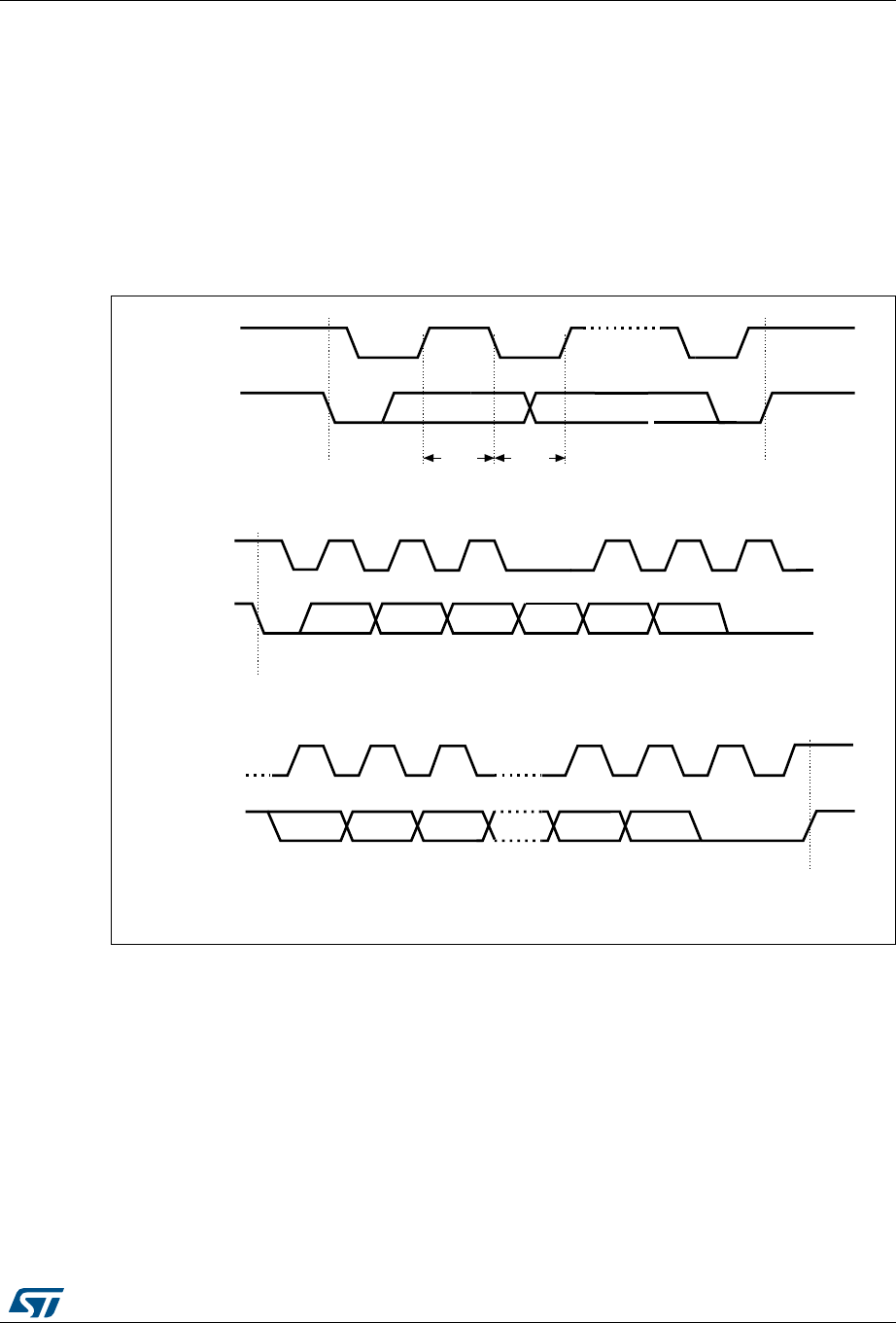

Figure 6. I2C bus protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

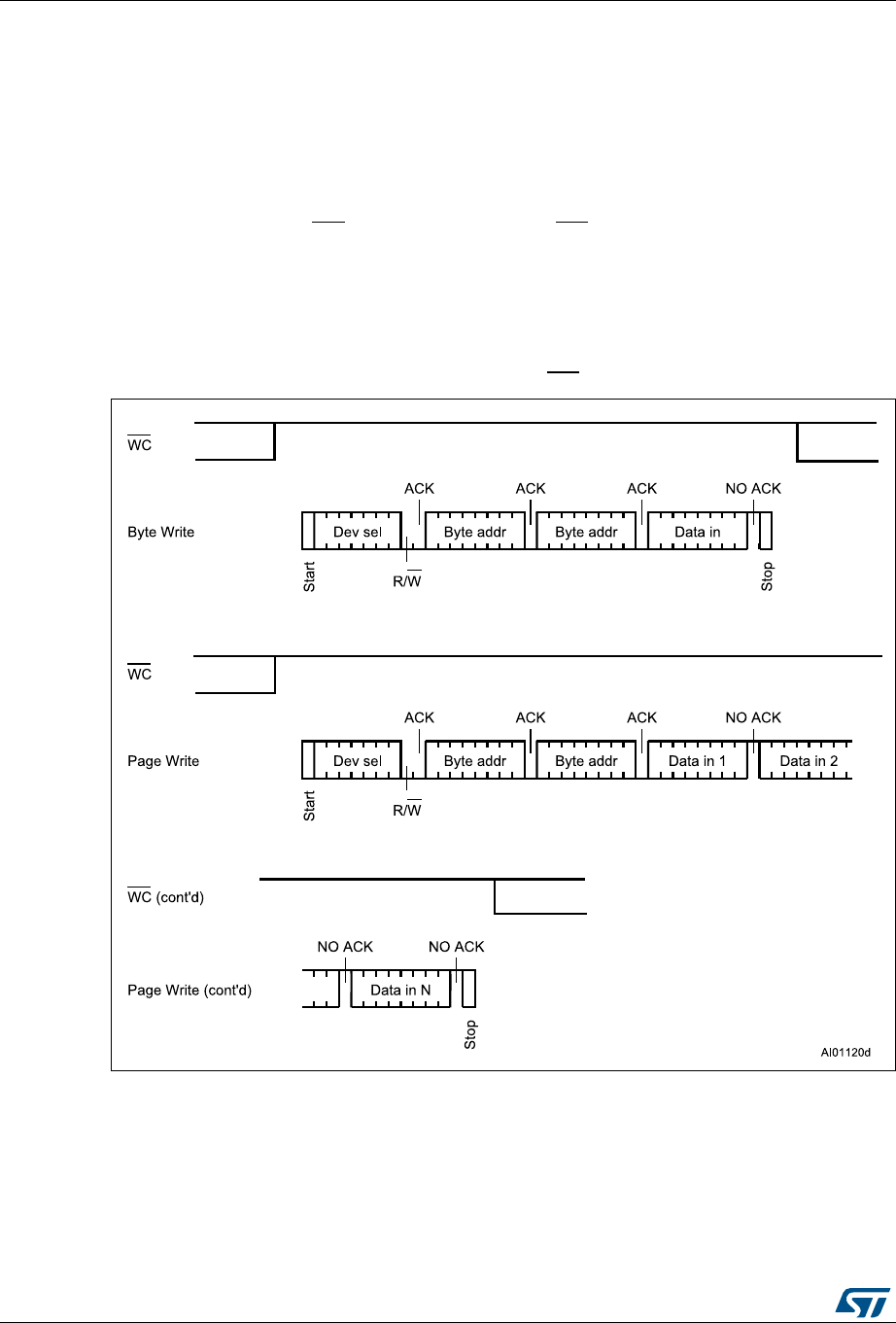

Figure 7. Write mode sequences with WC = 0 (data write enabled) . . . . . . . . . . . . . . . . . . . . . . . . . 15

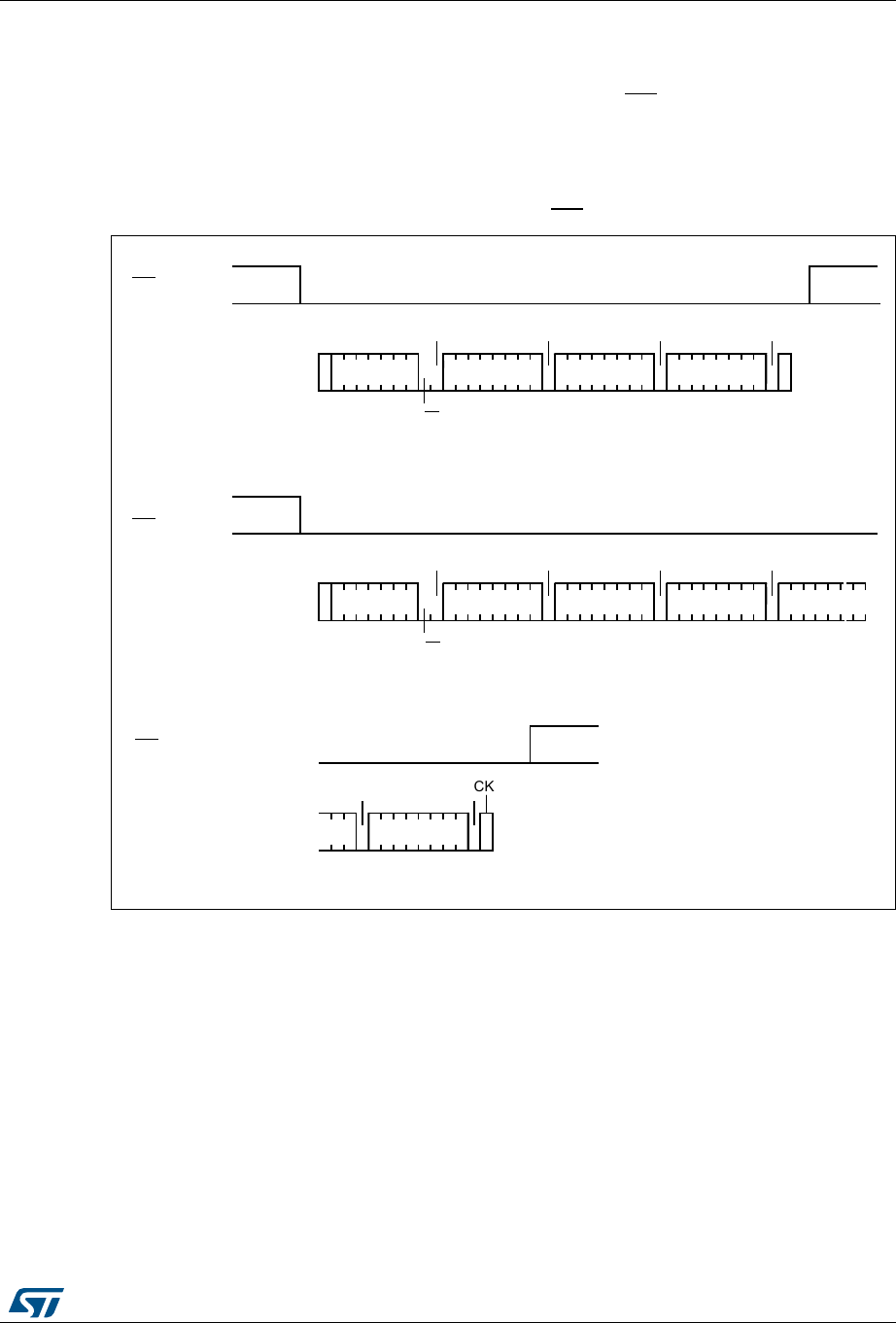

Figure 8. Write mode sequences with WC = 1 (data write inhibited) . . . . . . . . . . . . . . . . . . . . . . . . . 16

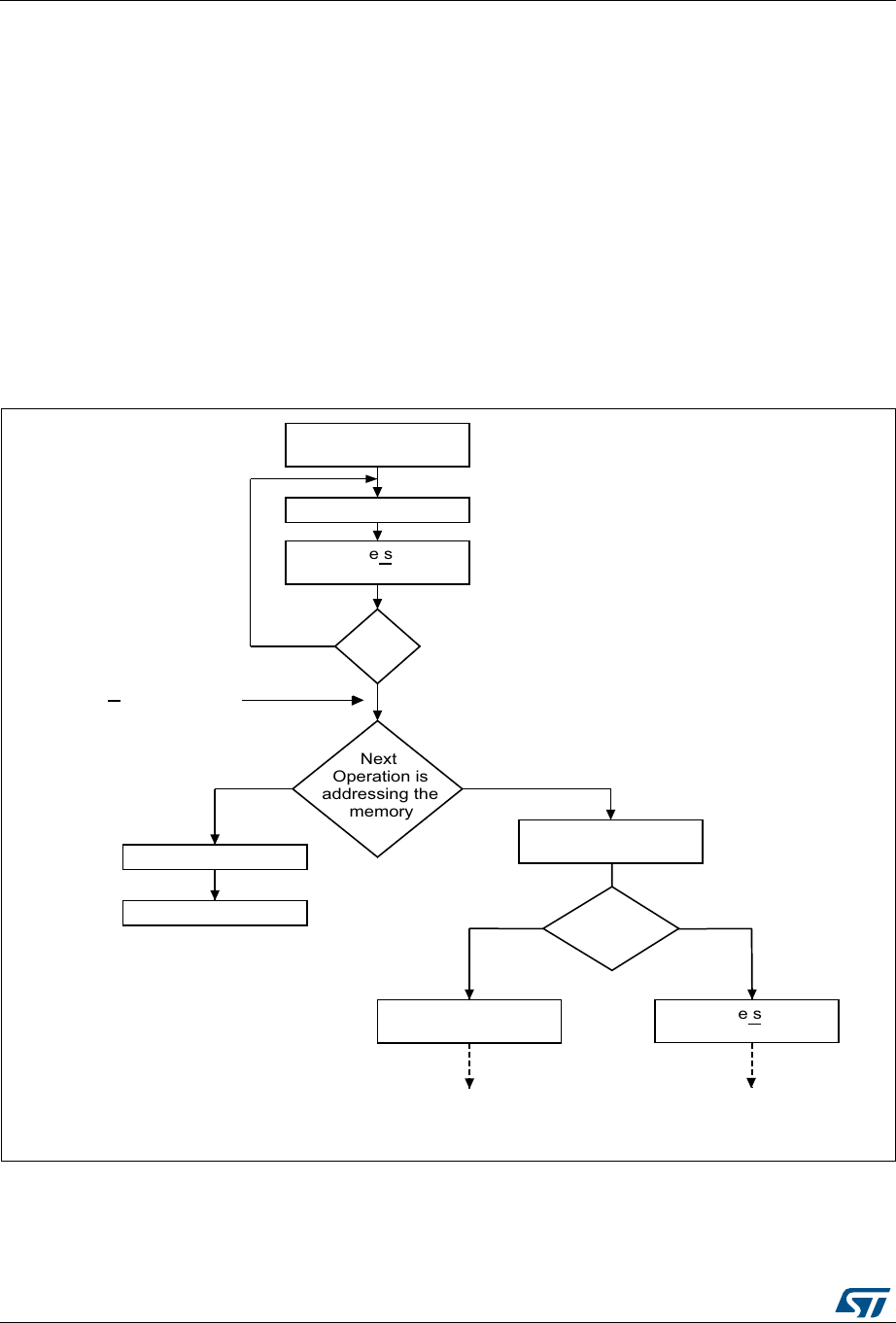

Figure 9. Write cycle polling flowchart using ACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

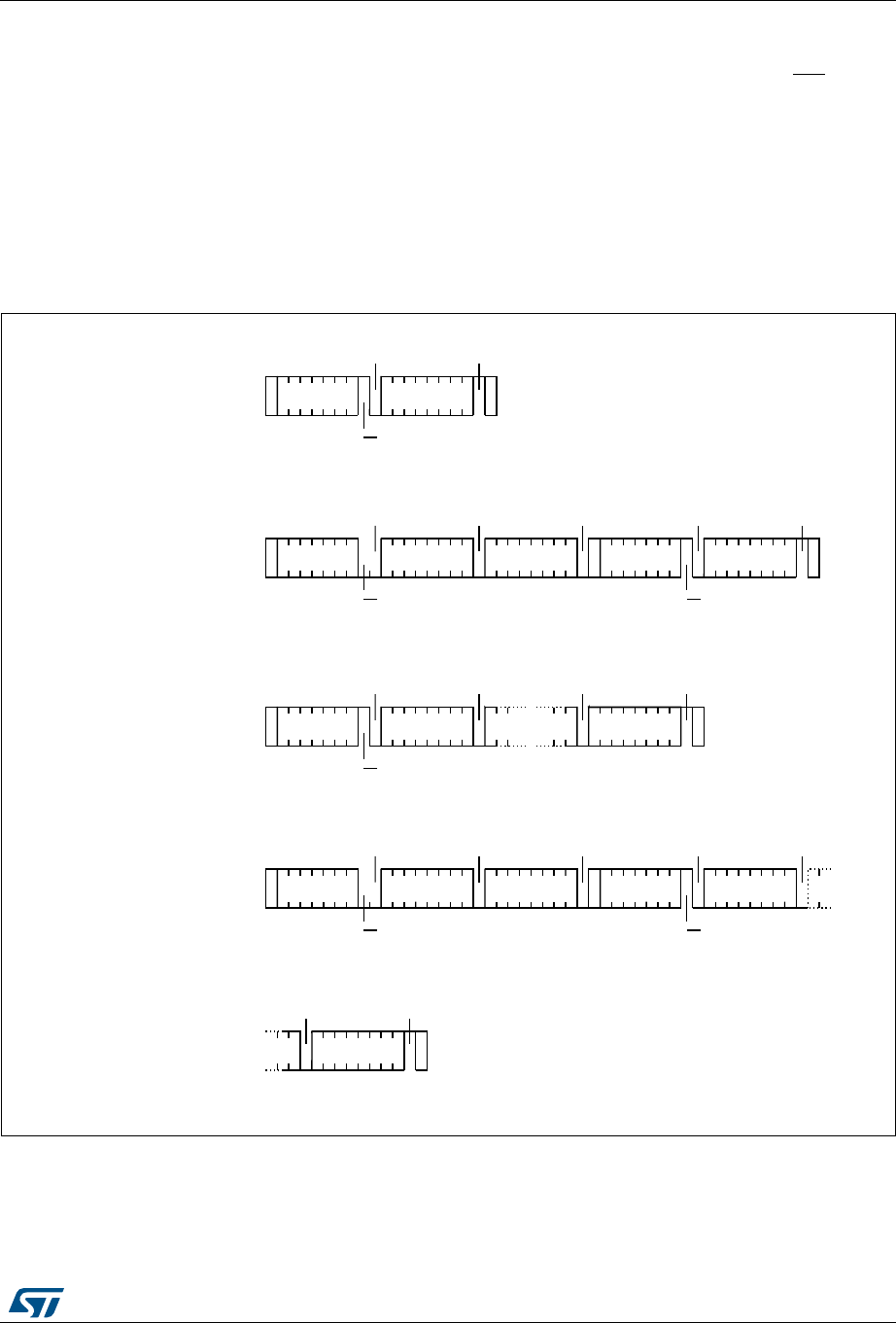

Figure 10. Read mode sequences. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

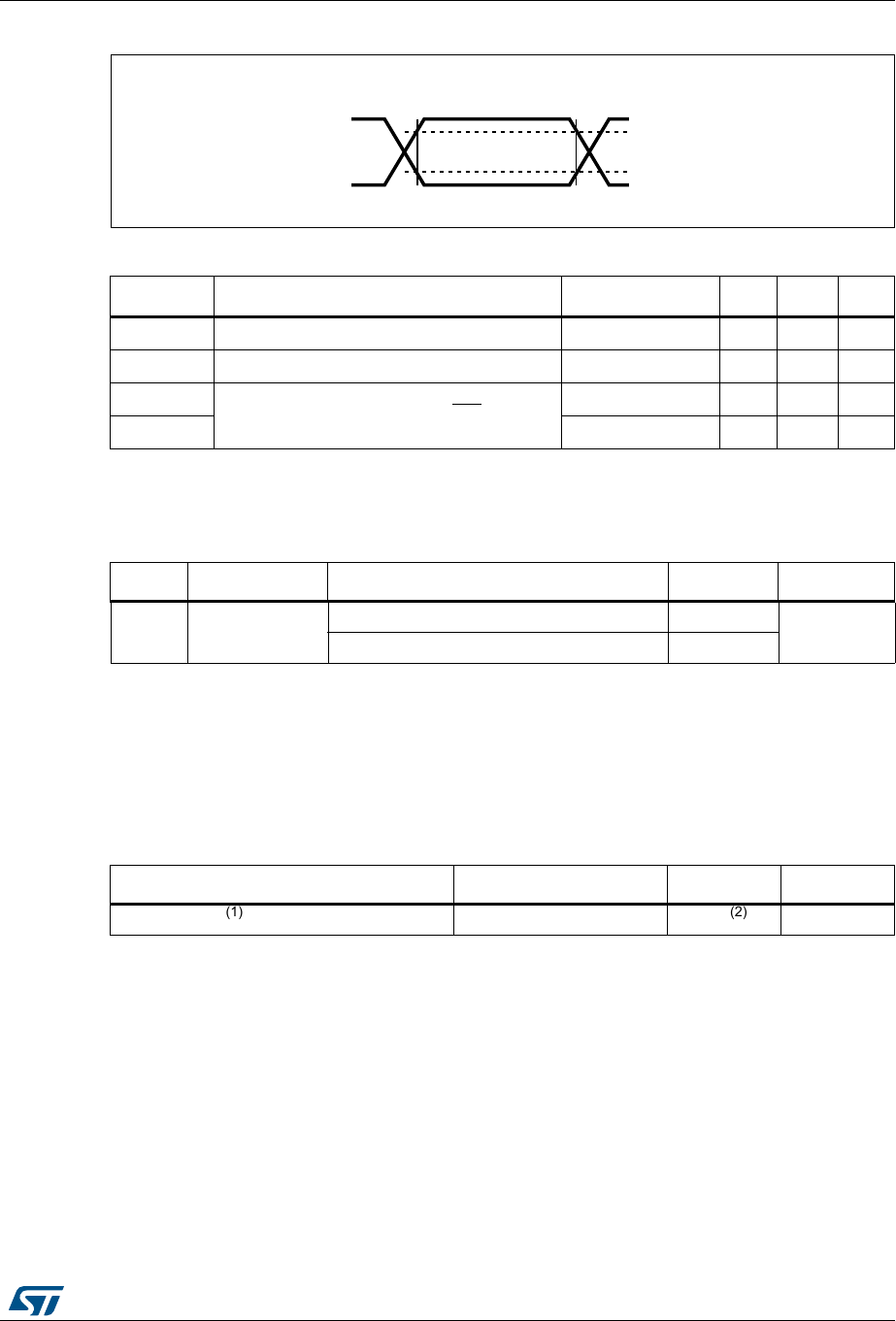

Figure 11. AC measurement I/O waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

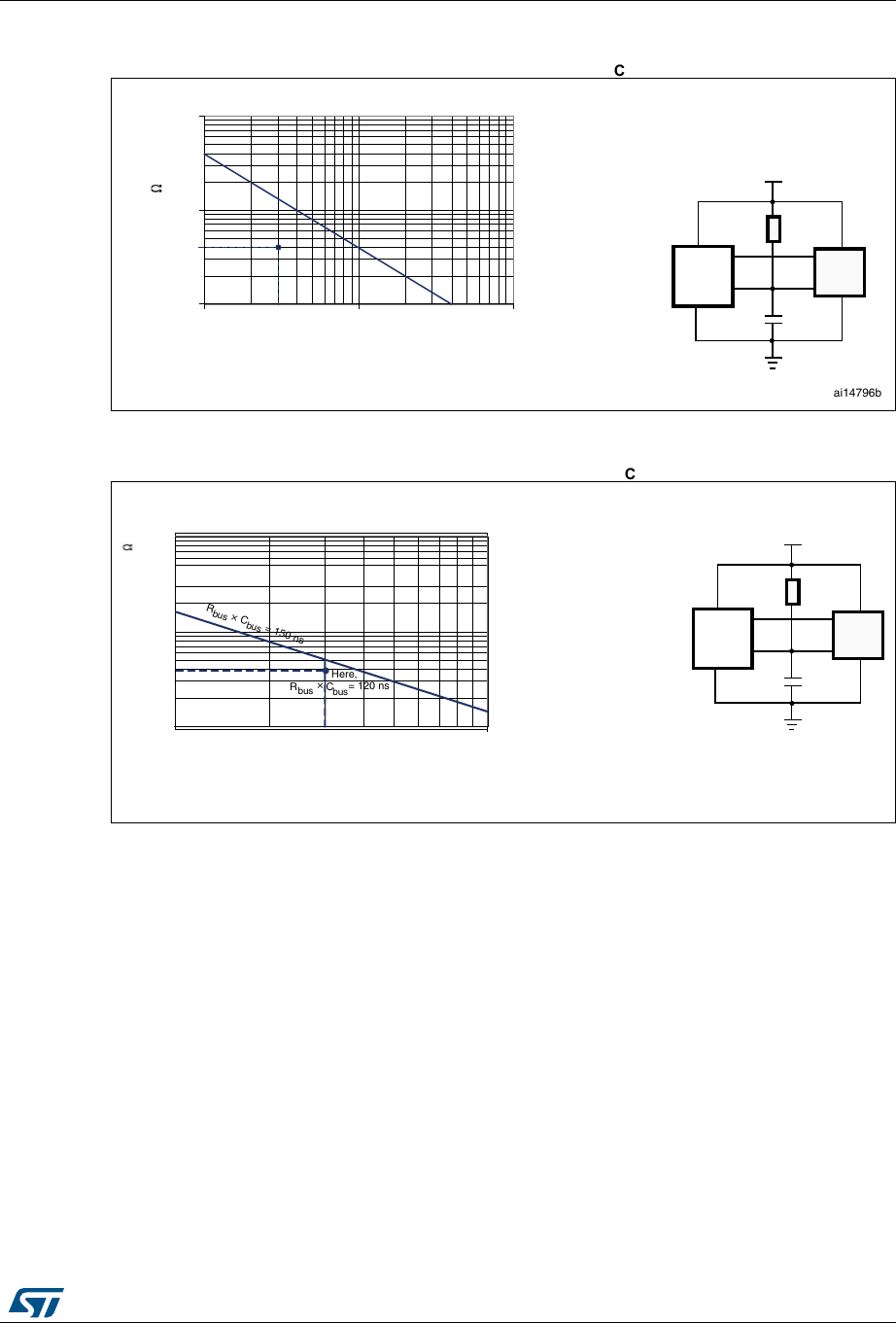

Figure 12. Maximum Rbus value versus bus parasitic capacitance (Cbus) for
an I2C bus at maximum frequency fC = 400 kHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Figure 13. Maximum Rbus value versus bus parasitic capacitance Cbus) for
an I2C bus at maximum frequency fC = 1MHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

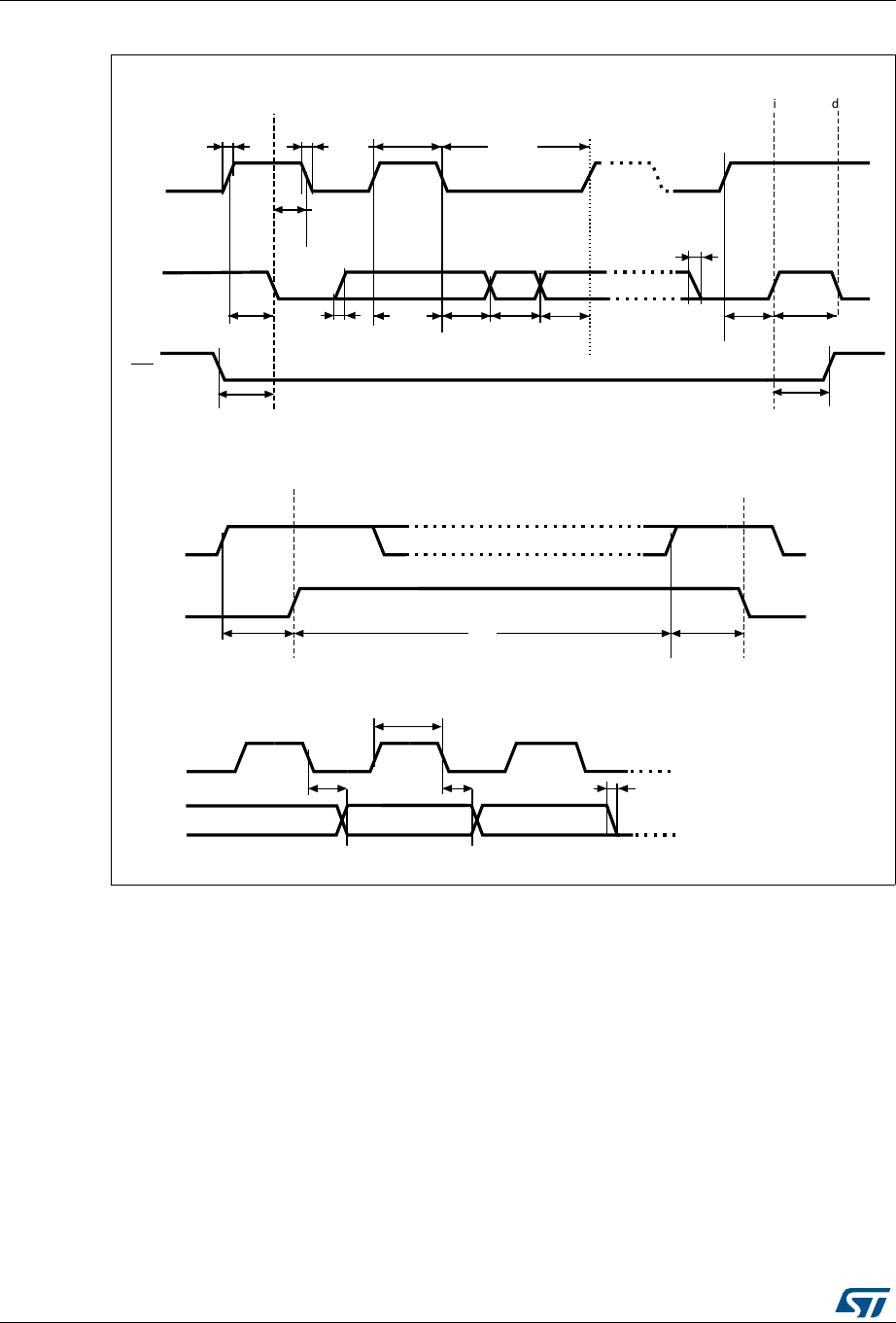

Figure 14. AC waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

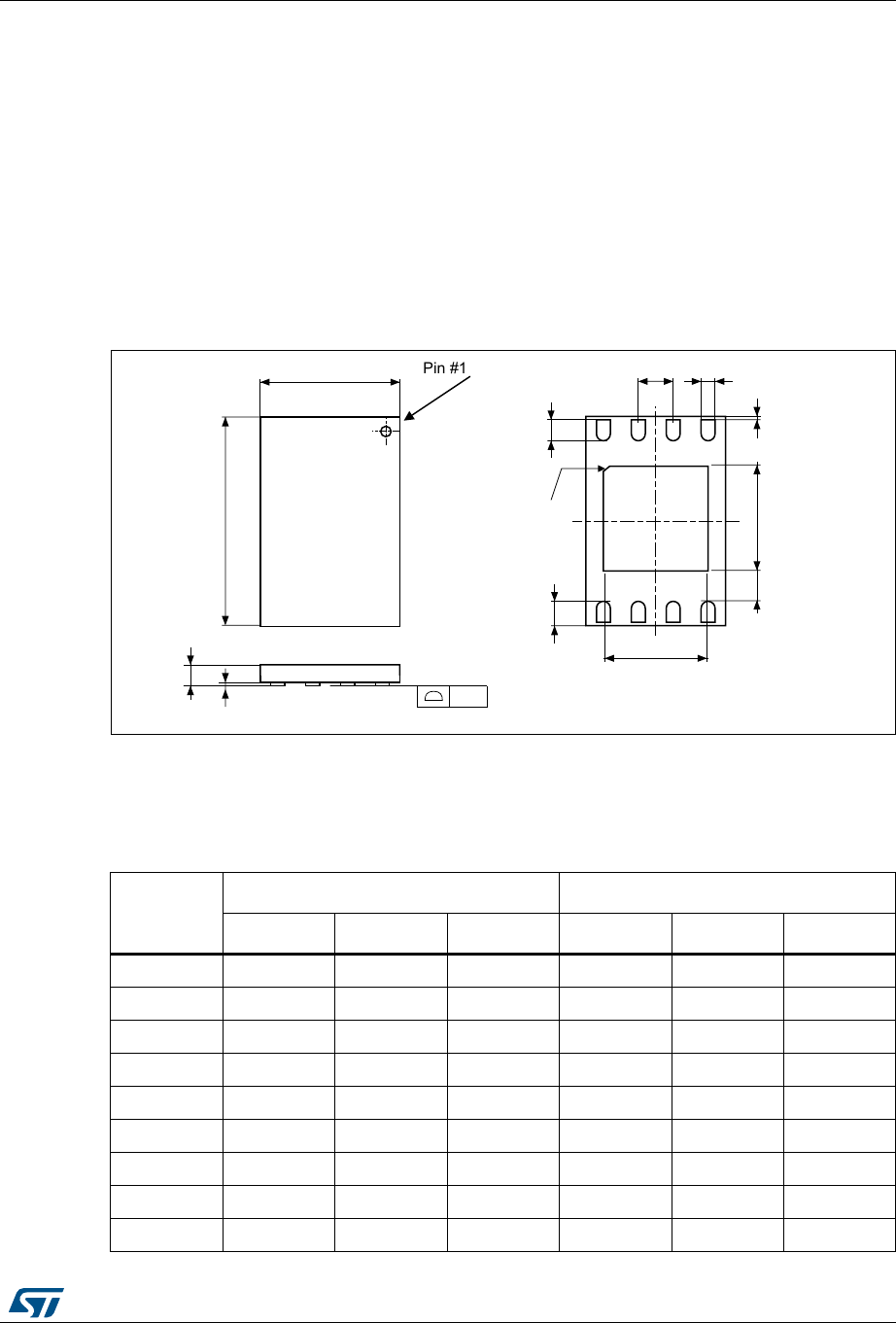

Figure 15. UFDFPN8 – 2x3 mm, 0.55 thickness, ultra thin fine pitch
dual flat package, no lead - package outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

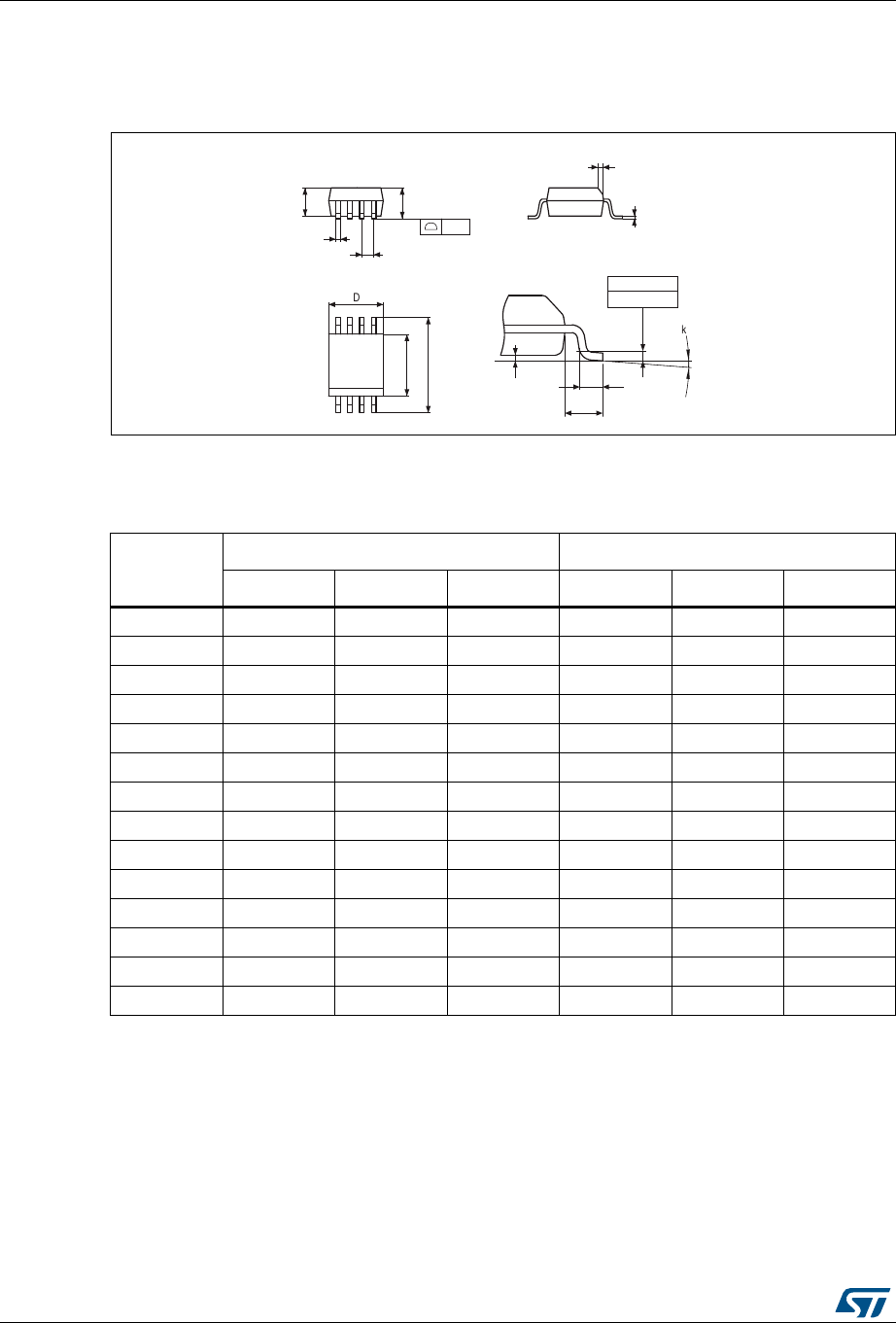

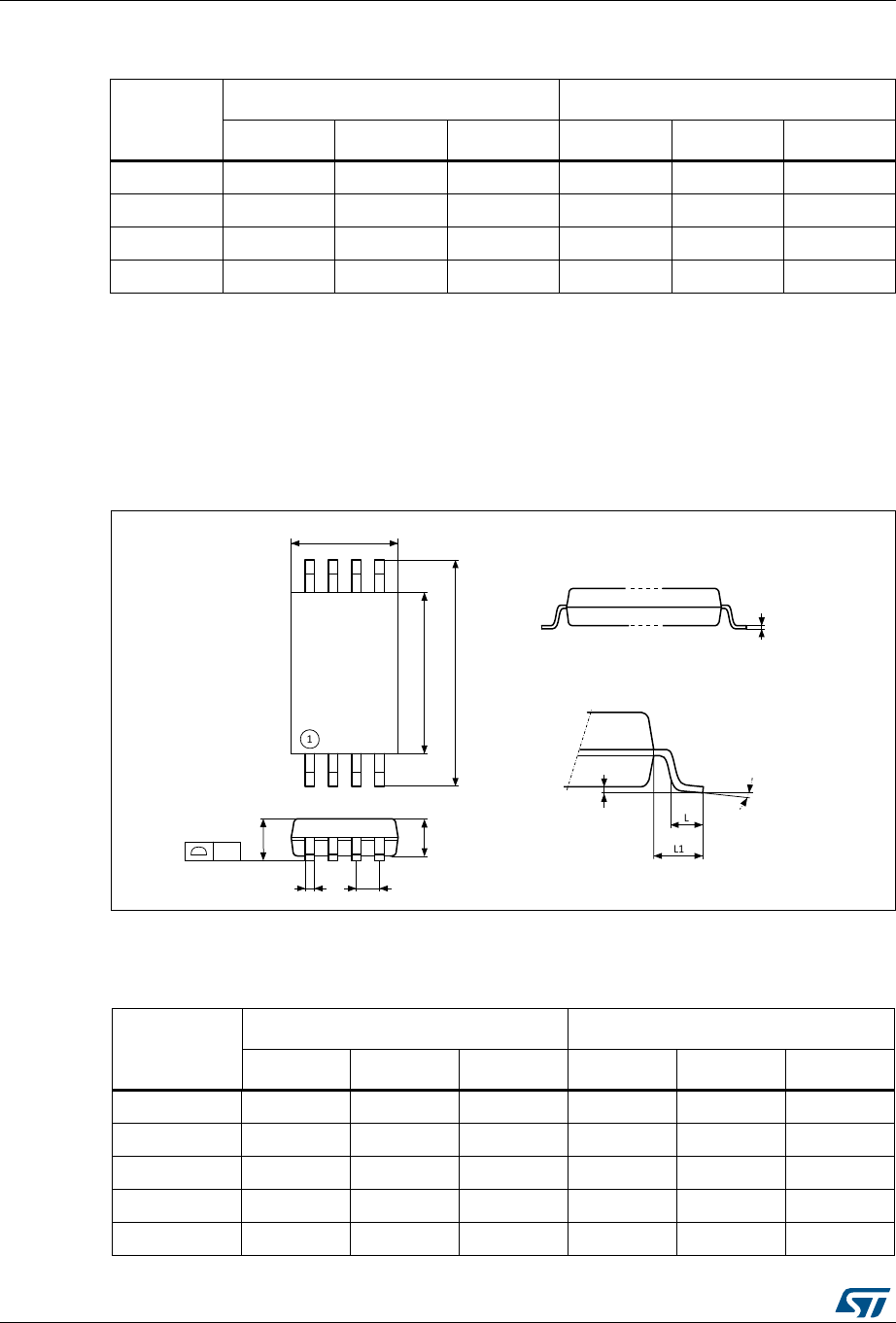

Figure 16. TSSOP8 – 3x4.4 mm, 0.65 mm pitch, 8-lead thin shrink small outline,
package outline. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Figure 17. SO8N – 3.9x4.9 mm, 8-lead plastic small outline, 150 mils body width, package outline . 36
Figure 18. SO8N – 3.9x4.9 mm, 8-lead plastic small outline, 150 mils body width,
package recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Figure 19. WLCSP - 8 bumps, 1.271 x 1.937 mm, 0.5 mm pitch wafer level chip scale
package outline. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Figure 20. WLCSP - 8 bumps, 1.271 x 1.937 mm, 0.5 mm pitch wafer level chip scale
package recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

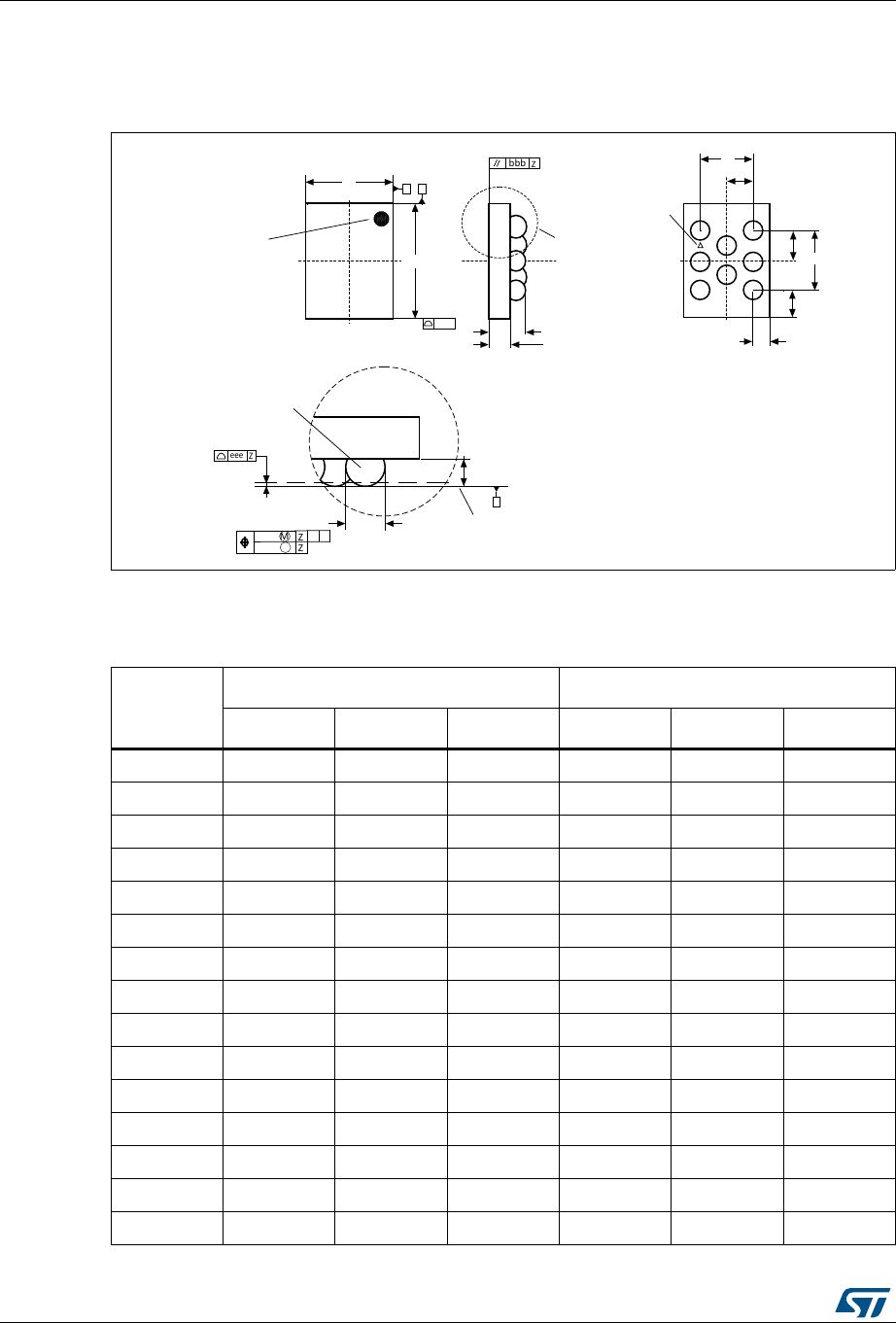

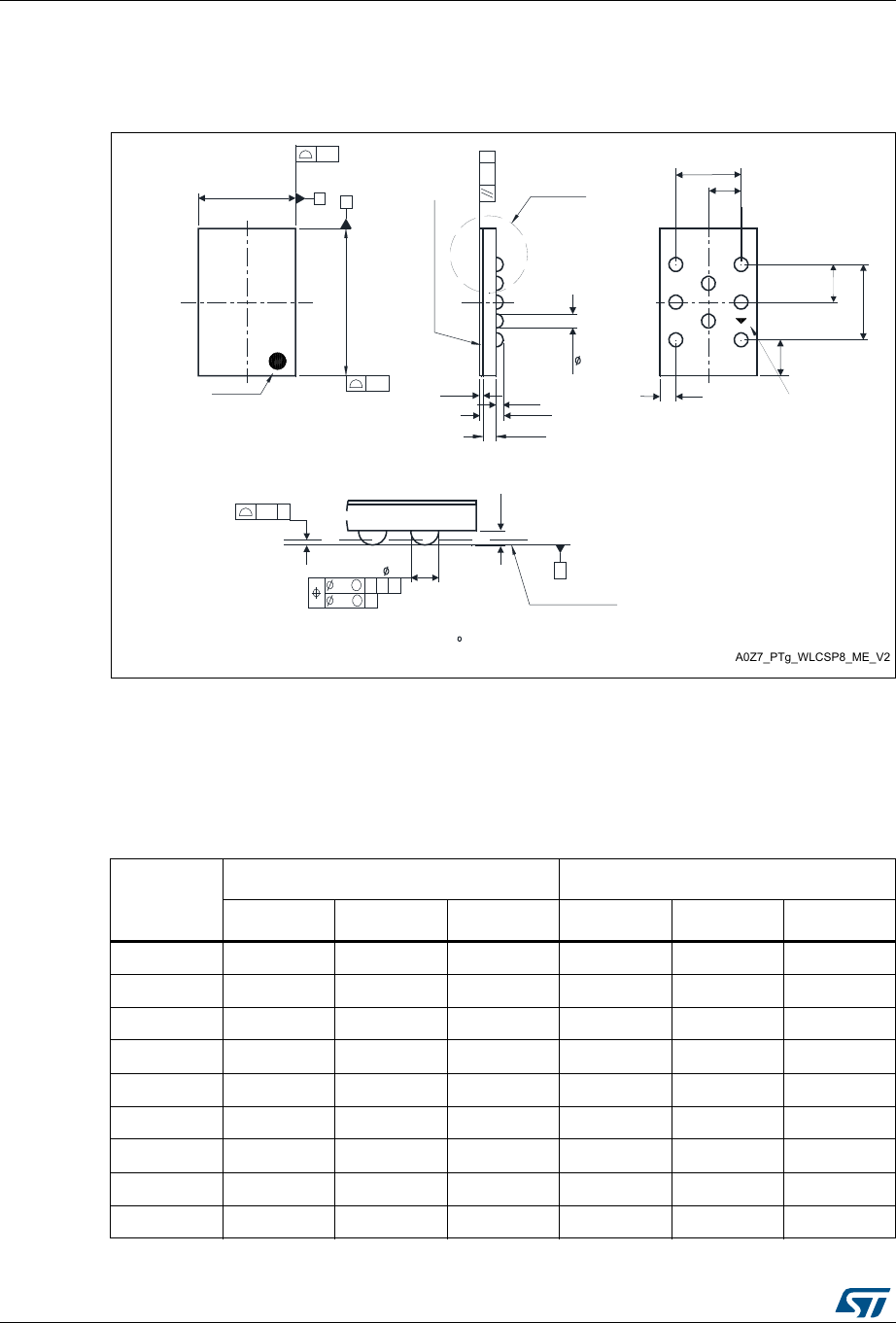

Figure 21. WLCSP - 8 balls, 1.289x1.955 mm, 1 mm pitch, wafer level chip scale
package outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

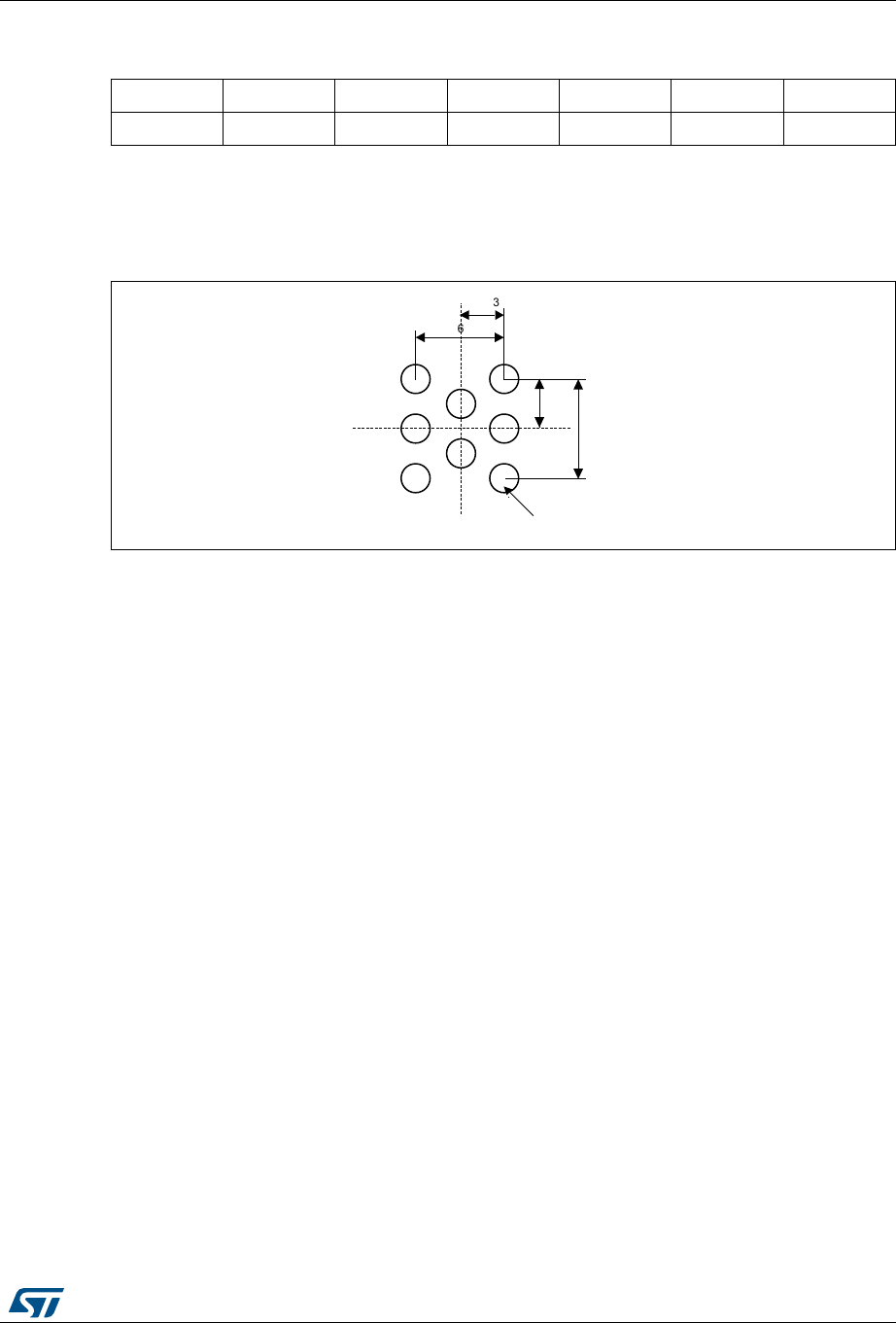

Figure 22. WLCSP - 8 balls, 1.289x1.955 mm, 1 mm pitch, wafer level chip scale
recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
.lZZIZJ
Description M24512-W M24512-R M24512-DF
6/47 DS6520 Rev 30
1 Description
The M24512 is a 512-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable
Memory) organized as 64 K × 8 bits.
The M24512-W can operate with a supply voltage from 2.5 V to 5.5 V, the M24512-R can
operate with a supply voltage from 1.8 V to 5.5 V and the M24512-DF can operate with a
supply voltage from 1.7 V to 5.5 V. All these devices operate with a clock frequency of 1
MHz (or less) over an ambient temperature range of -40 °C / +85 °C.
The M24512-D offers an additional page, named the Identification Page (128 byte). The
Identification Page can be used to store sensitive application parameters which can be
(later) permanently locked in Read-only mode.

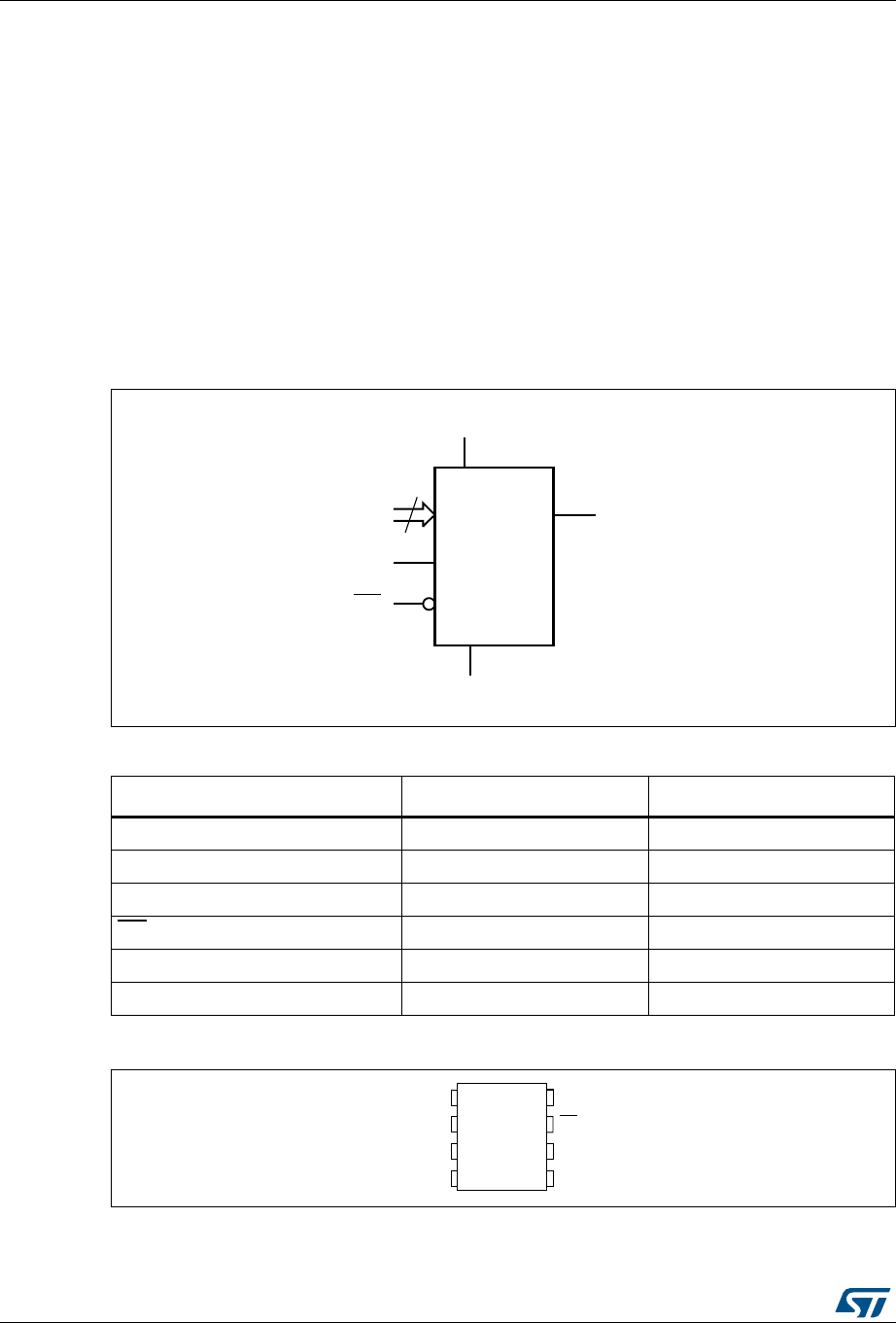

Figure 1. Logic diagram
Figure 2. 8-pin package connections, top view
Table 1. Signal names
Signal name Function Direction
E2, E1, E0 Chip Enable Input
SDA Serial Data I/O
SCL Serial Clock Input
WC Write Control Input
VCC Supply voltage -
VSS Ground -
$,I
(( 6'$
9&&
0[[[
:&
6&/
966
$,I
6'$966
6&/
:&(
( 9&&
(
GOO
00
0‘60
DS6520 Rev 30 7/47
M24512-W M24512-R M24512-DF Description
46

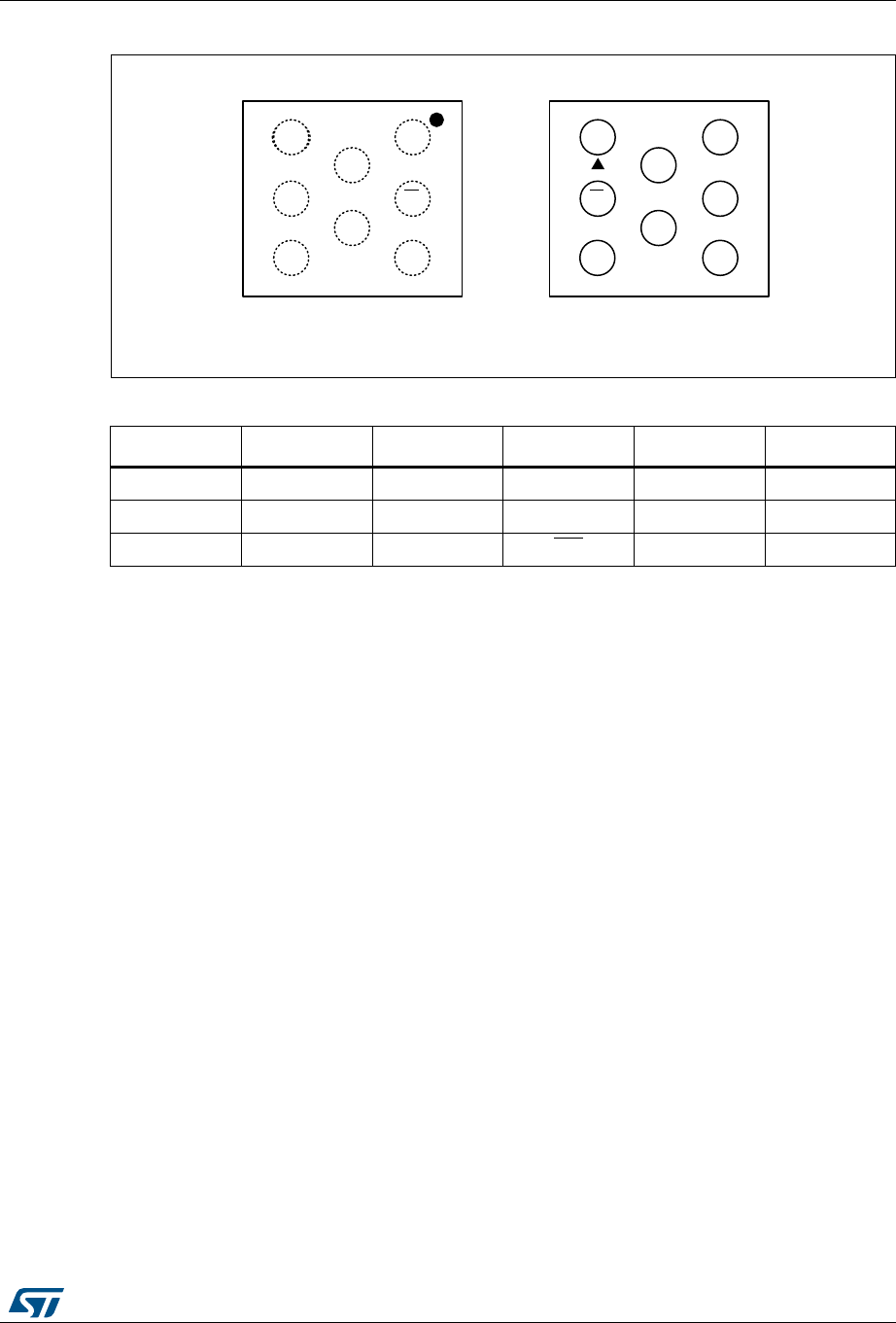

Figure 3. WLCSP connections
Table 2. Signals vs. bump position
PositionABCDE
1SDA- E2 - V
SS
2-SCL-E1-
3V
CC -WC-E0
069
0DUNLQJVLGH
WRSYLHZ
%XPSVLGH
ERWWRPYLHZ
$
&
%
'
(
(
6'$
6&/
9&&
966 (
( :&
$
&
%
'
(
(
6&/
6'$
966
(
9&&
(
:&
Signal description M24512-W M24512-R M24512-DF
8/47 DS6520 Rev 30
2 Signal description
2.1 Serial Clock (SCL)
The signal applied on the SCL input is used to strobe the data available on SDA(in) and to
output the data on SDA(out).
2.2 Serial Data (SDA)
SDA is an input/output used to transfer data in or data out of the device. SDA(out) is an
open drain output that may be wire-OR’ed with other open drain or open collector signals on
the bus. A pull-up resistor must be connected from Serial Data (SDA) to VCC (Figure 12
indicates how to calculate the value of the pull-up resistor).
2.3 Chip Enable (E2, E1, E0)
(E2,E1,E0) input signals are used to set the value that is to be looked for on the three least
significant bits (b3, b2, b1) of the 7-bit device select code (see Table 3). These inputs must
be tied to VCC or VSS, as shown in Figure 4. When not connected (left floating), these inputs
are read as low (0).

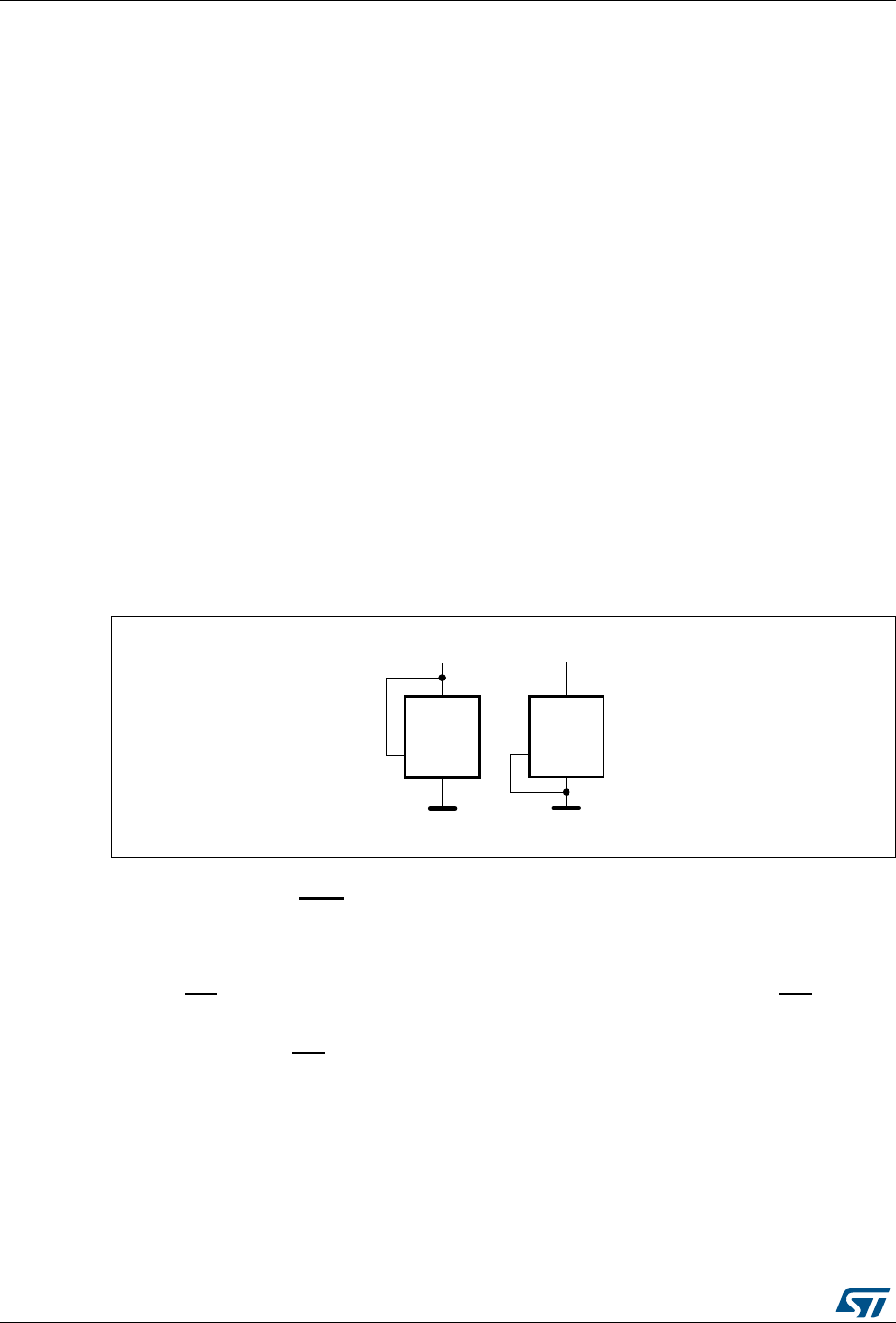

Figure 4. Chip enable inputs connection
2.4 Write Control (WC)
This input signal is useful for protecting the entire contents of the memory from inadvertent
write operations. Write operations are disabled to the entire memory array when Write
Control (WC) is driven high. Write operations are enabled when Write Control (WC) is either
driven low or left floating.
When Write Control (WC) is driven high, device select and address bytes are
acknowledged, Data bytes are not acknowledged.
2.5 VSS (ground)
VSS is the reference for the VCC supply voltage.
$L
9&&
0[[[
966
(L
9&&
0[[[
966
(L
DS6520 Rev 30 9/47
M24512-W M24512-R M24512-DF Signal description
46
2.6 Supply voltage (VCC)
2.6.1 Operating supply voltage (VCC)
Prior to selecting the memory and issuing instructions to it, a valid and stable VCC voltage
within the specified [VCC(min), VCC(max)] range must be applied (see Operating conditions
in Section 8: DC and AC parameters). In order to secure a stable DC supply voltage, it is
recommended to decouple the VCC line with a suitable capacitor (usually of the order of
10 nF to 100 nF) close to the VCC/VSS package pins.
This voltage must remain stable and valid until the end of the transmission of the instruction
and, for a write instruction, until the completion of the internal write cycle (tW).
2.6.2 Power-up conditions
The VCC voltage has to rise continuously from 0 V up to the minimum VCC operating voltage
(see Operating conditions in Section 8: DC and AC parameters).
2.6.3 Device reset
In order to prevent inadvertent write operations during power-up, a power-on-reset (POR)
circuit is included.
At power-up, the device does not respond to any instruction until VCC has reached the
internal reset threshold voltage. This threshold is lower than the minimum VCC operating
voltage (see Operating conditions in Section 8: DC and AC parameters). When VCC passes
over the POR threshold, the device is reset and enters the Standby Power mode; however,
the device must not be accessed until VCC reaches a valid and stable DC voltage within the
specified [VCC(min), VCC(max)] range (see Operating conditions in Section 8: DC and AC
parameters).
In a similar way, during power-down (continuous decrease in VCC), the device must not be
accessed when VCC drops below VCC(min). When VCC drops below the power-on-reset
threshold voltage, the device stops responding to any instruction sent to it.
2.6.4 Power-down conditions
During power-down (continuous decrease in VCC), the device must be in the Standby Power
mode (mode reached after decoding a Stop condition, assuming that there is no internal
write cycle in progress).
Memory organization M24512-W M24512-R M24512-DF
10/47 DS6520 Rev 30
3 Memory organization
The memory is organized as shown below.

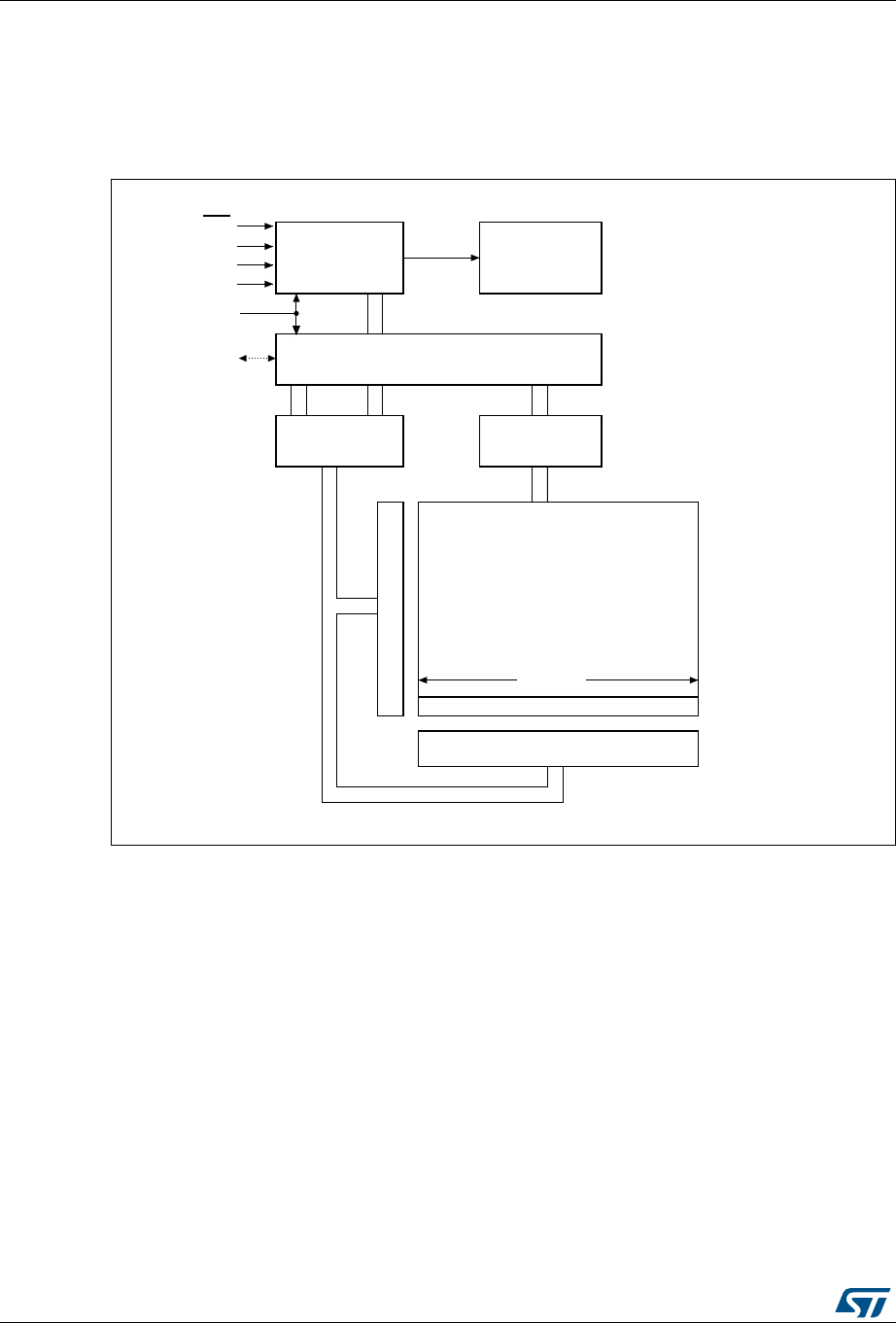

Figure 5. Block diagram
069
:&
&RQWUROORJLF +LJKYROWDJH
JHQHUDWRU
,2VKLIWUHJLVWHU
$GGUHVVUHJLVWHU
DQGFRXQWHU
'DWD
UHJLVWHU
SDJH
;GHFRGHU
<GHFRGHU
,GHQWLILFDWLRQSDJH
(
(
6&/
6'$
(
DS6520 Rev 30 11/47
M24512-W M24512-R M24512-DF Device operation
46
4 Device operation
The device supports the I2C protocol. This is summarized in Figure 6. Any device that sends
data on to the bus is defined to be a transmitter, and any device that reads the data to be a
receiver. The device that controls the data transfer is known as the bus master, and the
other as the slave device. A data transfer can only be initiated by the bus master, which will
also provide the serial clock for synchronization. The device is always a slave in all
communications.
Figure 6. I2C bus protocol
6&/
6'$
6&/
6'$
6'$
67$57
&RQGLWLRQ
6'$
,QSXW
6'$
&KDQJH
069
6723
&RQGLWLRQ
06% $&.
67$57
&RQGLWLRQ
6&/
06% $&.
^dKW
ŽŶĚŝƚŝŽŶ
Device operation M24512-W M24512-R M24512-DF
12/47 DS6520 Rev 30
4.1 Start condition
Start is identified by a falling edge of Serial Data (SDA) while Serial Clock (SCL) is stable in
the high state. A Start condition must precede any data transfer instruction. The device
continuously monitors (except during a Write cycle) Serial Data (SDA) and Serial Clock
(SCL) for a Start condition.
4.2 Stop condition
Stop is identified by a rising edge of Serial Data (SDA) while Serial Clock (SCL) is stable and
driven high. A Stop condition terminates communication between the device and the bus
master. A Read instruction that is followed by NoAck can be followed by a Stop condition to
force the device into the Standby mode.
A Stop condition at the end of a Write instruction triggers the internal Write cycle.
4.3 Data input
During data input, the device samples Serial Data (SDA) on the rising edge of Serial Clock
(SCL). For correct device operation, Serial Data (SDA) must be stable during the rising edge
of Serial Clock (SCL), and the Serial Data (SDA) signal must change only when Serial Clock
(SCL) is driven low.
4.4 Acknowledge bit (ACK)
The acknowledge bit is used to indicate a successful byte transfer. The bus transmitter,
whether it be bus master or slave device, releases Serial Data (SDA) after sending eight bits
of data. During the 9th clock pulse period, the receiver pulls Serial Data (SDA) low to
acknowledge the receipt of the eight data bits.
NVrile
(RW
DS6520 Rev 30 13/47
M24512-W M24512-R M24512-DF Device operation
46
4.5 Device addressing
To start communication between the bus master and the slave device, the bus master must
initiate a Start condition. Following this, the bus master sends the device select code, shown
in Table 3 (most significant bit first).
When the device select code is received, the device only responds if the Chip Enable
Address is the same as the value on the Chip Enable (E2, E1, E0) inputs.
The 8th bit is the Read/Write bit (RW). This bit is set to 1 for Read and 0 for Write operations.
If a match occurs on the device select code, the corresponding device gives an
acknowledgment on Serial Data (SDA) during the 9th bit time. If the device does not match
the device select code, it deselects itself from the bus, and goes into Standby mode.
Table 3. Device select code
Device type identifier(1)
1. The most significant bit, b7, is sent first.
Chip Enable address(2)
2. E0, E1 and E2 are compared with the value read on input pins E0, E1 and E2.
RW
b7 b6 b5 b4 b3 b2 b1 b0
Device select code
when addressing the
memory array
1010E2E1E0RW
Device select code
when accessing the
Identification page
1011E2E1E0RW
Instructions M24512-W M24512-R M24512-DF
14/47 DS6520 Rev 30
5 Instructions
5.1 Write operations
Following a Start condition the bus master sends a device select code with the R/W bit (RW)
reset to 0. The device acknowledges this, as shown in Figure 7, and waits for two address
bytes. The device responds to each address byte with an acknowledge bit, and then waits
for the data byte.
When the bus master generates a Stop condition immediately after a data byte Ack bit (in
the “10th bit” time slot), either at the end of a Byte Write or a Page Write, the internal Write
cycle tW is triggered. A Stop condition at any other time slot does not trigger the internal
Write cycle.
After the Stop condition and the successful completion of an internal Write cycle (tW), the
device internal address counter is automatically incremented to point to the next byte after
the last modified byte.
During the internal Write cycle, Serial Data (SDA) is disabled internally, and the device does
not respond to any requests.
If the Write Control input (WC) is driven High, the Write instruction is not executed and the
accompanying data bytes are not acknowledged, as shown in Figure 8.
Table 4. Most significant address byte
A15 A14 A13 A12 A11 A10 A9 A8
Table 5. Least significant address byte
A7 A6 A5 A4 A3 A2 A1 A0
DS6520 Rev 30 15/47
M24512-W M24512-R M24512-DF Instructions
46
5.1.1 Byte Write
After the device select code and the address bytes, the bus master sends one data byte. If
the addressed location is Write-protected, by Write Control (WC) being driven high, the
device replies with NoAck, and the location is not modified. If, instead, the addressed
location is not Write-protected, the device replies with Ack. The bus master terminates the
transfer by generating a Stop condition, as shown in Figure 7.
Figure 7. Write mode sequences with WC = 0 (data write enabled)
:&
%\WH:ULWH 'HYVHO %\WHDGGU %\WHDGGU 'DWDLQ
$&. $&. $&. $&.
5:
6WDUW
6WRS
:&
'HYVHO %\WHDGGU %\WHDGGU
$&. $&. $&. $&.
5:
6WDUW
'DWDLQ 'DWDLQ
3DJH:ULWH
3DJH:ULWHFRQW¶G
:&FRQW¶G
$&. $&.
'DWDLQ1
$,G
ACK ACK ACK NO ACK
\
\
Byte Wmte Dev 59‘ ‘ awe addr Byte addr Dam m Ll
= L g
53 WW .7:
R
ACK ACK ACK N0 ACK
\
x
Page wme Dev se‘ ‘ Ewe addr Byle addr Data m 1 Dam in 2
c
E
w
R (com‘d)
NO ACK NO ACK
Page Wnte (conru)
\
‘.......‘
DatamN Ll
Slo
N01120::
Instructions M24512-W M24512-R M24512-DF
16/47 DS6520 Rev 30
5.1.2 Page Write
The Page Write mode allows up to 128 byte to be written in a single Write cycle, provided
that they are all located in the same page in the memory: that is, the most significant
memory address bits, A15/A7, are the same. If more bytes are sent than will fit up to the end
of the page, a “roll-over” occurs, i.e. the bytes exceeding the page end are written on the
same page, from location 0.
The bus master sends from 1 to 128 byte of data, each of which is acknowledged by the
device if Write Control (WC) is low. If Write Control (WC) is high, the contents of the
addressed memory location are not modified, and each data byte is followed by a NoAck, as
shown in Figure 8. After each transferred byte, the internal page address counter is
incremented.
The transfer is terminated by the bus master generating a Stop condition.
Figure 8. Write mode sequences with WC = 1 (data write inhibited)
DS6520 Rev 30 17/47
M24512-W M24512-R M24512-DF Instructions
46
5.1.3 Write Identification Page (M24512-D only)
The Identification Page (128 byte) is an additional page which can be written and (later)
permanently locked in Read-only mode. It is written by issuing the Write Identification Page
instruction. This instruction uses the same protocol and format as Page Write (into memory
array), except for the following differences:
•Device type identifier = 1011b
•MSB address bits A15/A7 are don't care except for address bit A10 which must be ‘0’.
LSB address bits A6/A0 define the byte address inside the Identification page.
If the Identification page is locked, the data bytes transferred during the Write Identification
Page instruction are not acknowledged (NoAck).
5.1.4 Lock Identification Page (M24512-D only)
The Lock Identification Page instruction (Lock ID) permanently locks the Identification page
in Read-only mode. The Lock ID instruction is similar to Byte Write (into memory array) with
the following specific conditions:
•Device type identifier = 1011b
•Address bit A10 must be ‘1’; all other address bits are don't care
•The data byte must be equal to the binary value xxxx xx1x, where x is don't care
5.1.5 ECC (Error Correction Code) and Write cycling(a)
The Error Correction Code (ECC) is an internal logic function which is transparent for the
I2C communication protocol.
The ECC logic is implemented on each group of four EEPROM bytes(b). Inside a group, if a
single bit out of the four bytes happens to be erroneous during a Read operation, the ECC
detects this bit and replaces it with the correct value. The read reliability is therefore much
improved.
Even if the ECC function is performed on groups of four bytes, a single byte can be
written/cycled independently. In this case, the ECC function also writes/cycles the three
other bytes located in the same group(b). As a consequence, the maximum cycling budget is
defined at group level and the cycling can be distributed over the 4 bytes of the group: the
sum of the cycles seen by byte0, byte1, byte2 and byte3 of the same group must remain
below the maximum value defined Table 12.
a. Only for devices identified with process letter K
b.A group of four bytes is located at addresses [4*N, 4*N+1, 4*N+2, 4*N+3], where N is an integer.
Nex:
Operatlnn \s
addressing the
memory
‘___
Instructions M24512-W M24512-R M24512-DF
18/47 DS6520 Rev 30
5.1.6 Minimizing Write delays by polling on ACK
The maximum Write time (tw) is shown in AC characteristics tables in Section 8: DC and AC
parameters, but the typical time is shorter. To make use of this, a polling sequence can be
used by the bus master.
The sequence, as shown in Figure 9, is:
•Initial condition: a Write cycle is in progress.
•Step 1: the bus master issues a Start condition followed by a device select code (the
first byte of the new instruction).
•Step 2: if the device is busy with the internal Write cycle, no Ack will be returned and
the bus master goes back to Step 1. If the device has terminated the internal Write
cycle, it responds with an Ack, indicating that the device is ready to receive the second
part of the instruction (the first byte of this instruction having been sent during Step 1).
Figure 9. Write cycle polling flowchart using ACK
1. The seven most significant bits of the Device Select code of a Random Read (bottom right box in the figure) must be
identical to the seven most significant bits of the Device Select code of the Write (polling instruction in the figure).
:ULWHF\FOH
LQSURJUHVV
$,H
1H[W
2SHUDWLRQLV
DGGUHVVLQJWKH
PHPRU\
6WDUWFRQGLWLRQ
$&.
UHWXUQHG
<(6
12
<(612
5H6WDUW
6WRS
'DWDIRUWKH
:ULWHRSHUDWLRQ
6HQG$GGUHVV
DQG5HFHLYH$&.
<(612
&RQWLQXHWKH
:ULWHRSHUDWLRQ
&RQWLQXHWKH
5DQGRP5HDGRSHUDWLRQ
'HYLFHVHOHFW
ZLWK5:
)LUVWE\WHRILQVWUXFWLRQ
ZLWK5: DOUHDG\
GHFRGHGE\WKHGHYLFH
'HYLFHVHOHFW
ZLWK5:
6WDUW&RQGLWLRQ
DS6520 Rev 30 19/47
M24512-W M24512-R M24512-DF Instructions
46
5.2 Read operations
Read operations are performed independently of the state of the Write Control (WC) signal.
After the successful completion of a Read operation, the device internal address counter is
incremented by one, to point to the next byte address.
For the Read instructions, after each byte read (data out), the device waits for an
acknowledgment (data in) during the 9th bit time. If the bus master does not acknowledge
during this 9th time, the device terminates the data transfer and switches to its Standby
mode.
Figure 10. Read mode sequences
6WDUW
'HYVHO %\WHDGGU %\WHDGGU
6WDUW
'HYVHO 'DWDRXW
$,G
'DWDRXW1
6WRS
6WDUW
&XUUHQW
$GGUHVV
5HDG
'HYVHO 'DWDRXW
5DQGRP
$GGUHVV
5HDG
6WRS
6WDUW
'HYVHO 'DWDRXW
6HTXHQWLDO
&XUUHQW
5HDG
6WRS
'DWDRXW1
6WDUW
'HYVHO %\WHDGGU %\WHDGGU
6HTXHQWLDO
5DQGRP
5HDG
6WDUW
'HYVHO 'DWDRXW
6WRS
$&.
5:
12$&.
$&.
5:
$&. $&. $&.
5:
$&. $&. $&. 12$&.
5:
12$&.
$&. $&. $&.
5:
$&. $&.
5:
$&. 12$&.
E \
Instructions M24512-W M24512-R M24512-DF
20/47 DS6520 Rev 30
5.2.1 Random Address Read
A dummy Write is first performed to load the address into this address counter (as shown in
Figure 10) but without sending a Stop condition. Then, the bus master sends another Start
condition, and repeats the device select code, with the RW bit set to 1. The device
acknowledges this, and outputs the contents of the addressed byte. The bus master must
not acknowledge the byte, and terminates the transfer with a Stop condition.
5.2.2 Current Address Read
For the Current Address Read operation, following a Start condition, the bus master only
sends a device select code with the R/W bit set to 1. The device acknowledges this, and
outputs the byte addressed by the internal address counter. The counter is then
incremented. The bus master terminates the transfer with a Stop condition, as shown in
Figure 10, without acknowledging the byte.
Note that the address counter value is defined by instructions accessing either the memory
or the Identification page. When accessing the Identification page, the address counter
value is loaded with the byte location in the Identification page, therefore the next Current
Address Read in the memory uses this new address counter value. When accessing the
memory, it is safer to always use the Random Address Read instruction (this instruction
loads the address counter with the byte location to read in the memory, see Section 5.2.1)
instead of the Current Address Read instruction.
5.2.3 Sequential Read
This operation can be used after a Current Address Read or a Random Address Read. The
bus master does acknowledge the data byte output, and sends additional clock pulses so
that the device continues to output the next byte in sequence. To terminate the stream of
bytes, the bus master must not acknowledge the last byte, and must generate a Stop
condition, as shown in Figure 10.
The output data comes from consecutive addresses, with the internal address counter
automatically incremented after each byte output. After the last memory address, the
address counter “rolls-over”, and the device continues to output data from memory address
00h.
5.3 Read Identification Page (M24512-D only)
The Identification Page (128 bytes) is an additional page which can be written and (later)
permanently locked in Read-only mode.
The Identification Page can be read by issuing an Read Identification Page instruction. This
instruction uses the same protocol and format as the Random Address Read (from memory
array) with device type identifier defined as 1011b. The MSB address bits A15/A7 are don't
care, the LSB address bits A6/A0 define the byte address inside the Identification Page. The
number of bytes to read in the ID page must not exceed the page boundary (e.g.: when
reading the Identification Page from location 100d, the number of bytes should be less than
or equal to 28, as the ID page boundary is 128 bytes).
DS6520 Rev 30 21/47
M24512-W M24512-R M24512-DF Instructions
46
5.4 Read the lock status (M24512-D only)
The locked/unlocked status of the Identification page can be checked by transmitting a
specific truncated command [Identification Page Write instruction + one data byte] to the
device. The device returns an acknowledge bit if the Identification page is unlocked,
otherwise a NoAck bit if the Identification page is locked.
Right after this, it is recommended to transmit to the device a Start condition followed by a
Stop condition, so that:
•Start: the truncated command is not executed because the Start condition resets the
device internal logic,
•Stop: the device is then set back into Standby mode by the Stop condition.
DS6520 Rev 30 23/47
M24512-W M24512-R M24512-DF Maximum rating
46
7 Maximum rating
Stressing the device outside the ratings listed in Table 6 may cause permanent damage to
the device. These are stress ratings only, and operation of the device at these, or any other
conditions outside those indicated in the operating sections of this specification, is not
implied. Exposure to absolute maximum rating conditions for extended periods may affect
device reliability.
Table 6. Absolute maximum ratings
Symbol Parameter Min. Max. Unit
Ambient operating temperature -55 130 °C
TSTG Storage temperature –65 150 °C
TLEAD Lead temperature during soldering see note (1)
1. Compliant with JEDEC Std J-STD-020D (for small body, Sn-Pb or Pb-free assembly), the ST ECOPACK®
7191395 specification, and the European directive on Restrictions of Hazardous Substances (RoHS
directive 2011/65/EU of July 2011).
°C
IOL DC output current (SDA = 0) - 5 mA
VIO Input or output range –0.50 6.5 V
VCC Supply voltage –0.50 6.5 V
VESD Electrostatic pulse (Human Body model)(2)
2. Positive and negative pulses applied on different combinations of pin connections, according to AEC-
Q100-002 (compliant with ANSI/ESDA/JEDEC JS-001-2012 standard, C1=100 pF, R1=1500 Ω).
- 4000(3)
3. 4000 V for new devices identified with process letters KB and 3000 V for previous devices identified with
process letters KA and AB.
V
DC and AC parameters M24512-W M24512-R M24512-DF
24/47 DS6520 Rev 30
8 DC and AC parameters
This section summarizes the operating and measurement conditions, and the DC and AC
characteristics of the device.
Table 7. Operating conditions (voltage range W)
Symbol Parameter Min. Max. Unit
VCC Supply voltage 2.5 5.5 V
TAAmbient operating temperature –40 85 °C
fCOperating clock frequency - 1(1)
1. For devices identified by process letter K.
MHz
Table 8. Operating conditions (voltage range R)
Symbol Parameter Min. Max. Unit
VCC Supply voltage 1.8 5.5 V
TAAmbient operating temperature –40 85 °C
fCOperating clock frequency - 1(1)
1. For devices identified by process letter K.
MHz
Table 9. Operating conditions (voltage range F)
Symbol Parameter Min. Max. Unit
VCC Supply voltage 1.7 5.5 V
TAAmbient operating temperature –40 85 °C
fCOperating clock frequency - 1(1)
1. For devices identified by process letter K.
MHz
Table 10. AC measurement conditions
Symbol Parameter Min. Max. Unit
Cbus Load capacitance - 100 pF
-SCL input rise/fall time, SDA input fall time - 50 ns
-Input levels 0.2 VCC to 0.8 VCC V
-Input and output timing reference levels 0.3 VCC to 0.7 VCC V
W
DS6520 Rev 30 25/47
M24512-W M24512-R M24512-DF DC and AC parameters
46
Figure 11. AC measurement I/O waveform
Table 11. Input parameters
Symbol Parameter(1)
1. Characterized only, not tested in production.
Test condition Min. Max. Unit
CIN Input capacitance (SDA) - - 8 pF
CIN Input capacitance (other pins) - - 6 pF
ZLInput impedance (E2, E1, E0, WC)(2)
2. E2, E1, E0 input impedance when the memory is selected (after a Start condition).
VIN < 0.3 VCC 30 - kΩ
ZHVIN > 0.7 VCC 500 - kΩ
Table 12. Cycling performance
Symbol Parameter(1)
1. Cycling performance for products identified by process letter KB (previous products were specified with 1
million cycles at 25 °C).
Test condition Max. Unit
Ncycle Write cycle
endurance(2)
2. The write cycle endurance is defined for group of four bytes located at addresses [4*N, 4*N+1, 4*N+2,
4*N+3] where N is an integer. The Write cycle endurance is defined by characterization and qualification.
TA ≤ 25 °C, VCC(min) < VCC < VCC(max) 4,000,000 Write cycle(3)
3. A Write cycle is executed when either a Page Write, a Byte write, a Write Identification Page or a Lock
Identification Page instruction is decoded. When using the Byte Write, the Page Write or the Write
Identification Page, refer also to Section 5.1.5: ECC (Error Correction Code) and Write cycling
TA = 85 °C, VCC(min) < VCC < VCC(max) 1,200,000
Table 13. Memory cell data retention
Parameter Test condition Min. Unit
Data retention(1)
1. The data retention behavior is checked in production, while the data retention limit defined in this table is
extracted from characterization and qualification results.
TA = 55 °C 200(2)
2. For products identified by process letter KB (previous products were specified with a data retention of 40
years at 55°C).
Year
-36
6##
6##
6##
6##
)NPUTANDOUTPUT
4IMINGREFERENCELEVELS
)NPUTVOLTAGELEVELS
DC and AC parameters M24512-W M24512-R M24512-DF
26/47 DS6520 Rev 30
Table 14. DC characteristics (M24512-W, device grade 6)
Symbol Parameter Test conditions (in addition to those
in Table 7 and Table 10)Min. Max. Unit
ILI
Input leakage current
(SCL, SDA, E2, E1,
E0)
VIN = VSS or VCC, device in Standby
mode -± 2µA
ILO
Output leakage
current
SDA in Hi-Z, external voltage applied
on SDA: VSS or VCC
-± 2µA
ICC Supply current (Read)
VCC = 2.5 V, fc = 400 kHz
(rise/fall time < 50 ns) -2
(1)
1. For devices identified by process letter AB: ICC(max) = 1 mA.
mA
VCC = 5.5 V, fc = 400 kHz
(rise/fall time < 50 ns) -2
2.5 V < VCC < 5.5 V, fc = 400 kHz
(rise/fall time < 50 ns) -2
2.5 V ≤VCC ≤ 5.5 V, fc = 1 MHz
(rise/fall time < 50 ns) -2.5
ICC0 Supply current (Write) During tW,
2.5 V ≤ VCC ≤ 5.5 V -5
(2)
2. Characterized value, not tested in production.
mA
ICC1
Standby supply
current
Device not selected(3),
VIN = VSS or VCC, VCC = 2.5 V
3. The device is not selected after power-up, after a Read instruction (after the Stop condition), or after the
completion of the internal write cycle tW (tW is triggered by the correct decoding of a Write instruction).
-2µA
Device not selected(3),
VIN = VSS or VCC, VCC = 5.5 V -3µA
VIL
Input low voltage
(SCL, SDA, WC, E2,
E1, E0)(4)
4. Ei inputs should be tied to Vss (see Section 2.3).
- –0.45 0.3 VCC V
VIH
Input high voltage
(SCL, SDA) -0.7 V
CC 6.5 V
Input high voltage
(WC, E2, E1, E0)(5)
5. Ei inputs should be tied to Vcc (see Section 2.3).
-0.7 V
CC VCC+0.6 V
VOL Output low voltage IOL = 2.1 mA, VCC = 2.5 V or
IOL = 3 mA, VCC = 5.5 V -0.4V
DS6520 Rev 30 27/47
M24512-W M24512-R M24512-DF DC and AC parameters
46
Table 15. DC characteristics (M24512-R device grade 6)
Symbol Parameter Test conditions(1) (in addition to
those in Table 8)
1. If the application uses the voltage range R device with 2.5 V < Vcc < 5.5 V and -40 °C < TA < +85 °C,
please refer to Table 14 instead of this table.
Min. Max. Unit
ILI
Input leakage current
(E1, E2, SCL, SDA)
VIN = VSS or VCC, device in
Standby mode -± 2µA
ILO Output leakage current SDA in Hi-Z, external voltage
applied on SDA: VSS or VCC
-± 2µA
ICC Supply current (Read)
VCC = 1.8 V, fc= 400 kHz - 0.8(2)
2. For devices identified by process letters K: ICC(max) = 1.5 mA.
mA
fc= 1 MHz(3)
3. Only for devices identified with process letter K
-2.5mA
ICC0 Supply current (Write) During tW-5
(4)
4. Characterized value, not tested in production.
mA
ICC1 Standby supply current Device not selected(5),
VIN = VSS or VCC, VCC = 1.8 V
5. The device is not selected after power-up, after a Read instruction (after the Stop condition), or after the
completion of the internal write cycle tW (tW is triggered by the correct decoding of a Write instruction).
-1µA
VIL
Input low voltage
(SCL, SDA, WC)(6)
6. Ei inputs should be tied to Vss (see Section 2.3).
1.8 V ≤ VCC < 2.5 V –0.45 0.25 VCC V
VIH
Input high voltage
(SCL, SDA) 1.8 V ≤ VCC < 2.5 V 0.75 VCC 6.5 V
Input high voltage
(WC, E2, E1, E0)(7)
7. Ei inputs should be tied to Vcc (see Section 2.3).
1.8 V ≤ VCC < 2.5 V 0.75 VCC VCC+ 0.6 V
VOL Output low voltage IOL = 1 mA, VCC = 1.8 V(8)
8. IOL = 0.7 mA for devices identified by process letter G or S.
-0.2V
DC and AC parameters M24512-W M24512-R M24512-DF
28/47 DS6520 Rev 30
Table 16. DC characteristics (M24512-DF, device grade 6)
Symbol Parameter Test conditions(1) (in addition to
those in Table 9)
1. If the application uses the voltage range F device with 2.5 V < VCC < 5.5 V and -40 °C < TA < +85 °C,
please refer to Table 14 instead of this table.
Min. Max. Unit
ILI
Input leakage current
(E1, E2, SCL, SDA)
VIN = VSS or VCC
device in Standby mode -± 2µA
ILO Output leakage current SDA in Hi-Z, external voltage applied
on SDA: VSS or VCC
-± 2µA
ICC Supply current (Read)
VCC = 1.7 V, fc= 400 kHz - 0.8(2)
2. For devices identified by process letters K: ICC(max) = 1.5 mA.
mAVCC = 1.6 V, fc= 400 kHz - 2.5
fc = 1.7 MHz(3)
3. Only for devices identified by process letter K
-0.8
ICC0 Supply current (Write) During tW-5
(4)
4. Characterized value, not tested in production.
mA
ICC1 Standby supply current Device not selected(5),
VIN = VSS or VCC, VCC = 1.7 V
5. The device is not selected after power-up, after a Read instruction (after the Stop condition), or after the
completion of the internal write cycle tW (tW is triggered by the correct decoding of a Write instruction).
-1µA
VIL
Input low voltage
(SCL, SDA, WC, Ei)(6)
6. Ei inputs should be tied to VSS(see Section 2.3).
1.7 V ≤ VCC < 2.5 V –0.45 0.25 VCC V
VIH
Input high voltage
(SCL, SDA) 1.7 V ≤ VCC < 2.5 V 0.75 VCC 6.5
V
Input high voltage
(WC, E2, E1, E0)(7)
7. Ei inputs should be tied to VCC (see Section 2.3).
1.7 V ≤ VCC < 2.5 V 0.75 VCC VCC+ 0.6
VOL Output low voltage IOL =1mA, VCC = 1.7 V - 0.2 V
DS6520 Rev 30 29/47
M24512-W M24512-R M24512-DF DC and AC parameters
46
Table 17. 400 kHz AC characteristics
Symbol Alt. Parameter Min. Max. Unit
fCfSCL Clock frequency - 400 kHz
tCHCL tHIGH Clock pulse width high 600 - ns
tCLCH tLOW Clock pulse width low 1300 - ns
tQL1QL2(1)
1. Characterized only, not tested in production.
tFSDA (out) fall time 20(2)
2. With CL = 10 pF.
300 ns
tXH1XH2 tRInput signal rise time (3)
3. There is no min. or max. values for the input signal rise and fall times. It is however recommended by the
I²C specification that the input signal rise and fall times be more than 20 ns and less than 300 ns when
fC < 400 kHz.
(3) ns
tXL1XL2 tFInput signal fall time (3) (3) ns
tDXCH tSU:DAT Data in set up time 100 - ns
tCLDX tHD:DAT Data in hold time 0 - ns
tCLQX(4)
4. To avoid spurious Start and Stop conditions, a minimum delay is placed between SCL=1 and the falling or
rising edge of SDA.
tDH Data out hold time 100 - ns
tCLQV(5)
5. tCLQV is the time (from the falling edge of SCL) required by the SDA bus line to reach either 0.3VCC or
0.7VCC, assuming that Rbus × Cbus time constant is within the values specified in Figure 12.
tAA Clock low to next data valid (access time) - 900 ns
tCHDL tSU:STA Start condition setup time 600 - ns
tDLCL tHD:STA Start condition hold time 600 - ns
tCHDH tSU:STO Stop condition set up time 600 - ns
tDHDL tBUF
Time between Stop condition and next Start
condition 1300 - ns
tWLDL(6)(1)
6. WC=0 set up time condition to enable the execution of a WRITE command.
tSU:WC WC set up time (before the Start condition) 0 - µs
tDHWH(7)(1)
7. WC=0 hold time condition to enable the execution of a WRITE command.
tHD:WC WC hold time (after the Stop condition) 1 - µs
tWtWR Internal Write cycle duration - 5 ms
tNS(1) -Pulse width ignored (input filter on SCL and
SDA) - single glitch -80
(8)
8. The previous device offered tNS = 100 ns(max), while the current device offers tNS = 80 ns (max). Both
products offer a safe margin compared to the 50ns minimum value recommended by the I2C specification.
ns
DC and AC parameters M24512-W M24512-R M24512-DF
30/47 DS6520 Rev 30
Table 18. 1 MHz AC characteristics
Symbol Alt. Parameter Min. Max. Unit
fCfSCL Clock frequency 0 1 MHz
tCHCL tHIGH Clock pulse width high 300 - ns
tCLCH tLOW Clock pulse width low 550 - ns
tXH1XH2 tRInput signal rise time (1)
1. There is no min. or max. values for the input signal rise and fall times. It is however recommended by the
I²C specification that the input signal rise and fall times be less than 120 ns when fC < 1 MHz.
(1) ns
tXL1XL2 tFInput signal fall time (1) (1) ns
tQL1QL2(2)
2. Characterized only, not tested in production.
tFSDA (out) fall time - 120 ns
tDXCH tSU:DAT Data in setup time 80 - ns
tCLDX tHD:DAT Data in hold time 0 - ns
tCLQX(3)
3. To avoid spurious Start and Stop conditions, a minimum delay is placed between SCL=1 and the falling or
rising edge of SDA.
tDH Data out hold time 50 - ns
tCLQV(4)
4. tCLQV is the time (from the falling edge of SCL) required by the SDA bus line to reach either 0.3 VCC or
0.7 VCC, assuming that the Rbus × Cbus time constant is within the values specified in Figure 13.
tAA Clock low to next data valid (access time) - 500 ns
tCHDL tSU:STA Start condition setup time 250 - ns
tDLCL tHD:STA Start condition hold time 250 - ns
tCHDH tSU:STO Stop condition setup time 250 - ns
tDHDL tBUF
Time between Stop condition and next Start
condition 500 - ns
tWLDL(5)(2)
5. WC=0 set up time condition to enable the execution of a WRITE command.
tSU:WC WC set up time (before the Start condition) 0 - µs
tDHWH(6)(2)
6. WC=0 hold time condition to enable the execution of a WRITE command.
tHD:WC WC hold time (after the Stop condition) 1 - µs
tWtWR Write time - 5 ms
tNS(2) -Pulse width ignored (input filter on SCL and
SDA) -80
(7)
7. 50 ns for devices identified by process letter A.
ns
n
=|-—|
:Ffi
“H;
DS6520 Rev 30 31/47
M24512-W M24512-R M24512-DF DC and AC parameters
46
Figure 12. Maximum Rbus value versus bus parasitic capacitance (Cbus) for
an I2C bus at maximum frequency fC = 400 kHz
Figure 13. Maximum Rbus value versus bus parasitic capacitance Cbus) for
an I2C bus at maximum frequency fC = 1MHz
AIB
"USLINECAPACITORP&
"USLINEPULLUPRESISTOR
K
)£#BUS
MASTER -XXX
2BUS
6##
#BUS
3#,
3$!
2BUS§#BUSNS
(ERE2BUS§#BUSNS
K½
P&
4HE2X#TIMECONSTANT
MUSTBEBELOWTHENS
TIMECONSTANTLINEREPRESENTED
ONTHELEFT
BUS BUS
"USLINECAPACITORP&
"USLINEPULLUPRESISTORK
-36
)£#BUS
MASTER -XXX
2BUS
6##
#BUS
3#,
3$!
(ERE
2BUS
§
#BUS
NS
2BUS§#BUSNS
4HE2BUS§#BUSTIMECONSTANT
MUSTBEBELOWTHENS
TIMECONSTANTLINEREPRESENTED
ONTHELEFT
|_._ _ f ..... 3 3
\ * )f ¥ '.'.'.'.'.'.'.' /_\_
DC and AC parameters M24512-W M24512-R M24512-DF
32/47 DS6520 Rev 30
Figure 14. AC waveforms
^>
^KƵƚ
^>
^/Ŷ
ĂƚĂǀĂůŝĚ
ƚ>Ys ƚ>Yy
ƚ,,
^ƚŽƉ
ĐŽŶĚŝƚŝŽŶ
ƚ,>
^ƚĂƌƚ
ĐŽŶĚŝƚŝŽŶ
tƌŝƚĞĐLJĐůĞ
ƚt
/ϬϬϳϵϱŝ
ĂƚĂǀĂůŝĚ
ƚY>ϭY>Ϯ
^/Ŷ
ƚ,>
^ƚĂƌƚ
ĐŽŶĚŝƚŝŽŶ
ƚy,
ƚ>y
^
/ŶƉƵƚ ^
ŚĂŶŐĞ
ƚ,, ƚ,>
^ƚŽƉ
ĐŽŶĚŝƚŝŽŶ
^ƚĂƌƚ
ĐŽŶĚŝƚŝŽŶ
ƚy,ϭy,Ϯ
^>
ƚ,>
ƚ>>
ƚ>,ƚy,ϭy,Ϯ ƚy>ϭy>Ϯ
ƚy>ϭy>Ϯ
t
ƚt>> ƚ,t,
ƚ,>
Pm #1
‘Uv
UU
[0300
.-
DS6520 Rev 30 33/47
M24512-W M24512-R M24512-DF Package information
46
9 Package information
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
9.1 UFDFPN8 (DFN8) package information
Figure 15. UFDFPN8 – 2x3 mm, 0.55 thickness, ultra thin fine pitch
dual flat package, no lead - package outline
1. Drawing is not to scale.
2. The central pad (the area E2 by D2 in the above illustration) must be either connected to VSS or left floating
(not connected) in the end application.
Table 19. UFDFPN8 – 2x3 mm, 0.55 thickness, ultra thin fine pitch dual flat package,
no lead - package mechanical data
Symbol
millimeters inches(1)
Min Typ Max Min Typ Max
A 0.450 0.550 0.600 0.0177 0.0217 0.0236
A1 0.000 0.020 0.050 0.0000 0.0008 0.0020
b 0.200 0.250 0.300 0.0079 0.0098 0.0118
D 1.900 2.000 2.100 0.0748 0.0787 0.0827
D2 1.200 - 1.600 0.0472 - 0.0630
E 2.900 3.000 3.100 0.1142 0.1181 0.1220
E2 1.200 - 1.600 0.0472 - 0.0630
e - 0.500 - - 0.0197 -
K 0.300 - - 0.0118 - -
=:B0(H9
ϭ
ĞĞĞ
>ϭ
Ğ ď
Ϯ
>
Ϯ
>ϯ
WŝŶϭ
<
3LQ,'PDUNLQJ
HHHH
:
HHHL, fix
fi' L
Package information M24512-W M24512-R M24512-DF
34/47 DS6520 Rev 30
9.2 TSSOP8 package information
Figure 16.TSSOP8 – 3x4.4 mm, 0.65 mm pitch, 8-lead thin shrink small outline,
package outline
1. Drawing is not to scale.
L 0.300 - 0.500 0.0118 - 0.0197
L1 - - 0.150 - - 0.0059
L3 0.300 - - 0.0118 - -
eee(2) 0.080 - - 0.0031 - -
1. Values in inches are converted from mm and rounded to four decimal digits.
2. Applied for exposed die paddle and terminals. Exclude embedding part of exposed die paddle from
measuring.
Table 19. UFDFPN8 – 2x3 mm, 0.55 thickness, ultra thin fine pitch dual flat package,
no lead - package mechanical data (continued)
Symbol
millimeters inches(1)
Min Typ Max Min Typ Max
Table 20. TSSOP8 – 3 x 4.4 mm, 0.65 mm pitch, 8-lead thin shrink small outline,
package mechanical data
Symbol
millimeters inches(1)
Min. Typ. Max. Min. Typ. Max.
A - - 1.200 - - 0.0472
A1 0.050 - 0.150 0.0020 - 0.0059
A2 0.800 1.000 1.050 0.0315 0.0394 0.0413
b 0.190 - 0.300 0.0075 - 0.0118
c 0.090 - 0.200 0.0035 - 0.0079
76623$0B9
ϭ
W
Đ
>
ɲ
Ğ
ϰ
>ϭ
ϭ
Ϯ
ď
ϴϱ
ϭ
DS6520 Rev 30 35/47
M24512-W M24512-R M24512-DF Package information
46
CP - - 0.100 - - 0.0039
D 2.900 3.000 3.100 0.1142 0.1181 0.1220
e - 0.650 - - 0.0256 -
E 6.200 6.400 6.600 0.2441 0.2520 0.2598
E1 4.300 4.400 4.500 0.1693 0.1732 0.1772
L 0.450 0.600 0.750 0.0177 0.0236 0.0295
L1 - 1.000 - - 0.0394 -
α0° - 8° 0° - 8°
1. Values in inches are converted from mm and rounded to four decimal digits.
Table 20. TSSOP8 – 3 x 4.4 mm, 0.65 mm pitch, 8-lead thin shrink small outline,
package mechanical data (continued)
Symbol
millimeters inches(1)
Min. Typ. Max. Min. Typ. Max.
Package information M24512-W M24512-R M24512-DF
36/47 DS6520 Rev 30
9.3 SO8N package information
Figure 17. SO8N – 3.9x4.9 mm, 8-lead plastic small outline, 150 mils body width,
package outline
1. Drawing is not to scale.
Table 21. SO8N – 3.9x4.9 mm, 8-lead plastic small outline, 150 mils body width,
package mechanical data
Symbol
millimeters inches(1)
1. Values in inches are converted from mm and rounded to four decimal digits.
Min. Typ. Max. Min. Typ. Max.
A - - 1.750 - - 0.0689
A1 0.100 - 0.250 0.0039 - 0.0098
A2 1.250 - - 0.0492 - -
b 0.280 - 0.480 0.0110 - 0.0189
c 0.170 - 0.230 0.0067 - 0.0091
D 4.800 4.900 5.000 0.1890 0.1929 0.1969
E 5.800 6.000 6.200 0.2283 0.2362 0.2441
E1 3.800 3.900 4.000 0.1496 0.1535 0.1575
e - 1.270 - - 0.0500 -
h 0.250 - 0.500 0.0098 - 0.0197
k 0° - 8° 0° - 8°
L 0.400 - 1.270 0.0157 - 0.0500
L1 - 1.040 - - 0.0409 -
ccc - - 0.100 - - 0.0039
62$B9
%
CCC
B
$
C
%
HX
!
K
PP
,
!
*$8*(3/$1(
E
!
,

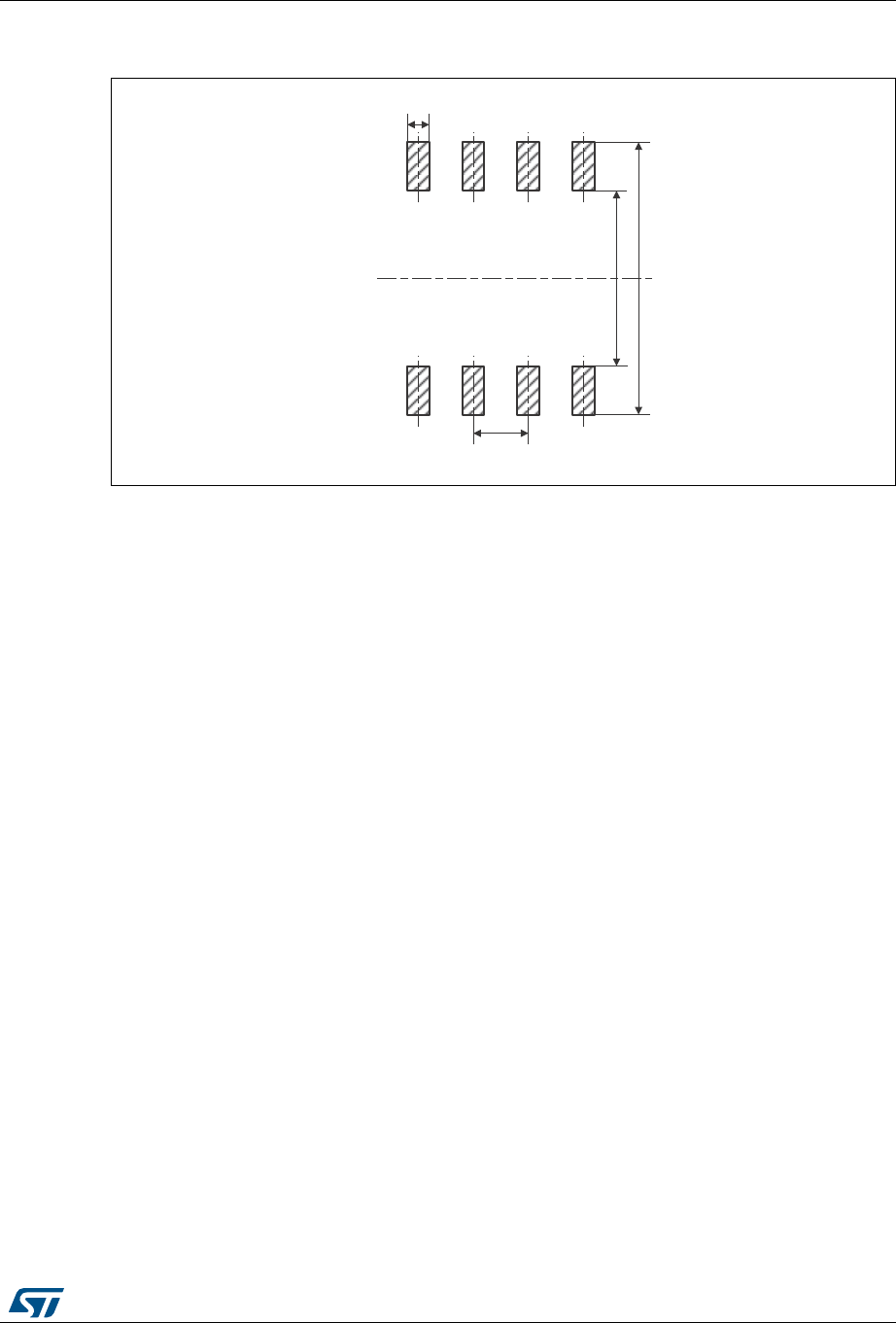

Package information M24512-W M24512-R M24512-DF
38/47 DS6520 Rev 30
9.4 WLCSP8 package information
Figure 19. WLCSP - 8 bumps, 1.271 x 1.937 mm, 0.5 mm pitch wafer level chip scale
package outline
1. Drawing is not to scale.
Table 22. WLCSP - 8 bumps, 1.271 x 1.937 mm, 0.5 mm pitch wafer level chip scale
package mechanical data
Symbol
millimeters inches(1)
Min Typ Max Min Typ Max
A 0.500 0.540 0.580 0.0197 0.0213 0.0228
A1 - 0.190 - - 0.0075 -
A2 - 0.350 - - 0.0138 -
b(2) - 0.270 - - 0.0106 -
D - 1.271 1.291 - 0.0500 0.0508
E - 1.937 1.957 - 0.0763 0.0770
e - 1.000 - - 0.0394 -
e1 - 0.866 - - 0.0341 -
e2 - 0.500 - - 0.0197 -
e3 - 0.433 - - 0.0170 -
F - 0.202 - - 0.0080 -
G - 0.469 - - 0.0185 -
aaa - - 0.110 - - 0.0043
bbb - - 0.110 - - 0.0043
ccc - - 0.110 - - 0.0043
tĂĨĞƌďĂĐŬƐŝĚĞ
^ŝĚĞǀŝĞǁ
KƌŝĞŶƚĂƚŝŽŶ
ƌĞĨĞƌĞŶĐĞ
Ğϭ
Ğϯ
ĞϮ
Ğ
&
'
ƵŵƉƐŝĚĞ
yz
ĂĂĂ
ƵŵƉ
^ĞĂƚŝŶŐƉůĂŶĞ
ĞƚĂŝů
ƌŽƚĂƚĞĚďLJϵϬΣ
ϭ
&IB0(B9
;ϴyͿ
ĞƚĂŝů
Ϯ
KƌŝĞŶƚĂƚŝŽŶ
ƌĞĨĞƌĞŶĐĞ
yz
;ϰyͿ
ď
ďďď
ĞĞĞ
ĐĐĐD
T
TĚĚĚD
DS6520 Rev 30 39/47
M24512-W M24512-R M24512-DF Package information
46
Figure 20. WLCSP - 8 bumps, 1.271 x 1.937 mm, 0.5 mm pitch wafer level chip scale
package recommended footprint
1. Dimensions are expressed in millimeters.
ddd - - 0.060 - - 0.0024
eee - - 0.060 - - 0.0024
1. Values in inches are converted from mm and rounded to 4 decimal digits.
2. Dimension is measured at the maximum bump diameter parallel to primary datum Z.
Table 22. WLCSP - 8 bumps, 1.271 x 1.937 mm, 0.5 mm pitch wafer level chip scale
package mechanical data (continued)
&IB)3B9
EXPSV[
A027 PYg wwsvs ME v2
Package information M24512-W M24512-R M24512-DF
40/47 DS6520 Rev 30
9.5 WLCSP8 ultra thin package information
Figure 21. WLCSP - 8 balls, 1.289x1.955 mm, 1 mm pitch, wafer level chip scale
package outline
1. Drawing is not to scale.
2. Dimension is measured at the maximum bump diameter parallel to primary datum Z.
3. Primary datum Z and seating plane are defined by the spherical crowns of the bump.
4. Bump position designation per JESD 95-1, SPP-010.
Table 23. WLCSP - 8 balls, 1.289x1.955 mm, 1 mm pitch, wafer level chip scale
mechanical data
Symbol
millimeters inches(1)
Min Typ Max Min Typ Max
A 0.262 0.295 0.328 0.0103 0.0116 0.0129
A1 - 0.095 - - 0.0037 -
A2 - 0.175 - - 0.0069 -
A3 - 0.025 - - 0.0010 -
b - 0.185 - - 0.0073 -
D - 1.289 1.309 - 0.0507 0.0515
E - 1.955 1.975 - 0.0770 0.0778
e - 1.000 - - 0.0394 -
e1 - 0.866 - - 0.0341 -
$=B37JB:/&63B0(B9
;<
'
(
DDD
;
DDD
;
2ULHQWDWLRQUHIHUHQFH
7239,(:
EEE =
'(7$,/$
%$&.6,'(3527(&7,21
$ $
$
$
E
6,'(9,(:
2ULHQWDWLRQUHIHUHQFH
)
*
H
H
H
H
%277209,(:
=
HHH =
FFF
GGG
=
=
;<
0
0
E
$
6HDWLQJSODQH
'(7$,/$
527$7('
DS6520 Rev 30 41/47
M24512-W M24512-R M24512-DF Package information
46

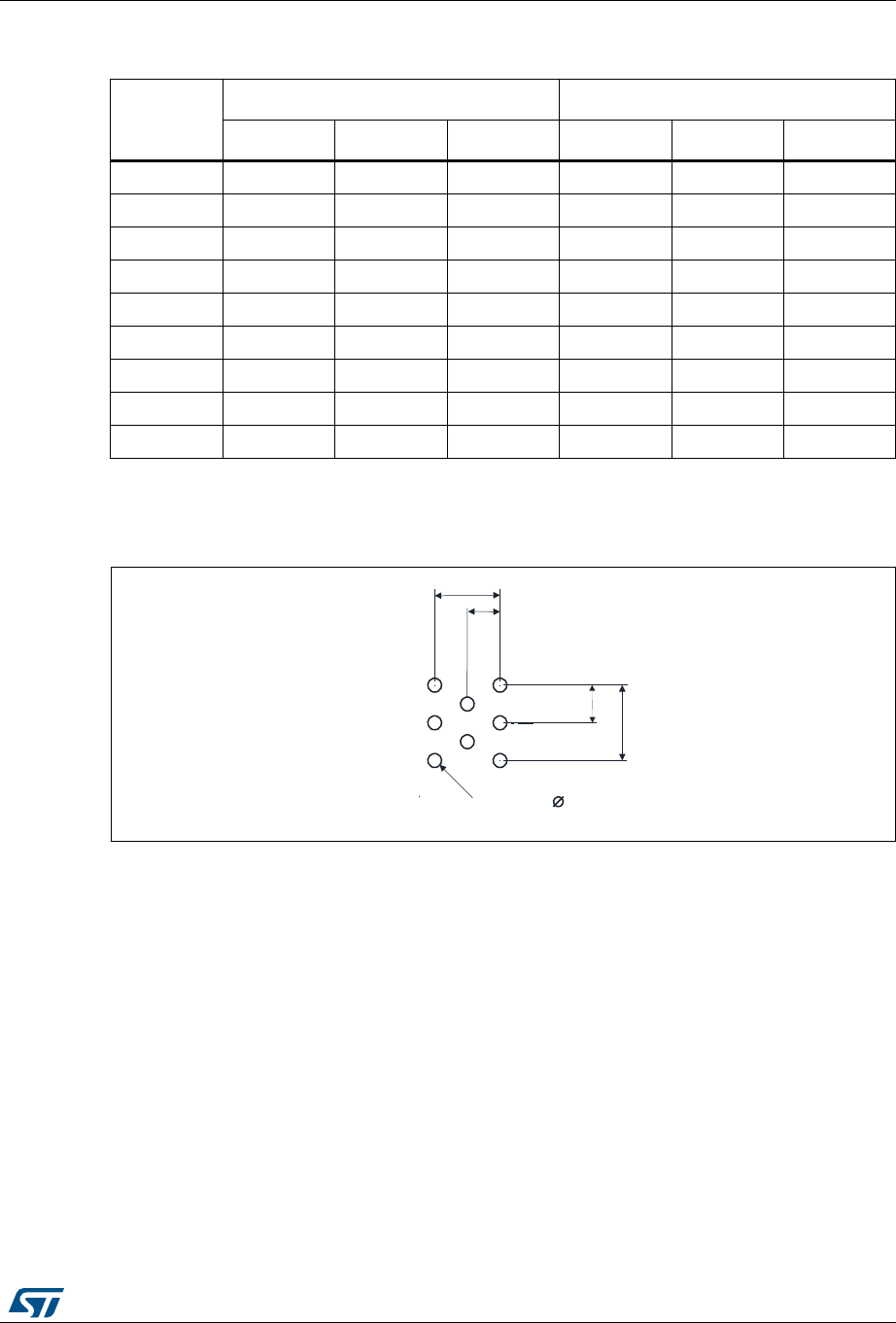

Figure 22. WLCSP - 8 balls, 1.289x1.955 mm, 1 mm pitch, wafer level chip scale
recommended footprint
1. Dimensions are expressed in millimeters.
e2 - 0.500 - - 0.0197 -
e3 - 0.433 - - 0.0170 -
F - 0.212 - - 0.0083 -
G - 0.478 - - 0.0188 -
aaa - 0.11 - - 0.0043 -
bbb - 0.11 - - 0.0043 -
ccc - 0.11 - - 0.0043 -
ddd - 0.06 - - 0.0024 -
eee - 0.06 - - 0.0024 -
1. Values in inches are converted from mm and rounded to 4 decimal digits.
Table 23. WLCSP - 8 balls, 1.289x1.955 mm, 1 mm pitch, wafer level chip scale
mechanical data (continued)
Symbol
millimeters inches(1)
Min Typ Max Min Typ Max
$=B37JB:/&63B)3B9
EXPSV[
:
Ordering information M24512-W M24512-R M24512-DF
42/47 DS6520 Rev 30
10 Ordering information
Table 24. Ordering information scheme
Example: M24512 -D W MC 6 T P /K
Device type
M24 = I2C serial access EEPROM
Device function
512 = 512 Kbit (64 x 8 bit)
Device family
Blank = Without Identification page
D = With Identification page
Operating voltage
W = VCC = 2.5 V to 5.5 V
R = VCC = 1.8 V to 5.5 V
F = VCC = 1.7 V to 5.5 V
Package
MN = SO8 (150 mil width)(1)
1. All package are ECOPACK2® (RoHS-compliant and free of brominated, chlorinated and antimony-oxide
flame retardants)
DW = TSSOP8 (169 mil width)(1)
MC = UFDFPN8 (DFN8)(1)
CS = WLCSP(1)
CU = WLCSP ultra-thin
Device grade
6 = Industrial: device tested with standard test flow over –40 to 85 °C
Option
T = Tape and reel packing
blank = tube packing
Plating technology
P or G = ECOPACK2®
Process(2)
2. The process letters apply to WLCSP devices only. The process letters appear on the device package
(marking) and on the shipment box. Please contact your nearest ST Sales Office for further information.
/K = Manufacturing technology code
j
DS6520 Rev 30 43/47
M24512-W M24512-R M24512-DF Ordering information
46
Table 25. Ordering information scheme (unsawn wafer)(1)
Example: M24512 - D F K W 20 I / 90
Device type
M24 = I2C serial access EEPROM
Device function
512 = 512Kbit (64 K x 8 bit)
Device family
D = With Identification page
Operating voltage
F = VCC = 1.7 V to 5.5 V
Process
K = F8H
Delivery form
W = Unsawn wafer
Wafer thickness
20 = Non-backlapped wafer
Wafer testing
I = Inkless test
Device grade
90 = -40°C to 85°C
1. For all information concerning the M24512 delivered in unsawn wafer, please contact your nearest ST
Sales Office.
Ordering information M24512-W M24512-R M24512-DF
44/47 DS6520 Rev 30
Note: Parts marked as ES or E or accompanied by an Engineering Sample notification letter are
not yet qualified and therefore not approved for use in production. ST is not responsible for
any consequences resulting from such use. In no event will ST be liable for the customer
using any of these engineering samples in production. ST’s Quality department must be
contacted prior to any decision to use these engineering samples to run a qualification
activity.
DS6520 Rev 30 45/47
M24512-W M24512-R M24512-DF Revision history
46
11 Revision history
Table 26.Document revision history
Date Revision Changes
31-Jan-2011 22
Updated Ta ble 7, Tab l e 13, Table 16 and Table 17.
Added note (2) to Table 14.
Deleted Table 22: Available M24512-W and M24512-R products
(package, voltage range, temperature grade) and Table 23: Available
M24512-DR products (package, voltage range, temperature grade).
01-Mar-2012 23
– Deleted reference “M24512-DR” and inserted reference “M24512-DF”.
– Updated data regarding package UFDFPN8.
– Updated Section 1: Description.
– Added Figure 4 and updated title of Figure 3.
– Updated VESD value in Table 7: Absolute maximum ratings, note (1)
under Table 13 and ICC value in Ta ble 1 4 .
– Added Table 10: Operating conditions (voltage range F) and Table 15:
DC characteristics (voltage range F).
– Added values tWLDL and tDHWH in Table 16: 400 kHz AC characteristics
and Table 17: 1 MHz AC characteristics.
–Replaced Figure 14.
12-Apr-2012 24 Updated Section 1: Description.
25-Jun-2012 25
Datasheet split into:
– M24512-125 datasheet for automotive products (range 3),
– M24512-W M24512-R M24512-DR M24512-DF for standard products
(range 6, this datasheet rev 25).
Deleted:
–SO8W package
– UFDFPN8 (MLP8): MB version package
– WLCSP (KA die) dimensions
Added:
– Reference M24512-DR
–Table 12: Cycling performance
–Table 13: Memory cell data retention
Updated:
–Figure 12: Maximum Rbus value versus bus parasitic capacitance
(Cbus) for an I2C bus at maximum frequency fC = 400 kHz
–Figure 13: Maximum Rbus value versus bus parasitic capacitance Cbus)
for an I2C bus at maximum frequency fC = 1MHz
17-Sep-2012 26 Updated Section 5.2.2: Current Address Read.
Modified Figure 3: WLCSP connections and Figure : .
Revision history M24512-W M24512-R M24512-DF
46/47 DS6520 Rev 30
16-Feb-2015 27
Removed:
– Note on Figure 3
– Note 2 on Tab le 3
Updated:
– Note 1 on Table 12 and Table 13
–Table 18
–Figure 11
–Table 20
– titles on Figure and Table 21
–Table 24
– note 1 on Table 21
Added:
– Note 2 on Table 12
– Note 4 and 5 on Table 14
– Note 6, 7 and 8 on Table 15
– Note 6, 7 on Table 16
– note 8 on Table 17
–Figure 20
– reference to Engineering sample after Ordering information scheme
27-May-2015 28
Added:
– Unsawn wafer reference on cover page and Table 25: Ordering
information scheme (unsawn wafer)
– Note 1 on Table 12
Removed ordering type M24512-DRxxxx from the whole document
(device replaced by either M24512-Rxxx or M24512-DFxxx)
22-Mar-2018 29
Added WLCSP8 ultra thin package in cover page, Section 9.5: WLCSP8
ultra thin package information, Table 3: Device select code
Updated Figure 3: WLCSP connections, Table 10: AC measurement
conditions, Table 24: Ordering information scheme
21-Sep-2018 30
Updated Figure 19: WLCSP - 8 bumps, 1.271 x 1.937 mm, 0.5 mm pitch
wafer level chip scale package outline and Figure 21: WLCSP - 8 balls,
1.289x1.955 mm, 1 mm pitch, wafer level chip scale package outline
Table 26.Document revision history (continued)
Date Revision Changes
DS6520 Rev 30 47/47
M24512-W M24512-R M24512-DF
47
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on
ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or
the design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2018 STMicroelectronics – All rights reserved
Products related to this Datasheet
IC EEPROM 512K I2C 1MHZ 8TSSOP
IC EEPROM 512K I2C 1MHZ 8SO
IC EEPROM 512K I2C 1MHZ 8SO
IC EEPROM 512K I2C 1MHZ 8TSSOP
IC EEPROM 512K I2C 1MHZ 8WLCSP
IC EEPROM 512K I2C 1MHZ 8UFDFPN
IC EEPROM 512K I2C 1MHZ 8TSSOP
IC EEPROM 512K I2C 1MHZ 8SO
IC EEPROM 512K I2C 1MHZ 8SO
IC EEPROM 512K I2C 1MHZ 8TSSOP
IC EEPROM 512K I2C 1MHZ 8SO
IC EEPROM 512K I2C 1MHZ 8WLCSP
IC EEPROM 512K I2C 1MHZ 8TSSOP
IC EEPROM 512K I2C 1MHZ 8TSSOP
IC EEPROM 512K I2C 1MHZ 8SO
IC EEPROM 512K I2C 1MHZ 8SO
IC EEPROM 512K I2C 1MHZ 8TSSOP
IC EEPROM 512K I2C 1MHZ 8TSSOP
IC EEPROM 512K I2C 1MHZ 8SO
IC EEPROM 512K I2C 1MHZ 8SO
IC EEPROM 512K I2C 1MHZ 8TSSOP
IC EEPROM 512K I2C 1MHZ 8WLCSP
IC EEPROM 512K I2C 1MHZ 8TSSOP
IC EEPROM 512K I2C 1MHZ 8UFDFPN
IC EEPROM 512K I2C 1MHZ 8SO
IC EEPROM 512K I2C 1MHZ 8UFDFPN
IC EEPROM 512K I2C 1MHZ 8SO
IC EEPROM 512K I2C 1MHZ 8SO
IC EEPROM 512K I2C 1MHZ 8TSSOP
IC EEPROM 512K I2C 1MHZ 8UFDFPN
